Aputure INFINIBAR PB12

Description

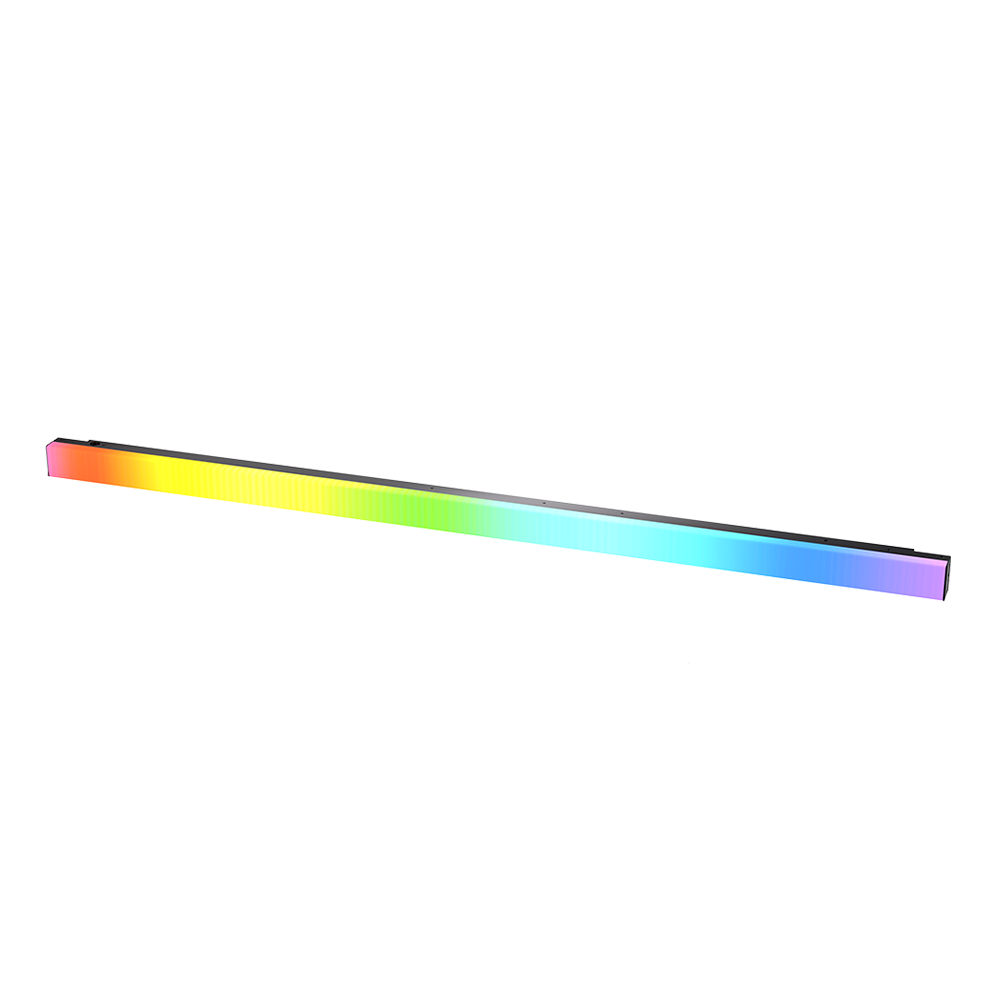

Aputure INFINIBAR PB12 (APL0300A1K) Pixel Bar is Aputure’s first RGBWW full-colour LED pixel bar. Featuring 96 pixels, intuitive mounting and connecting options with an infinite blending design, an integrated battery, and advanced connectivity methods, the INFINIBAR PB12 is a 4-foot (120cm) pixel bar that excels in constructing unique, colorful designs that bring scenes to life in new and exciting ways.

The INFINIBAR’s most unique feature is the ability to link multiple 1ft, 2ft, or 4ft INFINIBARs together using 10 differently-shaped connectors1 to design creative shapes and effects. Users can operate multiple INFINIBARs using one power supply when linked by the power-sharing connectors or use their internal batteries for greater versatility. The pixel bar’s infinite blending design also eliminates visible gaps between fixtures to create seamless pixelated effects using the PB12’s 96 RGB pixels.

Featuring advanced wireless connectivity, the INFINIBAR PB12’s 96 pixels can be grouped and controlled via Sidus Link, LumenRadio CRMX, or through wired DMX using Aputure’s USB-C to DMX Adapter. 2 It also incorporates critical color controls (including advanced HSI with white- point adjustability, RGB, and xy) for full creative freedom. Toggle between 9 built-in System FX and 7 built-in Pixel FX, or save up to 20 Custom FX in the Sidus Link app for easy access to different light modes.

The INFINIBAR PB12’s proprietary RGBWW chipset produces stunning color quality throughout its wide CCT range of 2,000K to 10,000K with full green-magenta adjustment and can reproduce >90% of colours within the Rec.2020 Colour Space. Matching Aputure’s high standards for colour, the INFINIBAR PB12 also produces accurate skin tones, measuring scores of CRI: 96+, TLCI: 98+, SSI (D56): 74, and SSI (Tungsten): 85.

With its lightweight yet durable aluminium housing, the INFINIBAR PB12 provides ultimate flexibility across all shooting environments. Whether linked together or used independently, the INFINIBAR’s built-in magnets, INFINIBAR Rail and Baby Pin Clamp system, and two 1⁄4-20in threads allow the PB12 to be mounted with ease. And with its built-in 59.2Wh Lithium battery, the INFINIBAR PB12 can operate at its 27W max output for 80 minutes, making it a versatile fixture for your lighting toolkit.

1 Each INFINIBAR Includes 1 Straight Connector. Remaining 9 Connectors Sold Separately
2 Aputure Active USB-C to 5-Pin DMX In & Out Adapter Sold Separately

Features

• 4-Foot (120cm) 27W RGBWW Full Color LED Pixel Bar
• 96 Individual Pixels (Lighting Zones)
• Infinite Blending Design to Reduce Visible Gaps When Connecting
  Multiple Lights
•  10 Splicing Connectors1 : Straight, Triangle Flat, Triangle 3D, Hexagon Flat, Hexagon 3D, 3-Way Flat, 4-Way Flat, 6-Way Flat, Square Flat, Square 3D
• Share AC Power Over Multiple INFINIBARs w/ Splicing Connectors

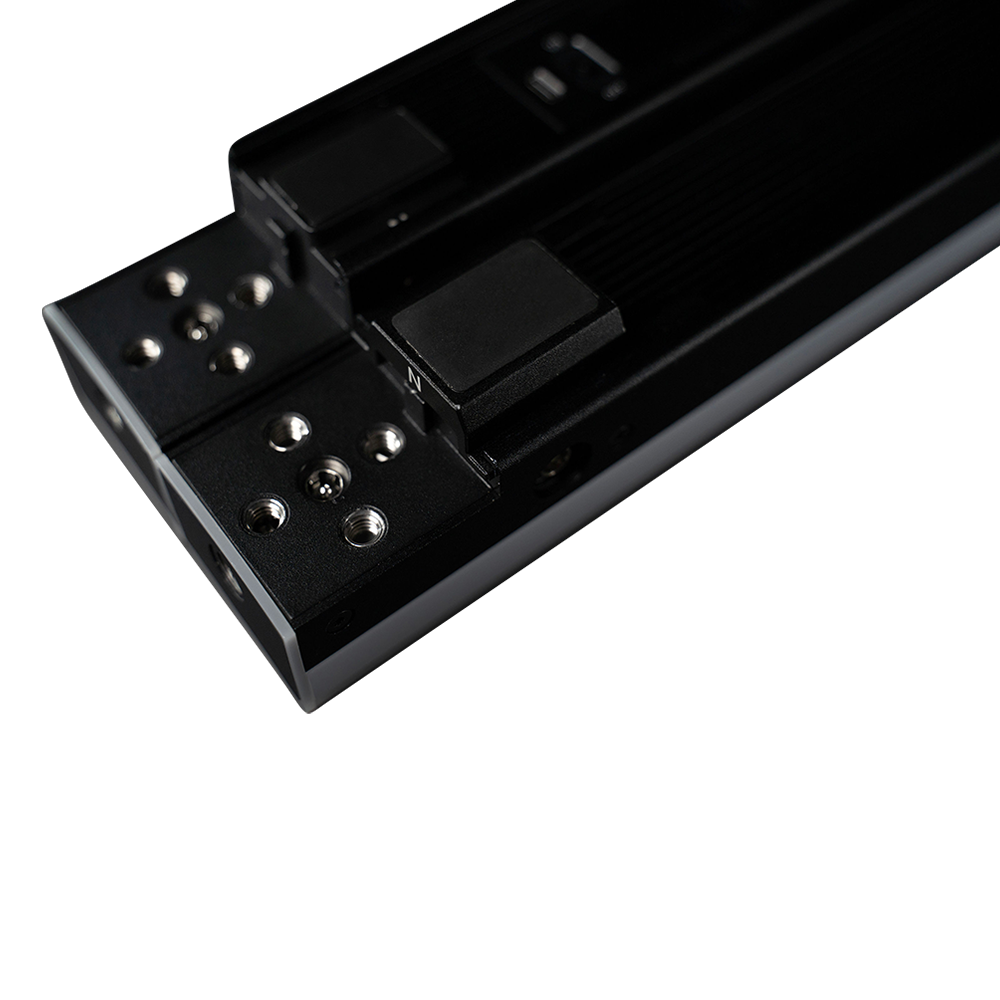

• Mounting: INFINIBAR Clamp (Baby Pin) & Neodymium Magnets, 1/4-20in Screw Mount
• Frosted Diffusion Layer for Smoother Light and Reduced Glare
• Approx. 80 Min Battery Life at Max Output (59.2Wh)
• Smart Battery Life Modes: Adjust Runtime to 2/4/6/8 Hours
• 0-100% Brightness Control in 0.1% Increments
• Fully Tunable CCT from 2,000K-10,000K + G/M Adjustment
• CRI: ≥96, TLCI: ≥98, TM-30 Rf (Avg.) = 94, TM-30 Rg (Avg.) = 103, SSI(D56) ≥74, SSI(Daylight) ≥85
• ≥90% of Colors within Rec.2020 Color Space
• Advanced HSI with White Point CCT Control
• Industry-standard xy (CIE 1931), RGB, 300+ Gel Presets
• Multiple Control Methods: Sidus Link® App, DMX/RDM via USB-C2 LumenRadio CRMX
• 32 Built-In DMX Profiles: Supports DMX Loss Behaviors
• 9 System FX: Fireworks II, Fire II, Paparazzi II, Faulty Bulb II, TV III, Pulsing III, Cop Car III, Lightning III, Party II
• 7 Pixel FX: Color Fade, Color Cycle, One Pixel Chase, Two Pixel Chase, Three Pixel Chase, Rainbow, Pixel Fire
• Supports SidusPro® FX: Including Manual FX, System FX, Picker FX, Magic Program, and Music FX
• Save up to 10 Custom FX and 10 Music FX
• Frequency Selection to Reduce Flicker
• Included Carrying Case
• Available in 8-Light Kit Configurations
• Optional Lighting Control Accessories: 1) Softbox, 2) 45o Slip-On Light Control Grid

Comes with

• 1x INFINIBAR PB12
• 1x 48W DC Power Adapter (3m)
• 1x AC Locking Power Cable (1.5m)
• 2x Magnetic Spacer 2
• 1x INFINIBAR Clamp to Baby Pin Adapter
• 1x INFINIBAR Straight Connector
• 1x 5mm Hex Wrench

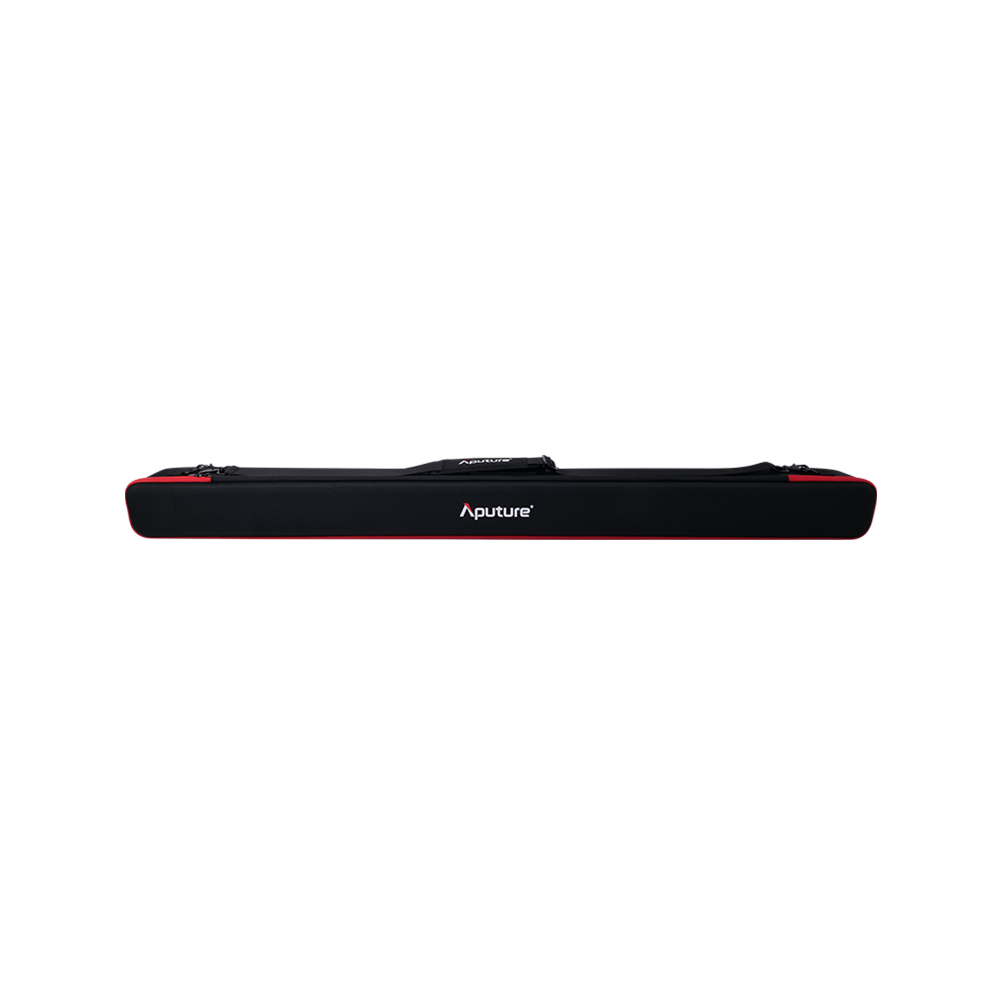

• 1x Carrying Case
