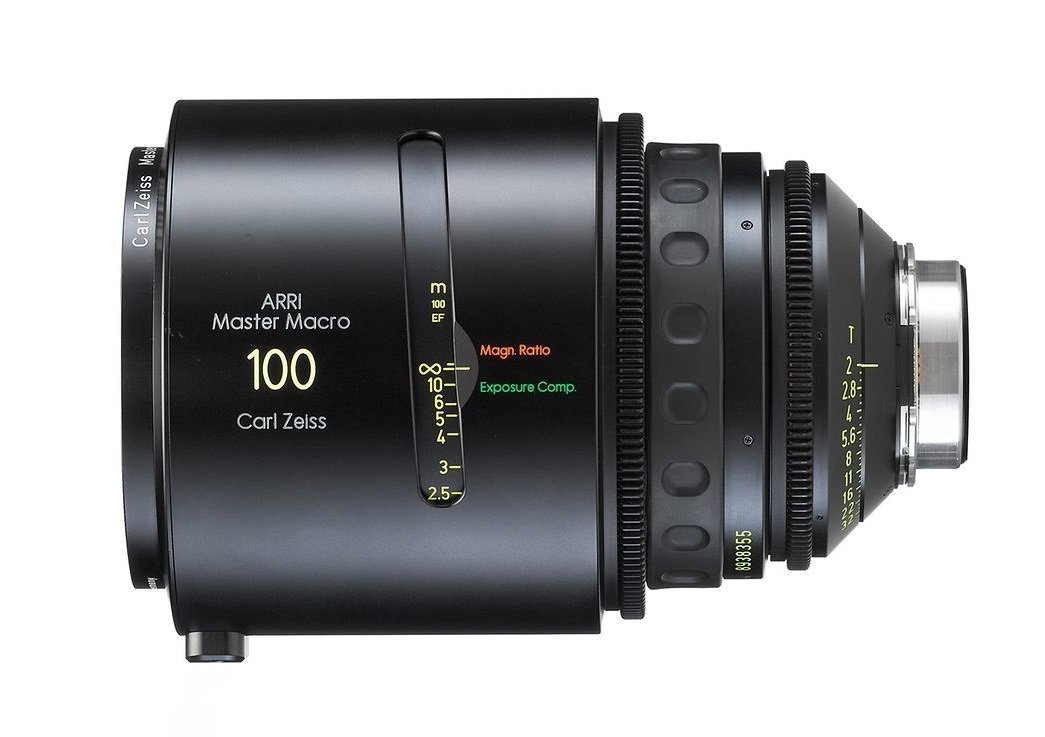

ARRI Master Macro 100/T2.0 (M) K2.47572.0

ARRI Master Macro 100/T2.0 K2.47572.0 For those who want the ultimate in image quality for table top cinematography, product shots, close-up inserts on feature films or any other applications that require a macro lens, the Master Macro 100 delivers images of breathtaking beauty.

Designed for the ANSI Super 35 image format, the Master Macro 100 can be used on any PL mount 35 mm film and single sensor digital camera. In addition it can be used on PL mount 16 mm film and single sensor 16 mm or 2/3 format digital cameras.

With a 1:1 magnification ratio, a maximum aperture of T2.0 and an optical design developed specifically for macro work, the Master Macro delivers phenomenally sharp and contrasty images with vibrant colors for extreme close-ups of the highest visual quality.

Additional information

BRAND

ARRI

MPN

AI-K2.47572.0

Specification

Specification

K2.47572.0


Name

Master Macro T2.0/100 mm
Type (1) Makro-Planar T* XP
Lens Mout (2) PL-LDS
Aperture (3) T2.0/T4.3 to T32
Close focus (4) 0.35 m / 13 3/4″
Magnification ratio (5) 1:1
Length (6) 202,7 mm / 8″
Front diameter (7) 114 mm / 4.5″
Weight 2.6 kg / 5.7 lbs
Horizontal angle of view ANSI Super 35 (8) ID
= 31.14 mm (11)
14.02°
Horizontal angle of view DIN Super 35 (9) ID
= 30.00 mm (11)
13.52°
Horizontal angle of view Normal 35 (10) ID
= 27.20 mm (11)
12.42°
Entrance pupil (12) 77.1 mm / 3″

(1) T* XP is the trademark of the ZEISS anti-reflection lens coating that
significantly reduces veiling glare and other internal reflections. XP
stands for extended performance.
(2) Positive locking 54 mm stainless steel lens mount with Lens Data System
(LDS) contacts
(3) Maximum aperture at infinity is T2.0, at close focus
T4.3
(4) Close focus is measured from the film/sensor plane
(5) Magnification ratio is the relationship of the size of an object on film
(first number) to the size of that object in real life (second number)
(6) Lens length is measured from the lens mount to the front of the lens
housing
(7) Diameter of the lens/matte box interface. Maximum lens
housing diameter for the Master Macro 100 is 138 mm.
(8) Horizontal angle of view for an ANSI Super 35 Silent camera aperture
(aspect ratio 1.33:1, dimensions 24.9mm x 18.7mm / 0.980″ x 0.7362″)
(9) Horizontal angle of view for a DIN Super 35 Silent camera aperture
(aspect ratio 1.33:1, dimensions 24mm x 18mm / 0.944″ x 0.7087″)
(10)
Horizontal angle of view for a Normal 35 Academy camera aperture (aspect
ratio 1.37:1, dimensions 22mm x 16mm / 0.8661″ x 0.6299″)(11) The image
diameter (ID) is the diameter of the image circle needed for the respective
format. The Master Macro 100 is designed for the largest ID given here (ANSI
Super 35).
(12) The distance
from the entrance pupil to the film/sensor plane. Positive numbers indicated
an entrance pupil in front, negative numbers indicated an entrance
pupil behind the film/sensor plane. The entrance pupil (often mistakenly
called “nodal point”) is the center of perspective; moving the camera/lens
system around the center of the entrance pupil prevents parallax errors.
While largerly irrelevant for live action, this measurement is important for
special effects work.
