Blackmagic URSA Broadcast G2 Studio Bundle

Description

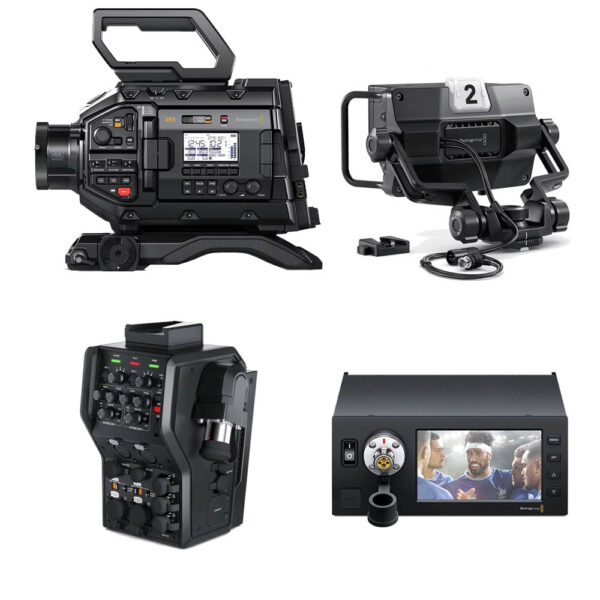

Blackmagic URSA Broadcast G2 Studio Bundle includes the Blackmagic URSA Broadcast G2, URSA studio viewfinder G2, Blackmagic Camera Fibre converter and a studio fibre converter.

The Blackmagic URSA Broadcast G2 supplies Ultra HD Broadcast Camera for UHD and HD using B4 Lenses (BMD-CINEURSAMWC6KG2). Blackmagic URSA Broadcast G2 is an incredibly powerful camera designed for both traditional and online broadcasters. The 3 cameras in 1 design allows it to work as a 4K production camera, a 4K studio camera or a 6K digital film camera!

• 6K Digital Film Sensor: Provides high dynamic range, excellent low light performance, and true digital film quality.
• Lens Mount Flexibility: Changeable mounts (PL or EF) for different lenses, including photo and digital film lenses.
• Broadcast and Digital Film Quality: 6K resolution for film, and 4K for Ultra HD broadcast with B4 lenses.
• Dynamic Range: 13 stops for improved colour correction and contrast.
• Low Light Performance: Native ISO 400 and high ISO of 3200, with gain from -12dB to +36dB (25,600 ISO), reducing noise.
• B4 Lens Compatibility: Par-focal lenses for easy zoom focus and electronic lens control.
• Built-In ND Filters: ¼, 1/16th, and 1/64th stop filters for light control and improved colour accuracy.
• Broadcast Production Features: ENG camera controls, low light sensor, and optimized for broadcast news and programming.
• Live Studio Camera: YRGB colour corrector, full remote control, and compatibility with various lens types, including optional focus and zoom control via Blackmagic demands.

The Blackmagic URSA Studio Viewfinder G2 is a 7-inch studio viewfinder designed for tripod-mounted use, transforming the camera into a true studio setup. Key features include:

• Mounting & Adjustability: Uses a V-lock mount, allowing attachment to the camera body or SMPTE fibre converter. It has tilt and rotation adjustments with lock knobs for tension control.
• Display: 7″ 2,000 nit display with grip handles for easy positioning.
• Sunshade: Removable metal sunshade for bright outdoor environments.
• Controls: Includes on-screen and physical controls for framing, focus, and menu navigation. Three knobs for LCD brightness, contrast, and focus peaking adjustment.
• Customizable Buttons: Three programmable function buttons for features like zebra, false colour, LUTs, and more.
• Tally Light: Large red, green, and orange tally light for on-air, preview, and ISO recording status. Controlled via SDI and adjustable for each camera using the URSA Broadcast G2 menu.
• SDI Control: Supports Blackmagic’s SDI Control Protocol for camera control, talkback, and tally info, compatible with other Blackmagic devices.
• Clip-on Number Decals: Included for easy camera identification for presenters.

This viewfinder is ideal for enhancing studio operations with a robust set of features for ease of use and control.

Blackmagic Camera Fibre Converter:

• Camera Connectivity: Attaches to the back of URSA Mini or URSA Broadcast cameras, converting all audio, video, camera control, and talkback signals into SMPTE fibre.
• Studio Camera Controls: Adds broadcast studio camera controls, including return feeds, intercom, focus/iris control, and more.
• Power and Audio: Powers the camera over SMPTE fibre up to 2 km and includes dual intercom channels, audio inputs, PTZ control, and additional DC outputs.
• SMPTE Fibre Connectivity: Supports SMPTE fibre cables for long-distance camera setup, with a single durable cable carrying video, audio, power, and control.
• 10G Ethernet for IP Video: Uses IP video with low latency, lossless 10-bit video encoding, ensuring high-quality, reliable performance.
• Dual-Channel Talkback: Features 2 dual-channel talkback intercoms with backup options, and a tracker talkback for additional communication needs.
• Safety Features: Built-in fail-safe that cuts power to prevent danger if cable issues or power faults are detected.
• Durable Design: All-metal design, withstands outdoor field production and continuous use. Includes a V-Lock mount for accessories like studio viewfinders.
• Flexibility: Ideal for broadcast setups, works with high-end production cameras like URSA Broadcast and Mini, and supports industry-standard connections.

The Blackmagic Camera Fibre Converter is a high-end, durable solution for converting and transmitting all camera signals over long distances using SMPTE fibre, providing full studio camera functionality and reliable IP video performance.

Blackmagic Studio Fibre Converter:

• Signal Conversion: Converts remote camera signals into standard television industry connections for use with switchers, audio mixers, and talkback systems.
• Power Supply: Provides high-capacity power to drive the cable, supporting the camera and accessories.
• Connectivity: Includes connections for tally, two dual-channel intercoms, a backup engineering talkback channel, Ultra HD camera feed, and 3 HD return feeds.
• Camera Control: Full remote camera control, PTZ, tracker talkback, and Ethernet over a single SMPTE fiber cable.
• LCD Screen: 5-inch LCD screen for monitoring remote camera signals and easy patching/verification.

The Blackmagic Studio Fibre Converter simplifies long-distance broadcast setups by converting signals, providing power, and offering a range of communication and control features.

Comes With:

• 1x Blackmagic URSA Broadcast G2*
• 1x Blackmagic URSA Studio Viewfinder G2**
• 1x Blackmagic Camera Fibre Converter
• 1x Blackmagic Studio Fibre Converter

URSA G2*

• Blackmagic URSA Broadcast G2
• 4K B4 lens mount installed
• B4 turret dust cap
• EF Mount with dust cap
• V-Lock Battery Plate installed
• URSA 12V 100W power supply
• URSA Mini Shoulder Pad
• URSA Mini top handle & rubber stopper
• Viewfinder mounting plate
• 2 x 1/4 inch baseplate screws
• 2 x long 1/4 inch top handle screws
• 2 x short 1/4 inch top handle screws
• 8 x EF Mount screws
• 4 x V-Lock plate spare screws
• Welcome wallet with QR code for camera software download
• DaVinci Resolve Studio wallet
• DaVinci Resolve Studio activation key

URSA Studio Viewfinder G2**

• 1x Viewfinder
• 1x Articulating QR Mount
• 1x Removable Sunshade
