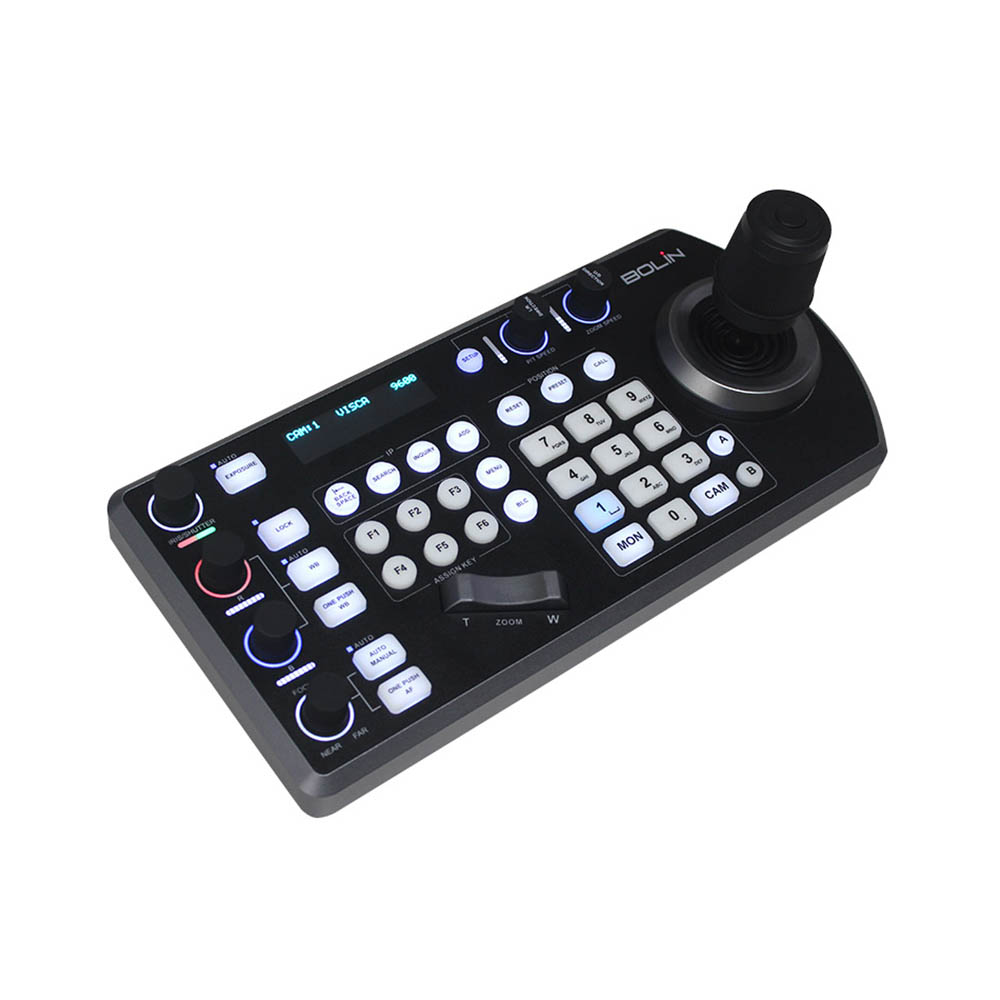

Bolin Universal PTZ Camera Remote Controller

Delicate knobs for Quick Access features include the control of Exposure, Shutter Speed, Iris, Compensation, White Balance, Focus, PT Speed, Zoom Speed.

ASSIGN item is selectable, additional functions can be assigned to ASSIGN keys to have One-Key quick action of the camera’s Flicker, Status Display, AE level, SRZ, Tele Convert mode, Trace Memory, ND filter, Picture Profile settings, Rain wiper On/Off, Camera Power etc. Functionalities can be assigned. Available function depends on camera specification.

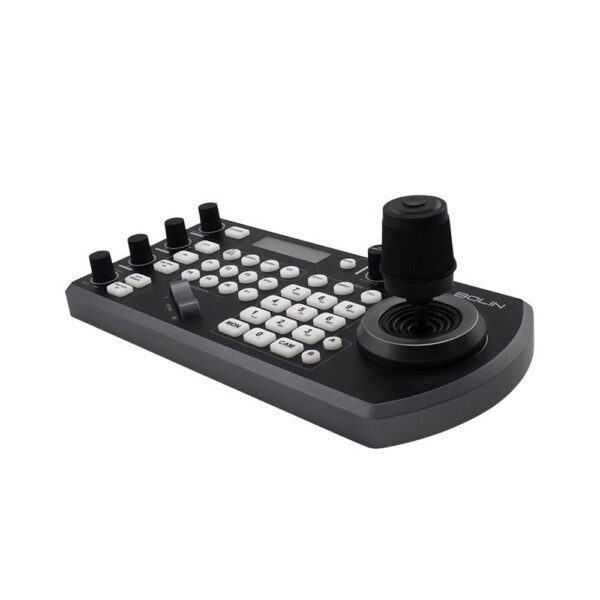

■ Pan, Tilt, Zoom 3-Way simultaneous joystick control
■ Supplementary seesaw lever zoom control
■ Instant variable speed adjustment for Pan/Tilt/Zoom
■ Trace Memory allows a sequence of camera moves to be stored and recalled whenever required.
■ Instant camera focusing by manually fine tuning and One Push focus.
■ Selectable Assign Keys for one-key quick action.

Use IP software tool to modify and organize controller’s configuration, export/import existing PTZ camera registration data via IP network makes KBD-1010 controller configuration a breeze when you have multiple controllers to work in one system.

Via Visca protocol, either serial Visca or Visca Over IP, the KBD-1010 has image colour and exposure related settings – including black levels, white balance, auto/manual exposure level, iris, gain and shutter speed – can be adjusted directly without using the camera menus.

Via Visca protocol, either serial Visca or Visca Over IP, the KBD-1010 has image colour and exposure related settings – including black levels, white balance, auto/manual exposure level, iris, gain and shutter speed – can be adjusted directly without using the camera menus.

IP control, without using PC, automatically search available IP cameras in the network. Assign IP addresses and IP camera registration easily.

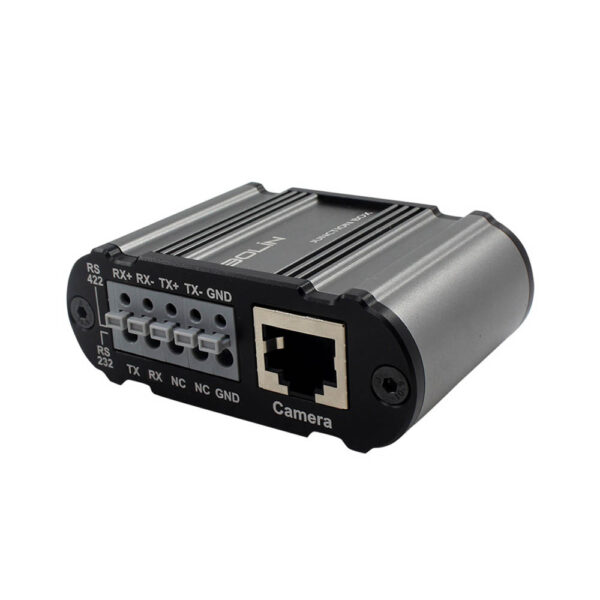

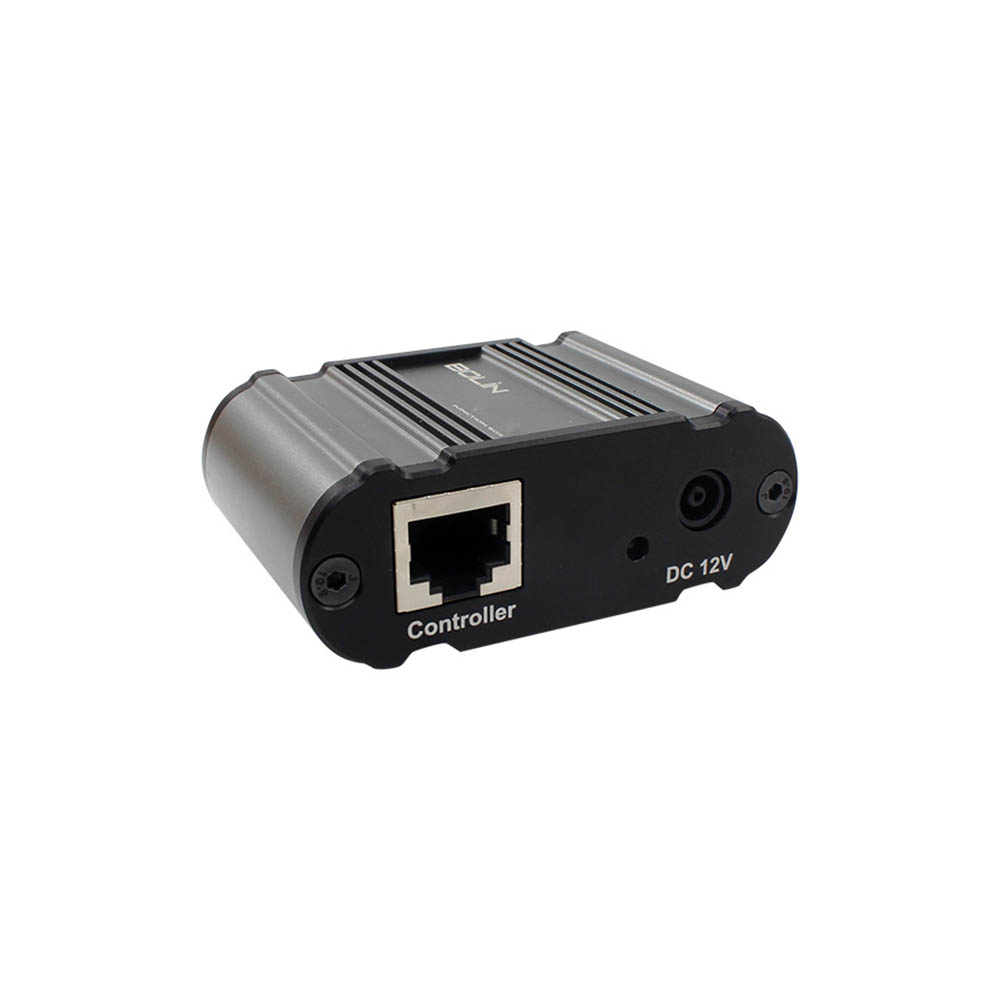

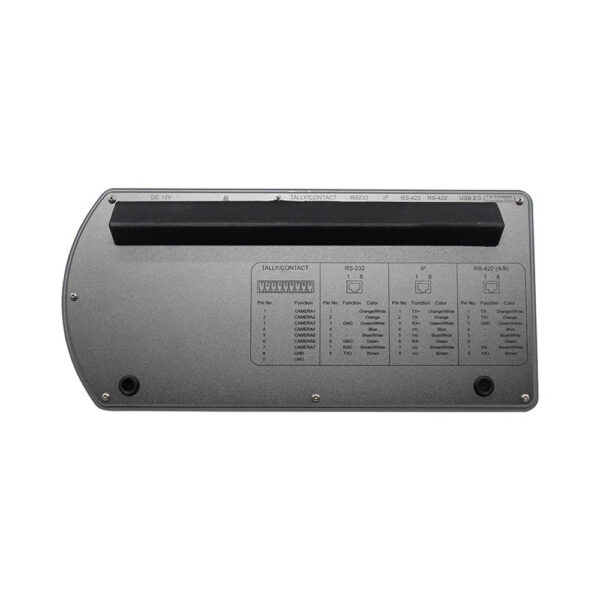

Other than 12VDC power input, PoE(IEEE802.3at) supported for network control application. Even when use serial control, power can be provided over serial control cable to keep the keyboard back panel wire connection clean for moving the controller around.

Camera pre-sets with position, zoom and image parameter settings can be stored and recalled instantly via the numeric keypad.

It provides longer distance power run, and it is suitable for vehicle or moving platform use, such as broadcast vehicle, mobile equipment cart, etc.

Camera and Monitor Switching via Video Router. KBD-1010 is compatible with Black Magic SDI video router, to switch cameras and monitors via the router with PTZ camera control switching simultaneously. More supported compatible video routers will be added.

Firmware upgrade via USB/IP to keep the performance of the controller up to date.

Visca Over IP port used with the camera is different from different camera makers, KBD-1010 allows you to use any brand of Visca Over IP cameras in a same system together with no conflicts.
