DJI SDT Transmission Transmitter

Description

DJI SDT Transmission Transmitter (CP.RN.00000400), has boundless potential. With Software-Defined Radio technology, DJI SDR Transmission utilises both SDR and Wi-Fi video transmission modes. SDR technology takes video transmission performance to a whole new level, offering enhanced stability, interference resistance, and penetration capabilities. For instances that require temporary monitoring, DJI SDR Transmission also accommodates Wi-Fi transmission to provide teams with increased flexibility. DJI SDR Transmission offers a minimal latency of just 35 milliseconds, ensuring smooth monitoring and efficient collaboration. It also supports metadata transmission from popular cinema cameras like ARRI and RED, allowing for real-time access to detailed shooting information for directors, cinematographers, and DIT teams. The DJI SDR Transmission also enables one-on-one real-time communication between the receiver and transmitter, making it easy for the cinematographer to communicate with the director or client at any time. It also offers various features such as channel switching, camera control, and compatibility with the RS Series Stabilizers, providing a seamless and comprehensive monitoring experience

Features:

Boundless Potential

• SDR Transmission, Stable & Anti-Interference
• Strong Penetration, Extended Transmission Distance
• High Bitrate, High Image Quality
• Innovative USB-C Monitoring Experience
• Broadcast Mode, Unlimited Number of Receivers
• Ronin Compatibility & Remote Control

Kilometer-Level Transmission, robust penetration

DJI SDR Transmission can reach up to 3 km/10,000 ft, [1] accommodating wide-area, dynamic filming scenarios. Coupled with superior penetration capabilities, it meets on-site live feed monitoring demands in various complex scenarios.

20Mbps High Bitrate, 1080p FHD Image quality

DJI SDR Transmission supports 1080p/60fps live feeds, with a high bitrate of up to 20 Mbps, [2] ensuring smooth monitoring and collaboration.

Seamless Auto Frequency

DJI SDR Transmission supports seamless auto frequency hopping across 2.4 GHz, 5.8 GHz, and DFS frequency bands. In case of interference, it can automatically switch to the optimal channel, effortlessly tackling complex environmental challenges.

Unlimited Number of Receivers

In Broadcast mode, each transmitter can connect to an unlimited number of receivers, providing a high-quality monitoring experience for multiple collaborators and meeting the independent monitoring needs of various professional roles.

Agile and Innovative Monitoring

Supports multiple monitoring methods and can output three SDR signals and two Wi-Fi signals simultaneously. The receiver can output to monitors via SDI/HDMI. Additionally, the transmitter allows for direct connection to smartphones or tablets over Wi-Fi, offering a cost-effective, dual-channel monitoring experience without the need for a receiver.
On top of this, DJI SDR Transmission also introduces a USB-C output monitoring method that combines stability with convenience. Users can use a USB-C cable to connect the receiver to a smartphone or tablet for smooth and stable monitoring.

Compact, Lightweight and Portable

With a lightweight design and foldable antennas for easy storage, a single transmitter or receiver weighs approximately 145 g. This not only ensures portability but also supports various mounting methods, satisfying a wide range of on-scene demands.

DJI Ronin App New and Upgraded

When DJI SDR Transmission is connected to the DJI Ronin app in Broadcast mode, users can seamlessly switch between camera indexes within the app, meeting the monitoring needs for different camera views. The app also supports local recording, and recorded content can be reviewed on the playback page. The app also supports mainstream monitoring assistance tools such as LUT, peaking, waveform, and false colour, delivering a professional monitoring experience.

35-Millisecond, Low-Latency Transmission

The minimal latency of just 35 ms ensures smooth monitoring and efficient collaboration.

Metadata Transmission for Professional Use Cases

DJI SDR Transmission supports metadata transmission from mainstream cinema cameras like ARRI and RED via SDI. This provides directors, cinematographers, and DIT teams with quick access to detailed shooting information in real time.

Communicate With Voice Call

DJI SDR Transmission enables one-on-one real-time communication between the receiver and transmitter, allowing for seamless conversations between the cinematographer and the director or client at any time.

Control for the RS Series Stabilizers

Supports Force Mobile, virtual joystick, and gimbal recentring functions.

Channel Settings

When DJI SDR Transmission is connected to the app in SDR Control mode or Wi-Fi mode, users can switch channels within the app and monitor channel quality simultaneously.

Camera Control*

DJI SDR Transmission supports PTP control over cameras, displaying and adjusting aperture, shutter, ISO, and even triggering the camera’s photo-taking and video-recording functions through the app. Additionally, it supports CEC control for Sony cameras, bringing Mirror Control mode into play.

Connectivity

Transmitter Ports – USB-C Port – USB-C Power and Gimbal Communication Port, USB-C Port, 3.5mm Stereo Jack – Supports one-on-one voice calls, HDMI Input Port – Supports 1080p/60fps video input, SDI Input Port – Supports 1080p/60fps video input.

Receiver ports – USB-C Port – USB-C Firmware Update and Video Output Port, USB-C Port – USB-C Power Port, USB-C Power Port 3.5mm Stereo Jack – Supports one-on-one voice calls, HDMI Output Port – Supports 1080p/60fps video and audio output, SDI Output Port – Supports 1080p/60fps video and audio output.

Comes With:

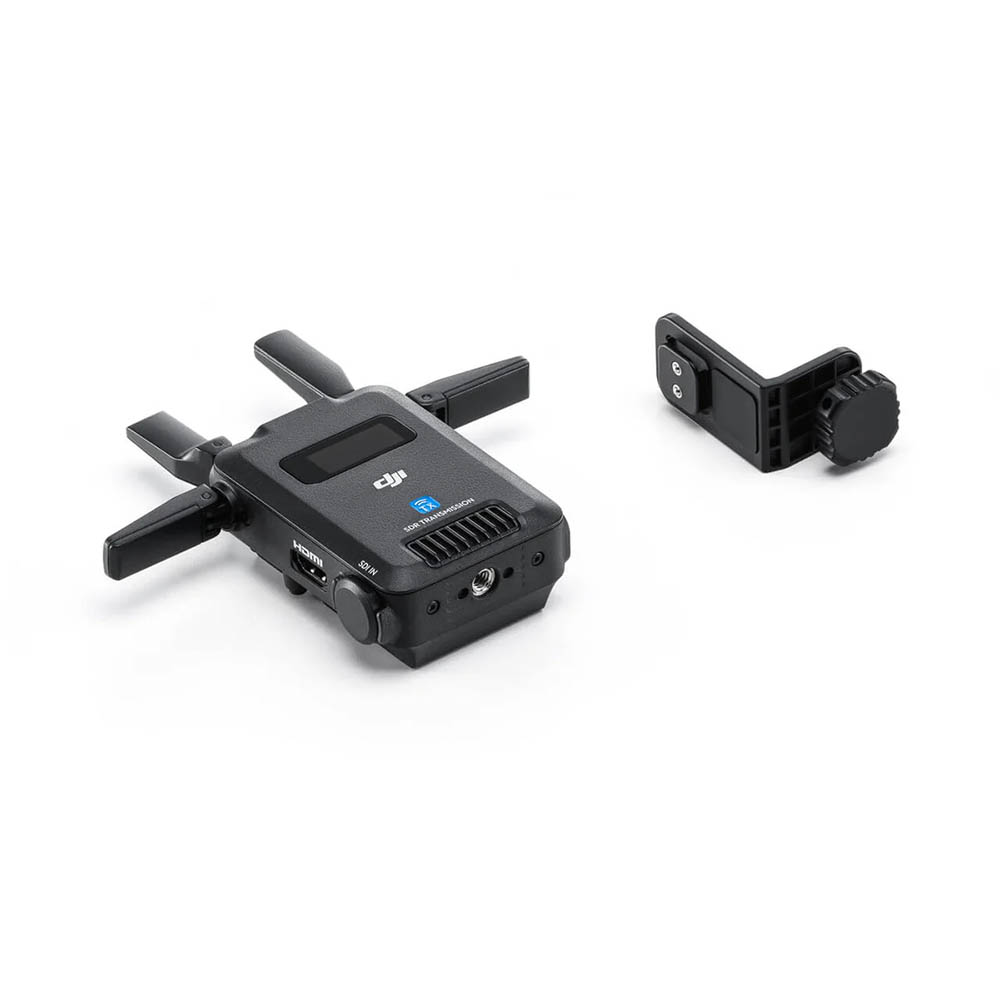

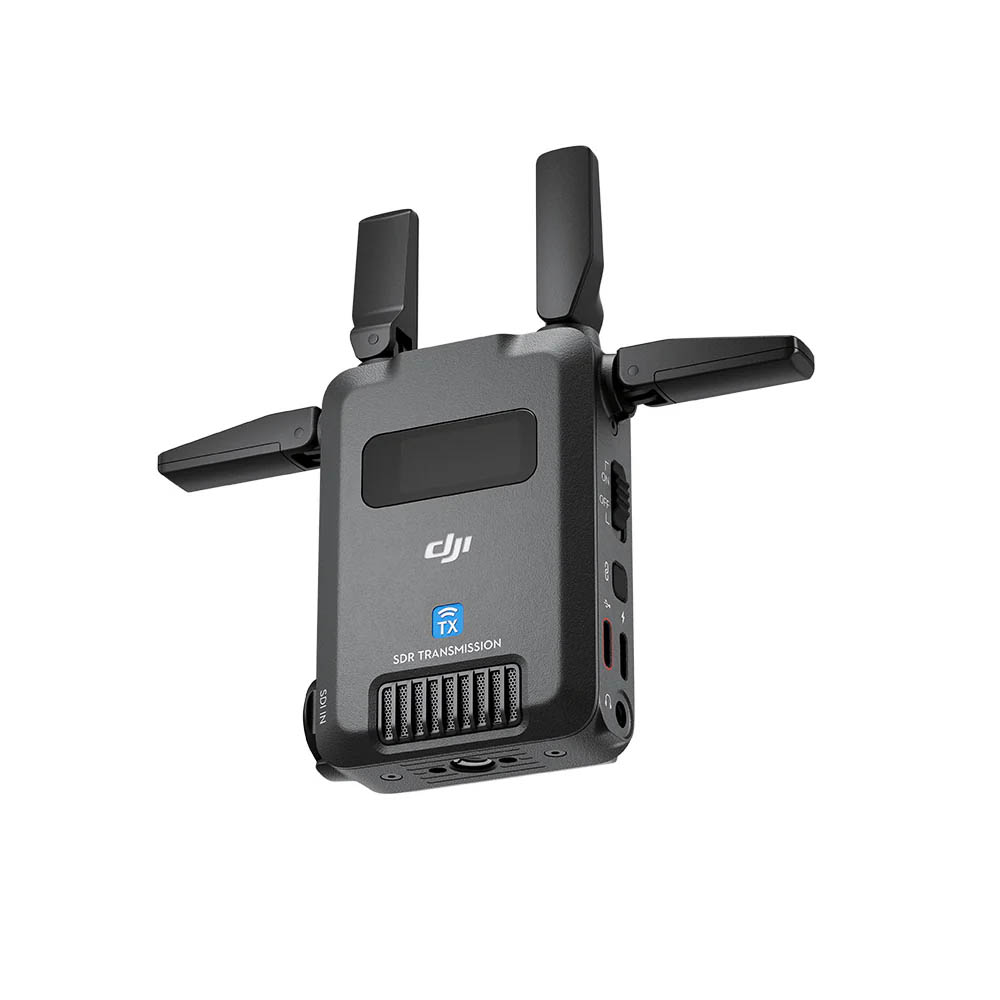

• DJI SDR Transmission Transmitter (TX)
• TX Gimbal Mounting Adapter Plate
