PortKeys BM5IV Camera Control Monitor
£470.33 £391.94 Ex. VAT
Order Now - Usually delivered in 2-4 weeks
Description

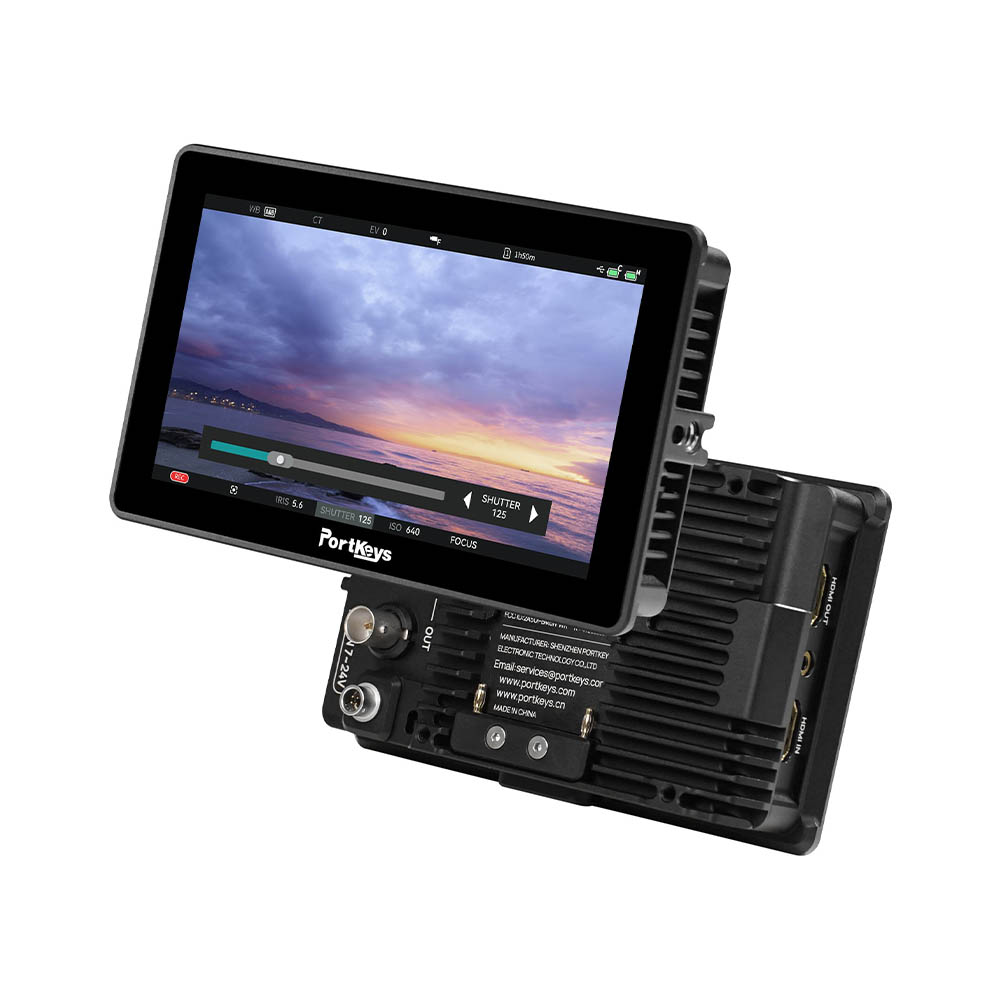

PortKeys BM5IV Camera Control Monitor (BM5-IV) is a lightweight, rugged 5.5-inch Wide Color Gamut on-camera monitor with 2,000nits of brightness, HDMI/SDI video input and output ports, and wired camera control capabilities.
Features
- 5.5-inch, 10-bit (8+2 FRC) panel with a resolution of 1920 x 1080 and a 1000:1 contrast ratio.
- Daylight-viewable with a maximum brightness of 2,000nits.
- 1 x 4K60P HDMI input, 1 x 3G-SDI input, 1 x 4K60P HDMI output, 1 x 3G-SDI output with cross-conversion.
- Powered by CINENORM OS, which supports up to 7 custom pages.
- Professional monitoring tools: Waveform, Vectorscope, Peaking, ARRI False Color.
- 3D LUT monitoring and 3D LUT SDI output capabilities.
- Split-screen monitoring capabilities with multiple viewing modes, including PBP, PIP, and H2V.
- Factory color-calibrated, and the possibility for users to create a 3D calibration LUT with an X-Rite color probe.
- Wired camera control for RED, Sony, Canon, Panasonic, BMD, and ZCAM E2.
- TILTA Nucleus N/M wireless follow focus wired control.
- Built-in Sony NP-F style battery plate.
- 4-pin 7.4V-24V power inputs for external power (D-Tap cable included).
- Lightweight and rugged aluminum housing: only 358g/12.62oz.
Comes With
- 1x BM5 IV Monitor
- 1x Safety box
- 1x D-Tap to 4-pin aviation connector power cable
- 1x Micro USB flash stick
- 1x Customer feedback card
Delivery
Please note, for next-day shipping options the product must show in stock in the product status and be before the cut-off period. If the product does not show in stock most items will give an approximate lead time.
Collection
Free Collection is available at our showroom in Hampton, please select this option at the payment stage at the checkout. Please allow one hour to pick and prepare your order for you so it is ready for you when you arrive. Collections must be made at our office during the hours of 9 am to 5:30 pm (Mon to Thurs) and 9 am to 5 pm (Friday).
Standard Delivery
Standard delivery costs £5.99 including VAT and will be sent out by Royal Mail, DPD or APC, this service can take 3-5 working days.
FREE UK Delivery On Orders Over £250
We offer FREE standard delivery on all orders over £250 Ex VAT to the UK mainland. Mon-Fri working days only. Saturday deliveries are not guaranteed.
Next Working Day Delivery
UK mainland orders placed before 2 pm will be dispatched the same day for next-day delivery. To qualify for next-day delivery orders must be placed before 2 pm Mon – Thur. Orders placed after 2 pm Thursday will be dispatched Friday for Monday delivery, excluding Bank Holidays. The charge for this service is £12.00 plus VAT. This service is only available for products that are in stock.
Saturday Delivery
Order before 2pm on Friday for Saturday deliveries. Saturday delivery cost £27.50 including VAT – this is only for the UK mainland.
*Excluding all Battery Generators*
Worldwide Shipping
At BPS we can arrange shipping worldwide on most of our products. Please contact sales@bps-tv.co.uk and provide details of the products you are interested in, billing and delivery address, and any company information. Our sales team will then arrange for a full quotation to be provided.
Specification
| Screen size | 5.5" |
| Dimension | 145.4×91.4×39.6mm |
| Weight | 350g |
| Material | Aluminium alloy |
| Input voltage | 7~24V |
| Maximum power | 16W |
| Brightness | 2000nits |
| Resolution | 1920×1080 |
| Contrast ratio | 1000:1 |
| Colour depth | 10bit (8+2FRC) |
| Viewing angle | 178°H / 178°V |
| Fan | Yes |
| Audio output | 3.5mm Headphone jack |
| Support battery model | NP-F970 / F960 / F750 / F550 |
| Camera control interface | Remote |
| Power input | 4-pin aviation connector |
| Signal output | 3G SDI, HDMI |
| TILTA nucleus control interface | UART |
| Signal input | 3G SDI, HDMI |
| Signal conversion | HDMI/SDI Conversion |
| Operating system | CINENORM OS |
| USB-A | Upgrade firmware / Load LUT |
| OSD Languages | 简体中文 / 繁體中文 / English / 日本語 / Русский / Français / español |
| SUPPORTED INPUT/OUTPUT RESOLUTION AND FRAME RATE | |
| 4K HDMI input/output signal | 4096×2160p @ 23.97Hz, 24Hz, 25Hz, 29.97Hz, 30Hz, 50Hz, 59.94Hz, 60Hz 3840×2160p @ 23.97Hz, 24Hz, 25Hz, 29.97Hz, 30Hz, 50Hz, 59.94Hz, 60Hz |
| HDMI input/output signal | 1920×1080p @ 23.97Hz, 24Hz, 25Hz, 29.97Hz, 30Hz, 50Hz, 59.94Hz, 60Hz 1920×1080psf @ 23.97Hz, 24Hz, 25Hz, 29.97Hz, 30Hz 1920×1080i @ 50Hz, 59.94Hz, 60Hz 1280×720p @ 50Hz, 59.94Hz, 60Hz 720×576p & 720x576i @ 50Hz 720×480p & 720x480i @ 50Hz, 59.94Hz, 60Hz |
| SDI input/output signal | 1920×1080p @ 50fps, 59.94fps, 60fps 1920×1080p @ 50Hz, 59.94Hz, 60Hz — YUV422 1920×1080p @ 23.98Hz, 24Hz, 25Hz, 29.94Hz, 30Hz — YUV444 / YUV422 1920×1080psf @ 23.98Hz, 24Hz, 25Hz, 29.97Hz, 30Hz — YUV444 / YUV422 1920×1080i @ 50Hz, 59.94Hz, 60Hz — YUV444 / YUV422 1280×720p @ 50Hz, 59.94Hz, 60Hz — YUV444 / YUV422 |
