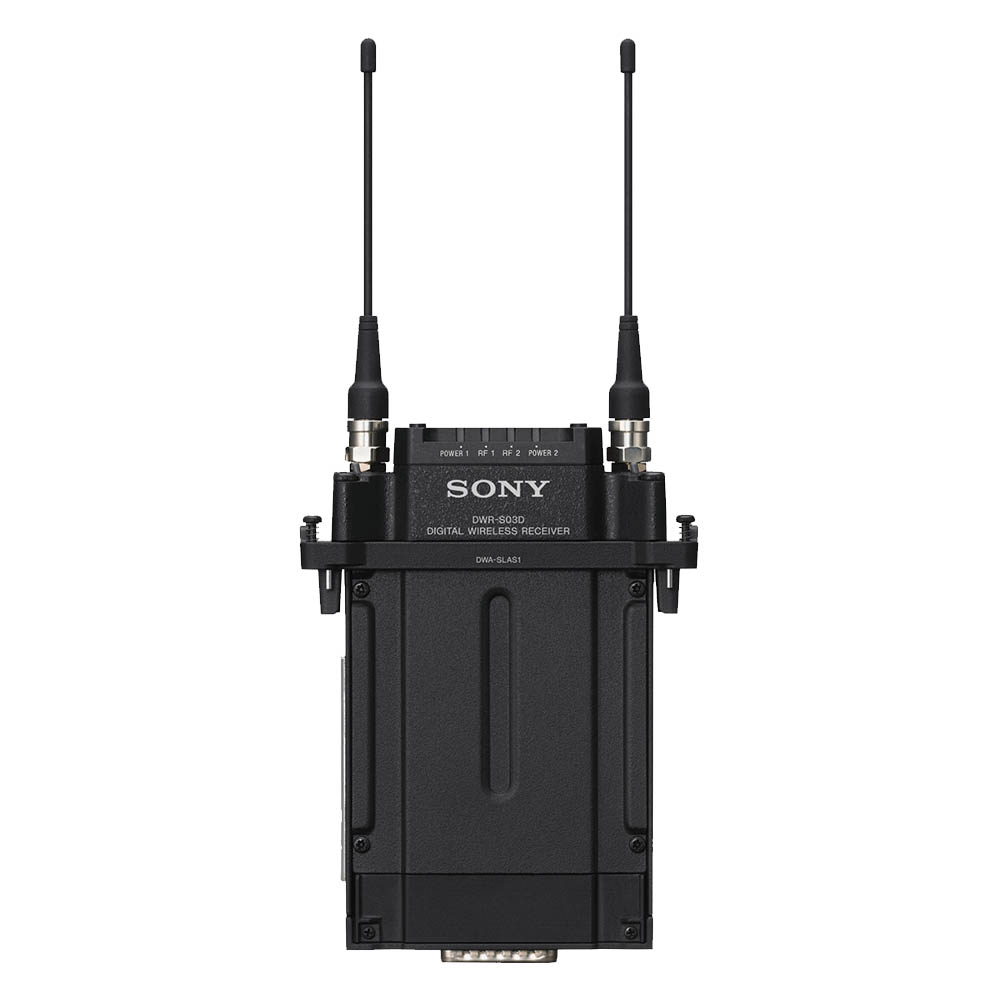

Sony LS1 Wireless Receiver W/ SLAS1

Description

Sony LS1 Wireless Receiver W/SLAS1 (DWR-S03D/LS1) is a digital wireless 2-channel slot-in radio receiver of the DWX series, which is especially suitable for multi-channel operation with high density in large productions. The receiver belongs to the 3rd generation of the professional DWX series and has four different codec modes for a variety of applications. MODE1 is compatible with the 1st generation DWX series devices, MODE2 prioritizes short latency times while maintaining transmission stability and high audio quality, MODE3 provides additional signal processing and suppresses noise caused by unexpected pulse interference, and MODE4 prioritizes audio quality while maintaining transmission stability and low delay time. It transmits high-quality 24-bit audio within certain frequency bandwidths (depending on the country).

The monitoring and control functions of Cross Remote™ allow input attenuation, RF frequency selection, RF output power, cut-off frequency for audio low-pass filters and sleep mode of the associated Sony DWT-B30 pocket transmitter to be remotely controlled via the receiver. This eliminates unplanned shooting breaks and walking distances. Included in delivery is the interface adapter DWA-SLAS1 with a 15-pin D-Sub connector, which can be attached to Sony camcorders. Optionally, the interface adapter DWA-SLAU1 with a 25-pin D-Sub connector is also available, which enables it to be attached to devices with UniSlot®. For ENG/EFP applications, the two optional receiver adapters DWA-01D and DWA-F01D are available.

• Carrier frequencies from 470.025 to 614.000 MHz (UHF TV channels 21 – 38)
• Includes interface adapter DWA-SLAS1 with 15-pin D-Sub for connection to Sony camcorders
• Wireless transmission of high-quality 24-bit audio (depending on country)
• Large bandwidth of up to 148 MHz (depending on region)
• Four selectable codec modes for different applications
• Receiving system X-Dimension Diversity™ and HF circuit with high dynamic range for reliable transmissions
• Automatic channel search and synchronization
• Low audio latency and high sound quality
• Advanced integration with XDCAM shoulder camcorder
• Can be upgraded with optionally available adapters

General Product Information:

• Dimensions without Antennas (W x H x D): approx. 88 x 119 x 32 mm (approx. 3.46 x 4.68 x 1.25 in) – with included adapter DWA-SLAS1
• Dimensions without Antennas (W x H x D): approx. 74 x 119 x 31 mm (approx. 2.91 x 4.68 x 1.22 in) – with optional adapter DWA-SLAU1
• Weight (ohne Antennen, without antennas, with included adapter DWA-SLAS1): approx. 193 g (approx. 6.8 oz)
• Weight (ohne Antennen, without antennas, with optional adapter DWA-SLAU1): approx. 196 g (approx. 6.91 oz)
• Operating Temperature: 0° to +50° C (+32° to +122° F)
• Storage Temperature: -20° to +60° C (-4° to +140° F)
• Operating Voltage: 6 – 18 V DC (via connected camcorder / adapter)
• Power Consumption: 3.5 W or less (with included adapter DWA-SLAS1) / 4 W or less (with optional adapter DWA-SLAU1)

Comes With

• 1 x DWR-S03D/LS1
• 1 x Sony Adaptor
• 2 x Antenna
• 1 x CD-ROM
• 1 x Frequency Band Label
