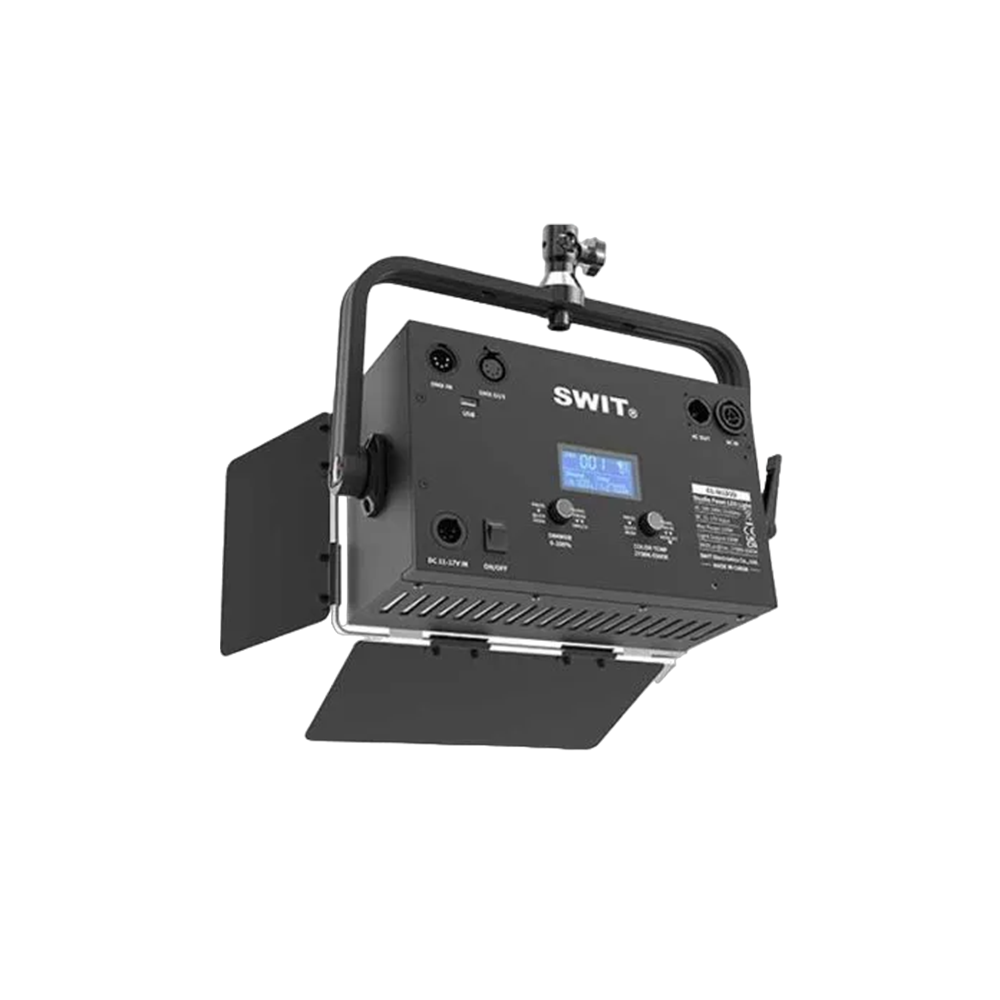

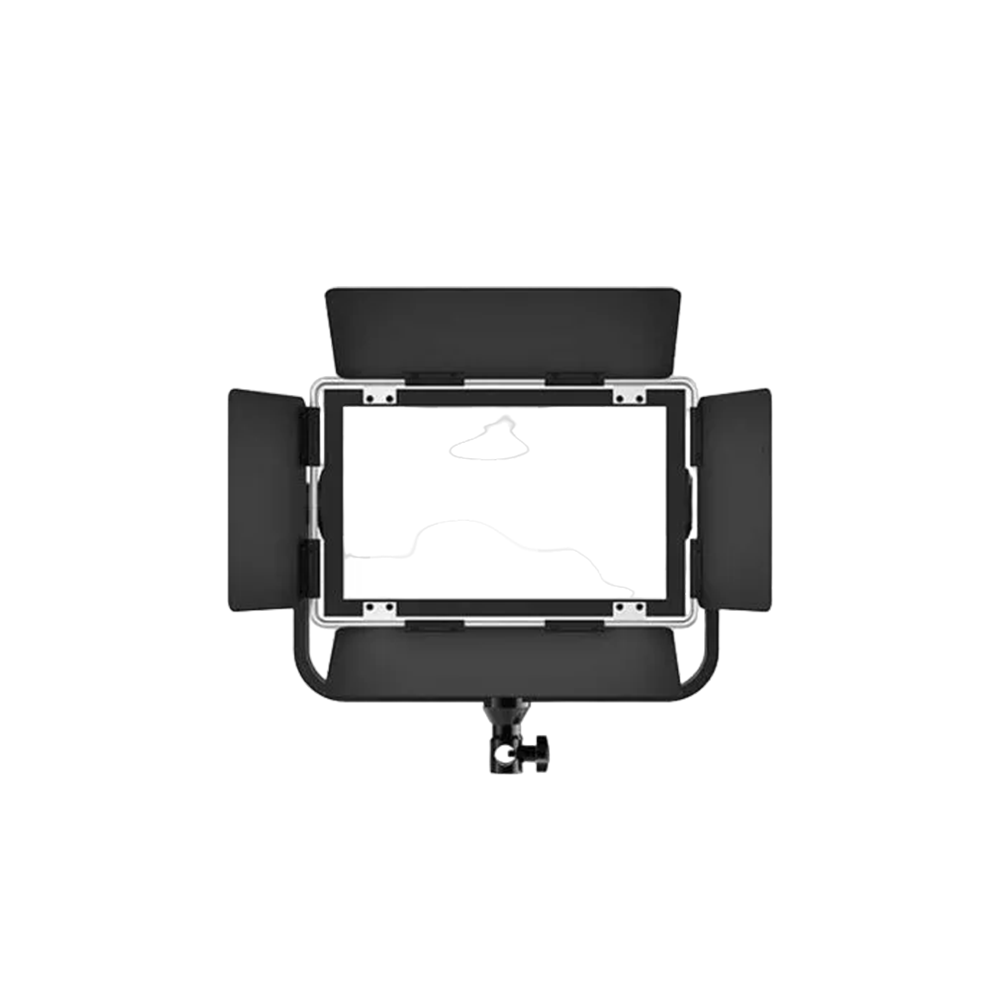

Swit Mini size bright Bi-color Panel Light

Description

Swit Mini size bright Bi-color Panel Light (CL-M100D) designed for high intensity whilst being fan less, as well as broadcast studios, live entertainment, theater, film applications, work especially well in low celling space setups.

576pcs Surface Mounted LEDs
CL-M100D adopts 576pcs SMD LEDs, featured:

• Higher uniformity of illuminance
• Wider beam angle
• Higher color rendering index
• Softer and Brighter
• Longer life time

An ideal light source for Broadcast studios, green keyer, live streaming etc.

3400 Lux @ 1 meter
The CL-M100D provides 100W light output, 3400Lux luminance at 1 meter distance, 62° half-peak wide beam angle, supports 0 to 100% PWM digital dimming, smoothly and non-flickering.

No Fan, No Noise
The large size fin consender inside the CL-M100D ensures 100W high bright output within such a small size housing, no fan, no noise, to provide a silent video production environment.

2700K-6500K Continuously Adjustment
The CL-M100D consists of 100W of 2700K LED and 100W of 6500K LED, and outputs 100W power at any color temperature from 2700K to 6500K.

CRI 98; TLCI 99
The CL-M100D adopts high end surface mounted LEDs with super high Color Rendering Index (CRI) Ra 98, and Television Lighting Consistency Index (TLCI) 99. Objects will keep their original colors exactly under the light.

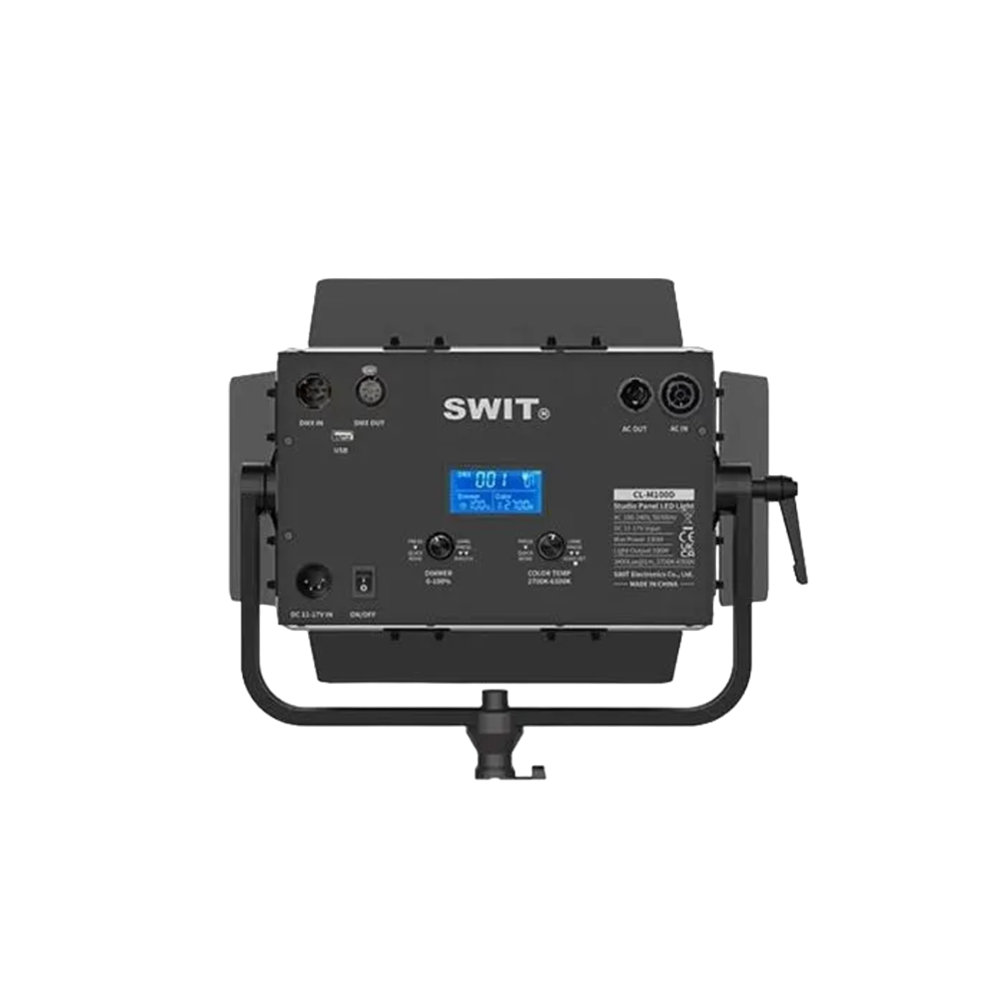

Control Info Display
The rear LCD screen can display dimmer percentage, color temperature, DMX address, Group channel (CH), and power indicators.
Long press color temp knob to set DMX address, and long press dimmer knob to switch between DMX consoler mode and Group interactive control mode.

5-pin DMX512 IN & OUT
CL-M100D provides 5-pin XLR DMX512 in & out, and a 5V USB-A port to power the wireless DMX receivers.
The DMX address n= dimmer, n+1=color temp

PowerCON TRUE1 AC IN & OUT
The CL-M100D adopts PowerCON TRUE1 AC connectors, and supports AC loop output to the next lights, for convenient studio installation. The standard package includes a PowerCON AC cable.

11-17V DC Input
With optional battery plate clamps and D-tap cable, you can power the CL-M100D light by V-mount or Gold mount batteries via the 4-pin XLR DC in socket.

Key Features:

• 576pcs ultra bright long-life LEDs
• SMD Surface mounted LED technology
• 62° half peak wide beam angle
• 2700K-6500K continuously adjustable
• 100W power, 3400Lux @ 1meter
• No fan, no noise
• 0-100% flick-free dimming
• Color rendering CRI 98, TLCI 99, SSI(D55) 73
• DMX512 controlled color and dimmer
• LCD display color and dimmer value
• PowerCON TRUE1 AC in and loop out
• 4-pin XLR DC 11-17V input

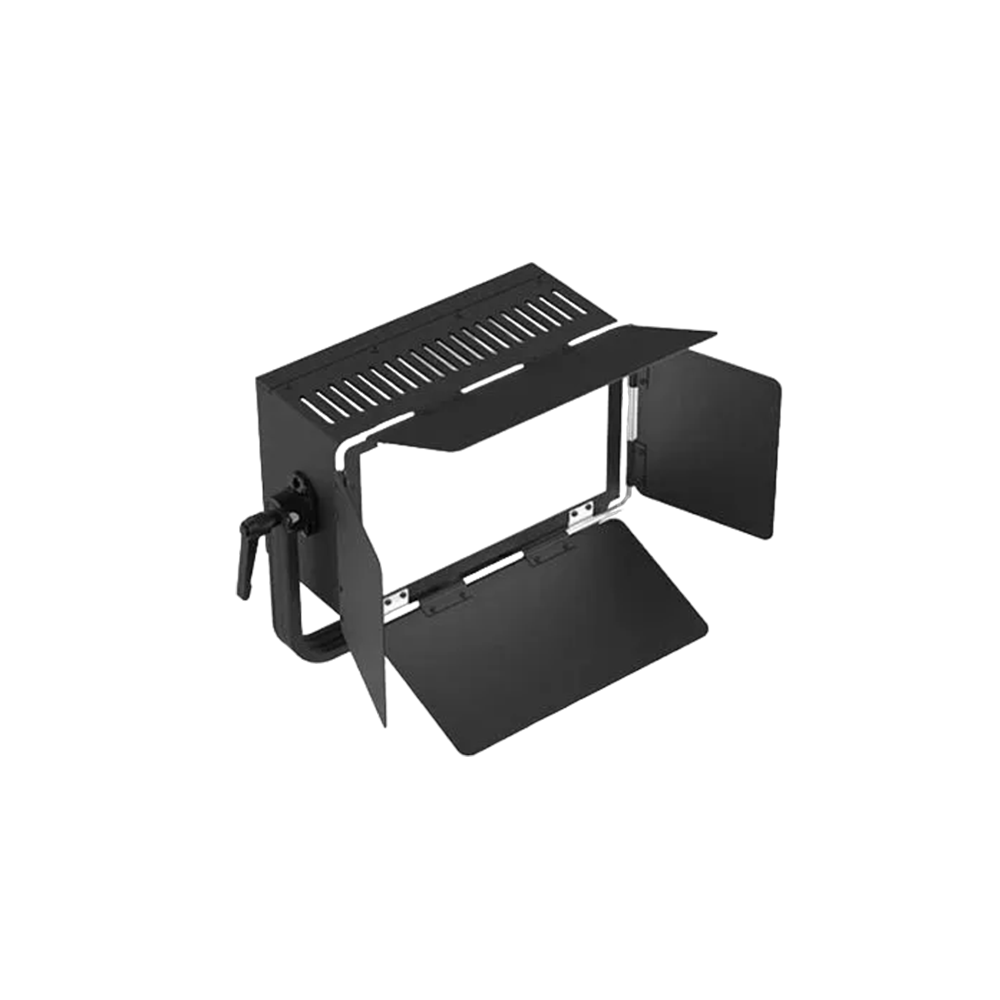

• 4-leaf metal barn doors and Yoke bracket
