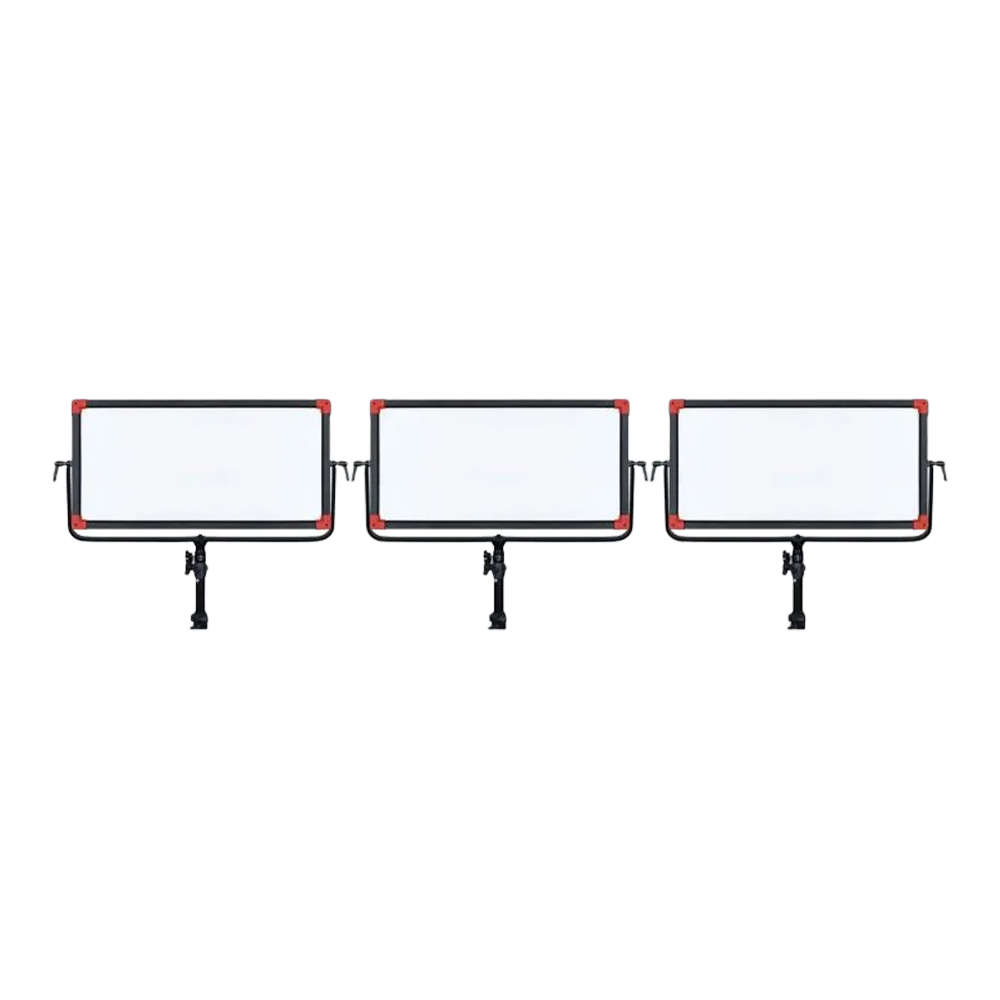

Swit PL-E90D/3 Portable Bi-Color SMD Panel LED Light DMX Set Of 3

Description

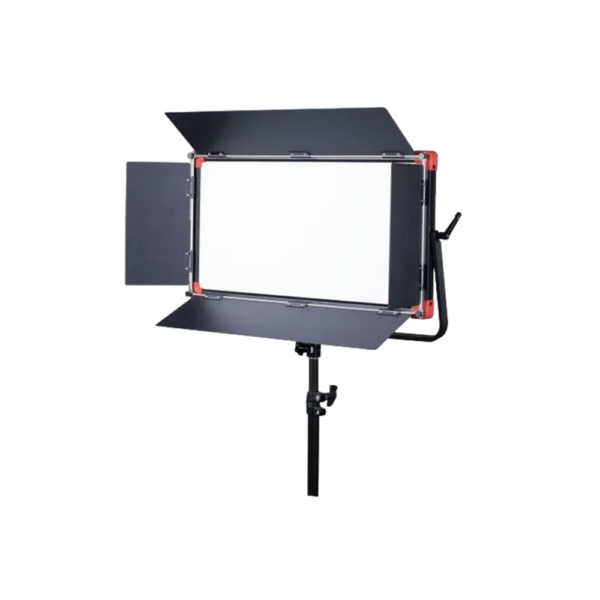

Swit PL-E90D/3 Portable Bi-Color SMD Panel LED Light DMX Set Of 3 (PL-E90D 3KIT) is specially designed for field portable lighting applications. 480pcs SMD-LEDs are mounted in the inner edge of the light frame, and with SWIT unique 90° light guide technology, PL-E90D can output bright, soft and equally spread light, meanwhile, the light body is slim enough and portable, which is an ideal light source for interview kit field video productions, and broadcast studios.

Laser Dots 90° Light Guide

High efficiency and super bright The traditional edge mounted LED lights are always not so bright, because half of the light will go to the backside, even if there’s reflection board, there’s still a lot of light lost.

Swit innovative technology is to add laser dots with calculated spaces on the reflection glass, so that the multi angles of edge light will be converged on the laser dots, and output 90° to the front with minimum light lost.

Then the slim edge mounted light can also be high brightness

2200 Lux @ 1 meter

0-100% flick-free dimming PL-E90D outputs 90W power, feeds 2200Lux luminance at 1 meter distance (center), much brighter than other similar size LED panels. The effective beam angle reaches 70°, bounded by 50% decline. PL-E90D also supports 0 to 100% PWM digital dimming, smoothly and non-flickering.

Bi-color Temperature

2700K-6500K continuously adjustable PL-E90D alternated with 2700K and 6500K LEDs, and the output color temperature can be continuously adjustable between 2700K and 6500K.

High Color Reveal Ability

CRI Ra 98; TLCI 99 CRI (Color Rendering Index) is a measure of the ability of a light source to reveal the colors of various objects faithfully in comparison with a natural light source. And TLCI (Television Lighting Consistency Index) is special for the color reveal ability by camera sensor.

Max value 100. The normal LED light has 80-85 CRI or TLCI, while PL-E90D offers the super high CRI at 98 and TLCI at 99, and will not lost the object original colors

LCD Screen Display

Dimmer / color / DMX channel, battery info The rear LCD screen can display the current dimmer percentage, color temperature value, DMX channel and CH channel, and remaining battery indications.

Quick Adjust Mode

By pressing the adjusting knob PL-E90D supports quick adjusting brightness and color temperature: Press the Dimmer knob, it will switch from 1% stepping to 10% stepping, to quick adjust brightness; Press Color temperature knob, it will switch from 50K stepping to the following commonly used color temperature selection: 2700K / 3200K / 4500K / 5600K / 6500K.

MX512 control

Dimmer and Color temperature PL-E90D adopts standard 5-pin DMX in/out port, supports DMX512 protocol, and adjusts dimmer and color temperature by DMX controller. The dimmer and color temperature occupy 1 DMX address respectively.

Press and hold dimmer knob for 2 sec to enter DMX address setting, range from 001 to 512.

Interaction Control Mode

Control the lights each other without a DMX controller Press and hold color temperature adjusting knob for 2 sec, the light will enter “CH” interaction control mode.

In this mode, connect all the lights by DMX cables, and operate any of the light, all the other lights with same CH addresses can be controlled together. Press and hold dimmer knob for 2 sec to enter CH address setting, range from 001 to 512.

Interaction Control Mode Demonstration

Connected by DMX cables For example, operate any of the CH 001 light, all the other CH 001 lights can be controlled together. Max 512 CH addresses can be set.

11-36V Wide Input Voltage

By V-mount/Gold mount battery or 4-pin XLR PL-E90D supports 11-36V wide range voltage input, with 4-pin XLR DC socket, and equipped with V-mount or Gold mount plate to power by batteries. (The default battery plate is V-mount.)
