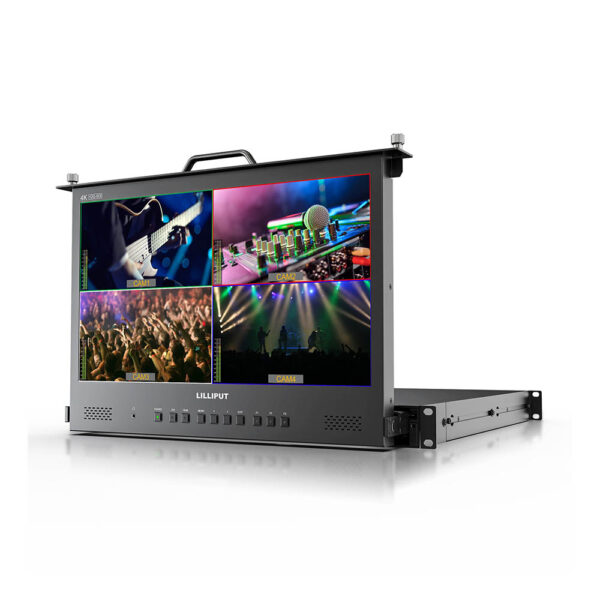

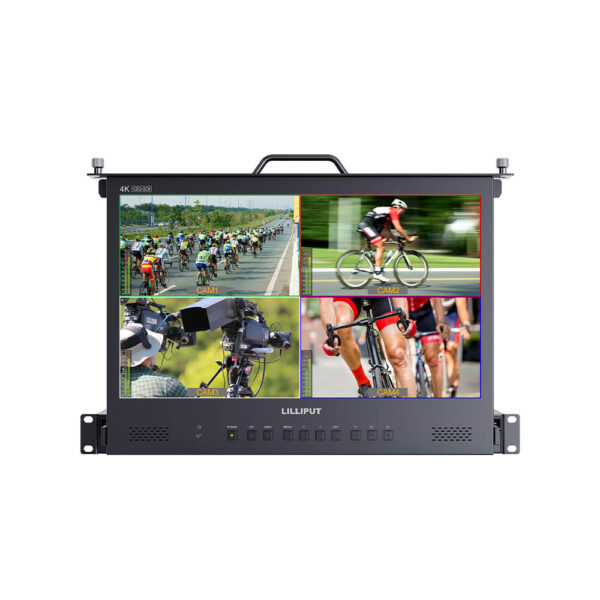

Lilliput RM-1731S-12G 17.3 Inch Rackmount Production Monitor

Categories: , , SKU: LILLIPUT-RM-1731S-12G

£1,823.04 £1,519.20 Ex. VAT

Order Now - Usually Delivered in 3-5 Working Days

Description

Lilliput RM-1731S-12G 17.3 Inch Rackmount Production Monitor

Lilliput RM-1731S-12G 17.3 Inch Rackmount Production Monitor (LILLIPUT-RM-1731S-12G) 17.3″ IPS LCD broadcast monitor with a resolution of 1920 x 1080. It features a slim, space-saving 1 RU pull-out rackmount design and support for up to UHD 4K60 video input via 12G-SDI and HDMI. The 17.3″ IPS panel provides a 1200:1 contrast ratio, a viewing angle of 170°, and 300 cd/m² brightness.

The monitor features four 12G-SDI inputs, four 12G-SDI loop outputs, one HDMI 2.0 input, one HDMI 2.0 loop output, a USB-A input for 3D LUT upload, and an RJ45 port for remote control using your computer. This monitor supports multiple HDR colour spaces and the ability to load custom 3D LUTs for quick access to a variety of colour reference options. A 12 VDC power supply and a tally connector are included with the monitor.

Features:

  • 17.3″ 1920 x 1080 Resolution Monitor
  • Slim, Space-Saving 1 RU Design
  • Up to UHD 4K60 Resolution Input
  • HDMI 2.0/12G-SDI Input & Loop Output
  • 170° H/V Viewing Angle, Tally Port
  • 300 cd/m² Brightness, 1200:1 Contrast
  • Remote Control via RJ45 LAN Port

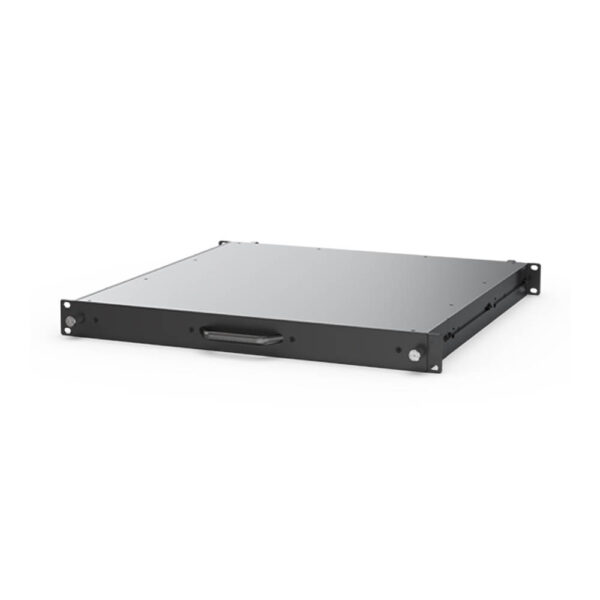

Slim, Space-Saving Design

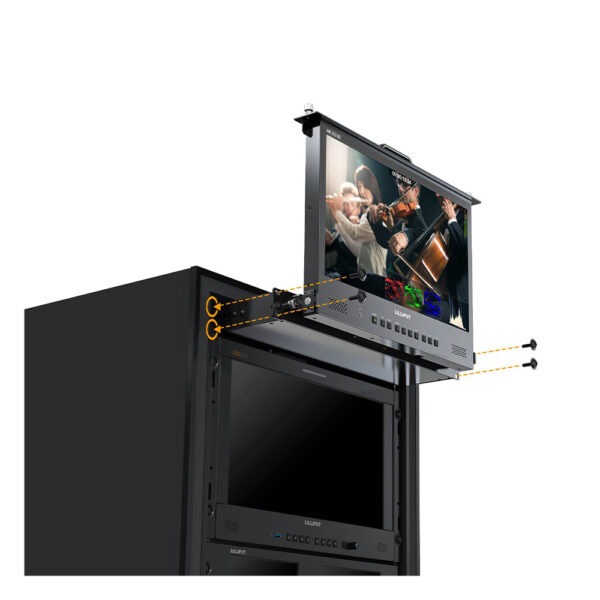

A pullout space-saving design enables the monitor to use a 1 RU space on your cabinet or truck rackmount.

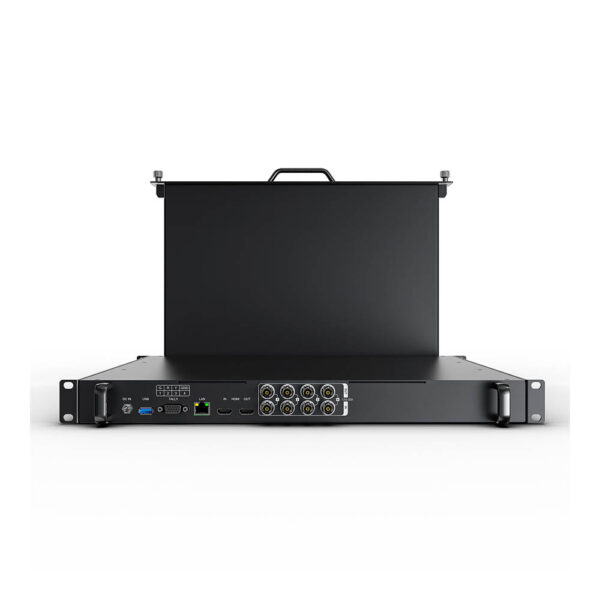

Interface
Interfaces include four 12G-SDI inputs and loop outputs, an HDMI 2.0 input and loop output, a USB-A input for uploading built-in or custom LUTs, and an RJ45 port for remote LAN control via your computer.
Monitoring Tools
  • Peaking, Check Field, Image Freeze
  • Pixel-to-Pixel Zoom, False Color, Exposure
  • Vectorscope, Histogram
  • Anamorphic De-Squeeze, Screen Markers
  • HDR, Color Space
  • Color Temperature Adjustment
  • Image Flip, H/V Delay
  • Audio Metering
HDR and 3D LUTs
  • When HDR is activated, the display reproduces a greater dynamic range of luminosity.
  • Enables colors and lighter and darker details to be displayed more clearly.
  • Supports HLG and ST2084 300/1000/10,000 HDR.
  • You can use any of the 17 default logs or load up to six of your own custom LUTs in .cube format via the USB port.
Audio
  • This monitor outputs embedded audio via a 3.5mm headphone jack and two speakers.
  • Provides channel selection and onscreen audio metering.
Assignable Buttons
Using the four assignable buttons on the front panel, you can quickly turn any four essential monitoring tools on and off without venturing into the monitor’s menu system.
Remote Control and Tally
Use the RJ45 port to connect to your laptop or computer for remote control. The monitor also supports tally signalling and includes a tally adapter.
Comes With:
  • 12 VDC Adapter
  • Lilliput RM-1731S-12G 17.3 Inch Rackmount Production Monitor
  • Tally Adapter
  • Limited 1-Year Manufacturer Warranty

Additional information

BRAND

Lilliput

Delivery

Please note, for next-day shipping options the product must show in stock in the product status and be before the cut-off period. If the product does not show in stock most items will give an approximate lead time.

Collection
 Free Collection is available at our showroom in Hampton, please select this option at the payment stage at the checkout. Please allow one hour to pick and prepare your order for you so it is ready for you when you arrive. Collections must be made at our office during the hours of 9 am to 5:30 pm (Mon to Thurs) and 9 am to 5 pm (Friday).

Standard Delivery
Standard delivery costs £5.99 including VAT and will be sent out by Royal Mail or APC, this service can take 3-5 working days.

FREE UK Delivery On Orders Over £250
We offer FREE standard delivery on all orders over £250 Ex VAT to the UK mainland. Mon-Fri working days only. Saturday deliveries are not guaranteed.

Next Working Day Delivery
UK mainland orders placed before 2 pm will be dispatched the same day for next-day delivery. To qualify for next-day delivery orders must be placed before 2 pm Mon – Thur. Orders placed after 2 pm Thursday will be dispatched Friday for Monday delivery, excluding Bank Holidays. The charge for this service is £12.00 plus VAT. This service is only available for products that are in stock.

Saturday Delivery
Order before 2pm on Friday for Saturday deliveries. Saturday delivery cost £27.50 including VAT – this is only for the UK mainland.

*Excluding all Battery Generators*

Worldwide Shipping

At BPS we can arrange shipping worldwide on most of our products. Please contact sales@bps-tv.co.uk and provide details of the products you are interested in, billing and delivery address, and any company information. Our sales team will then arrange for a full quotation to be provided.

Specification

Display
Panel Type
LCD
Display Size
17.3" / 43.9 cm
Native Resolution
1920 x 1080
Aspect Ratio
16:9
Viewing Angle
Horizontal: 170°
Vertical: 170°
Touchscreen
No
Maximum Brightness
300 nits / cd/m2
Contrast Ratio
1200:1
HDR Support
Yes, Hybrid Log Gamma
Color Gamut
100% Rec. 709
Image Controls
False Color, Focus Peaking, H/V Delay, Histogram, Image Flip, Pixel Zoom, Vectorscope, Waveform
Inputs/Outputs
Video I/O
4x BNC (12G-SDI) Input
1x HDMI 2.0 Input
4x BNC (12G-SDI) Loop Output
1x HDMI 2.0 Loop Output
Embedded Audio
HDMI: 8-Channel
SDI: 16-Channel
Audio I/O
1x 1/8" / 3.5 mm Headphone Output
Built-In Speaker
Stereo
Power I/O
1x Barrel (12 VDC) Input
Other I/O
1x RJ45 (LAN)
1x DE-15/DB-15 (Tally)
1x USB-A (LUT Upload)
Media/Memory Card Slot
No
Wireless
Wi-Fi
No
Bluetooth
No
Mobile App Compatible
No
Power
Input Power
12 to 24 VDC
Battery
No
Power Consumption
19 W
Mounting
Rack Form Factor
1 U
General
Operating Conditions
32 to 82°F / 0 to 50°C
Storage Conditions
-4 to 140°F / -20 to 60°C
Dimensions
20 x 19 x 1.7" / 507.5 x 482.5 x 44 mm
Weight
22.3 lb / 10.1 kg
