Aputure Sidus Four

Categories: , , SKU: AE-6971842189847

£1,935.00 £2,322.00 inc VAT

Order Now - Usually delivered in 1-2 weeks

Need advice before you buy?
Speak to one of our specialists about compatibility, accessories, stock availability or choosing the right setup.

Chat with us now

Aputure Sidus Four (6971842189847) control four wireless DMX universes across a vast array of protocols with this powerful, production-ready transmitter.

Universes of control

Sidus Four is an all-in-one lighting network device. Control four CRMX universes plus an additional four DMX universes with the built-in Ethernet node. Connect multiple Sidus Fours via the integrated Ethernet switch to expand your capabilities for big jobs.

Speak to your lights

Sidus Four communicates over a wide range of control protocols: 5.8Ghz WiFi, 2.4 Ghz CRMX, DMX, Art-Net, sACN, and Sidus Bluetooth. Transmit up to 800m with the powerful five-antenna array.

Production ready

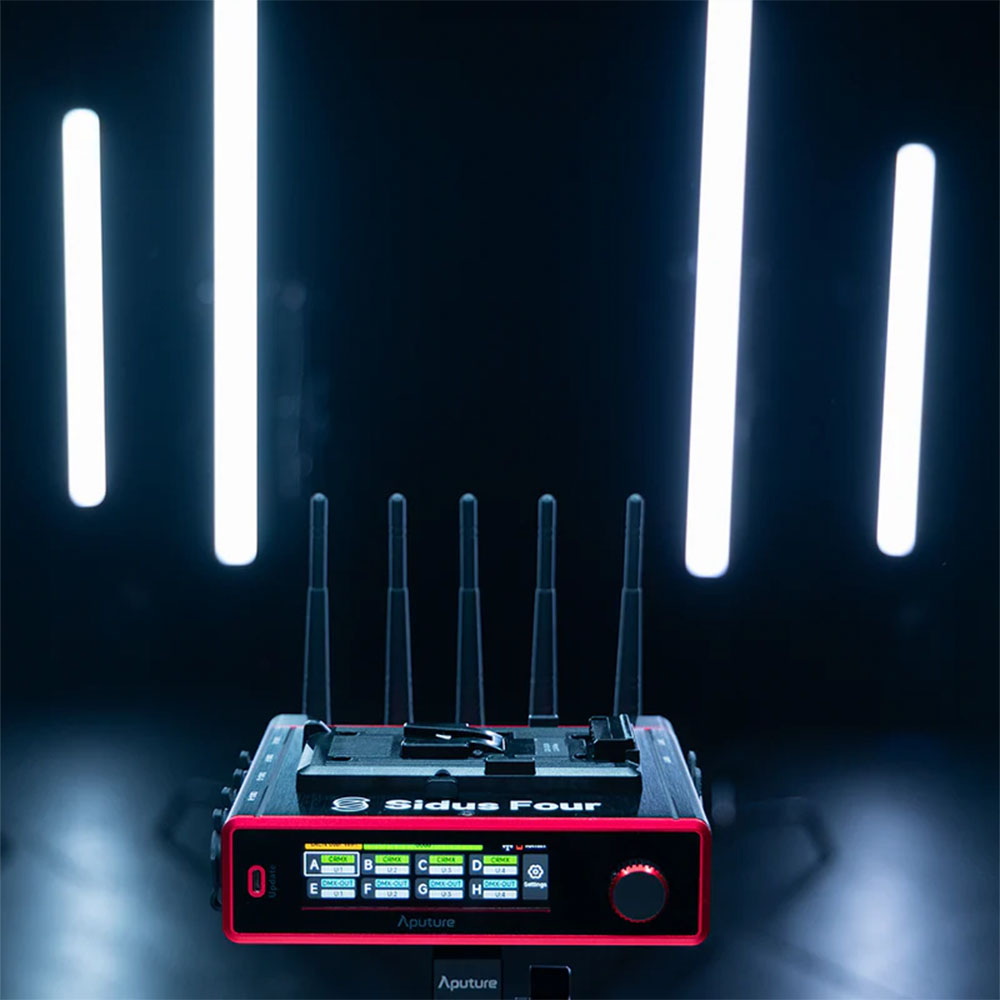

Easily check network vitals with the clear, color-coded display. Run off AC power or V-mount batteries, and maintain control with an 80-minute internal backup battery. Endure the weather with IP65 dust and water resistance.

Comes With

  • x Sidus Four
  • 1x Dual Band Antenna
  • 1x 3/8” to Baby Pin Receiver Adapter
  • 1x Sidus Four 18W (9V) Power Adapter
  • 1x US Plug
  • 1x CN Plug
  • 1x AU Plug
  • 1x EU Plug
  • 1x UK Plug
  • 1x 5-Pin XLR Male to 5-Pin XLR Male Adapter
  • 1x Sidus Four Hard Case

Specification

ConnectivityCRMX, DMX512, Art-Net & sACN via Ethernet and Wifi
Universe Support4 Wireless Universes & 4 Wired Universes
Ethernet Connectivity2x RJ45 Ports at 100Mbps Each
DMX Connectivity4x XLR 5-Pin DMX Bidirectional Female Ports
Operating Frequency (Wi-Fi)5.8GHz at 150Mbps
Operating Frequency (CRMX / Sidus BT)2.4GHz
Wireless Range (Bluetooth)≤300m / ≤984ft
Wireless Range (Wi-Fi)≤800m / ≤2,625ft
Wireless Range (CRMX)≤800m / ≤2,625ft
Wi-Fi ModesAP mode/STA mode
CRMX ModeTX mode
AC Adapter Operating VoltageAC In: 100-240V DC Out: 9V / 18W
DC Power Input Options (DC Jack)5.5/2.5mm DC Barrel Jack (9-24V) (3m)
DC Power Input Options (V-Mount)V-Mount Battery Plate (12-16.8V)
Lithium Polymer Batter3.7V 1500mAH
Backup Battery Life80 min
Power Consumption17W Max, 6W Normal (W/O: Charging, Type-C Output)
Charge Time30 min
IP RatingIP65
Operating Temperature20°C to 55°C / -4°F to 131°F
Firmware UpgradeableSidus BT, USB-C, Sidus Link Pro Wifi
Cooling MethodPassive Cooling
Dimensions (excluding antenna)18.7 x 18.6 x 6.9cm / 7.4 x 7.3 x 2.7in
Weight1.40kg / 8.82lbs
