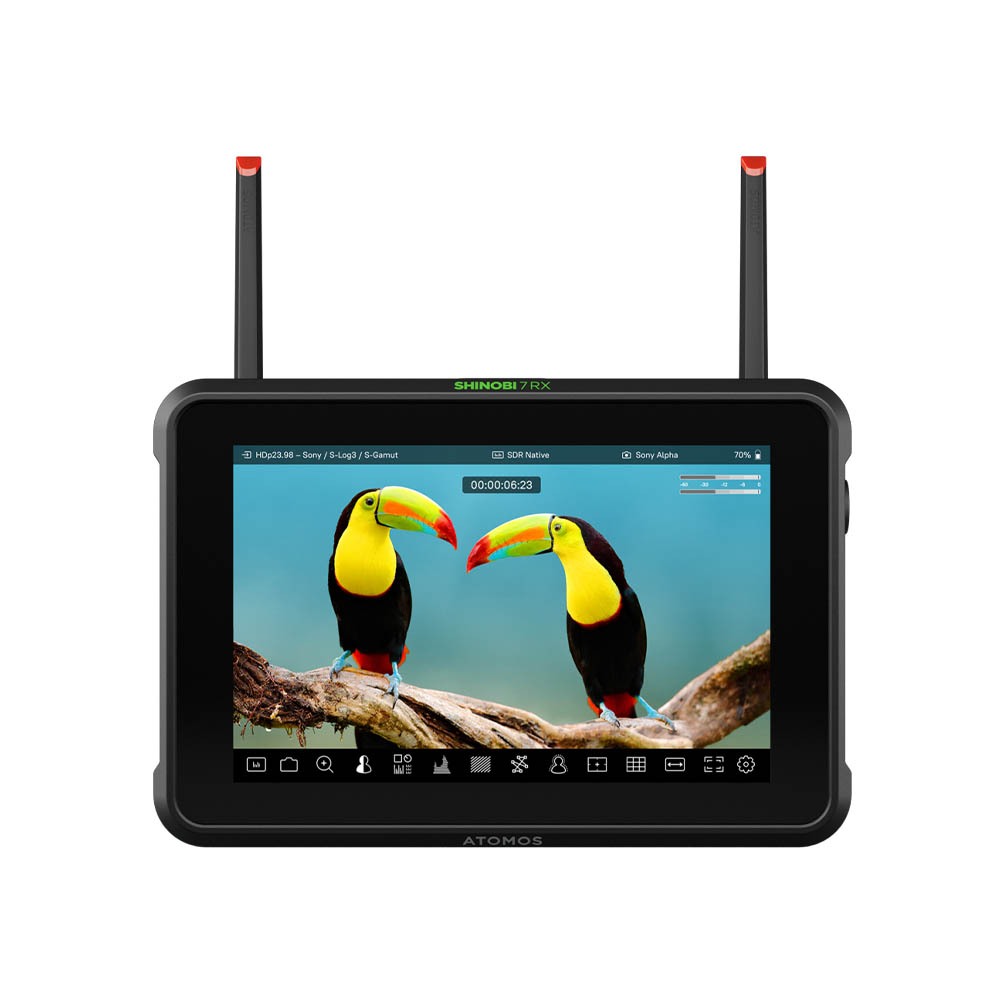

Atomos Shinobi RX 7″ Monitor
£718.80 £599.00 Ex. VAT
Pre-Order
Description
Atomos Shinobi RX 7″ Monitor (ATOMSHBRX1) combines a larger 7-inch HDR screen with a calibrated peak brightness of 2200nits and the lightweight monitor-only functions of Shinobi. It can be used in the brightest of environments to monitor signals up to 4Kp60 via HDMI or HDp60 via 3G-SDI. Take control of Canon, Fujifilm, Nikon, Panasonic, and Sony cameras via USB-C, plus Z CAM cameras via optional USB-C to serial cable. The addition of Wi-Fi connectivity provides a stable link between the Shinobi 7 RX and the TX component of Atomos’ TX-RX wireless video system, or a RTSP H.264 stream. An ideal director’s monitor, focus puller’s monitor, program or preview display for video switchers.
Features
- 7-inch HDR screen with a calibrated peak brightness of 2200nits
- HDMI / 3G-SDI input and output
- Camera control over USB-C (see Atomos.com for supported models)
- Touch to focus (see Atomos.com for supported models)
- Integrated 5G Wi-Fi for low latency (<60ms) receive from Atomos TX
- Stunning 10+ stops of dynamic range in real-time from Log/PQ/HLG signals
- Super-bright, 2200nit 7-inch touchscreen display
- Built-in 3D LUT box
- Supports 8-channel, 24-bit audio input via SDI
- Dual NPF battery slots
Comes With
- Shinobi 7 RX monitor
- Wi-Fi antenna
- 5x antenna tips (black, white, yellow, green, red)
- 2x antenna caps
- USB-C 2.0 cable (1m)
- Quick Start Guide
Additional information
| BRAND | ATOMOS |
|---|---|
| SCREEN SIZE | 5" Inch |
Delivery
Please note, for next-day shipping options the product must show in stock in the product status and be before the cut-off period. If the product does not show in stock most items will give an approximate lead time.
Collection
Free Collection is available at our showroom in Hampton, please select this option at the payment stage at the checkout. Please allow one hour to pick and prepare your order for you so it is ready for you when you arrive. Collections must be made at our office during the hours of 9 am to 5:30 pm (Mon to Thurs) and 9 am to 5 pm (Friday).
Standard Delivery
Standard delivery costs £5.99 including VAT and will be sent out by Royal Mail, DPD or APC, this service can take 3-5 working days.
FREE UK Delivery On Orders Over £250
We offer FREE standard delivery on all orders over £250 Ex VAT to the UK mainland. Mon-Fri working days only. Saturday deliveries are not guaranteed.
Next Working Day Delivery
UK mainland orders placed before 2 pm will be dispatched the same day for next-day delivery. To qualify for next-day delivery orders must be placed before 2 pm Mon – Thur. Orders placed after 2 pm Thursday will be dispatched Friday for Monday delivery, excluding Bank Holidays. The charge for this service is £12.00 plus VAT. This service is only available for products that are in stock.
Saturday Delivery
Order before 2pm on Friday for Saturday deliveries. Saturday delivery cost £27.50 including VAT – this is only for the UK mainland.
*Excluding all Battery Generators*
Worldwide Shipping
At BPS we can arrange shipping worldwide on most of our products. Please contact sales@bps-tv.co.uk and provide details of the products you are interested in, billing and delivery address, and any company information. Our sales team will then arrange for a full quotation to be provided.
Specification
| Short | 7-inch, 2200nit HDR video photo monitor with camera control and integrated wireless video receiver |
| Long | Shinobi 7 RX combines a larger 7-inch HDR screen with a calibrated peak brightness of 2200nits and the lightweight monitor-only functions of Shinobi. Can be used in the brightest of environments to monitor signals up to 4Kp60 via HDMI or HDp60 via 3G-SDI. Take control of Canon, Fujifilm, Nikon, Panasonic, and Sony cameras via USB-C, plus Z CAM cameras via optional USB-C to serial cable. The addition of Wi-Fi connectivity provides a stable link between the Shinobi 7 RX and the TX component of Atomos’ TX-RX wireless video system, or a RTSP H.264 stream. An ideal director’s monitor, focus puller’s monitor, program or preview display for video switchers. |
| Product Specifications | |
| Dimensions (W x H x D mm) | 198mm x 133mm x 39mm |
| Weight | 580g (excluding batteries and antennas) |
| Mount points | 1 x anti-rotation 1/4-inch / 3/8-inch top and bottom |
| Environmental | |
| Ambient operating temperature | Up to 40 degrees Celsius |
| Construction | |
| Body | ABS polycarbonate |
| Cooling | Passive heat sink |
| Power | |
| Input voltage | 6.2V - 16.8V |
| Operating power | 5.8V - 7.2V |
| Multi-function button | Power / lock screen |
| Continuous power | Via NP-F battery or USB-C PD Power |
| DC in connector | Via Battery Eliminator (optional) |
| DTAP | Up to 13W |
| USB PD IN | 45W capable, power supply required |
| USB PD OUT | Up to 13W |
| Display | |
| Size | 7-inch HDR screen with a calibrated peak brightness of 2200nits |
| Resolution | 1920 x 1080 |
| Backlight Type | Edge-lit |
| Brightness (cdm2 / Nits) | 2200 |
| Aspect ratio | 16:9 |
| Color Gamut | Rec.709 |
| Calibration support | Calibrite Display Pro or Display Plus on PC/Mac with Atomos LANC cable |
| Color Pipeline | |
| Gamma | Sony SLog / SLog2 / SLog3 / HLG, Canon C-Log / C-Log2 / C-Log3, ARRI Log CEI160 / LogCEI200 / LogCEI250 / LogCEI320, / LogCEI400 / LogCEI500 / LogCEI640 / LogCEI800 / LogCEI1000 / LogCEI1280 / LogCEI1600, Panasonic V-Log / HLG, JVC J-Log, Red RedLogFilm / Log3G10 / Log3G12, FujiFilm F-Log, PQ (HDR10), HLG, Nikon N-Log |
| Gamut | BT.2020, DCI P3, DCI-P3 D65, Rec709. Sony: S-Gamut / S-Gamut3 / S-Gamut3.cine / BT.2020 / Rec.709. Canon Cinema: DCI P3 / DCI P3plus / Rec.709. Panasonic: V Gamut. ARRI: Alexa Wide Gamut. JVC: LS300. RED: DragonColor / DragonColor2 / RedColor2 / RedColor3 / RedColor4 / RedWideGamut |
| 3D LUT Display | .Cube format (17 & 33 points supported) |
| 3D LUT Down Stream | Loop out |
| 3DLUT 50/50 | Yes |
| Monitoring Modes | SDR Native / HDR HLG / HDR PQ / 709 LUT / User LUT |
| Video Input | |
| HDMI | 1 x HDMI (2.0) |
| Locking port | N/A |
| SDI | 3G |
| Wi-Fi | Wi-Fi 6E |
| USB | 1 x USB-C 2.0/3.0 |
| Bit Depth | 8/10-bit video |
| Video Chroma Subsampling | 4:2:2 |
| Video Output | |
| HDMI | 1 x HDMI (2.0) |
| Locking port | N/A |
| SDI | 12G |
| Wi-Fi | Wi-Fi 6E |
| USB | 2 x USB-C 2.0/3.0 |
| Bit Depth | 8/10-bit video |
| Video Chroma Subsampling | 4:2:2 |
| Metadata | |
| HDMI | N/A |
| Network | |
| Wi-Fi | Wi-Fi 6E |
| USB | 1 x USB-C 3.0 |
| Connectivity | |
| LANC | Yes |
| Audio In/Out | |
| HDMI | 8-channel, 24-bit |
| SDI | 12-channel, 24-bit |
| Analogue Audio Line In | 3.5mm headphone jack, 2-channel input |
| Headphone Out | 3.5mm headphone jack, 2-channel |
| Timecode | |
| Embedded | HDMI (display only) |
| Time of day | Yes |
| Reference / Genlock input | No |
| LTC | No |
| Resolution & Frame Rates | |
| 4K DCI | 23.98/24/25/29.9/30/50/59.94/60p |
| 4K UHD | 23.98/24/25/29.9/30/50/59.94/60p |
| 2K DCI 2048 x 1080 | Yes |
| 1080p | 23.98/24/25/29.9/30/50/59.94/60/100/120p |
| 1080 PsF | Converted to P and looped out PsF |
| 1080i | 50/59.94/60i |
| 720p | 50/59.94/60p |
| Supported Media | |
| SD | To update firmware and upload LUTs |
| File System | FAT32, NTFS |
| On-screen Monitoring Tools | |
| MultiScope Analysis View | Image, WFM, vector, histogram |
| Waveform | 3 sizes – adjustable opacity & brightness |
| Histogram | 3 sizes – adjustable opacity & brightness |
| RGB parade | 3 sizes – adjustable opacity & brightness |
| Vectorscope | 1 size – adjustable opacity & brightness |
| 1 x Zoom | Yes. 1:1 pixel mapping for 4K |
| 2 x Zoom | Yes |
| 4 x Zoom | Yes |
| Focus peaking | 4 modes (color, black & white, outline, edge sharpening) with adjustable outline color & peaking intensity |
| Atomos False Color | Yes, with scale |
| Zebra | Adjustable threshold (50% to 105%) |
| Isolate color channel | Blue Only |
| Cine Frame Guides | Presets for 2.41, 2.35, 1.91, 1.9, 1.85, 16:9 |
| Social Frame guides | Presets for 9:16, 4:5, 2:3, 1:1, 5:4, 4:3, 3:2 |
| Safe areas | SMPTE safe title area – 93% & 90% |
| Grid markers | 9 grid |
| Anamorphic desqueeze | 2x, 1.8x, 1.79x, 1.65x, 1.6x, 1.5x, 1.33x, 1.25x |
| Display Flip | Horizontal & vertical |
| External Device Control | |
| USB-C | Camera control for supported cameras via USB-C. Controllable functions: Record Trigger, White Balance, Shutter Speed, Shutter Angle (if supported by camera), Aperture, ISO, Camera Overlays, Record Indicator, Touch to Focus - see Atomos website for camera model compatibility. USB-C port can also be used with external calibrators (no PC required). |
| Serial 2.5mm Jack | Calibration via optional USB to serial cable |
| What’s in the Box | |
| Accessories included | Shinobi 7 RX monitor, Wi-Fi antenna, 5x antenna tips (black, white, yellow, green, red), 2 x antenna caps, USB-C 2.0 cable (1m), Quick Start Guide. |
| Box dimensions (W x H x D mm) | 245mm x 180mm x 80mm |
| Box weight | TBA |
| Warranty | |
| Standard | 1 year. Extended to 2 years on product registration. |
YOU MIGHT ALSO LIKE TO LOOK AT
More Products-

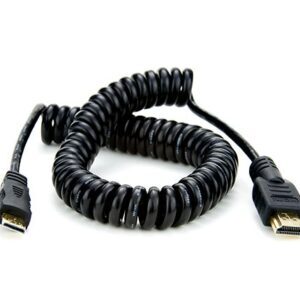

Atomos AtomFlex Pro HDMI 2.0 Full HDMI/Full HDMI 40cm (80cm extended)
