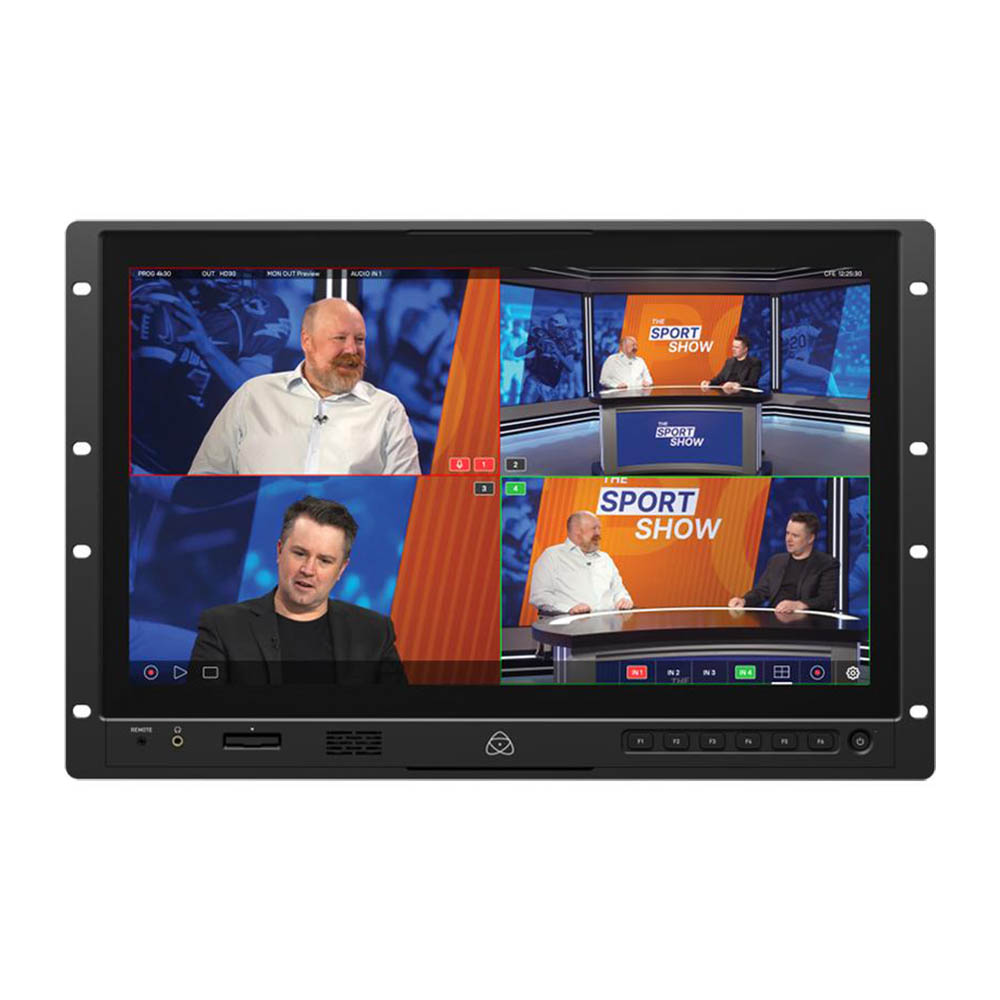

Atomos Shogun AV-19 Monitor
£2,038.80 £1,699.00 Ex. VAT
Pre-Order - Stock Estimated March 2026
Description
Atomos Shogun AV-19 Monitor is a powerful 19 inch 4K HDR monitor-recorder-switcher designed for professional live production, broadcast, and video village environments. With 4 SDI inputs, ISO recording, live multi-camera switching, NDI HX3 over Ethernet, ProRes/DNx/ProRes RAW, XLR audio, and advanced monitoring tools, it delivers a complete Monitor-Record-Switch workflow for modern studio and outside broadcast environments.
Its rugged, rack mountable design and crisp DCI?P3 display make it an ideal central hub for multi?camera monitoring, with built in switching that supports four ISO feeds plus a fifth program channel for smooth, real time operation.
Shogun AV-19 includes the monitoring tools professionals expect – EL Zone™, waveform, vectorscope, focus peaking, and full LUT support, and records Apple ProRes, ProRes RAW, and Avid DNx up to 10-bit 4:2:2 from SDI or HDMI. It offers flexible media options via CFexpress or USB?C, and integrated camera control provides direct access to key exposure settings on supported mirrorless systems.
With native NDI HX3 and built in Ethernet, Shogun AV-19 delivers high quality, low latency IP video over a single RJ45 cable, making it ideal for those transitioning to IP based production.
Professional calibration support and a fully integrated audio system – including balanced XLR I/O with 48V phantom power, embedded SDI/HDMI audio, speakers, and headphone monitoring – round out a complete, ready to deploy solution for broadcast and event environments.
Perfect for:
- On-set monitoring
Confidently manage complex productions with a large, colour-accurate 4K HDR display that’s ideal for directors, technical directors, and camera operators - Technical & confidence monitoring
Bright, 19-inch 4K HDR display with comprehensive technical monitoring tools including EL Zone™ false colour, focus peaking, waveform & more - Live switching & routing
Live switcher capable of playing and recording up to four ISO camera feeds, for broadcasts and live events
Features
- 19-inch, 4K HDR DCI-P3 7RU rack-mounted monitor
- Record in ProRes, ProRes RAW, Avid DNx to CFexpress or external USB-C storage
- Record up to four isolated camera feeds (ISOs), plus a fifth program output
- Live multi-camera monitoring

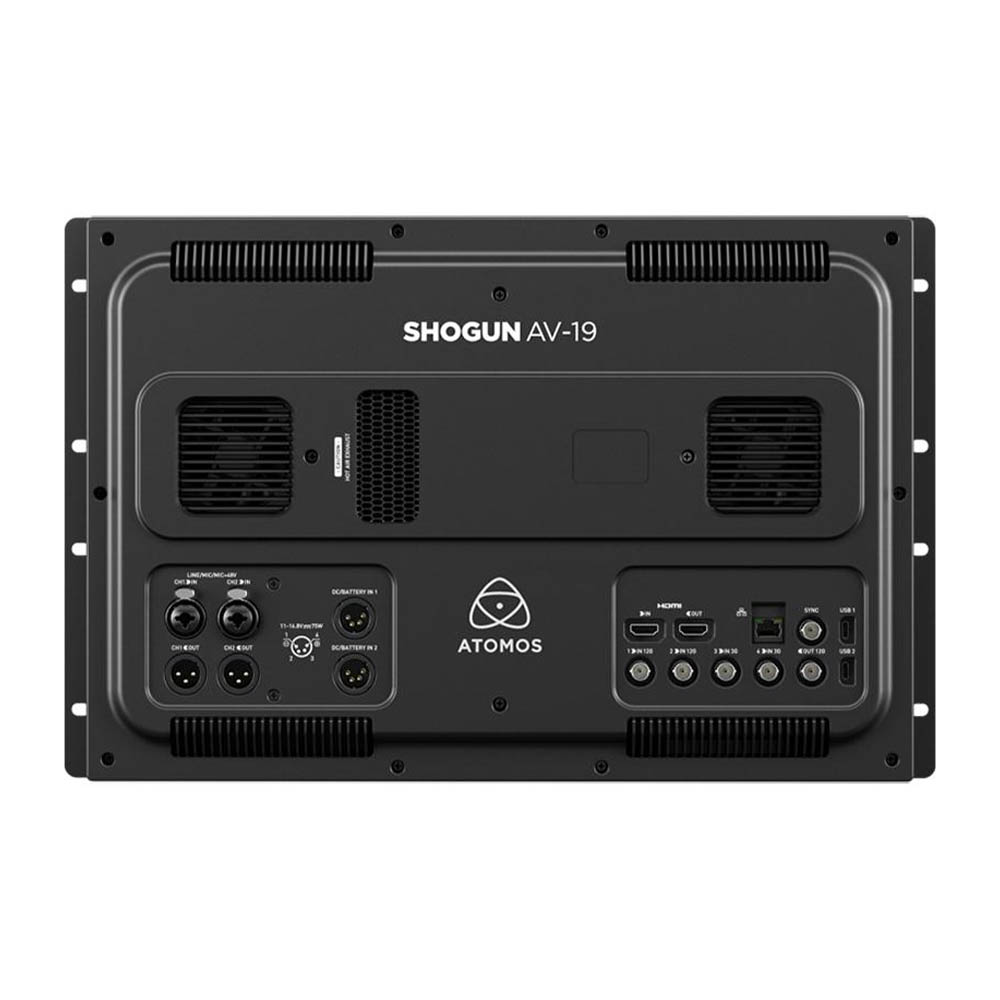

- 2 x 12G-SDI + 2 x 3G-SDI in, 12G-SDI out, HDMI in/out with XLR audio
- Comprehensive technical monitoring tools including EL Zone™ false colour, focus peaking, waveform & more
- Transmit and receive NDI® HX3 over Ethernet
- User-definable function buttons
- Log to LUT viewing, supporting 3D & .cube
- Backup recording for redundancy
Comes With
- Shogun AV-19 monitor-recorder-switcher
- 4-pin XLR PSU
- 5x international IEC power cables
- 10x rack nuts & bolts
- screen cloth
- Quick Start Guide
Additional information
| BRAND | ATOMOS |
|---|---|
| SCREEN SIZE | 19" Inch |
Delivery
Please note, for next-day shipping options the product must show in stock in the product status and be before the cut-off period. If the product does not show in stock most items will give an approximate lead time.
Collection
Free Collection is available at our showroom in Hampton, please select this option at the payment stage at the checkout. Please allow one hour to pick and prepare your order for you so it is ready for you when you arrive. Collections must be made at our office during the hours of 9 am to 5:30 pm (Mon to Thurs) and 9 am to 5 pm (Friday).
Standard Delivery
Standard delivery costs £5.99 including VAT and will be sent out by Royal Mail, DPD or APC, this service can take 3-5 working days.
FREE UK Delivery On Orders Over £250
We offer FREE standard delivery on all orders over £250 Ex VAT to the UK mainland. Mon-Fri working days only. Saturday deliveries are not guaranteed.
Next Working Day Delivery
UK mainland orders placed before 2 pm will be dispatched the same day for next-day delivery. To qualify for next-day delivery orders must be placed before 2 pm Mon – Thur. Orders placed after 2 pm Thursday will be dispatched Friday for Monday delivery, excluding Bank Holidays. The charge for this service is £12.00 plus VAT. This service is only available for products that are in stock.
Saturday Delivery
Order before 2pm on Friday for Saturday deliveries. Saturday delivery cost £27.50 including VAT – this is only for the UK mainland.
*Excluding all Battery Generators*
Worldwide Shipping
At BPS we can arrange shipping worldwide on most of our products. Please contact sales@bps-tv.co.uk and provide details of the products you are interested in, billing and delivery address, and any company information. Our sales team will then arrange for a full quotation to be provided.
Specification
| Product Specifications | |
| Dimensions (W x H x D mm) | 482mm x 310mm x 60mm |
| Weight | 5.22 Kg |
| Mount points | 19-inch rack ears |
| Rack height | 7 RU |
| VESA mount | No |
| Environmental | |
| Ambient operating temperature | Up to 40 degrees Celsius |
| Construction | |
| Body | Aluminum with ABS plastic |
| Cooling | Actively controlled fan and heat sink |
| Touchscreen | Capacitive touch |
| Tally light | LED on front only |
| Multi-function buttons | Power + 6 assignable |
| Power | |
| Input voltage | DC 12V to 16.8V DC |
| Operating power | 75W |
| Compatible batteries | Connect to either/both DC 4-pin XLR input |
| Battery voltage | 14.4V nominal |
| Battery power | Single battery input via dedicated 4-pin XLR |
| DC-In connector | 1 x 4-pin XLR for included DC power supply |
| D-Tap | Via third-party D-Tap to 4-pin XLR cable |
| Display | |
| Size | 19-inch |
| Resolution | 3840 x 2160 4K UHD |
| Bit depth | 10-bit (8+2 FRC) |
| Backlight type | Double Edge-Lit |
| Brightness (cdm2 / Nits) | 1200 |
| Aspect ratio | 16:9 |
| Color gamut | 100% Rec.709, 99% DCI-P3, 99% NTSC, 87% BT.2020 |
| Calibration support | Calibrite Display Pro or Display Plus on PC/Mac with Atomos LANC cable (ATOMCAB018, sold separately) |
| Color Pipeline | |
| Gamma | Sony SLog / SLog2 / SLog3 / HLG, Canon C-Log / C-Log2 / C-Log3, ARRI Log CEI160 / LogCEI200 / LogCEI250 / LogCEI320, / LogCEI400 / LogCEI500 / LogCEI640 / LogCEI800 / LogCEI1000 / LogCEI1280 / LogCEI1600, Panasonic V-Log / HLG, JVC J-Log, Red RedLogFilm / Log3G10 / Log3G12, FujiFilm F-Log, PQ (HDR10), HLG, Nikon N-Log |
| Gamut | DCI P3, DCI P3+, DCI-P3 D65, Rec709. Sony: S-Gamut / S-Gamut3 / S-Gamut3.cine / BT.2020 / Rec.709. Canon Cinema / Panasonic V Gamut /ARRI Alexa Wide Gamut / JVC LS300. RED DragonColor / DragonColor2 / RedColor2 / RedColor3 / RedColor4 / RedWideGamut |
| 3D LUT Display | .Cube format (17 & 33 points supported) |
| 3D LUT Down Stream | Loop out |
| 3DLUT 50/50 | Yes |
| Monitoring Modes | Native / HLG / PQ / 3D LUT |
| HDR Output Conversion | Log / HDR to HLG / PQ |
| Video Input | |
| HDMI | 1 x HDMI (2.0) up to 4K60P |
| Locking port | No |
| SDI | 2 x 12G-SDI (6G/3G backwards compatible) + 2 x 3G-SDI |
| Wi-Fi | No |
| Bit depth | 8/10-bit for video / up to 12-bit for RAW |
| Video chroma subsampling | YCbCr 4:2:0 & 4:2:2 |
| HDR Output Conversion | HDMI auto detection |
| Video Output | |
| HDMI | 1 x HDMI (2.0) up to 4K60P |
| Locking port | No |
| SDI loop through | 1 x 12G-SDI |
| Wi-Fi | No |
| USB | 2 x USB-C 2.0/3.0 |
| Bit Depth | 8/10-bit video |
| Video Chroma Subsampling | 4:2:2 |
| Metadata | |
| SDI | File name – ARRI & RED.RAW – white balance, exposure index, shutter speed/angle, iris/F-stop, ISO, gamma, gamut |
| File naming - standard | Scene/shot/take & rolling scene/shot/take |
| File naming - over SDI | Auto-matched filenames from supported ARRI & RED Cameras |
| Network | |
| Ethernet | 1 x RJ45 |
| Connectivity | |
| USB | 2 x USB-C 2.0/3.0 |
| Bluetooth | No |
| LANC | Yes |
| Video Signal Conversio | |
| HDMI to SDI | Yes |
| SDI to HDMI | Yes |
| Audio In/Out | |
| Audio quality | 24-bit / 48kHz |
| Audio codec | PCM |
| HDMI | 8-channel, 24-bit (input dependent) |
| SDI | 12-channel, 24-bit (input dependent) |
| Analogue audio in | 2 x 3-pin XLR (female) |
| Analogue audio out | 2 x 3-pin XLR (male) |
| Speakers | Mono confidence up to 1.5W |
| Headphone Out | 3.5mm headphone jack, 2-channel |
| Timecode | |
| Embedded | HDMI & SDI |
| Time of day | Yes |
| Reference / Genlock input | Yes (playback mode only) |
| LTC | LTC via dedicated BNC input (record mode only) |
| Wireless AirGlu RF Server and Client | No |
| Wireless AirGlu BT Server | No |
| Resolution & Frame Rates (Record, Monitor & Playback) | |
| 6K RAW | Up to 6Kp30 via SDI |
| 4K RAW | Up to 4Kp60 via SDI |
| 2K RAW | Up to 2Kp240 via SDI |
| 4K DCI | Up to 4Kp60 |
| 4K UHD | Up to UHDp60 |
| 2K DCI 2048 x 1080 | Up to 2Kp60 |
| 1080p | Up to 1080p120 |
| 1080 PsF | Only via pulldown to progressive |
| 1080i | 1080i50 / 1080i60 |
| 720p | Up to 720p60 |
| Supported Media | |
| CF Express | Atomos certified CF Express Type B media |
| USB | Atomos certified USB 3.0 media |
| File System | ExFAT |
| Codecs | |
| Apple ProRes RAW | ProRes RAW, ProRes RAW HQ |
| Apple ProRes | LT, 422, 422 HQ |
| Avid DNxHD | DNxHD 220x, 220, 145, 36 |
| Avid DNxHR | LB, SQ, HQ, HQX |
| H.265 | LQ, MQ, HQ, XQ in 8/10-bit, 4:2:2 and 4:2:0 |
| H.264 | Not supported |
| Playback | |
| Playlist | Yes - create customer playlists from full or sub-clips |
| Loop | Yes, with user-customizable in/out markers |
| Apple ProRes RAW | Yes - recorded clips |
| Apple ProRes | HQ, 422, LT (linear PCM audio only) |
| Avid DNx | DNxHD: 220x, 220, 145, 36 – DNxHR HQX, HQ, SQ, LB (linear PCM audio only) |
| H.265 | Yes |
| Recording | |
| Pre-roll | 8s HD / 2s 4K - ProRes, DNxHD only |
| Timelapse | Yes |
| ISO recording | 4 x ISO up to 1080p60 (3G SDI Level A & B) |
| Switched program record | Yes |
| Multi-input Switching | |
| Dual input display | Via multi ISO input mode |
| Multiple SDI input | Up to 4 x 1080p60 (3G SDI Level A & B) |
| Multiview display | Via multi ISO input mode |
| Input switching | Yes |
| On-screen Monitoring Tools | |
| Waveform | 3 sizes – adjustable opacity & brightness |
| RGB parade | 3 sizes – adjustable opacity & brightness |
| Vectorscope | 2 sizes – adjustable opacity & brightness |
| 1 x Zoom | Yes. 1:1 pixel mapping for 4K |
| 2 x Zoom | Yes |
| Focus peaking | Colour selected / threshold setting / colour / mono / edges only |
| Atomos False Color | Yes, with scale |
| ARRI False Color | Yes |
| EL Zone False Colour | Yes |
| Zebra | Yes, adjustable |
| Isolate color channel | Blue Only |
| Cine Frame Guides | Presets for 2.4:1, 2.35:1, 1.9:1, 1.85:1, 4:3 |
| Social Frame guides | Presets for 9:16, 1:1, 191:1, 4:5 |
| Onion Skin | Yes |
| Safe areas | Action and graphic |
| Grid markers | 9 grid |
| Anamorphic desqueeze | 1.25x, 1.33x, 1.5x, 1.6x, 1.65x, 1.79x, 1.8x, 2x |
| Display Flip | Vertical only |
| Onboard Signal Processing | |
| 4K UHD downscale for HD | Loop out - 4K UHD to FHD |
| DCI Crop | Loop out - 17:9 to 16:9 crop |
| Pulldown removal | 24 / 25 / 30 pSF > 24 / 25 / 30p (2:2 pulldown), 60i > 24p (3:2 pulldown) |
| Remote Control | |
| HDMI | Auto HDMI trigger, supported protocols - Canon, Sony, Atomos |
| SDI | SDI trigger camera selectable |
| Serial 2.5mm jack | Calibration via optional USB to serial cable |
| Accessories | |
| AC to DC Power Adaptor | Yes, sold separately (ATOMPWR024) |
| Sun Hood | No |
| Camera to Cloud | |
| ATOMOSphere | Direct progressive upload supported (20GB free storage) over Ethernet |
| Adobe Frame.io | Direct progressive upload supported (separate purchase) over Ethernet |
| Dropbox | Direct progressive upload supported (separate purchase) over Ethernet |
| What’s in the Box | |
| Contents | Shogun AV-19 monitor-recorder-switcher, 4-pin XLR power supply, 5 x international IEC power cables, rack nuts and bolts (x10), screen cloth, Quick Start Guide |
| Box dimensions (W x H x D mm) | 581mm x 383mm x 165mm |
| Box weight | 10 Kg (including all cables & accessories) |
| Warranty | |
| Standard | 1 year. Extended to 2 years on product registration (excludes screen). |
