Blackmagic Design ATEM Monitoring Rack Panel 20
£930.00 £775.00 Ex. VAT
Pre-Order Now

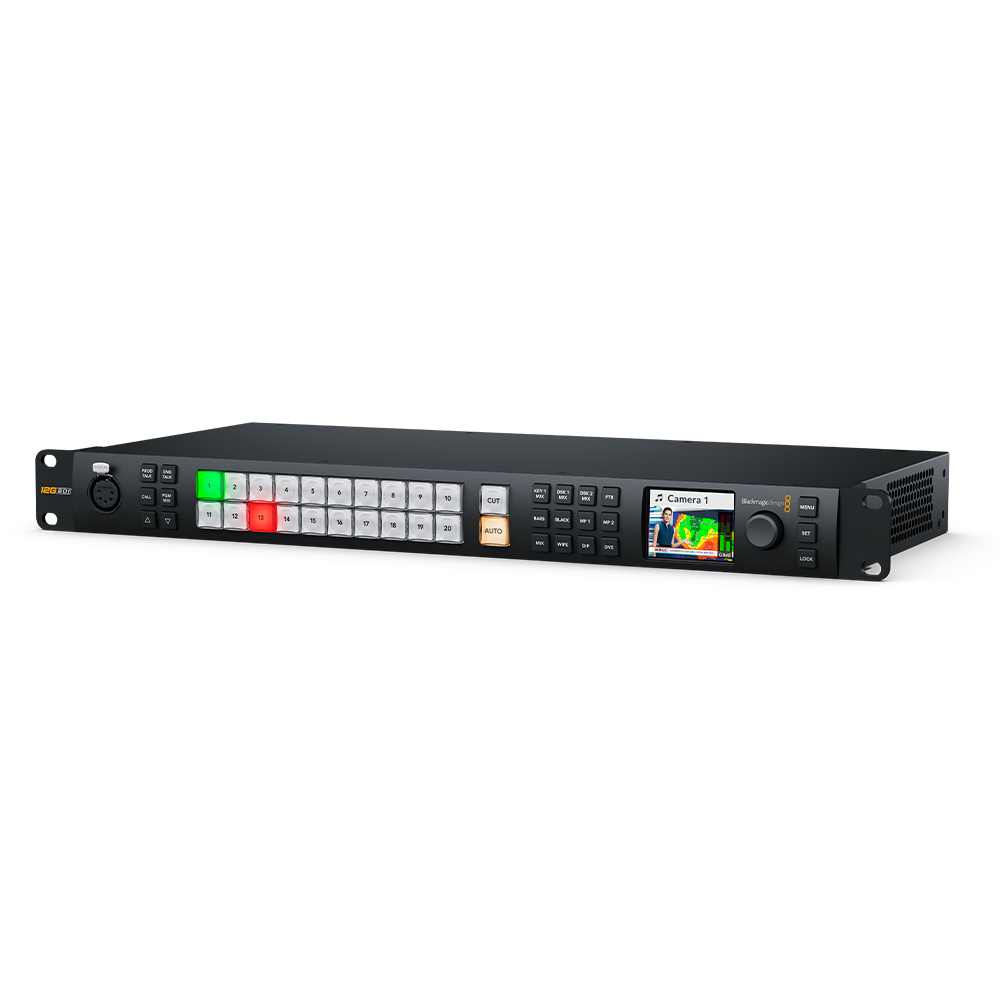

Blackmagic Design ATEM Monitoring Rack Panel 20 (SWPANELABRMP20) is a video converter built into a 1RU rack-mount ATEM switcher control panel! It features 20 buttons for controlling a local ATEM switcher, plus a front panel talkback connection. The video converter has two redundant SMPTE-2110 10G Ethernet connections, which are converted to 2 x 12G-SDI outputs and an HDMI output. Video is also displayed on the converter’s built-in LCD screen. Simply mount it in a rack and use it when setting up or monitoring a job!
Comes With
- Blackmagic Design ATEM Monitoring Rack Panel 20
Delivery
Please note, for next-day shipping options the product must show in stock in the product status and be before the cut-off period. If the product does not show in stock most items will give an approximate lead time.
Collection
Free Collection is available at our showroom in Hampton, please select this option at the payment stage at the checkout. Please allow one hour to pick and prepare your order for you so it is ready for you when you arrive. Collections must be made at our office during the hours of 9 am to 5:30 pm (Mon to Thurs) and 9 am to 5 pm (Friday).
Standard Delivery
Standard delivery costs £5.99 including VAT and will be sent out by Royal Mail, DPD or APC, this service can take 3-5 working days.
FREE UK Delivery On Orders Over £300 Ex. VAT
We offer FREE standard delivery on all orders over £300 Ex VAT to the UK mainland. Mon-Fri working days only. Saturday deliveries are not guaranteed.
Next Working Day Delivery
UK mainland orders placed before 2 pm will be dispatched the same day for next-day delivery. To qualify for next-day delivery orders must be placed before 2 pm Mon – Thur. Orders placed after 2 pm Thursday will be dispatched Friday for Monday delivery, excluding Bank Holidays. The charge for this service is £12.00 plus VAT. This service is only available for products that are in stock.
Saturday Delivery
Order before 2pm on Friday for Saturday deliveries. Saturday delivery cost £27.50 including VAT – this is only for the UK mainland.
*Excluding all Battery Generators*
Worldwide Shipping
At BPS we can arrange shipping worldwide on most of our products. Please contact sales@bps-tv.co.uk and provide details of the products you are interested in, billing and delivery address, and any company information. Our sales team will then arrange for a full quotation to be provided.
Specification
| CONNECTIONS | |
| 10G 2110 IP networks | 2 × 10G RJ45 ST 2022-7 redundant delivery supported |
| 10G control network | 1 × 1G RJ45 (switcher + NMOS) |
| Total video inputs | 1 |
| Total video outputs | 3 |
| SDI video outputs | 2 |
| SDI rates | 1.5G 3G 6G 12G |
| HDMI inputs | 1 × HDMI 2.0 |
| SDI audio outputs | 16 ch embedded (all SDI outputs) |
| HDMI audio outputs | 8 ch embedded |
| SDI program outputs | 2 |
| SDI preview outputs | 2 |
| SDI multiview outputs | 2 |
| HDMI multiview outputs | 1 |
| Talkback | 1 × 5-pin XLR |
| Computer interface | 1 × USB-C |
| Power input | 2 × IEC C14 |
| VIDEO STANDARDS | |
| HD | 720p50 720p59.94 720p60 1080i50 1080i59.94 1080i60 1080p23.98 1080p24 1080p25 1080p29.97 1080p30 1080p47.95 1080p48 1080p50 1080p59.94 1080p60 |
| Ultra HD | 2160p23.98 2160p24 2160p25 2160p29.97 2160p30 2160p50 2160p59.94 2160p60 |
| STANDARDS & COMPLIANCE | |
| SMPTE compliance | SMPTE 2110-20 SMPTE 2110-21 SMPTE 2110-30 SMPTE 2110-40 SMPTE 2022-7 |
| Video sampling | 4:2:2 |
| Colour precision | 10-bit |
| Colour space | Rec.709 Rec.2020 |
| IP VIDEO | |
| Video | SMPTE 2110-20 (uncompressed) |
| IGMP | v2 |
| Traffic shaping | Sender: Narrow Receiver: Narrow, Wide synchronous, Asynchronous |
| Audio | SMPTE 2110-30 (Level C) |
| Ancillary data | SMPTE 2110-40 (full stream access) |
| CODEC & TIMING | |
| Codec | Blackmagic IP10 (optional) |
| Precision time protocol | IEEE 1588-2008 (PTP v2) ST 2059-1 ST 2059-2 |
| NMOS | |
| IS-04 | v1.3.2 (Discovery & Registration) mDNS / DNS-SD peer-to-peer |
| IS-05 | v1.1.2 (Connection Management) |
| BCP-002-01 | Natural grouping |
| BCP-004-01 | Receiver capabilities |
| PRODUCT SPECIFICS | |
| Talkback support | Yes |
| Control | Front panel emergency switching Software control Optional hardware panel |
| DISPLAY | |
| Front panel | Built-in HD LCD 22 LED setup buttons 8 source buttons 4 transition buttons 6 talkback buttons Menu control knob Lock button |
| SOFTWARE | |
| Control panel | ATEM Software Control (included) |
| Software updates | USB or Ethernet |
| Configuration | ATEM Software Control + Setup Utility |
| OPERATING SYSTEMS | |
| Mac | macOS 15.0 Sequoia macOS 26.0 Tahoe or later |
| Windows | Windows 10 Windows 11 Windows 11 (ARM) |
| POWER | |
| Power supply | 2 × internal 100–240 V AC |
| Power inputs | 2 × IEC C14 |
| Power usage | TBC |
| PHYSICAL | |
| Installation | 1U rack mount |
| Dimensions | 482.6 × 227 × 44.2 mm |
| ENVIRONMENTAL | |
| Operating temperature | 0 °C to 40 °C |
| Storage temperature | -20 °C to 60 °C |
| Humidity | 0% to 90% non-condensing |
| MANUFACTURER WARRANTY | |
| Warranty | 1-year limited manufacturer’s warranty |
