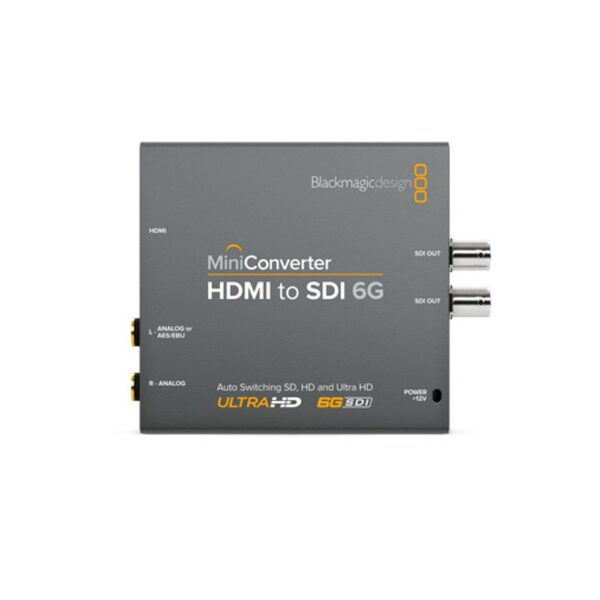

Blackmagic Design HDMI to SDI Mini Converter 6G

Description

Blackmagic HDMI to SDI Mini Converter

Blackmagic HDMI to SDI Mini Converter 6G is the world’s most advanced converter because it includes the latest 6G-SDI technology, automatically detects the input video format and instantly changes between virtually all SD, HD and Ultra HD video standards up to 2160p30.

You get advanced features such as redundant SDI inputs, re-clocked loop outputs, HDMI instant lock, 33 point LUT support, and full analog and AES/EBU audio connections so you can convert video, as well as the embed or de-embed audio.

Blackmagic HDMI to SDI Mini Converter 6G includes everything you need to convert from HDMI devices to SDI video in SD, HD and Ultra HD video formats. With independent audio connections, you can also embed SDI audio from HDMI, AES/EBU or balanced analog audio inputs. Blackmagic HDMI to SDI Mini Converter is the perfect solution to convert HDMI consumer cameras or computers to broadcast quality SDI.

The new Mini Converter SDI to HDMI 6G and Mini Converter HDMI to SDI 6G models make it possible to convert SDI to HDMI or HDMI to SDI in all formats up to 2160p30 at an even more affordable price. The Mini Converter SDI to HDMI 6G model is also dramatically more powerful with HDMI instant lock, 33 point 3D LUT support and Ultra HD to HD down conversion. HDMI instant lock can lock a new signal in as little as 1 frame, so you get glitch free switching when changing between sources that have the same video format. New 33-point 3D LUT support lets you apply custom looks in real-time using high precision film quality lookup tables. Plus you still get the same powerful Mini Converter features such as independent balanced analog and AES/EBU digital audio connections, redundant SDI inputs to protect against cable damage and automatic switching between SD, HD and Ultra HD video standards.

View More Blackmagic Products Here

HDMI Instant Lock

Get instant image lock when using consumer HDMI TV’s HDMI televisions and projectors can take a long time to lock onto a signal when a new source is connected. HDMI Instant Lock on the Mini Converter SDI to HDMI 6G solves this problem by continuously sending an active HDMI signal to the display. When you switch to a new source that’s the same format as the previous signal it will lock in as little as 1 frame so you get glitch free clean switching.

33 Point 3D LUT Support

Create custom looks with high precision 3D LUTs Mini Converter SDI to HDMI 6G also includes a full 33 point 3D lookup table for high precision color conversions. That means you can apply custom looks, color and gamma changes in realtime for on set monitoring. LUTs can also be used with the SDI loop output, transforming the converter into a 3D LUT processor! The LUTs are compatible with DaVinci Resolve so you get consistent color on set and in the post.

• Convert from HDMI devices to SDI video in SD, HD, and Ultra HD video formats
• Independent audio connections
• Embed SDI audio from HDMI, AES/EBU or balanced analog audio inputs
• Perfect solution to convert HDMI consumer cameras or computers to broadcast quality SDI

Connections

• SDI Video Outputs: 2 x SDI Video Outputs. Automatically matches the SD, HD and 6G-SDI HDMI video input.
• HDMI Video Inputs: HDMI type A in
• Analog Audio Inputs: 2 channels of professional balanced analog audio with standard 1/4 inch jack connections.
• Digital Audio Inputs: 4 channels of AES/EBU digital audio.
• Multi Rate Support: Auto detection of SD, HD or 6G-SDI.
• Updates and Configuration: USB
• Reclocking: Yes
