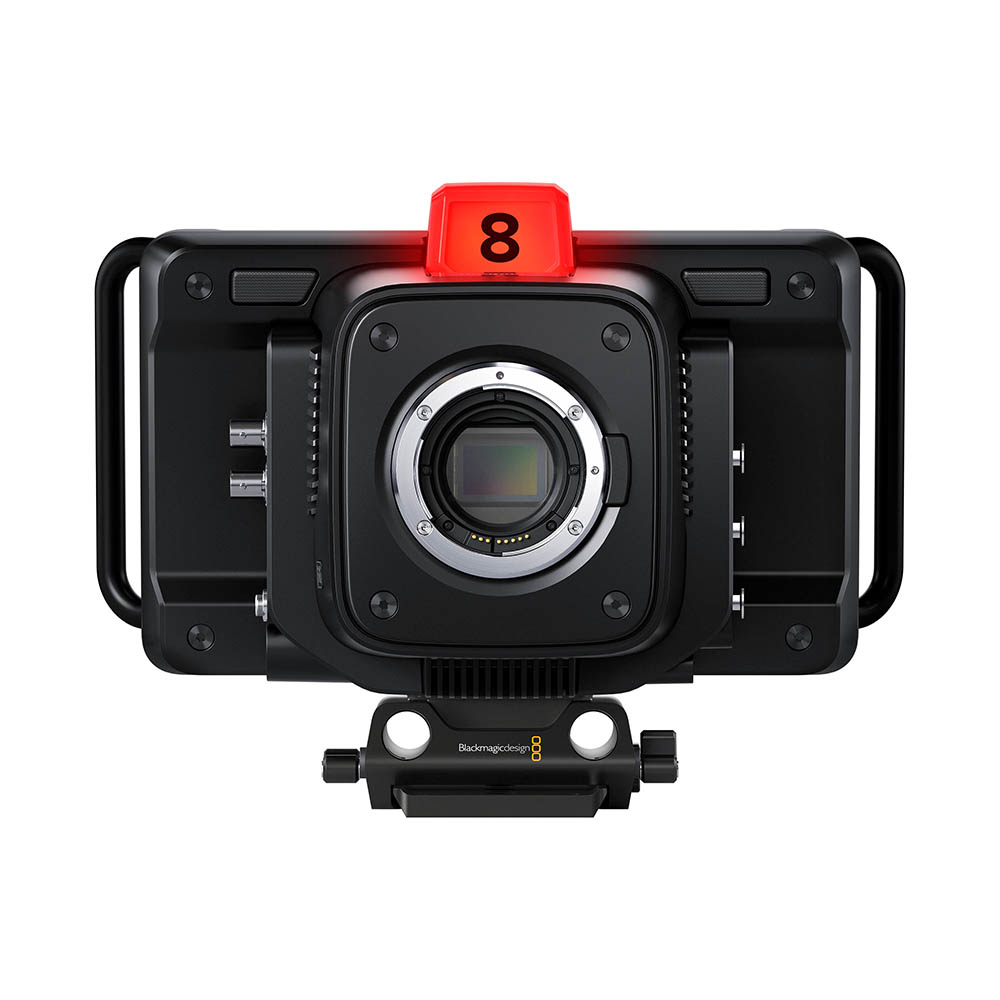

Blackmagic Design Studio Camera 6K Pro
£2,022.00 £1,685.00 Ex. VAT
Order Now - Usually delivered in 3-5 days
Description
Blackmagic Design Studio Camera 6K Pro (CINSTUDMFT/G26PDK) is the world’s most enhanced self-contained studio camera. Blackmagic Studio Cameras have the same features as large studio cameras, miniaturized into a single compact and portable design. Plus with digital film camera dynamic range and color science, the cameras can handle extremely difficult lighting conditions while producing cinematic-looking images.
The sensor features an ISO of up to 25,600 so you can create amazing images even in dimly lit venues. It even works under the moonlight! Advanced features include talkback, tally, camera control, built-in color corrector, Blackmagic RAW recording to USB disks, live streaming, and more! You can even add a focus and zoom demand for lens control!
Designed as the most advanced ultra portable studio camera, this model has the features of the Studio Camera 4K Pro G2 model plus a larger 6K sensor, EF lens mount and remote controllable ND filters.
Features
- Designed for Live Production
- Revolutionary Studio Camera Design
- Exceptional Low Light Performance
- Get Cinematic Images in Live Production!
- Get CinematicImages in Live Production!

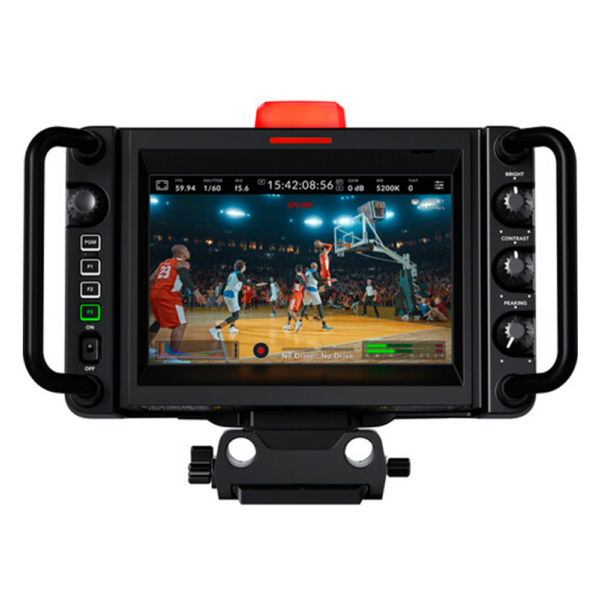

- Frame Shots with Large 7″ Viewfinder
- Physical and Touchscreen Controls
- Built-in Tally for On Air Status
- Built-in Tally for On Air Status
- Powerful Broadcast Connections
- Four Ways to Connect
Comes with
- 1 x Blackmagic Studio Camera 6K Pro
- 1 x Camera Sun Shade
- 1 x Tripod Mount (compatible: 15mm lightweight rails)
- 1 x Tripod Mount Plate/ Turret Dust Cap
- 1 x External 12V DC power supply (has locking connector & international sockets adapters for most countries)
- 1 x Welcome wallet (QR code for software download available)
- 1 x DaVinci Resolve (download card)
- 1 x Blackmagic Design sticker
Additional information
| BRAND | BLACKMAGIC |
|---|
Delivery
Please note, for next-day shipping options the product must show in stock in the product status and be before the cut-off period. If the product does not show in stock most items will give an approximate lead time.
Collection
Free Collection is available at our showroom in Hampton, please select this option at the payment stage at the checkout. Please allow one hour to pick and prepare your order for you so it is ready for you when you arrive. Collections must be made at our office during the hours of 9 am to 5:30 pm (Mon to Thurs) and 9 am to 5 pm (Friday).
Standard Delivery
Standard delivery costs £5.99 including VAT and will be sent out by Royal Mail or APC, this service can take 3-5 working days.
FREE UK Delivery On Orders Over £250
We offer FREE standard delivery on all orders over £250 Ex VAT to the UK mainland. Mon-Fri working days only. Saturday deliveries are not guaranteed.
Next Working Day Delivery
UK mainland orders placed before 2 pm will be dispatched the same day for next-day delivery. To qualify for next-day delivery orders must be placed before 2 pm Mon – Thur. Orders placed after 2 pm Thursday will be dispatched Friday for Monday delivery, excluding Bank Holidays. The charge for this service is £12.00 plus VAT. This service is only available for products that are in stock.
Saturday Delivery
Order before 2pm on Friday for Saturday deliveries. Saturday delivery cost £27.50 including VAT – this is only for the UK mainland.
*Excluding all Battery Generators*
Worldwide Shipping
At BPS we can arrange shipping worldwide on most of our products. Please contact sales@bps-tv.co.uk and provide details of the products you are interested in, billing and delivery address, and any company information. Our sales team will then arrange for a full quotation to be provided.
Specification
| Camera Features | |
| Effective Sensor Size | 23.10mm x 12.99mm (Super 35) |
| Lens Mount | Active EF mount. |
| Lens Control | Iris, focus, zoom on supported lenses. |
| Dynamic Range | 13 Stops. |
| Dual Native ISO | 0dB and 18dB gain. |
| Sensitivity at 0dB Gain | f11 with 2160p59.94. f12 with 2160p50. at 2,000 lux with 89.9% reflectance. |
| Signal to Noise Ratio | 64.62dB for 2160p Ultra HD scaled from 5.3K |
| Recording Resolutions | 6144 x 3456 (6K) up to 50 fps 6144 x 2560 (6K 2.4:1) up to 60 fps 5376 x 3024 (5.3K 16:9) up to 60 fps 3840 x 2160 (Ultra HD) up to 60 fps |
| Video Output Standards | 2160p, 1080p, 1080i |
| Frame Rates | Project frame rates of 23.98, 24, 25, 29.97, 30, 50, 59.94 and 60 fps supported. Off-speed frame rates 5 ‑ 50 fps in 6K, and 5 ‑ 60 fps for all other recording resolutions. |
| Built in ND Filters | Four position ND filter with clear, 2‑stop, 4‑stop and 6‑stop IR ND filters. |
| Focus | Auto focus available using compatible lenses. |
| Screen Dimensions | 7 inch 1920 x 1200 |
| Screen Type | LCD capacitive touchscreen. |
| Screen Brightness | 2000 nits |
| Controls | Touchscreen camera settings and menus with rotary settings dial, program button, F1, F2 and F3 assignable function buttons, brightness contrast and peaking dials. |
| Mounting Options | 2 x 1/4 inch tripod mount. 1 x 3/8 inch tripod mount. |
| Connections | |
| SDI Video Inputs | 1 |
| SDI Video Outputs | 1 |
| SDI Rates | 1.5G, 3G, 6G, 12G. |
| HDMI 2.0 Video Outputs | 1 |
| Analog Audio Input | 2 x XLR analog switchable between mic and line levels. Phantom power support. 1 x 3.5mm Stereo Input. Can also be used for Timecode input. |
| Analog Audio Output | 1 x 5-pin XLR for talkback headset. 1 x 3.5mm TRRS mini jack for headphones with mic. |
| SDI Audio Output | 2 channels of program audio embedded in 1.5G/3G/6G/12G-SDI. 2 talkback channels on 15 and 16. |
| Reference Inputs | Tri-Sync or Black Burst when used with optional Blackmagic Studio Converter. |
| Remote Control | Remote camera control over SDI, HDMI or Ethernet. |
| Ethernet | 10Gb/s |
| Computer Interface | 2 x USB Type‑C 3.1 Gen 1 (up to 5Gb/s) expansion ports for external recording and focus / zoom demand connection. Software updates using USB‑C Port A. |
| Audio | |
| Microphone | Integrated stereo microphone. |
| Built in Speaker | 1 x mono speaker. |
| Streaming | |
| Direct Streaming | Blackmagic Studio Camera 6K Pro supports direct live streaming using Real Time Messaging Protocol (RTMP) over ethernet or a shared mobile internet connection over USB‑C. |
| Standards | |
| SD Video Standards | None |
| HD Video Standards | 1080p23.98, 1080p24, 1080p25, 1080p29.97, 1080p30, 1080p50, 1080p59.94, 1080p60, 1080i50, 1080i59.94, 1080i60 |
| Ultra HD Video Standards | 2160p23.98, 2160p24, 2160p25, 2160p29.97, 2160p30, 2160p50, 2160p59.94, 2160p60 |
| SDI Compliance | SMPTE 292M, SMPTE 424M, SMPTE 425M level A and B, SMPTE 2081‑1, SMPTE 2081‑10, SMPTE 2082‑1 and SMPTE 2082‑10 |
| SDI Audio Sampling | Television standard sample rate of 48 kHz and 24‑bit. |
| Media | |
| Media | 2 x USB-C 3.1 Gen 1 expansion ports for external media for recording Blackmagic RAW. |
| Media Format | Can format media to ExFAT (Windows/Mac) or HFS+ (Mac) file systems. |
| Supported Codecs | |
| Codecs | Blackmagic RAW Constant Bitrate 3:1 Blackmagic RAW Constant Bitrate 5:1 Blackmagic RAW Constant Bitrate 8:1 Blackmagic RAW Constant Bitrate 12:1 Blackmagic RAW Constant Quality Q0 Blackmagic RAW Constant Quality Q1 Blackmagic RAW Constant Quality Q3 Blackmagic RAW Constant Quality Q5 |
| Storage Features | |
| Storage Type | 2 x USB‑C 3.1 Gen 1 expansion ports for external media. |
| Recording Formats | Blackmagic RAW 3:1, 5:1, 8:1, 12:1, Q0, Q1, Q3 and Q5 in 6K (6144 x 3456), 6K 2.4:1 (6144 x 2560), 5.3K 16:9 (5376 x 3024), Ultra HD (3840 x 2160) at the selected frame rate. |
| Storage Rates | Storage rates based on 30 frames per second. 6144 x 3456 (6K) Blackmagic RAW 3:1 - 323 MB/s Blackmagic RAW 5:1 - 194 MB/s Blackmagic RAW 8:1 - 121 MB/s Blackmagic RAW 12:1 - 81 MB/s Blackmagic RAW Q0 - 242 to 483 MB/s Blackmagic RAW Q1 - 162 to 387 MB/s Blackmagic RAW Q3 - 108 to 277 MB/s Blackmagic RAW Q5 - 65 to 162 MB/s 6144 x 2560 (6K 2.4:1) Blackmagic RAW 3:1 - 240 MB/s Blackmagic RAW 5:1 - 144 MB/s Blackmagic RAW 8:1 - 90 MB/s Blackmagic RAW 12:1 - 60 MB/s Blackmagic RAW Q0 - 180 to 359 MB/s Blackmagic RAW Q1 - 120 to 287 MB/s Blackmagic RAW Q3 - 80 to 205 MB/s Blackmagic RAW Q5 - 49 to 120 MB/s 5376 x 3024 (5.3K 16:9) Blackmagic RAW 3:1 - 248 MB/s Blackmagic RAW 5:1 - 149 MB/s Blackmagic RAW 8:1 - 94 MB/s Blackmagic RAW 12:1 - 63 MB/s Blackmagic RAW Q0 - 186 to 371 MB/s Blackmagic RAW Q1 - 125 to 297 MB/s Blackmagic RAW Q3 - 84 to 212 MB/s Blackmagic RAW Q5 - 50 to 125 MB/s 3840 x 2160 (Ultra HD) Blackmagic RAW 3:1 - 127 MB/s Blackmagic RAW 5:1 - 77 MB/s Blackmagic RAW 8:1 - 48 MB/s Blackmagic RAW 12:1 - 32 MB/s Blackmagic RAW Q0 - 96 to 190 MB/s Blackmagic RAW Q1 - 64 to 153 MB/s Blackmagic RAW Q3 - 43 to 109 MB/s Blackmagic RAW Q5 - 26 to 64 MB/s Constant Quality storage rates quoted are indicative only. Actual storage rates are entirely dependent on image subject matter. |
| Control | |
| External Control | Blackmagic Zoom Demand and Blackmagic Focus Demand for controlling your camera and lens from tripod handles. Blackmagic Control Protocol over SDI, RTMP and HDMI for external control when used with a compatible ATEM switcher with ATEM Software Control or ATEM Camera Control Panel. Includes control of some camera settings, focus, iris and zoom with compatible lenses, colour corrector, tally and record start and stop to external media via USB expansion port. |
| Colour Corrector | DaVinci YRGB |
| Talkback and Tally | |
| Live Tally Indicator | 1 x front facing for talent, 1 x rear facing for operator. |
| Talkback | SDI Channels 15 and 16. |
| Software | |
| Software Included | Blackmagic Camera Setup for Mac and Windows. |
| Operating Systems | Mac 12.0 Monterey, Mac 13.0 Ventura or later. Windows 10, 64-bit. Windows 11. |
| Power Requirements | |
| Power Supply | 1 x External 12V DC 60W power supply. |
| Power Inputs | 1 x 12V DC locking 5.5 mm barrel connector. 1 x 12V DC 4 pin XLR input for external power supply or battery use. 1 x RJ45 Ethernet connector for power from Type 4 PoE power supplies. |
| Power Usage | 32 ‑ 52 W using DC input. 38 ‑ 59 W using Type 4 PoE input. |
| Optional Accessories | Blackmagic Focus Demand Blackmagic Zoom Demand Blackmagic Studio Converter ATEM Mini switchers ATEM SDI switchers ATEM Constellation switchers ATEM Television Studio switchers ATEM Streaming Bridge Blackmagic MultiDock 10G HyperDeck Studio HD Plus HyperDeck Studio 4K Pro SmartView 4K Blackmagic Cloud Pod Blackmagic Cloud Store Blackmagic Cloud Store Mini 8TB Ultimatte 12 HD Mini Ultimatte 12 HD Ultimatte 12 4K Blackmagic 3G‑SDI Shield for Arduino |
| Environmental Specifications | |
| Operating Temperature | 0° to 40° C (32° to 104° F) |
| Storage Temperature | -20° to 45° C (-4° to 113° F) |
| Relative Humidity | 0% to 90% non- condensing |
