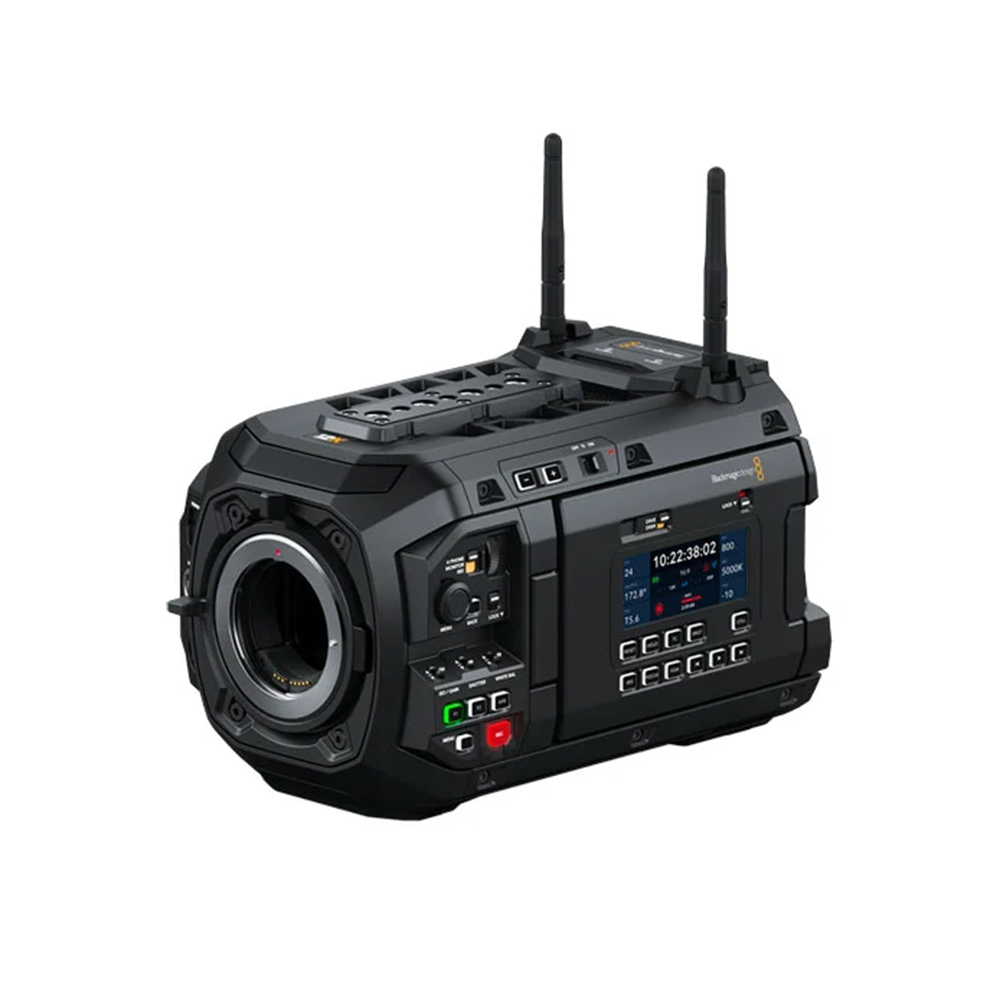

Blackmagic Design URSA Cine 12K LF 100G Body
£8,238.00 £6,865.00 Ex. VAT
Pre-Order Now
Blackmagic Design URSA Cine 12K LF 100G Body (CINEURSAAB12KLFABDY1) is a revolutionary full-frame 12K cinema camera designed for Introducing the Blackmagic Design URSA Cine 12K LF 100G, a revolutionary full-frame 12K cinema camera designed for filmmakers, live production teams, and high-end content creators who need breathtaking image quality and fast, modern workflows. With its large-format RGBW 36x24mm sensor, 16 stops of dynamic range, 100G Ethernet for SMPTE-2110 live digital film up to 440fps, and Blackmagic Cloud integration, the URSA Cine 12K LF 100G combines cinematic detail, high-frame-rate performance, and seamless post-production connectivity in one powerful camera system.
Features
• Large Format RGBW 36x24mm Sensor
• 16 Stops of Dynamic Range
• Blackmagic RAW up to 12K 3:2 Open Gate
• 100G Ethernet Port for SMPTE-2110 Live Video
• Built-In Clear, 2/4/6-Stop IRND Filters
• Built-In Folding 5″ 1500 cd/m² Monitor
• 12G-SDI Output
• USB-C Expansion Ports
Comes With
- Blackmagic URSA Cine 12K LF 100G camera with EF lens mount
- Blackmagic Media Module CF
- Blackmagic URSA Cine Rubber Caps for connectors
- Blackmagic URSA Cine WiFi Antennas
- Blackmagic EF Body Cap
- DaVinci Resolve Studio with activation key
- Welcome wallet with QR code for software download
Delivery
Please note, for next-day shipping options the product must show in stock in the product status and be before the cut-off period. If the product does not show in stock most items will give an approximate lead time.
Collection
Free Collection is available at our showroom in Hampton, please select this option at the payment stage at the checkout. Please allow one hour to pick and prepare your order for you so it is ready for you when you arrive. Collections must be made at our office during the hours of 9 am to 5:30 pm (Mon to Thurs) and 9 am to 5 pm (Friday).
Standard Delivery
Standard delivery costs £5.99 including VAT and will be sent out by Royal Mail, DPD or APC, this service can take 3-5 working days.
FREE UK Delivery On Orders Over £300 Ex. VAT
We offer FREE standard delivery on all orders over £300 Ex VAT to the UK mainland. Mon-Fri working days only. Saturday deliveries are not guaranteed.
Next Working Day Delivery
UK mainland orders placed before 2 pm will be dispatched the same day for next-day delivery. To qualify for next-day delivery orders must be placed before 2 pm Mon – Thur. Orders placed after 2 pm Thursday will be dispatched Friday for Monday delivery, excluding Bank Holidays. The charge for this service is £12.00 plus VAT. This service is only available for products that are in stock.
Saturday Delivery
Order before 2pm on Friday for Saturday deliveries. Saturday delivery cost £27.50 including VAT – this is only for the UK mainland.
*Excluding all Battery Generators*
Worldwide Shipping
At BPS we can arrange shipping worldwide on most of our products. Please contact sales@bps-tv.co.uk and provide details of the products you are interested in, billing and delivery address, and any company information. Our sales team will then arrange for a full quotation to be provided.
Specification
| Effective Sensor Size | 35.64mm x 23.32mm (Large Format) |
| Pixel Pitch | 2.9 microns |
| Lens Mount | PL mount. Interchangeable with URSA Cine lockable EF mount included. |
| Lens Control | Lens control of compatible EF lenses. Lens data from compatible PL lenses and control of some PL lenses. |
| Dynamic Range | 16 Stops |
| Shooting Formats | 12,288 x 8040 (12K 3:2 open gate) 12,288 x 6912 (12K 16:9) 12,288 x 6480 (12K 17:9) 12,288 x 5112 (12K 2.4:1) 9648 x 8040 (12K 6:5) 9408 x 6264 (9K 3:2) 8688 x 4896 (9K 16:9) 9312 x 4896 (9K 17:9) 9312 x 3864 (9K 2.4:1) 7680 x 6408 (9K 6:5) 8192 x 5360 (8K 3:2 open gate) 8192 x 4608 (8K 16:9) 8192 x 4320 (8K 17:9) |
| 8192 x 3408 (8K 2.4:1) | 6432 x 5360 (8K 6:5) 4608 x 2592 (4.6K 16:9 B4 crop) 4096 x 2680 (4K 3:2 open gate) 4096 x 2304 (4K 16:9) 4096 x 2160 (4K 17:9) 4096 x 1704 (4K 2.4:1) 3216 x 2680 (4K 6:5) |
| Frame Rates | Project frame rates of 23.98, 24, 25,29.97, 30, 50, 59.94 and 60 fps supported. Maximum sensor frame rate dependent on resolution selected. |
| High Speed Frame Rates | 12K 3:2 open gate up to 80 fps 12K 17:9 up to 100 fps 12K 2.4:1 up to 120 fps 9K 3:2 Super 35 up to 100 fps 8K / 4K 3:2 open gate up to 144 fps 8K / 4K 2.4:1 up to 224 fps 4.6K B4 crop 16:9 up to 240 fps |
| Built in ND Filters | Button activated ND filters with clear, 2-stop, 4-stop and 6-stop IR ND filters. |
| Focus | Focus button turns on peaking, auto focus available using compatible lenses. |
| Iris Control | Iris wheel and touchscreen slider for manual iris adjustment on electronically controllable lenses, iris button for instant auto iris settings on compatible lenses so no pixel is clipped in film mode. Scene average auto exposure in video mode. |
| Screens | 2 x Monitoring Screens 1 x Camera Status Screen |
| Monitoring Screen Dimensions | 5 inch. |
| Monitoring Screen Resolution | 1920px x 1080px |
| Monitoring Screen Brightness | 1500 nits. |
| Monitoring Screen Type | LCD capacitive touchscreen |
| Metadata Support | Automatically populated lens data from i/Technology with compatible PL, LPL lenses and electronic EF lenses when using optional EF lens mount. Automatic recording of camera settings and slate data such as project, scene number, take and special notes. |
| Controls | Touchscreen menus on 5 inch screen. Push buttons for other controls. 6 assignable shortcut keys plus 6 assignable viewfinder shortcut keys on optional URSA Cine EVF. |
| Timecode Clock | Highly accurate timecode clock. Less than 1 frame drift every 8 hours. |
| Connections | |
| Total Video Outputs | 3 |
| SDI Video Outputs | 2 |
| SDI Rates | 1.5G, 3G, 6G, 12G. |
| 100G 2110 IP Networks | 1 x 100G QSFP28 connection. |
| 2110 IP Video Outputs | 1 x 100G QSFP28 connection. |
| 2110 IP Video Inputs | 1 x 100G QSFP28 connection. |
| Senders and Receivers per 100G | 1 x Ultra HD |
| Analog Audio Inputs | 2 x XLR analog switchable between mic, line and AES audio. Phantom power support. 1 x 3.5mm headset jack |
| Analog Audio Outputs | 1 x 3.5mm headset jack |
| Reference Inputs | Tri-Sync/Black Burst and Timecode. PTP clock and timecode over 2110 IP network |
| Viewfinder | 1 x Viewfinder USB-C with video, power, camera control data and locking connector. Works with URSA Cine EVF and PYXIS Monitor. |
| USB-C Monitor Outputs | 2 x USB-C side monitor ports support URSA Cine EVF, PYXIS Monitor or DisplayPort monitors |
| Accessories | 1 x 7-pin Lemo ‘EXT’ for power out, serial communication, and run/stop. 1 x 3-pin Fischer ‘RS’ for power out and run/stop. |
| Computer Interface | 2 x USB-C side expansion ports for camera accessories. Software updates using side USB‑C closer to rear. |
| Ethernet | 1 x 100Gb/s QSFP28 connector for sending and receiving 2110 IP video or SMB file sharing, Web Media Management, Blackmagic Cloud uploads, camera control and streaming. |
| Power | 1 x 8-pin Lemo compatible +24V DC power input. |
| Audio | |
| Microphone: | Integrated stereo microphone. |
| Built in Speaker: | 1 x mono speaker. |
| Standards | |
| HD Video Standards | 1080p23.98, 1080p24, 1080p25, 1080p29.97, 1080p30, 1080p50, 1080p59.94, 1080p60, 1080i50, 1080i59.94, 1080i60 |
| Ultra HD Video Standards | 2160p23.98, 2160p24, 2160p25, 2160p29.97, 2160p30, 2160p50, 2160p59.94, 2160p60 |
| SMPTE Compliance | SMPTE 2110-20, SMPTE 2110-21, SMPTE 2110-30, SMPTE 2110-40, SMPTE 292M, SMPTE 424 level A and B, SMPTE 2081-1, SMPTE 2082-1 |
| SDI Audio Sampling | 48 kHz and 24 bit |
| IP Video Compliance | |
| SMPTE 2110-20 (Uncompressed Video): | IGMP v2 |
| SMPTE 2110-21 (Traffic Shaping): | * Sender: Narrow Receiver: Narrow, Wide Synchronous, Asynchronous |
| SMPTE 2110-30 (PCM): Audio Conformance level: | Level C |
| SMPTE 2110-40 (Ancillary Data): | Full access to entire SMPTE ancillary data stream. Includes RP 188/SMPTE 12M-2, closed captioning and HDR static metadata. |
| Codec: | Blackmagic IP10 codec optional for 2160p59.94 and 2160p60 as 2110 IP video. |
| Precision Time Protocol: | IEEE 1588-2008 (PTP v2), ST 2059-1, ST 2059-2 |
| NMOS IS-04 Discovery and Registration: | v1.3.2, Peer-to-peer via mDNS/DNS-SD |
| NMOS IS-05 Connection Management: | v1.1.2 |
| NMOS BCP-002-01: | Natural Grouping |
| NMOS BCP-004-01: | Receiver capabilities |
| Media | |
| Media: | Blackmagic Media Module CF includes 2 x slots for CFexpress Type B media. Also compatible with optional Blackmagic Media Module 8TB or 16TB. |
| Media Format: | Blackmagic |
| Supported Codecs | |
| Codecs | Blackmagic RAW Constant Bitrate 3:1 Blackmagic RAW Constant Bitrate 5:1 Blackmagic RAW Constant Bitrate 8:1 Blackmagic RAW Constant Bitrate 12:1 Blackmagic RAW Constant Bitrate 18:1 Blackmagic RAW Constant Quality Q0 Blackmagic RAW Constant Quality Q1 Blackmagic RAW Constant Quality Q3 Blackmagic RAW Constant Quality Q5 H.264 Proxy in 1920 x 1080, 8-bit 4:2:0 Blackmagic IP10 |
| Control | |
| External Control | Blackmagic URSA Cine EVF can trigger record plus camera functions assigned to the VF1, VF2, VF3, Zoom, Exp and Record buttons. External Camera Control supported using REST API over Ethernet, WiFi or serial communication via the 7-pin Lemo connector. Run / Stop supported via 3-pin Fischer and 7-pin Lemo connector. Blackmagic iPad control and Bluetooth control supported. Blackmagic Zoom Demand and Blackmagic Focus Demand for controlling camera and compatible lenses. |
| Cloud Synchronization | Blackmagic Cloud |
| Streaming | |
| Direct Streaming | Supports Secure Reliable Transport (SRT) and Real Time Messaging Protocol (RTMP) local live streaming using a Ethernet or WiFi, or global live streaming using an internet connection via Ethernet, WiFi or USB-C cellular data. |
| Network Management | |
| NTP | Network time protocol support allows you to sync the time on your camera, whenever connected to a network with any NTP server of your choice. |
| Web Media Manager | Using a browser connected over Ethernet, web media manager allows you to access, browse, download and delete files from any drive connected to the camera. |
| FTP | Download files from any drive attached to your camera using FTP. |
| SMB | File sharing using SMB |
| Storage Features | |
| Storage Type | 2 x CFexpress Type B |
| Storage Rates | Storage rates based on 24 frames per second. 12K - 12,288 x 8040 Blackmagic RAW 3:1 - 1,194 MB/s Blackmagic RAW 8:1 - 448 MB/s Blackmagic RAW 12:1 - 299 MB/s Blackmagic RAW 18:1 - 199 MB/s Blackmagic RAW Q0 - 398 to 1,433 MB/s Blackmagic RAW Q1 - 326 to 796 MB/s Blackmagic RAW Q3 - 179 to 448 MB/s Blackmagic RAW Q5 - 120 to 358 MB/s 9K - 17,520 x 8,040 Blackmagic RAW 3:1 - 714 MB/s Blackmagic RAW 8:1 - 268 MB/s Blackmagic RAW 12:1 - 179 MB/s Blackmagic RAW 18:1 - 119 MB/s Blackmagic RAW Q0 - 238 to 857 MB/s Blackmagic RAW Q1 - 195 to 476 MB/s Blackmagic RAW Q3 - 107 to 268 MB/s Blackmagic RAW Q5 - 72 to 214 MB/s 8K - 8192 x 5360 Blackmagic RAW 3:1 - 533 MB/s Blackmagic RAW 5:1 - 320 MB/s Blackmagic RAW 8:1 - 200 MB/s Blackmagic RAW 12:1 - 133 MB/s Blackmagic RAW Q0 - 320 to 639 MB/s Blackmagic RAW Q1 - 228 to 533 MB/s Blackmagic RAW Q3 - 133 to 400 MB/s Blackmagic RAW Q5 - 100 to 266 MB/s 4K - 4096 x 2680 Blackmagic RAW 3:1 - 135 MB/s Blackmagic RAW 4:1 - 101 MB/s Blackmagic RAW 5:1 - 81 MB/s Blackmagic RAW 6:1 - 68 MB/s Blackmagic RAW Q0 - 202 to 336 MB/s Blackmagic RAW Q1 - 135 to 311 MB/s Blackmagic RAW Q3 - 101 to 238 MB/s Blackmagic RAW Q5 - 81 to 202 MB/s |
| Recording Formats | Full Sensor Width or Height Resolutions Blackmagic RAW 3:1, 8:1, 12:1, 18:1, Q0, Q1, Q3 and Q5 at: [12,288 x 8,040], [12,288 x 6,912], [12,288 x 6,480], [12,288 x 5,112] and [9,648 x 8,040] Includes film, extended video or video dynamic range or custom 3D LUT embedded in metadata plus simultaneous recording of H.264 1920 x 1080 Proxies. Super 35 Windowed Sensor Resolutions Blackmagic RAW 3:1, 8:1, 12:1, 18:1, Q0, Q1, Q3 and Q5 at: [9,408 x 6,264], [8,688 x 4,896], [9,312 x 4,896], [9,312 x 3,864] and [7,680 x 6,408] Includes film, extended video or video dynamic range or custom 3D LUT embedded in metadata plus simultaneous recording of H.264 1920 x 1080 Proxies. Full Sensor Width or Height Scaled to 8K Blackmagic RAW 3:1, 5:1, 8:1, 12:1, Q0, Q1, Q3 and Q5 at: [8,192 x 5,360], [8,192 x 4,608], [8,192 x 4,320], [8,192 x 3,408] and [6,432 x 5,360] Includes film, extended video or video dynamic range or custom 3D LUT embedded in metadata plus simultaneous recording of H.264 1920 x 1080 Proxies. Full Sensor Width or Height Scaled to 4K Blackmagic RAW 3:1, 4:1, 5:1, 6:1, Q0, Q1, Q3 and Q5 at: [4,096 x 2,680], [4,096 x 2,304], [4,096 x 2,160], [4,096 x 1,704] and [3,216 x 2,680] Includes film, extended video or video dynamic range or custom 3D LUT embedded in metadata plus simultaneous recording of H.264 1920 x 1080 Proxies. B4 Mount Sensor Centre Crop Blackmagic RAW 3:1, 8:1, 12:1, 18:1, Q0, Q1, Q3 and Q5 at: [4608 x 2592] Suitable for Blackmagic URSA Cine Mount B4 with film, extended video or video dynamic range or custom 3D LUT embedded in metadata plus simultaneous recording of H.264 1920 x 1080 Proxies. Constant Quality Rates 17K and 12K: Q0 9:1 - 2.5:1, Q1 11:1 - 4.5:1, Q3 20:1 - 8:1, Q5 30:1 - 10:1 8K: Q0 5:1 - 2.5:1, Q1 7:1 - 3:1, Q3 12:1 - 4:1, Q5 16:1 - 6:1 4K: Q0 2:1 - 1.2:1, Q1 3:1 - 1.3:1, Q3 4:1 - 1.7:1, Q5 5:1 - 2:1 Actual storage rates are dependent on image subject matter. |
| Software | |
| Software Included | URSA Cine Blackmagic OS DaVinci Resolve Studio for Mac and Windows including activation key Blackmagic Camera Setup Blackmagic RAW Player Blackmagic RAW QuickLook Plugin Blackmagic RAW SDK |
| Operating Systems | Mac: 15.0 Sequoia, Mac 26.0 Tahoe or later. Windows: Windows 11 |
| Power Requirements | |
| Power Supply | +24V DC external power supply 100 - 240 AC 50/60Hz compatible with IEC C14 socket. B-Mount battery plate. |
| Power Input | 1 x 8-pin Lemo compatible socket for external power or battery use. Molex connector for rear battery plate. |
| Power Output | 1 x 7-pin connector with +24V DC power output when camera is powered by +24V DC batteries or power supply. 1 x 3-pin Fischer with +24V DC power output when camera is powered by +24V DC batteries or power supply. B-Mount battery plate including 2-pin connector with +12V regulated output from camera. |
| Accessories | |
| Optional Accessories | Blackmagic URSA Cine EVF Blackmagic URSA Cine Studio Viewfinder Blackmagic PYXIS Monitor Blackmagic PYXIS Monitor Kit Blackmagic PYXIS Monitor EVF Kit Blackmagic URSA Cine Mount PL Blackmagic URSA Cine Mount LPL Blackmagic URSA Cine Mount EF Blackmagic URSA Cine Mount B4 Blackmagic URSA Cine B4 Adapter Cable Blackmagic URSA Cine Mount Shims Blackmagic URSA Cine Battery Plate B Mnt Blackmagic URSA Cine Battery Plate Gold Blackmagic URSA Cine Battery Plate VLock Blackmagic URSA Cine Baseplate 15 Blackmagic URSA Cine Baseplate 19 Blackmagic URSA Cine Handle Blackmagic URSA Cine Grips Blackmagic URSA Cine 5" LCD Sunshade Blackmagic Media Dock Blackmagic Media Module CF Blackmagic Media Module 8TB Blackmagic Media Module 16TB ATEM Streaming Bridge |
