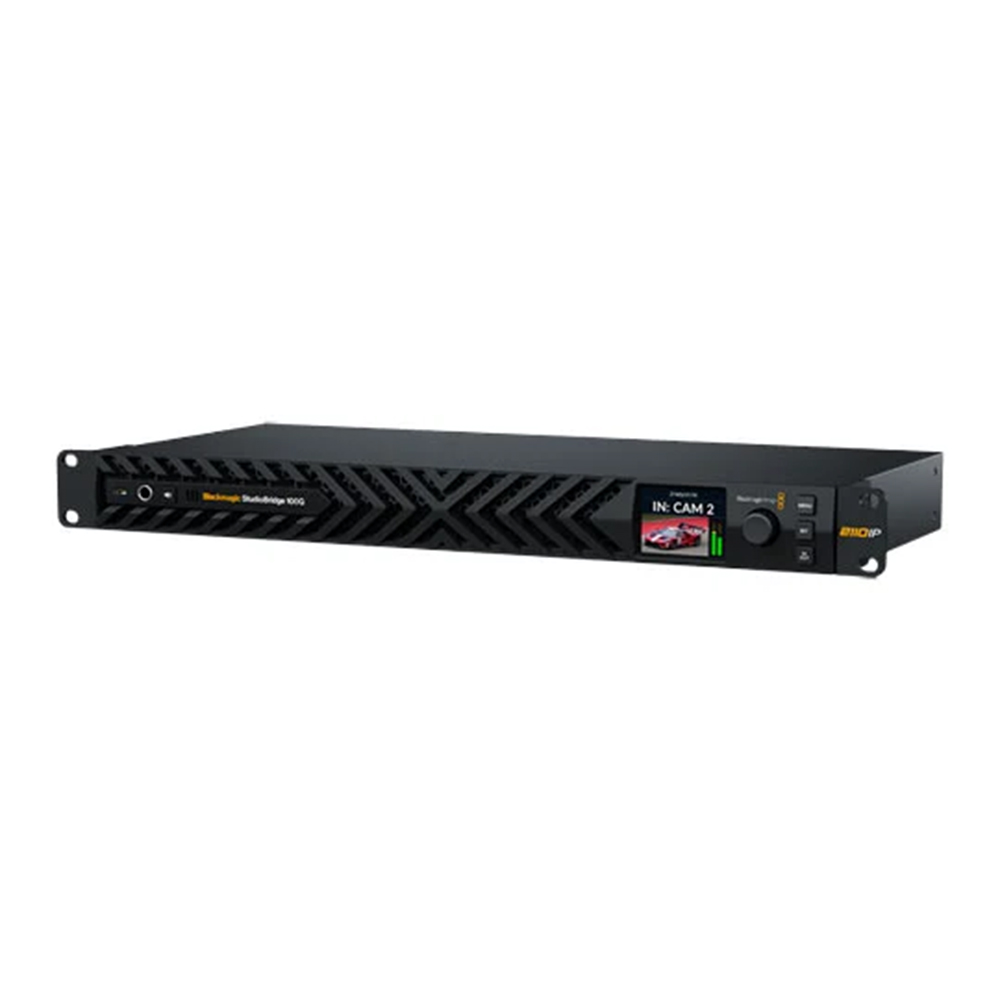

Blackmagic Design StudioBridge 100G
£2,418.00 £2,015.00 Ex. VAT
Pre-Order Now
Blackmagic Design StudioBridge 100G (CONVNVIPR/SBD100X2) is a cutting-edge SMPTE-2110 Ethernet bridge designed for high-end broadcast workflows that demand speed and reliability. With a powerful 100G Ethernet connection seamlessly converted into a dual-redundant 100G broadcast system, it’s the perfect backbone for live production and cinema-grade setups. Supporting two 100G camera interfaces, ideal for pairing with cameras like the URSA Cine 12K 100G , this compact yet robust solution ensures flawless data flow even in demanding environments. Plus, with a dedicated 10G Ethernet accessory channel, NMOS control, and dual-redundant power supplies, the StudioBridge 100G redefines professional connectivity for next-generation broadcast networks.
Features
• Bridges a single 100G SMPTE-2110 Ethernet connection into a dual-redundant 100G broadcast system
• Supports two 100G Ethernet camera connections
• Allows combined camera bandwidth up to 100 Gb/s total
• Compatible with high-performance cameras like the URSA Cine 12K 100G
• Features a dedicated 10G Ethernet channel for broadcast accessories
• Includes an NMOS control port for seamless network device management
Delivery
Please note, for next-day shipping options the product must show in stock in the product status and be before the cut-off period. If the product does not show in stock most items will give an approximate lead time.
Collection
Free Collection is available at our showroom in Hampton, please select this option at the payment stage at the checkout. Please allow one hour to pick and prepare your order for you so it is ready for you when you arrive. Collections must be made at our office during the hours of 9 am to 5:30 pm (Mon to Thurs) and 9 am to 5 pm (Friday).
Standard Delivery
Standard delivery costs £5.99 including VAT and will be sent out by Royal Mail, DPD or APC, this service can take 3-5 working days.
FREE UK Delivery On Orders Over £300 Ex. VAT
We offer FREE standard delivery on all orders over £300 Ex VAT to the UK mainland. Mon-Fri working days only. Saturday deliveries are not guaranteed.
Next Working Day Delivery
UK mainland orders placed before 2 pm will be dispatched the same day for next-day delivery. To qualify for next-day delivery orders must be placed before 2 pm Mon – Thur. Orders placed after 2 pm Thursday will be dispatched Friday for Monday delivery, excluding Bank Holidays. The charge for this service is £12.00 plus VAT. This service is only available for products that are in stock.
Saturday Delivery
Order before 2pm on Friday for Saturday deliveries. Saturday delivery cost £27.50 including VAT – this is only for the UK mainland.
*Excluding all Battery Generators*
Worldwide Shipping
At BPS we can arrange shipping worldwide on most of our products. Please contact sales@bps-tv.co.uk and provide details of the products you are interested in, billing and delivery address, and any company information. Our sales team will then arrange for a full quotation to be provided.
Specification

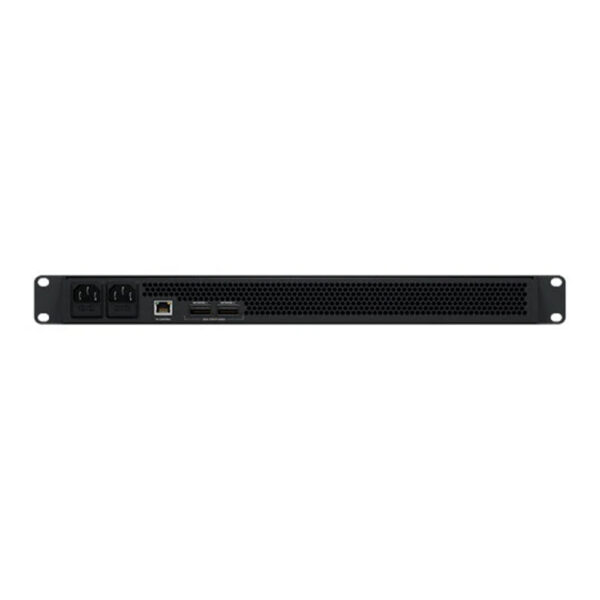

| 100G 2110 IP networks | 2 × 100G QSFP28 ST 2022-7 redundant delivery supported |
| 100G camera connections | 2 × 100G QSFP28 |
| Senders / receivers (100G) | 1 × 100G URSA Cine 2 × URSA Cine Immersive / URSA Immersive |
| 10G 2110 IP networks | 2 × 10G SFP (optical fibre) 2 × 10G RJ45 |
| Senders / receivers (10G) | 8 × Ultra HD or HD |
| 1G control network | 1 × 1G RJ45 (NMOS, configuration, updates) |
| IP audio inputs | 16 ch embedded per stream |
| IP audio outputs | 16 ch embedded per stream |
| Multi-rate support | Auto HD / Ultra HD / 4K detection |
| Computer interface | 1 × USB-C |
| Power input | 2 × IEC C14 |
| VIDEO STANDARDS | |
| HD | 720p50 720p59.94 720p60 1080i50 1080i59.94 1080i60 1080p23.98 1080p24 1080p25 1080p29.97 1080p30 1080p50 1080p59.94 1080p60 1080PsF25 1080PsF29.97 1080PsF30 |
| Ultra HD | 2160p23.98 2160p24 2160p25 2160p29.97 2160p30 2160p50 2160p59.94 2160p60 |
| 8K | 8160 × 7200 × 2 stereo immersive |
| STANDARDS & COMPLIANCE | |
| SMPTE compliance | SMPTE 2110-20 SMPTE 2110-21 SMPTE 2110-30 SMPTE 2110-40 SMPTE 2022-7 |
| Colour precision | 10-bit 4:2:2 YUV |
| Colour space | Rec.709 Rec.2020 |
| SDI auto switching | HD / Ultra HD auto detect |
| IP VIDEO | |
| Video | SMPTE 2110-20 (uncompressed) |
| IGMP | v2 |
| Traffic shaping | Sender: Narrow Receiver: Narrow, Wide synchronous, Asynchronous |
| Audio | SMPTE 2110-30 (Level C) |
| Ancillary data | SMPTE 2110-40 (full stream access) |
| CODEC & TIMING | |
| Codec | Blackmagic IP10 (optional) |
| Precision time protocol | IEEE 1588-2008 (PTP v2) ST 2059-1 ST 2059-2 |
| NMOS | |
| IS-04 | v1.3.2 (Discovery & Registration) mDNS / DNS-SD peer-to-peer |
| IS-05 | v1.1.2 (Connection Management) |
| BCP-002-01 | Natural grouping |
| BCP-004-01 | Receiver capabilities |
| DISPLAY & CONTROL | |
| Display | 2.2" LCD (video, audio, timecode, menus) |
| Control panel | 3 buttons + spin knob |
| External control | Ethernet USB-C |
| OPERATING SYSTEMS | |
| Mac | macOS 15.0 Sequoia macOS 26.0 Tahoe or later |
| Windows | Windows 11 |
| POWER | |
| Power supply | 2 × internal 100–240 V AC |
| Power inputs | 2 × IEC C14 |
| Power usage | TBC |
| PHYSICAL | |
| Installation | 1U rack mount |
| Dimensions | 482.6 × 218 × 44.2 mm |
| ENVIRONMENTAL | |
| Operating temperature | 5 °C to 40 °C |
| Storage temperature | -20 °C to 45 °C |
| Humidity | 0% to 90% non-condensing |
| MANUFACTURER WARRANTY | |
| Warranty | 1-year limited manufacturer’s warranty |
