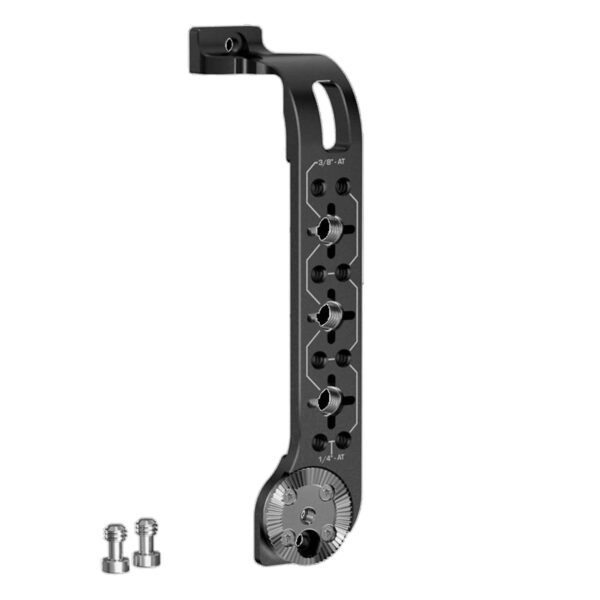

Bright Tangerine Right Side Plate for Sony Venice 1 & 2

Description

Add the Right Side Plate for secure mounting & rigging points on the Sony VENICE 1 & 2.

It attaches to the B4004.1020 Sliding Top Plate & B4004.1024 Split Riser. Combining with B4004.1022 Left Side Plate, it forms a rigid cage around the camera.

• Right Side Plate for the Sony VENICE 1 & 2
• Locating pins enable fast installation & removal using only two screws.
• Adds multiple rigging points with 3/8″ Anti-Twist, 1/4-20″ threads and ARRI standard rosette.
• Provides full clearance for Wooden Camera D-Box™ (Sony VENICE 1 & 2).
• Requires B4004.1020 Sliding Top Plate & B4004.1024 Split Riser
• Precision cut from high-grade aluminium & anodised for durability.

The Right Side Plate for the Sony VENICE 1 & 2 provides a variety of secure mounting and rigging points for accessories like handles and rod mounts.

It attaches to B4004.1020 Sliding Top Plate & B4004.1024 Split Riser. Combined with B4004.1022 Left Side Plate, it forms a rigid cage around the camera. To attach the plate, use a 4mm Hex key to secure the two included screws.

HELICOIL REINFORCED

The 3/8″ anti-twist points have been stainless-steel helicoiled for added strength. Helicoil fittings are crucial to prevent thread stripping or binding. An important factor to consider when constantly changing rig configurations.

The ARRI standard rosette is CNC milled and not stamped, offering higher engagement that won’t slip or twist when mounting grips & handles.

The contour of the plate has been designed to provide full clearance for the Wooden Camera D-Box™ (Sony VENICE 1 & 2).

RELIABLE & SECURE

Each plate is CNC cut from high-grade aluminium alloy billet, which is then hard anodised for extra durability. The result is highly resilient component, which is also extremely light-weight. The low-profile design is also a handy feature when creating compact camera builds.Weight
0.106 kg
Dimensions
5 × 4.1 × 17.5 cm
Camera Brand
Sony
Camera Model
Sony VENICE, Sony VENICE 2
