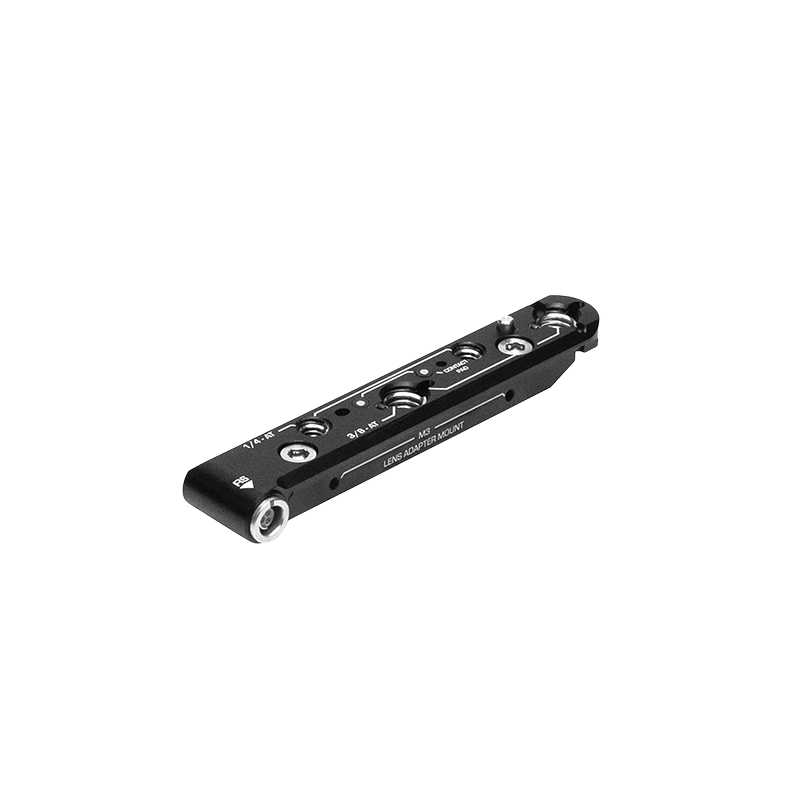

Bright Tangerine Run/Stop Top Rail for RED KOMODO

Bright Tangerine Run/Stop Top Rail for RED KOMODO (B4002.1027). Add a NATO compatible Top Plate with Run/Stop connectivity for the RED KOMODO^® when using FIZ, handgrips or gimbals.

• 3-pin Fischer port for connecting to FIZ controllers, motors, hand grips & gimbals
• Features 2x 3/8″, 1x 1/4″ for accessory mounting
• Wire-free connection for RED KOMODO^® Outrigger Handle Run/Stop trigger
• Helicoil reinforced threads to prevent stripping and loosening over time
• Integrated NATO rail with spring-loaded safety stops
• Adds mounting points for LeftField Adapter Supports

This Run/Stop Top Plate attaches to the RED KOMODO^®, providing a secure mounting point for top handles and other NATO based accessories.

RUN/STOP TRIGGER SUPPORT

A 3-pin Fischer port provides Run/Stop support for compatible accessories like handgrips & FIZ controllers. This removes the need to add a separate breakout or I/O box for a minimal build. The plate also has passthrough pogo pins, so accessories like the RED KOMODO^® Outrigger Handle can be attached on top for a wire-free connection.

COMPATIBILITY

Pin 1: Ground
Pin 3: R/S

For cforce mini RF: Connect Cam cable to RS (not Lbus)
For ARRI LCA: Connect CAM to RS with CAM pins 6 and 8 wired to opto switch
For Tilta Nucleus-M: Use 3-Pin Fischer cable #RS-03-AM
For Tiltaing Side handle: Use 3-Pin Fischer cable #RS-TA3-AM3

HELICOIL & NATO

When it comes to rigging, you can choose from threaded points or the integrated NATO rail. All threaded points are stainless-steel helicoiled for added strength. Helicoil fittings are crucial to prevent thread stripping or binding. An important factor to consider when constantly changing rig configurations.

COMBINES WITH:

The Top Rail can be used with the NATO top handle & 15mm top bar bracket, or any other standard NATO accessories. The rail also provides mounting points for the LeftField range of adapter supports.
