Bright Tangerine Sliding Top Plate for Sony Venice Rialto 1 & 2

Description

The Top Plate for the Sony Rialto Extension Unit adds a sliding, quick-release platform. This allows you to easily switch between interchangeable dovetails, giving you endless support and accessory mounting possibilities. Whether you need a top handle, gimbal mount, or more. It even offers underslung modes using ARRI standard dovetails for added flexibility.

The front of this Top Plate features 15mm LWS rod support, and when combined with the side plates and baseplate, it creates a sturdy cage.

• Mounts to the top of Sony Rialto Extension Unit and combines with side & bottom plates to form a rigid cage.
• Interchangeable dovetail plates can be preconfigured for handles, gimbal mounts & more
• ARRI standard clamp can be used for dovetail plates or balance plates for underslung setups with multiple safety mechanisms to prevent any accidental release.
• Provides multiple 3/8″ Anti-twist & 1/4″ threads and position for film plane hook on each side.
• 15mm rod mount can be used for EVF mounts, lens motors & other accessories with adjustable vertical position for LWS or low mode. Can also be removed completely if needed.

Speed up your workflow when working with the Sony Rialto with a sliding top plate featuring quick-release dovetails. It combines with the side & bottom plates to form a completely rigid cage.

Fast Setup Changes

Switch effortlessly between gimbal and handheld modes or switch out handles and support accessories in a matter of seconds with our quick-release dovetail plates.

These low profile dovetails are equipped with helicoiled 3/8″-16 and ¼”-20 threads, specifically designed to fit Freefly Systems Mōvi and DJI Ronin 2 gimbal systems.

They also offer compatibility with various top handles, giving you the flexibility to customise according to your requirements.

With a hole depth of 10mm, each thread provides excellent support and engagement for all your accessories.

Enhanced Safety Measures

Experience maximum reliability and safety on set with the addition of multiple safety mechanisms. Our safety feature prevents the clamp from opening fully, giving you peace of mind even in fast-paced situations.

To completely lock off the dovetail, the deadlock screw can be engaged, anchoring the dovetail plate into the central position.

Interchangeable Locking Mechanism

Choose between the preinstalled lever lock or swap it out for a sleek space saver lock option. With a 4mm Hex key, you can securely lock and unlock the clamp, eliminating the risk of accidental release.

Integrated 15mm Rod Support

The front of the top plate features integrated 15mm rod support, perfect for adding EVFs, lens motors and other accessories.

With our adjustable bracket, you have the flexibility to set it at the standard 15mm LWS height or lower it, enabling the dovetail to slide over for improved balance. The bracket can be inverted or completely removed to suit your specific needs.

Underslung Mode

For moments where you want to undersling the camera, the clamp is compatible with ARRI standard dovetails

Film Hook Plane & Side Plate Mounting Points

On each side of the top plate is a mounting point with locating holes for the side plates. The right side also features a relocating point for the film hook plane.

Easy Installation

To install, you’ll need a 4mm Hex key. Use the two captive 3/8″ screws to secure the plate, then attach the rod support bracket with the two M4 screws.

Compatible with:

The Sliding Top Plate is compatible with the Sony Rialto Extension Unit 1 & 2.

What’s Included

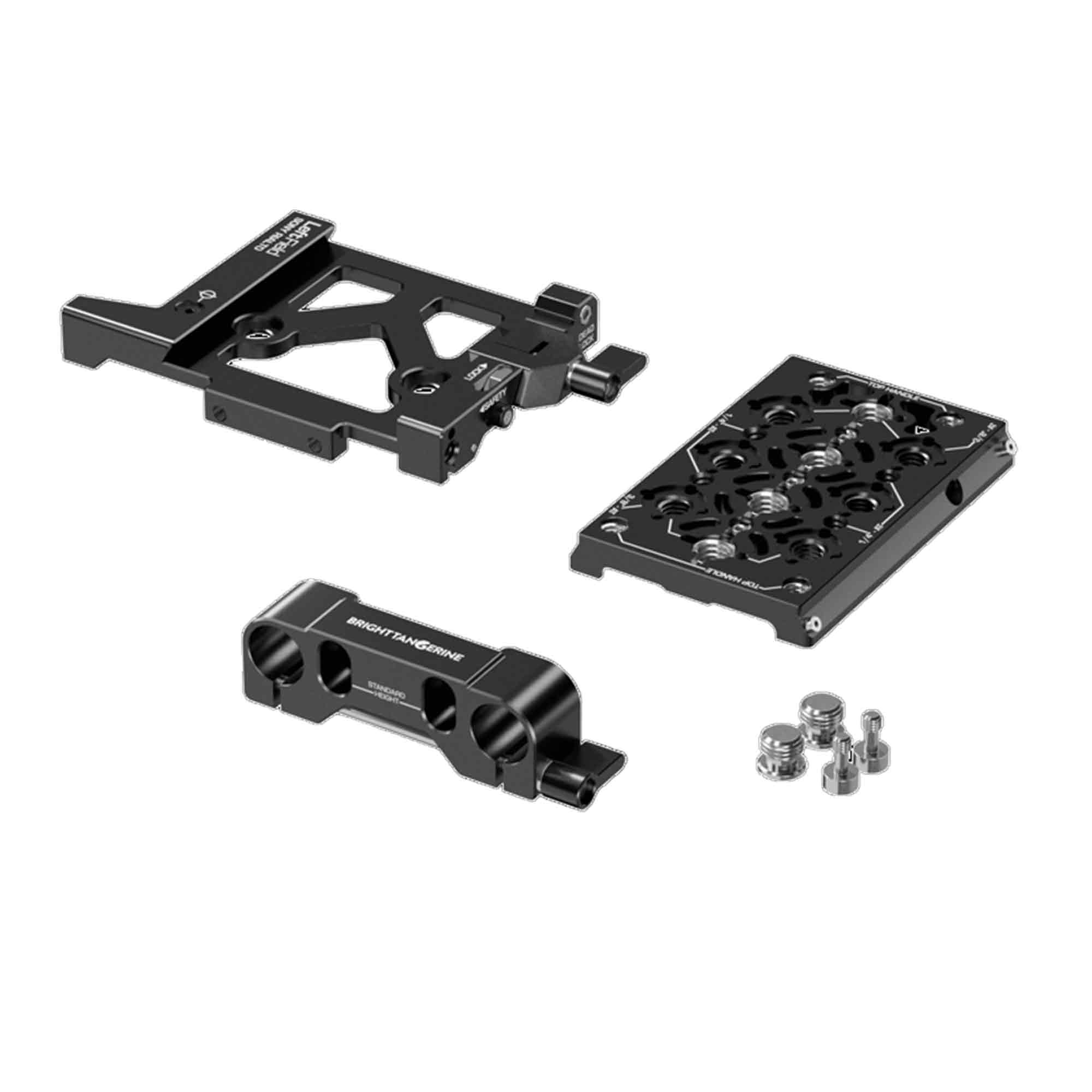

Each Sliding Top Plate includes the Top Plate, Dovetail Plate, Rod Support Bracket & Space Saver lock.

Part of the LeftField System for the Sony Rialto

Create your perfect setup for the Sony Rialto using our LeftField System. Explore a wide selection of accessories to enhance your rig and tailor it to your specific requirements.

Zero Compromises

Absolutely no compromise has been made in our manufacturing process. Our engineering is focused on creating products that are both high-performance and enabled with a longer life of service. Combine that with unparalleled level of Bright Tangerine support.

Warranty

24 Months
