| Sensor | 3:2 Full Frame CMOS sensor (35.9 x 23.9mm) |
| System | RGB primary colour filter (Bayer array) |
| Sensor Modes | Full Frame 3:2 / Full Frame / Super 35mm (Crop) / Super 16mm (Crop) |
| Total Pixels | Approx. 34.20 megapixels |
| Effective Pixels Video Mode | Approx. 32.373 megapixels (6968 x 4646) When resolution is 6960 x 4640 or 6912 x 4608 Approx. 25.628 megapixels (6968 x 3678): When resolution is 6960 x 3672, 4096 x 2160, or 2048 x 1080 Approx. 24.032 megapixels (6534 x 3678): When resolution is 3840 x 2160 or 1920 x 1080 |
| Photo Mode | Approx. 32.3 megapixels (6960 x 4640) |
| Effective Sensor Screen Size | Full Frame 3:2 35.9 x 23.9 mm (43.2 mm on the diagonal): When resolution is 6960 x 4640 35.7 x 23.8 mm (42.9 mm on the diagonal): When resolution is 6912 x 4608 |
| Effective Pixels Full Frame | 35.9 x 18.9 mm (40.6 mm on the diagonal) When resolution is 6960 x 3672, 4096 x 2160, or 2048 x 1080 33.6 x 18.9 mm (38.6 mm on the diagonal): When resolution is 3840 x 2160 or 1920 x 1080 |
| Dynamic Range | Full Frame Canon Log 2: 1600% / 15+ stops (at ISO 800) Super 35mm Canon Log 2: 1600% / 16 stops (at ISO 800) Base ISO: 800 / 6400* *when shooting in RAW or Canon Log 2/3 |
|

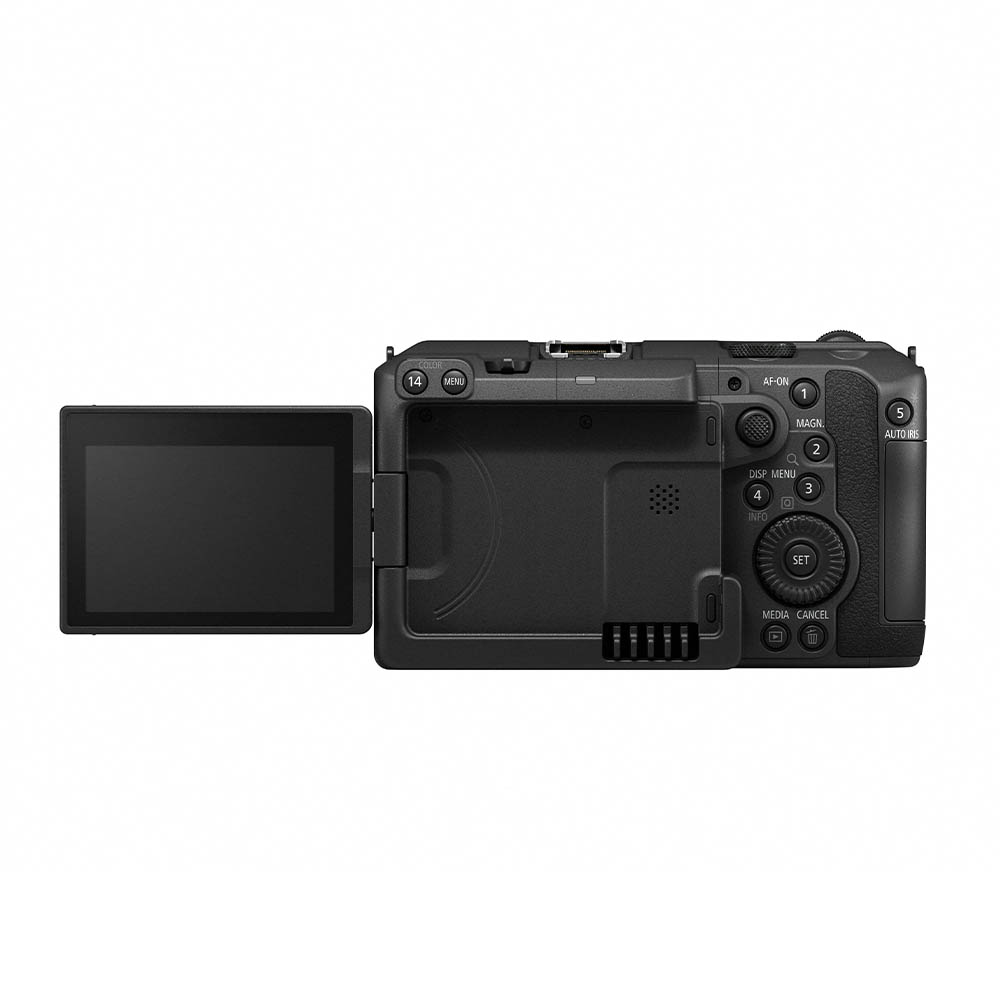

| Display | Type 3.0-inch LCD Touch Panel |
| Display Resolution | approx. 1.62 million dots (900xRGBx600) |
| Display Touch Screen Functions | Focus Point Selection Touch Screen UI for Shooting Settings |
| OSD for Vertical Shooting | Yes |
| Wave Form Monitor | Yes (Line / Line + Spot / RGB Parade / YPrPb Parade) |
| False Colour Display (Exposure Indication) | Yes (6 Colour Index) |
| Colour Bars | SMPTE / EBU / ARIB |
| Peaking | Peaking 1, Peaking 2 (Colour, Gain, Frequency customisable) |
| Zebra | Level 1; Level 2; Both |
| Markers | On/Off selectable: centre, horizontal / vertical, grid, aspect, safe area and user marker. Colour selectable |
|
| Built-In EVF | No |
|
| Type | DIGIC DV7 |
|

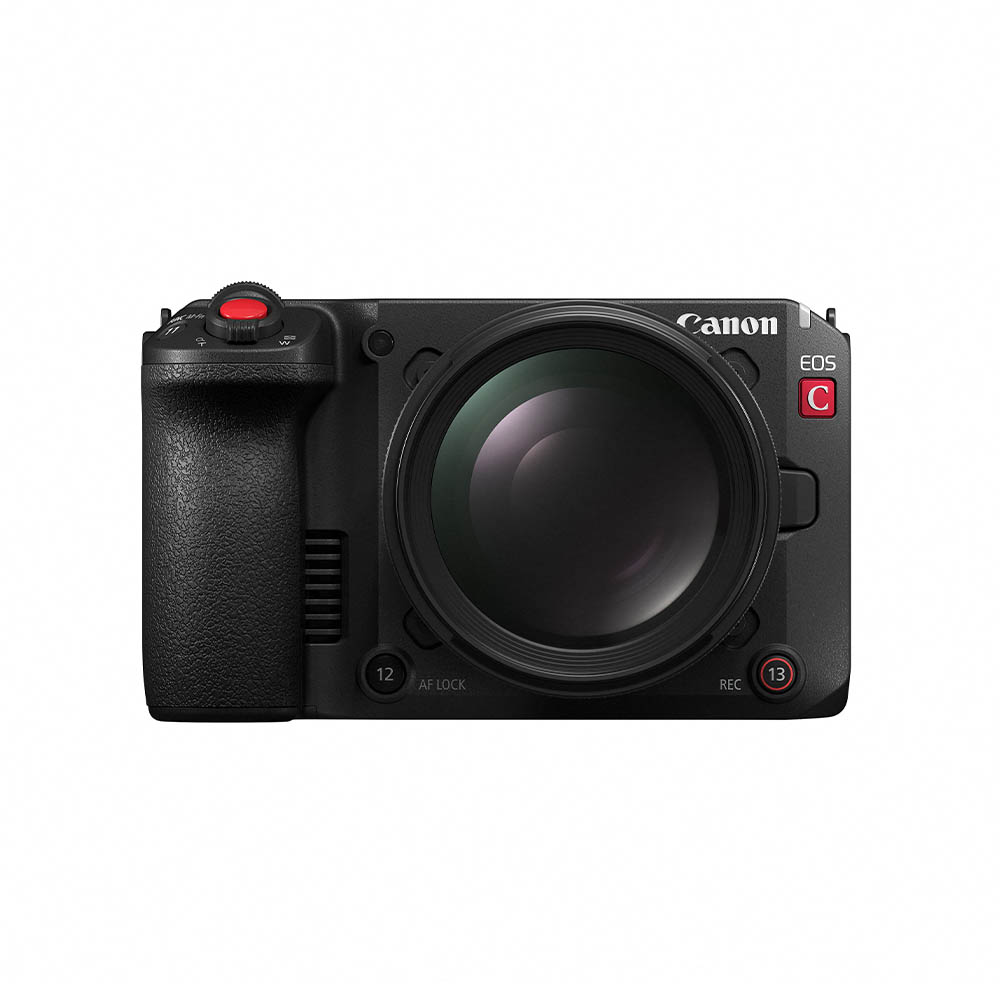

| Lens Mount | Canon RF mount PL mount support via PL-RF Mount Adapter EF mount support via EF-EOS R Mount Adapter |
| Lens Magnification Factor | Full Frame 3:2; 6960x4640: Actual focal length x Approx. 1.00 Full Frame; 6960x3672, 4096x2160 or 2048x1080: Actual focal length x Approx. 1.06 3840x2160 or 1920x1080: Actual focal length x Approx.1.12 Super 35mm (Crop); 5036x2656, 4096x2160 or 2048x1080: Actual focal length x Approx.1.47 3840x2160 or 1920x1080: Actual focal length x Approx.1.54 Super 16mm (Crop); 2524x1332 or 2048x1080: Actual focal length x Approx.2.92 1920x1080: Actual focal length x Approx.3.08 |
| Digital Lens Correction | Peripheral Illumination Correction Chromatic Aberration Correction Diffraction Correction Distortion Correction (RF lenses only) Focus Breathing Correction (Supported RF lenses only) |
| ND Filter | No |
| Iris Control | 1/2-stop, 1/3-stop or FINE control Auto Iris |
| Cooke /i Technology Support | Only when equipped with Mount Adapter PL-RF |
| Anamorphic Lens Support | x2.0 / x1.8 / x1.5 / x1.3 |
| Image Stabilization System | 5-Axis Combination IS (Optical and Digital) with supported lenses Digital 5-Axis IS for Non-IS lenses |
|
| Internal Recording Media | 1x CFexpress 2.0 (Type-B) 1x SD Card (SD / SDHC / SDXC) |
| Recording Time | Cinema RAW Light LT: FF 3:2 6960 x 4640 976 Mbps approx. 65 Mins FF 6960 x 3672 773 Mbps: approx. 81 Mins Cinema RAW Light ST: FF 3:2 6960 x 4640 1510 Mbps approx. 42 Mins FF 6960 x 3672 1190 Mbps: approx. 55 Mins Cinema RAW Light HQ: FF 6960 x 3672 2420 Mbps: approx. 26 Mins XF-AVC: FF 4096 x 2160 or 3840 x 2160 500 Mbps: approx. 136 Mins XF-AVC S: FF 4096 x 2160 or 3840 x 2160 500 Mbps: approx. 136 Mins XF-HEVC S: FF 3:2 6912 x 4608 1350 Mbps: approx. 50 Mins FF 4096 x 2160 or 3840 x 2160 135 Mbps: approx. 505 Mins |
| Recording Formats | Video Mode Cinema RAW Light (CRM) / XF-AVC (MXF) / XF-AVC S (MP4) / XF-HEVC S (MP4) Photo Mode RAW / C-RAW / Dual Pixel RAW / HEIF / JPEG |
| Relay Recording | Yes |
| Double Slot (Simultaneous) Recording | Yes |
| Simultaneous Recording in Multiple Formats | Yes |
| System Frequency / Frame Rates | 59.94Hz mode (59.94P / 59.94i / 29.97P / 23.98P) 50.00Hz mode (50.00P / 50.00i / 25.00P) 24.00 Hz mode (24.00P) |
| Cinema RAW Light Bit Rate/Bit Depth (PAL) | 12-bit Cinema RAW Light LT FF 3:2 / 6960 x 4640 / 25P [976 Mbps] FF / 6960 x 3672 / 50P [1550 Mbps] FF / 6960 x 3672 / 25P [773 Mbps] S35 / 5036 x 2656 / 50P [811 Mbps] S35 / 5036 x 2656 / 25P [406 Mbps] S16 / 2524 x 1332 / 50P [206 Mbps] S16 / 2524 x 1332 / 25P [103 Mbps] 12-bit Cinema RAW Light ST FF 3:2 / 6960 x 4640 / 25P [1510 Mbps] FF / 6960 x 3672 / 50P [2380 Mbps] FF / 6960 x 3672 / 25P [1190 Mbps] S35 / 5036 x 2656 / 50P [1250 Mbps] S35 / 5036 x 2656 / 25P [624 Mbps] S16 / 2524 x 1332 / 50P [316 Mbps] S16 / 2524 x 1332 / 25P [158 Mbps] 12-bit Cinema RAW Light HQ FF / 6960 x 3672 / 25P [2420 Mbps] S35 / 5036 x 2656 / 25P [1270 Mbps] S16 / 2524 x 1332 / 50P [642 Mbps] S16 / 2524 x 1332 / 25P [321 Mbps] |
| XF-AVC Recording Bit Rate/ Sampling (PAL / MXF) | 4:2:2 10-bit (Intra-frame) 4096x2160 or 3840x2160 / 50P [1000 / 750 / 500 Mbps] 4096x2160 or 3840x2160 / 25P [500 / 375 / 250 Mbps] 2048x1080 or 1920x1080 / 50P [250 Mbps] 2048x1080 or 1920x1080 / 25P [150 Mbps] 1920x1080 / 50i [125 Mbps] 4:2:2 10-bit (Long GOP) 4096x2160 or 3840x2160 / 50P [250 Mbps] 4096x2160 or 3840x2160 / 25P [150 Mbps] 2048x1080 or 1920x1080 / 50P [50 Mbps] 2048x1080 or 1920x1080 / 25P [50 Mbps] 1920x1080 / 50i [50 / 25 Mbps] |
| XF-AVC S Recording Bit Rate / Sampling (PAL / MP4) | 4:2:2 10-bit (Intra-frame) 4096x2160 or 3840x2160 / 50P [1000 / 750 / 500 Mbps] 4096x2160 or 3840x2160 / 25P [500 / 375 / 250 Mbps] 2048x1080 or 1920x1080 / 50P [250 Mbps] 2048x1080 or 1920x1080 / 25P [150 Mbps] 4:2:2 10-bit (Long GOP) 4096x2160 or 3840x2160 / 50P [250 Mbps] 4096x2160 or 3840x2160 / 25P [150 Mbps] 2048x1080 or 1920x1080 / 50P [50 Mbps] 2048x1080 or 1920x1080 / 25P [50 Mbps] 4:2:0 8-bit (Long GOP) 4096x2160 or 3840x2160 / 50P [150 Mbps] 4096x2160 or 3840x2160 / 25P [100 Mbps] 2048x1080 or 1920x1080 / 50P [35 Mbps] 2048x1080 or 1920x1080 / 25P [35 Mbps] |
| XF-HEVC S Recording Bit Rate / Sampling (PAL / MP4) | 4:2:2 10-bit (Intra-frame) 6912x4608 / 25P [1350 / 900 Mbps] 4:2:2 10-bit (Long GOP) 6912x4608 / 25P [486 Mbps] 4096x2160 or 3840x2160 / 50P [225 Mbps] 4096x2160 or 3840x2160 / 25P [135 Mbps] 2048x1080 or 1920x1080 / 50P [50 Mbps] 2048x1080 or 1920x1080 / 25P [50 Mbps] 4:2:0 10-bit (Long GOP) 4096x2160 or 3840x2160 / 50P [150 Mbps] 4096x2160 or 3840x2160 / 25P [100 Mbps] 2048x1080 or 1920x1080 / 50P [35 Mbps] 2048x1080 or 1920x1080 / 25P [35 Mbps] |
| Proxy Recording Bit Rate/ Sampling (PAL) | 4:2:0 8-bit (Long GOP) 2048x1080 or 1920x1080 [35 / 16 / 9 Mbps] 1280 x 720 [6 Mbps] 4:2:0 10-bit (Long GOP) 2048x1080 or 1920x1080 [16 / 9 Mbps] |
| Slow/Fast Motion | 7K 3:2 RAW: up to 30FPS 7K 17:9 RAW: up to 60FPS 5K RAW (S35 Crop): up to 60FPS 2.5K RAW (S16 Crop): up to 150FPS 4K recording up to 120FPS 2K recording up to 180FPS |
| Interval Record | Yes |
| Frame Record | Yes |
| Pre Record (Cache Record) | 3 Seconds |
| Continuous Recording | Yes |
| Simultaneous | Crop |
| Recording | 1080 x 1920 or 1080 x 1080 |
| Digital Tele-converter | 1.5x, 2x, 2.5x, 3x, Digital Zoom, Of f |
| Photo Recording Size | 3:2 ratio (L, RAW, C-RAW) 6960x4640, (M) 4800x3200, (S1) 3472x2320, (S2) 2400x1600 1.6x (crop) (L, RAW, C-RAW) 4320x2880, (S2) 2400x1600 4:3 ratio (L) 6160x4640, (M) 4256x3200, (S1) 3072x2320, (S2) 2112x1600 16:9 ratio (L) 6960x3904, (M) 4800x2688, (S1) 3472x1952, (S2) 2400x1344 1:1 ratio (L) 4640x4640, (M) 3200x3200, (S1) 2320x2320, (S2) 1600x1600 |
|

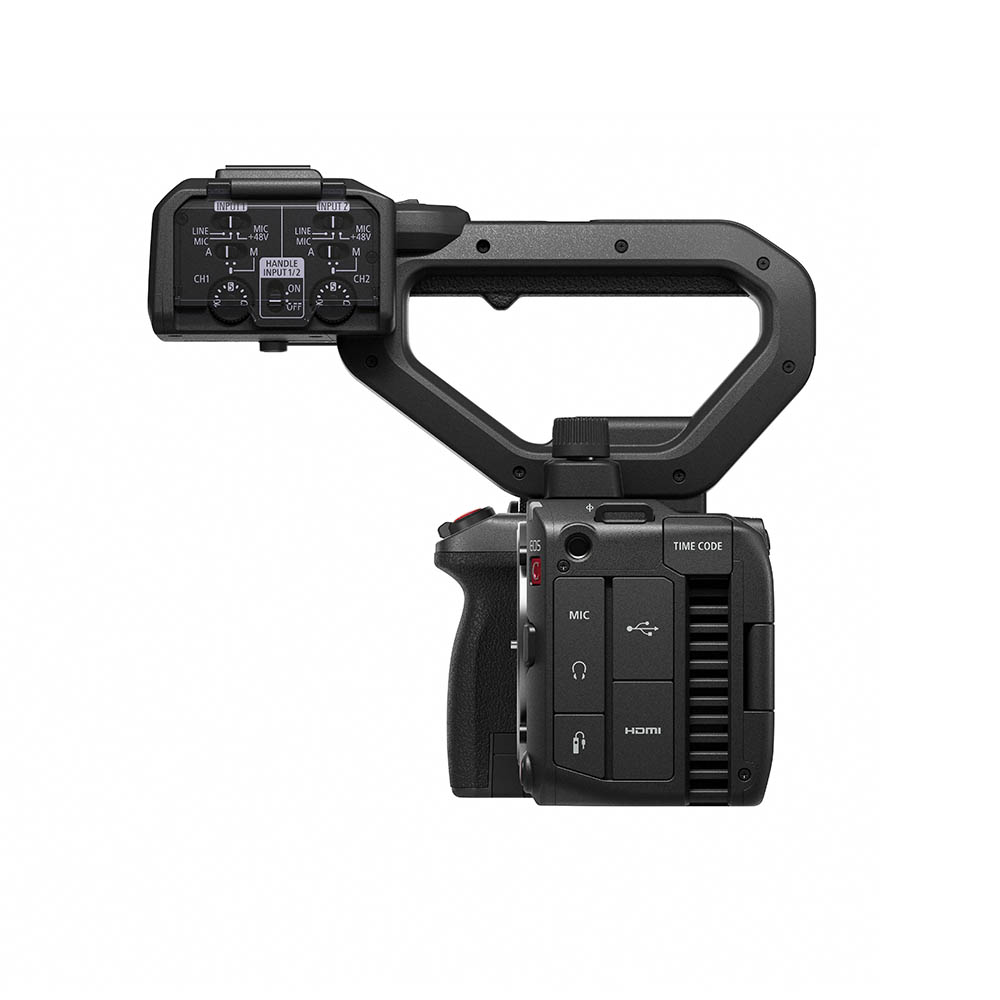

| Audio In | 2x XLR 3-pin jack (Handle Unit) 1x 3.5 mm stereo mini jack Built in Stereo microphones on camera body |
| Headphone Output | 1x 3.5mm stereo mini jack |
| Video Monitor Output | No |
| HDMI | 1x HDMI (Type-A) |
| USB | 1x USB-C Data Terminal (USB3.2 Gen2) |
| SDI Output | No |
| Time Code | 1x DIN1.0/2.3 (Input / Output) |
| Genlock | No |
| Sync | No |
| Multi-Accessory Shoe | Yes (via camera body) |
| DC Input | Yes, via DR-E6P / DR-E6C DC Coupler |
| Remote Control Terminal | 1x E3 2.5mm remote jack |
| Lens Terminal | No |
| Ethernet Terminal | No, requires a compatible USB-C Ethernet Adapter |
| IP Streaming | IP Streaming via Network connection 9 Mbps / 4 Mbps: 1920 x 1080 (59.94p / 59.94i / 50.00p / 50.00i) UDP / RTP / SRT / RTP+FEC / RTSP+RTP |
| UVC Output | USB Video Class Support 2048x1080 / 1920x1080 / 1620x1080 (depending on recording resolution) 25P / 30P / 50P / 60P |
| UAC Output | USB Audio Class Support Linear PCM (16-bit / 48 kHz, 2 channels) |
| User LUT Input | Yes, in-built LUTs available for monitoring. Custom LUTs can be applied directly to internal recordings via Look File function (compatible with 17 or 33 grid .cube files) |
| Tally Signal | Yes, via Network using XC Protocol |
| Return Signal Input | No |

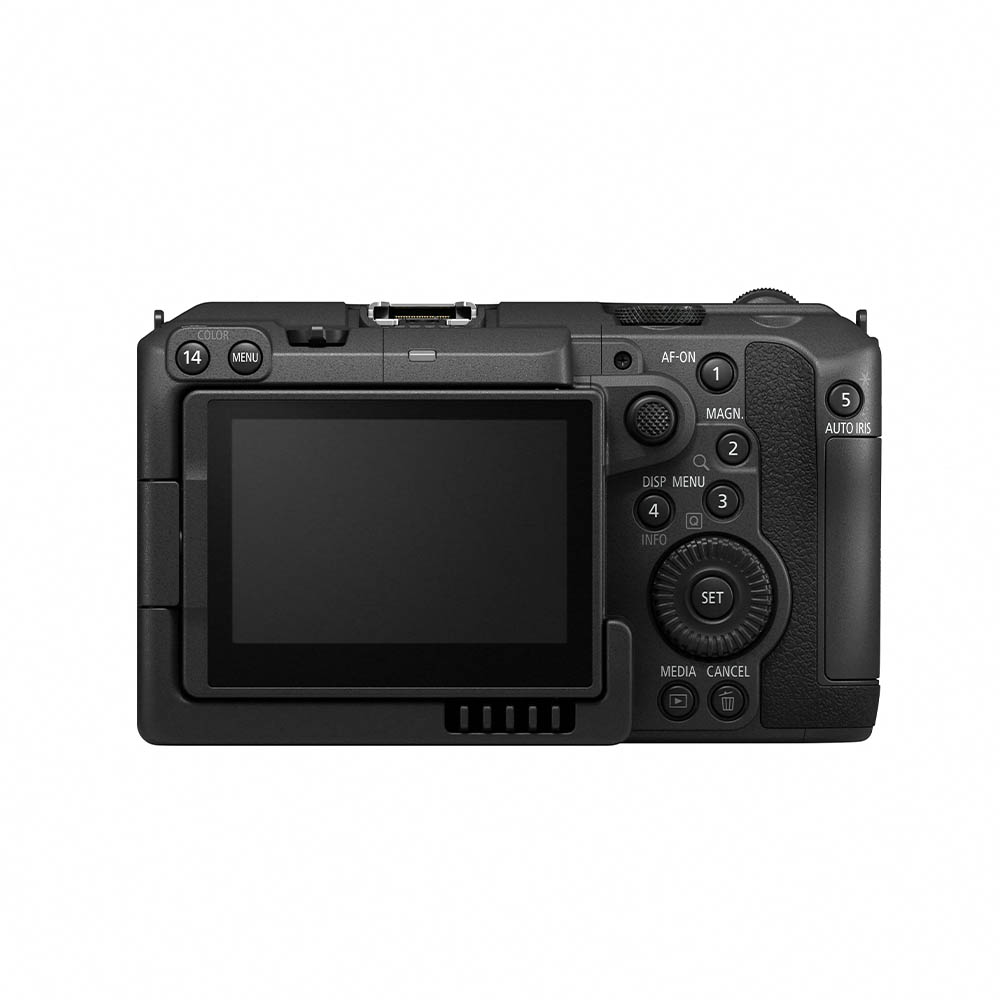

| Default Function Button Settings | 1. AF-ON 2. MAGN. 3. MENU 4. DISP 5. PUSH AUTO IRIS 6. (unassigned) 7. REC 8. LOCK 9. PEAKING 10. WFM 11. FUNC 12. AF LOCK 13. REC 14. (unassigned) |
| User Assignable Buttons | 14x Assignable Buttons |
|
| Tally Lamp | Yes, 2x (body) 1x (top handle) |
| Zoom Rocker | Yes, Optical and Digital Zoom |
| Custom Dial | Yes, 3x |
| Software Application Support | Cinema RAW Development XF Utility RAW Plugin for Avid Media Access RAW Plugin for Final Cut Pro XF Plugin for Avid Media Access Remote Camera Control Application Multi-Camera Management Application EOS VR Utility EOS VR Plugin for Adobe Premiere Pro CV Metadata Plugin for Adobe After Effects Live Link Plugin for Unreal Engine CV Metadata Extraction Tool MP4 Join Tool HEVC Activator |
| Smartphone Application Support | Canon Multi-Camera Control Content Transfer Professional Browser Remote Control |
|
| Exposure Metering | Video Mode Standard, Backlight, Spot light Photo Mode Evaluative, Partial, Spot, Cent re weighted average |
| Exposure Compensation | Yes |
| Auto Exposure Mode | Yes (Video mode: Auto Iris / ISO) |
| Push Auto Iris | Yes |
| Exposure Lock | Yes |
| Auto Gain Control Setting | Yes |
| ISO Sensitivity | Video Mode ISO 100 to ISO 25,600 / 102,400* (increments of 1 or 1/3 stop) * When the sensitivity is expanded Photo Mode ISO 100 to ISO 51,200 / 102,400* (increments of 1 or 1/3 stop) * When the sensitivity is expanded * All values available when Base ISO is set to Automatic |
| Auto Focus System | Dual Pixel CMOS AF II |
| AF Frame Sizes | Full: approx. 100% (Vert ical) x approx. 100% (Horizontal) Small Zone: Video display range approx. 14.7% (Vertical) x 12.2% (Horizontal) Flexible Zone 1: Video display range approx. 38% (Vertical) x 26% (Horizontal) Flexible Zone 2: Video display range approx. 85% (Vertical) x 26% (Horizontal) Flexible Zone 2: Video display range approx. 38% (Vertical) x 77% (Horizontal) |
| Auto Focus Modes | Continuous AF / One-Shot AF |
| Face Detection AF | Yes (Eye / Face / Head / Body) |
| Animal Detection AF | Video Mode Dogs / Cats / Birds Photo Mode Dogs / Cats / Birds / Horses / Motorsports / Aircrafts / Trains |
| Focus Guide | Yes, with compatible Canon lenses |
| Gain Setting | '-6dB* , -3dB* , -2dB* *~48dB, 51dB*, 54dB* *when ISO Extended Range is set to ON **when ISO Extended Range is set to OFF *All values available when Base ISO is set to Automatic |
|
| Control Modes | Video Mode Off ; Speed; Angle; Clear Scan; Slow Photo Mode Electronic |
| Shutter Speed | Video Mode 1 sec to 1/2000 (1/3 or 1/4 stop increments), 47 options Photo Mode 30 sec to 1/8000 (1 stop increments) 15 sec to 1/16000 (1 stop increments) Bulb (Total shutter speed range. Available range varies by shooting mode) |
| Shutter Angle | 11.25º to 360º |
| Slow Shutter | (SLS) 1/3, 1/4, 1/6, 1/8, 1/12, 1/15, 1/25, 1/30 depending on frame rate |
| Clear Scan | approx. 24 Hz~2000 Hz depending on frame rate |
|
| Stored Configurations Video Mode | C1: Canon 709 C2: Canon Log 2 C3: Canon Log 3 C4: BT.709 Wide DR C5: BT.709 Standard C6: PQ C7: HLG C8: EOS Standard C9: EOS Neutral C10: User10 ~User20 |
| HDR-HLG Profile | BT.2100: Corresponds to ITU-R BT.2100 Vivid: Corresponds to Tradit ional Colour in ITU-R BT.2390 |
| Colour Matrix | Neutral: Accurate colour reproduction Production Camera: Colour reproduction for use in movie production Video: Colour reproduction with contrast for TV broadcasts |
| Image Adjustment Parameters | Master Pedestal Master Black Black Gamma Low Key Saturation Knee Sharpness Noise Reduction Skin Detail Colour Matrix Tuning White Balance Colour Correction |
|
| Wi-Fi | In-built (2.4 / 5GHz bands) Supporting 802.11a/b/g/n/ac |
| GPS Information (Optional Accessory) | Only when equipped with GP-E2 GPS Receiver |
|
|
| Preset | Video Mode Daylight (5600K), Tungsten (3200K), Kelvin (2000K-15000K, 100K or 5-mired increments), Set A, Set B Photo Mode AWB, Daylight, Shade, Cloudy, Tungsten, Fluorescent, Flash, Manual, Colour Temp (100K increments) |
| White Balance Shift | Video Mode -20CC~+20CC Photo Mode -9 to +9 (Blue/Amber) -9 to +9 (Magenta/Green) |
|
| Count Up System | Regen / RecRun / Free Run / External |
|
| Recording Format | RAW / XF-AVC: Linear PCM (24-bit / 48 kHz, 4 channels) XF-AVC S / XF-HEVC S: Linear PCM (24-bit / 48 kHz, 4 channels) or MPEG2-AAC LC (16-bit 48kHz) 2 channels |

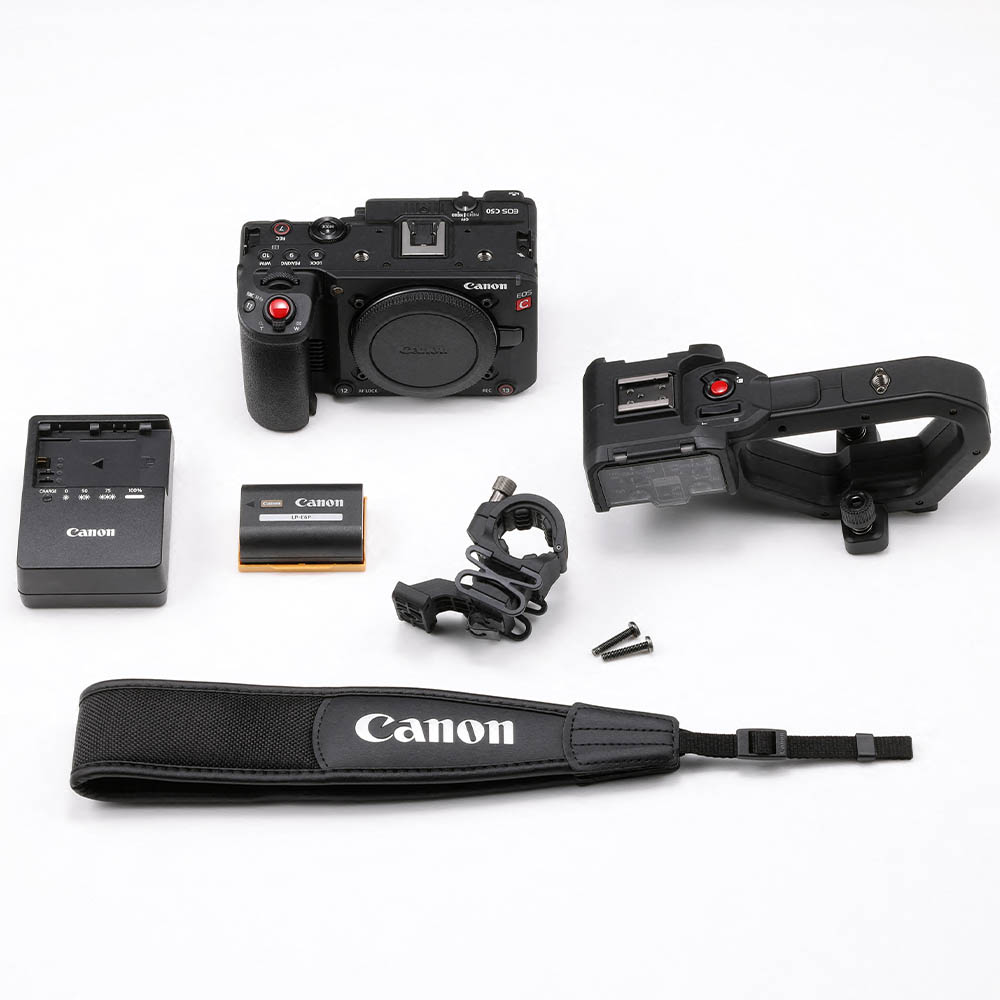

| ACCESSORIES | Supplied Handle Unit LP-E6P Battery Pack Battery Charger LC-E6E Microphone Holder Shoulder Strap AC Cable |
| Optional | DR-E6P DC Coupler DR-E6C DC Coupler + AC Adapter CA-946 PD-E1* / PD-E2 USB Power Adapter BG-R20 Battery Grip PL-RF Mount Adapter EF-EOS R Mount Adapter EF-EOS R Control Ring Mount Adapter EF-EOS R Drop-In Filter Mount Adapter EF-EOS R 0.71x Mount Adapter RC-IP100 Remote Camera Controller RC-IP1000 Remote Camera Controller DM-E1D Multi-Function Shoe Directional Stereo Microphone DM-E1 Directional Stereo Microphone BR-E1 Wireless Remote Control RS-80E3 / RS-60E3 / RS-80N3* * Remote Switch GP-E2 GPS Receiver OC-E4A Off-Camera Shoe Cord IFC-100U / IFC-400U Interface Cable *PD-E1 Limited to charging only in video mode **RA-E3 Remote Controller Adapter required to connect RS-80N3 |
| Third Party Accessories | Tascam CA-XLR2d XLR Microphone Adapter |
|
| Power Supply (Battery) | LP-E6P Battery Pack (Supplied) LP-E6NH* Battery Pack (Optional) *Some functionality such as Network communication, LCD Luminance boost, HDR Assist, and lens functionality may become limited when using LP-E6NH battery packs instead of LP-E6P |
| Power supply (Mains) | DR-E6P DC Coupler DR-E6C DC Coupler + AC Adapter CA-946 USB-C Power Adapter PD-E2 |
|
| Dimensions (Main Body Only) | Approx. 142 x 88 x 95 mm |
| Weight (Body Only) | Approx. 670g |
| Weight (Accessories) | Handle unit: approx. 300g Microphone holder + 2 screws: approx. 60g LP-E6P Battery Pack: approx. 82g LC-E6 Battery Charger: approx. 110g LC-E6E Battery Charger: approx. 100g |
| Operating Temperature Range | Approx. 0 to 40°C, (85% relative humidity) Approx. -5 to 45°C, (60% relative humidity) |
