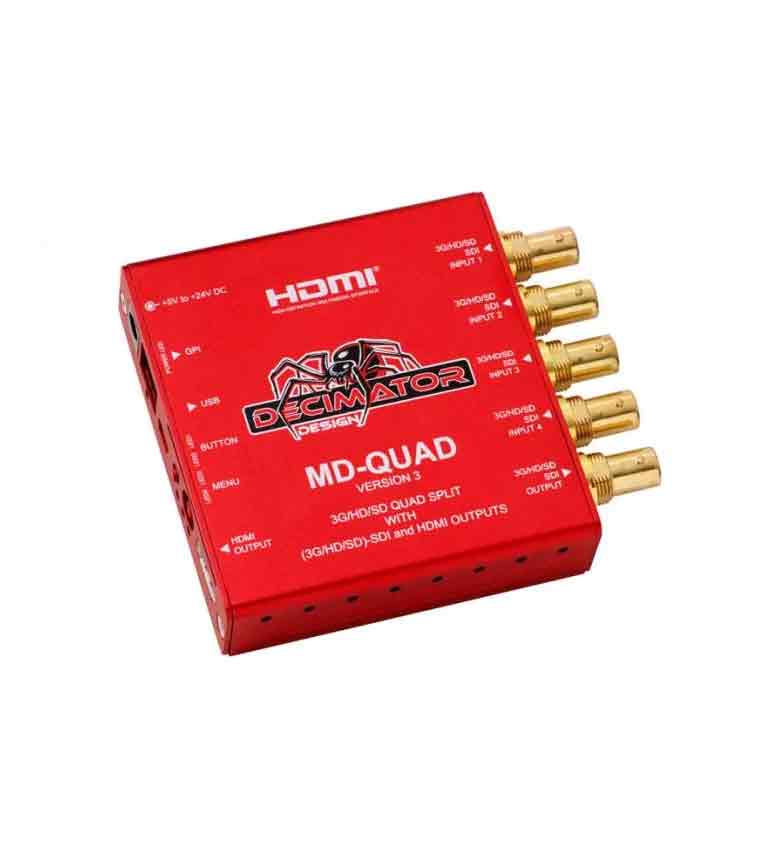

Decimator Design MD-Quad V3

Categories: , , , , SKU: DD-MD-QUAD

£1,554.00 £1,295.00 Ex. VAT

0 reviews

Order Now - Usually delivered in 1-2 weeks

Description

Decimator Design MD-Quad V3 (DD-MD-QUAD) is a 1 to 4-channel Multi-Viewer/Quad-Split with SDI and HDMI outputs for 3G/HD/SD and Custom Layouts. Support both 3G levels A and B on the input and output. Allowing conversion between 3G levels A and B. An extensive selection of user-controllable functions via an easy-to-use rotary encoder for menu selection. LEDs and a push button can then be used for status and control. Each window is independent of the others, allowing any 3G/HD/SD format of any frame rate to be displayed simultaneously.

  • Professional 3G/HD/SD Test Pattern Generator featuring:
  • 26 Selectable Output Formats
  • 54 Test Patterns including Luma and Chroma Zone-plates
  • Audio Tone Generator
  • Horizontal and/or Vertical image flipping per window
  • Low-cost miniature (3G/HD/SD)-SDI 1 to 4 channel Multi-Viewer or 4 to 1 input multiplexer
  • Custom Layouts with various standard layouts
  • 16 Character UMD overlay per window with individual enables, custom positioning, and size
  • 8 Channel Audio Metering overlay per window with individual enables, custom positioning, and size
  • Tallies can be applied to either Tally Boxes (Default) or Border
  • Tally boxes allow for up to 4 Tallies per window (Green, Red, Blue, and Yellow)
  • Load and restore Custom Layouts
  • Fast switching between inputs using Full-Screen scaling
  • Selectable output format in both Full-Screen and Multi-Viewer mode
  • Low latency buffering for each input allowing non-synchronous inputs
  • Linked (3G/HD/SD)-SDI and HDMI outputs
  • 4 x (3G/HD/SD)-SDI inputs with auto detection (26 Formats supported in total)
  • Variable aspect ratios per window
  • Pass-through mode allows any of the 4 inputs to be selected and routed to both the (3G/HD/SD)-SDI and HDMI outputs
  • USB port for control and updates
  • Locking DC Power Socket
  • 5 GPI on standard RJ-45 connector connector for Tallies and Remote Switching
  • RS422/485 is also included on the same RJ-45 connector for Dynamic UMD and Tallies via TSL protocol

Comes With

  • Decimator Design MD-Quad V3
  • Power Supply
  • HDMI Cable USB Cable
  • Mounting Bracket

Additional information

BRAND

DECIMATOR DESIGN
MPN

DD-MD-QUAD
