DJI SDR Transmission 2 Combo

Q: What is the maximum transmission range of the DJI SDR Transmission 2 Combo?

The DJI SDR Transmission 2 Combo supports wireless video transmission at distances of up to 4km, making it suitable for large production environments, stadium shoots, vehicle rigs, and other demanding filming scenarios.

Q: How many receivers can be connected to a single transmitter?

One transmitter can send a signal to up to eight receivers simultaneously while maintaining stable, high-quality video transmission and remote control functionality.

Q: Does the DJI SDR Transmission 2 Combo support 4K video?

Yes, it supports DCI 4K/60fps video transmission with 10-bit HDR and H.265 encoding at bitrates of up to 50 Mbps, delivering exceptional image quality for professional monitoring applications.

Q: Can the DJI SDR Transmission 2 units be used as either transmitters or receivers?

Yes, each transceiver can be switched between transmitter (TX) and receiver (RX) modes, providing maximum flexibility and allowing you to adapt your setup quickly without needing dedicated transmitter or receiver units.

Category: Wireless Transmission Systems SKU: CP.TR.00000059

£465.00 ex VAT £558.00 inc VAT

Rated 0 out of 5

Order Now - Usually delivered in 1-2 weeks

DJI SDR Transmission 2 Combo (CP.TR.00000059) is a professional wireless video transmission system delivering ultra-low latency 4K HDR monitoring, long-range transmission up to 4km, flexible TX/RX operation, and seamless multi-device connectivity for demanding film, broadcast, and content production workflows.

1 TX to 8 RX With Control, Multi-Group Transmission

A single transmitter feeds up to eight receivers, each with remote control. Up to five transmitters and 40 receivers can operate simultaneously. Even in complex on-set environments, the wireless camera feed stays stable without sacrificing 4K image quality.

Auto Channel 2.0 for Seamless, Stable Feed

With Auto Mode enabled, transceivers recognize one another and intelligently coordinate frequencies. More accurate spectrum scanning and conflict diagnostics allow each unit to hop frequencies seamlessly as conditions change, maintaining a stable connection despite interference, even with multiple systems running side by side.

SDR, Evolved

It transmits DCI 4K/60fps, 10-bit HDR, and H.265 video at bitrates up to 50 Mbps for ultra-high-definition monitoring. The transmission range reaches up to 4 km, easily handling everything from stadiums to dynamic car shoots. With latency as low as 35 ms, the video feed is near-instant, making remote commands like focus pulls and gimbal moves highly responsive.

TX/RX Switchable

The transceiver design lets you switch between TX and RX on the fly. There is no need to decide your TX-to-RX ratio in advance, so every unit adapts to whatever the shoot calls for. Weighing only about 136 g, the unit reduces the load on handheld gimbals and mounts easily across a wide range of camera setups. It also provides 1 HDMI and 2 USB-C ports.

Pro Monitoring, Flexible Output

Quickly switch between camera feeds directly from the transceiver or the DJI Ronin app. Output the ultra-high-definition, low-latency video feed to pro monitors via SDI ^[11], HDMI, or DP ports. You can also connect a smartphone or tablet to the receiver ^[12] via USB-C for a stable, high-bitrate wired monitoring feed.

Ronin Ecosystem and Beyond

When paired with DJI RS series gimbals, you can wirelessly control gimbal movements and trigger recording with your smartphone. Connect to DJI Ronin 2 and Master Wheels to precisely control heavy cinema cameras on car mounts or crane rigs. Or, link an Osmo Action or Pocket series device ^[7] for a lightweight setup to capture sports and other unique angles.

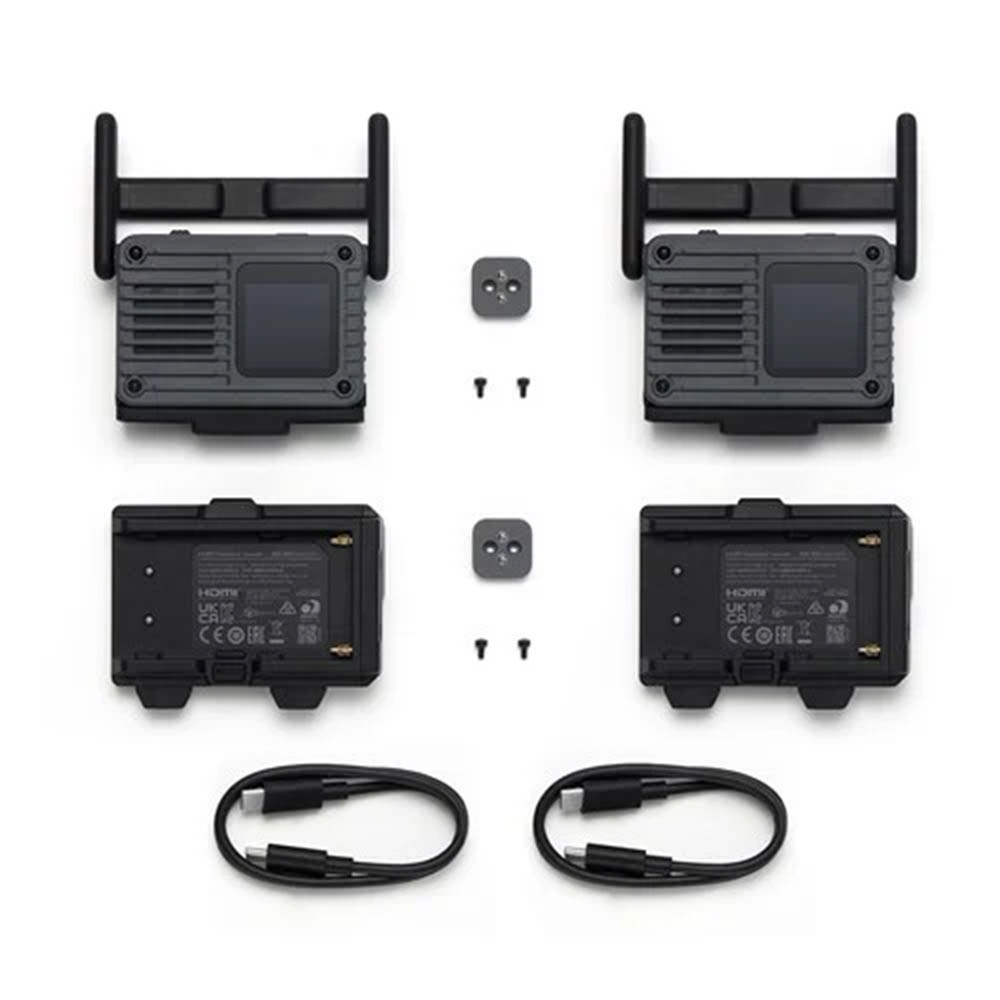

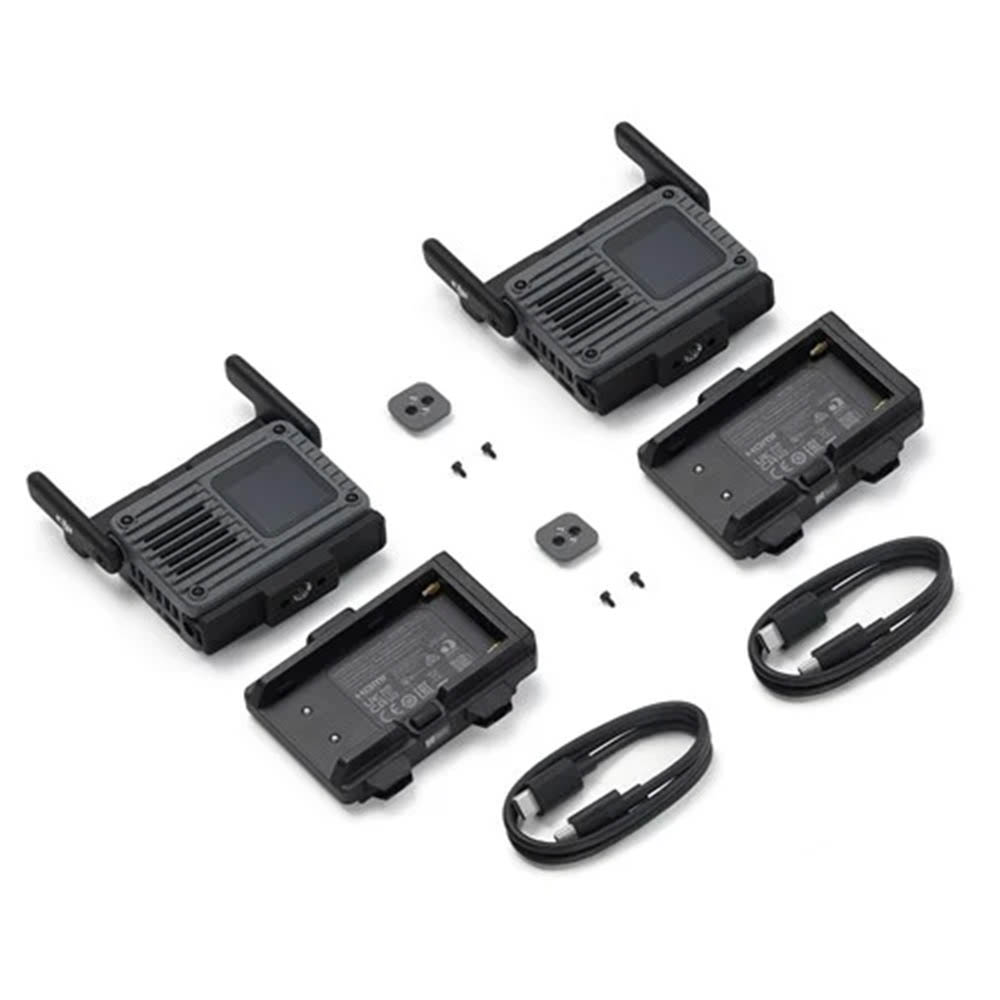

Comes With

2x DJI SDR Transmission 2 Transceiver
2x DJI SDR Transmission 2 Camera Cold Shoe Adapter
2x DJI SDR Transmission 2 NP-F Battery Adapter
2x Firmware Update Cable (USB-C to USB-C, 50 cm)

Delivery

Please note that for next-day delivery, the product must be marked as in stock and the order placed before the daily cut-off time. If an item is not in stock, an estimated lead time will typically be displayed.

Collection
Free Collection is available at our showroom in Hampton, please select this option at the payment stage at the checkout. Please allow one hour to pick and prepare your order for you so it is ready for you when you arrive. Collections must be made at our office during the hours of 9 am to 5:30 pm (Mon to Thurs) and 9 am to 5 pm (Friday).

Next Working Day Delivery
UK mainland orders placed before 2 pm will be dispatched the same day for next-day delivery. To qualify for next-day delivery orders must be placed before 2 pm Mon – Thur. Orders placed after 2 pm Thursday will be dispatched Friday for Monday delivery, excluding Bank Holidays. The charge for this service is £12.00 Ex. VAT. This service is only available for products that are in stock.

*Excluding all Battery Generators*

Saturday Delivery
Order before 2pm on Friday for Saturday deliveries. Saturday delivery cost £27.50 including VAT – this is only for the UK mainland.

*Excluding all Battery Generators*

Worldwide Shipping

At BPS we can arrange shipping worldwide on most of our products. Please contact sales@bps-tv.co.uk and provide details of the products you are interested in, billing and delivery address, and any company information. Our sales team will then arrange for a full quotation to be provided.

Specification

TRANSCEIVER
Weight	Approx. 136 g (including antennas)
Dimensions	76×61×25 mm (L×W×H, excluding antennas and Cold Shoe Adapter)
Ports	HDMI: Input/output
	USB-C (Top): PD power input/output
	USB-C (Bottom): DP input/output, PD power input/output, device activation and firmware updates, log export, phone app connection, and connection to the DJI Ronin series, Osmo Action 6, and Osmo Pocket series* devices
	The SDI port is available on the DJI SDR Transmission 2 Expansion Plate, which is sold separately.
	* Supported models include DJI RS 5, RS 4 Pro, RS 4, RS 3 Pro, Ronin 2, and Master Wheels.
	** Supports Osmo Action 6 and Osmo Pocket series (Osmo Pocket 4 and later) via USB-C for monitoring and power supply.
Operating Frequency	Non-DFS Frequency Band:
	2.400-2.4835 GHz
	5.150-5.250 GHz
	5.725-5.850 GHz
	DFS Frequency Band:
	5.250-5.350 GHz
	5.470-5.725 GHz
	The 5.8 GHz and DFS frequency bands are prohibited in certain countries/regions. Check local laws and regulations for more information. 5.600- 5.650 GHz is not used.
Transmitter Power (EIRP)	2.400-2.4835 GHz:
	< 20 dBm (SRRC/CE/MIC)
	5.150-5.250 GHz:
	< 23 dBm (SRRC/CE/MIC)
	5.250-5.350 GHz:
	< 23 dBm (SRRC/CE/MIC)
	5.470-5.725 GHz:
	< 26 dBm (CE/MIC)
	5.725-5.850 GHz:
	< 30 dBm (SRRC)
	< 14 dBm (CE)
Maximum Bandwidth	40 MHz
Maximum Encoding Bitrate	50 Mbps
	The maximum encoding bitrate is 50 Mbps, measured under controlled conditions. Actual encoding and transmission bitrates may vary depending on the environment and transmission distance.
Power Consumption	Standby (no external devices connected):
	Single Transmitter: Approx. 5.04 W
	Single Receiver: Approx. 5.31 W
	1T1R Transmission:
	Main Unit: Transmitter approx. 8.52 W, receiver approx. 7.58 W
	Each Unit With an Expansion Plate (SDI input/output): Transmitter approx. 10.36 W, receiver approx. 8.89 W
	Measured at a room temperature of 25° C (77° F), at a distance of approximately 10 metres, in a 1T1R setup, using PD for power supply.
Power Supply	USB-C Power Supply Type 1: 15 V, 3 A (PD protocol*)
	USB-C Power Supply Type 2: 6.8-17.5 V DC
	NP-F Battery Power Supply Voltage: 6.8- 8.4 V
	* A PD power adapter with an output of 65 W or above is required.
Video I/O Formats	DCI 4K: 23.98/24/25/29.97/30/50/59.94/60fps
	4K UHD: 23.98/24/25/29.97/30/50/59.94/60fps
	1080p: 23.98/24/25/29.97/30/50/59.94/60fps
	1080i (input only on the main unit; input/output on the Expansion Plate): 50/59.94/60fps
	720p: 50/59.94/60fps
	4K video format is only supported via the HDMI port and the bottom USB-C port of the transceiver main unit.
Audio I/O Formats	Input Audio Format: SDI embedded, HDMI embedded, DP embedded
	Output Audio Format: 16-bit, 48 kHz, stereo PCM
Video Transmission System	SDR
Minimum Video Transmission Latency	35 ms
	Camera and screen display latency are not included. Measured when shooting 1080p/60fps and 4K/60fps video.
Video Coding Format	H.265
Maximum Transmission Distance	4 km (CE)
	Measured under CE compliance using one TX and one RX in open, unobstructed, and interference-free controlled conditions.
Operating Temperature	-10° to 40° C (14° to 104° F)
EXPANSION PLATE
Weight	Approx. 105 g
Dimensions	76×54×25 mm (L×W×H, excluding Cold Shoe Adapter)
Ports	HDMI: Input/output
	USB-C (Right): Power supply and DJI RS 5 connection
	USB-C (Bottom): Power supply, camera control (photo capture and recording start/stop), and connection to DJI Ronin series devices* other than DJI RS 5
	SDI: Input/output
	* Supported models include DJI RS 4 Pro, RS 4, RS 3 Pro, Ronin 2, and Master Wheels. Please note: When using with Ronin 2 or Master Wheels, the DJI SDR Transmission 2 Gimbal Control Cable (USB-C to 4-pin) is required (sold separately). When using with RS 4 Pro, RS 4, or RS 3 Pro, the DJI SDR Transmission 2 Gimbal Control Cable (USB-C to CAN) is required (sold separately).
Power Supply	USB-C Power Supply Type 1: 15 V/9 V, 3 A (PD protocol*)
	USB-C Power Supply Type 2: 6.8-17.5 V DC
	* A PD power adapter with an output of 65 W or above is required.
Operating Temperature	-10° to 40° C (14° to 104° F)
TRANSCEIVER CAGE
Weight	Approx. 91 g
Dimensions	124×110×49 mm (L×W×H)
Mounting	NATO port
	1/4″-20 screw hole × 2
	3/8″-16 screw hole
	HDMI cable clamp
	USB-C cable clamp
Operating Temperature	-10° to 40° C (14° to 104° F)
