Hawk woods BP-HS1 FX6 BP-U Camera Mount

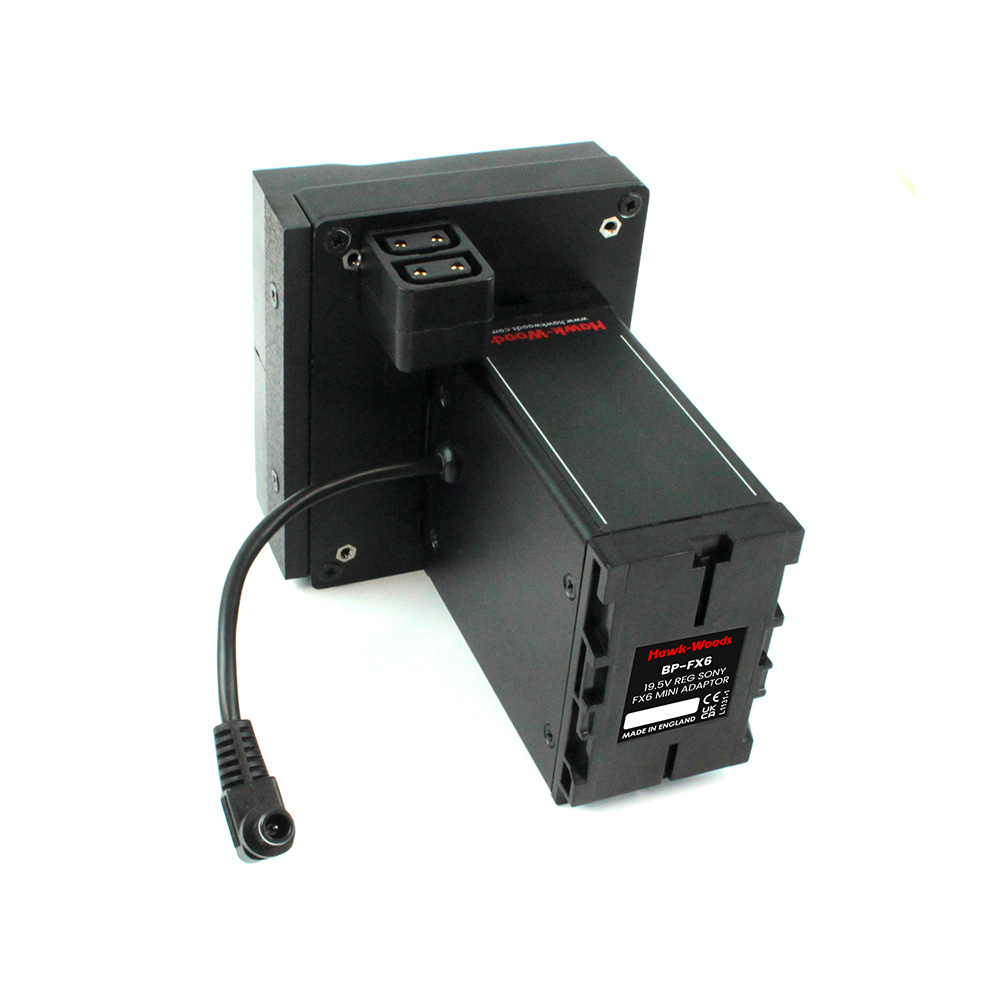

Hawk woods BP-HS1 FX6 BP-U Camera Mount (BP-HS1) fits directly into the original battery port of the Sony FX6 via a mechanical BP-U battery fitting, allowing up to 2x BP-U batteries to be attached simultaneously for hot-swappable power and increased capacity. The camera is powered via the supplied fixed Sony flying lead, which is regulated to 19.5 volts to meet the FX6’s DC input requirements.

Features

• D-Tap Output: 2x D-Tap outputs are provided, delivering unregulated (11-17v nominal) battery voltage for powering accessories.

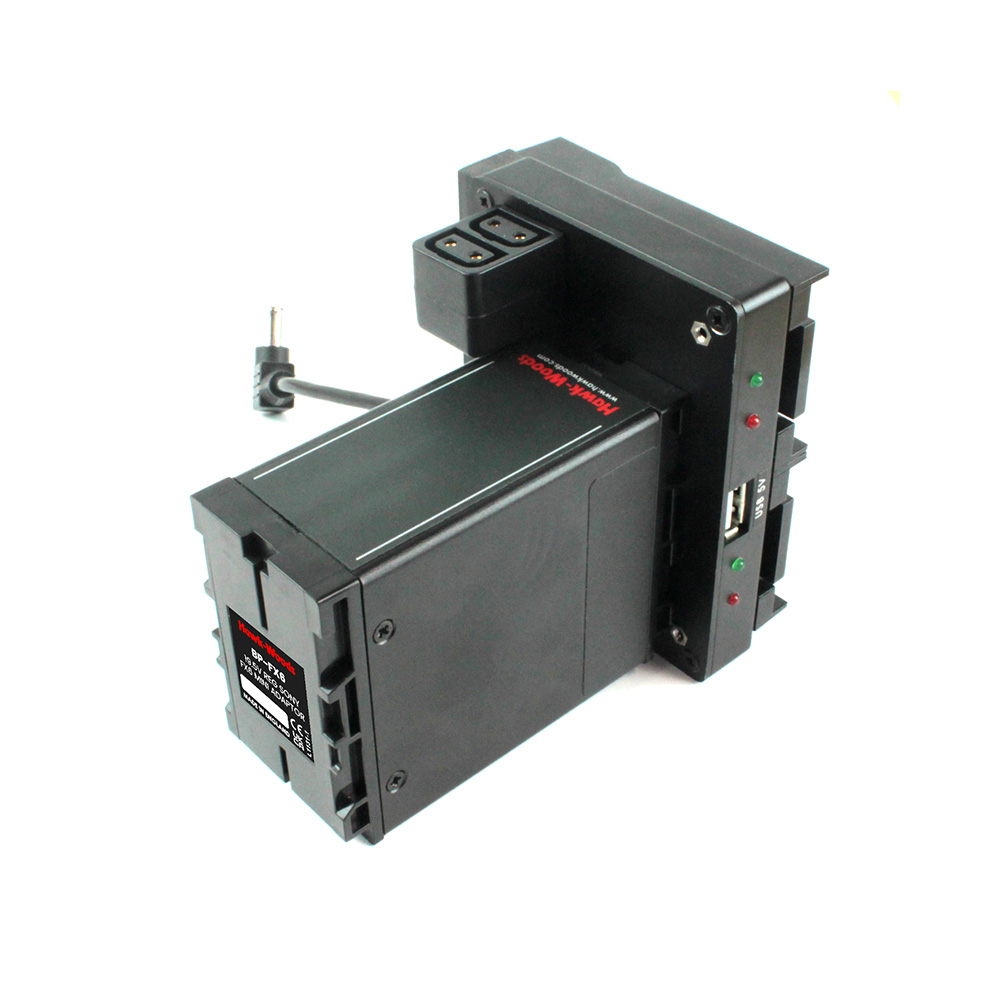

• USB-A Output: 1x USB-A output is located on the side of the unit and is regulated at 5V.
• FX6 Ready: Supplied with a 90cm flying DC lead regulated to match the camera’s required input voltage of 19.5V.

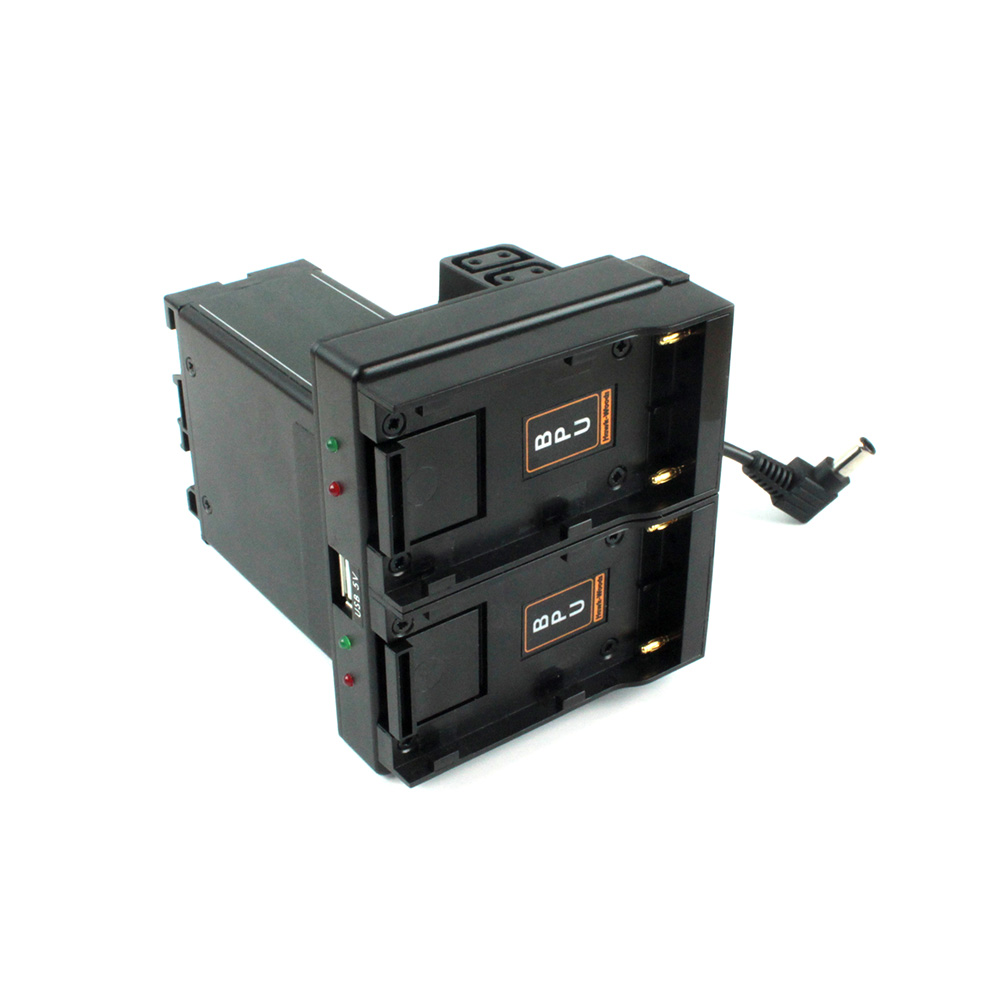

• Hot-swap power: Fitted with 2x BP-U battery fittings, the BP-FX6 adaptor combines capacity from both batteries to extend runtime. Each fitting features an LED status indicator to show when it is safe to remove a battery without interrupting power:
  – Green LED: Safe to remove the battery with no power interruption
  – Red LED: Battery should be replaced, prepare a fresh battery before removal

If you are wanting to power the FX6 using V-Lok battery power please see VLM-FX6.

Note: This code has been updated from BP-FX6 to BP-HS1, Any previous codes for BP-FX6 correlates to this product.
