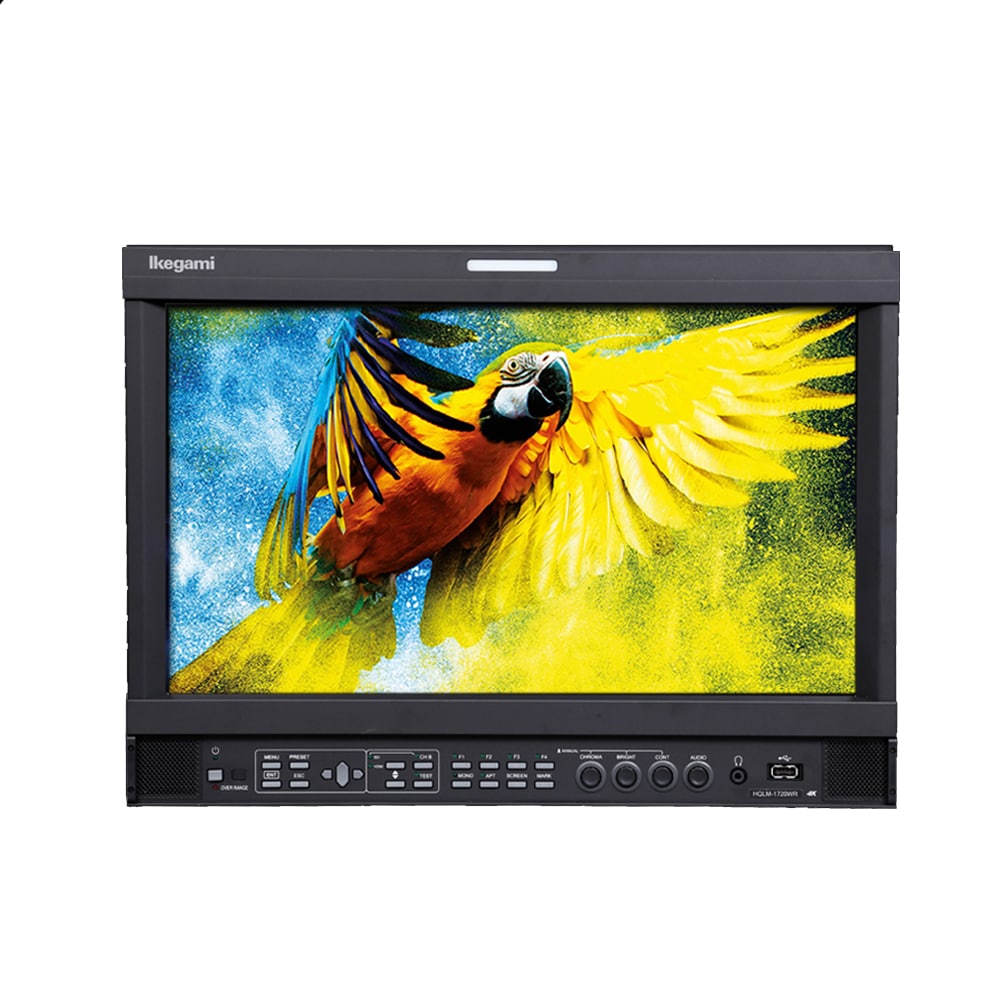

The Ikegami HQLM-1720WR is equipped with 2 channels of 12G-SDI input as standard for efficient configuration with 4K equipment such as cameras and switchers. In addition, this monitor includes 3G-SDI, HD-SDI, and HDMI inputs as standard. It has the flexibility to work with various interfaces in the image production field. By employing a 16.5-inch 3840×2160 pixel UHD LCD panel using LED backlight, it can reproduce high resolution 4K and 2K images.
Available with 12G-SDI, 3G-SDI (SQD/2SI), HD-SDI and HDMI (HDCP2. 2) inputs as standard.
*Note: SQD=Square Division / 2SI=2 Sample Interleave
It employs a 16.5-inch 3840×2160 pixel UHD LCD panel with a contrast ratio of 800:1 (450cd/M2) using LED backlight. The monitor has a wide viewing angle allowing critical content evaluation within a horizontal or vertical viewing angle of up to 178 degrees.
It provides a wide color gamut corresponding to the ITU-R BT.2020 standard.
*Color space can not be fully displayed.
Audio output is available through internal stereo speakers, stereo headphone jack, and stereo l ine out by automatic identification of embedded audio signals multiplexed into the SDI or HDMI signal . An embedded audio level meter can be displayed on the screen as standard.
*Note: The output can be selected from a pair of channels or a 5.1 channel downmix.
