Lilliput BM280-12G 28 Inch Monitor

Categories: , , SKU: LILLIPUT-BM280-12G

£1,359.20 £1,631.04 inc VAT

Order Now - Usually Delivered In 3-5 Working Days

Need advice before you buy?
Speak to one of our specialists about compatibility, accessories, stock availability or choosing the right setup.

Chat with us now

Lilliput BM280-12G 28 Inch Monitor

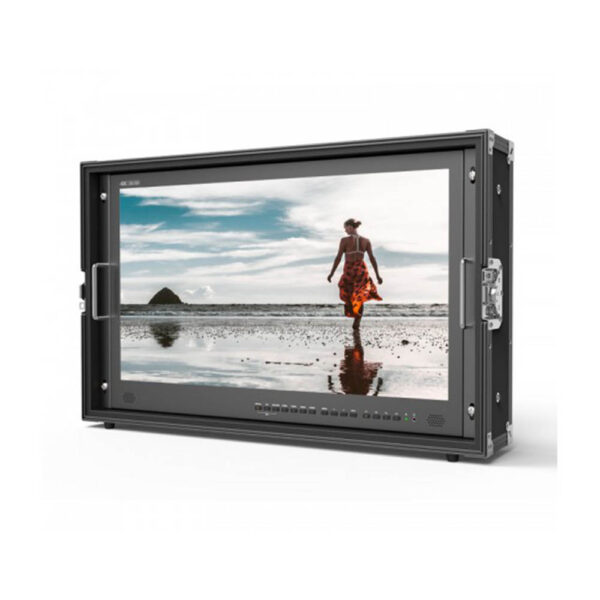

Lilliput BM280-12G 28 Inch Monitor (LILLIPUT-BM280-12G) provides you with UHD 4K 3840 x 2160 resolution and a 300 cd/m2 brightness, along with a 1000:1 contrast ratio and wide 170 x 160° viewing angle. The integrated V-mount battery plate allows for longer-lasting runtimes. The monitor fits inside an included carry case for easy transportation and location work.

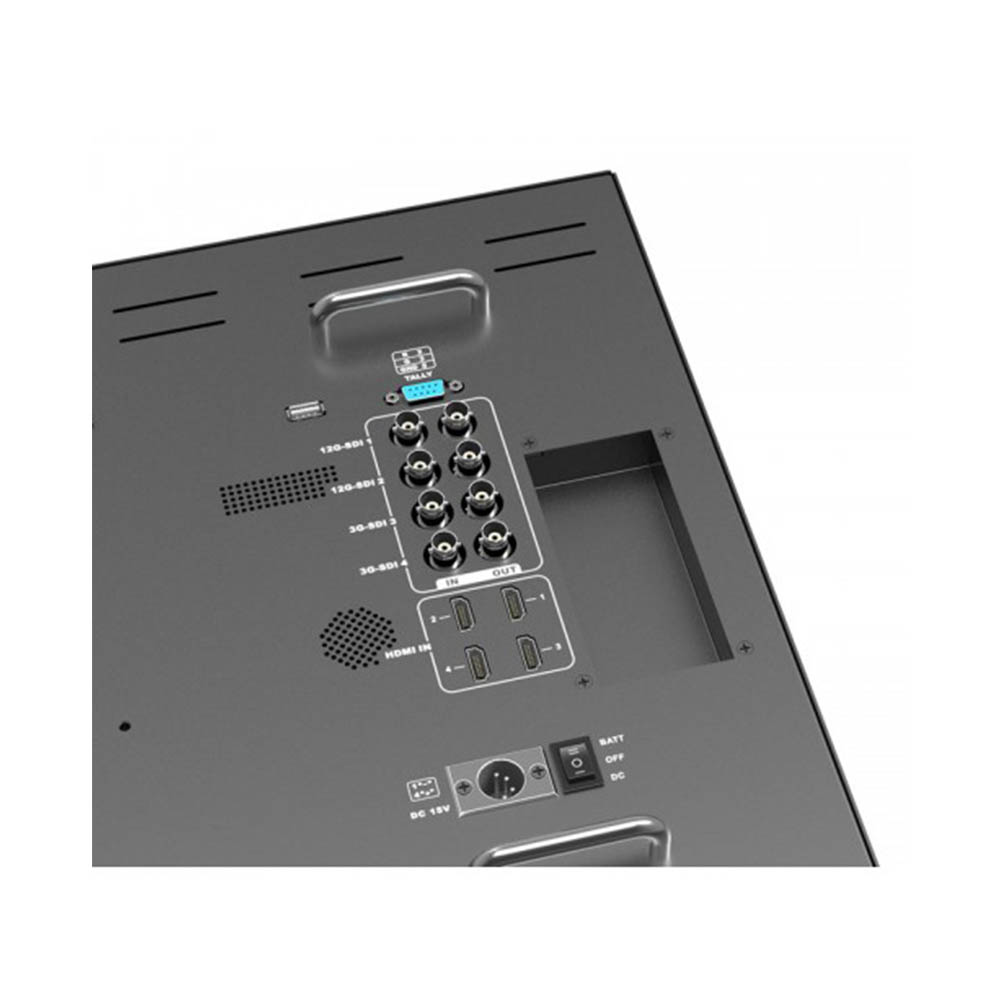

The monitor features two each 12G-SDI and 3G-SDI inputs with loop-through outputs, an HDMI 2.0 and three HDMI 1.4 inputs, and a tally input. It also features 12G-SDI single-link, dual-link, and 3G-SDI quad-link. The monitor supports quad-view, false colour, peaking, check field, image flip, over-scan, under-scan, image freeze, a 16:9 aspect ratio, centre marker, screen marker, and colour temperature functions.

Key Features:

12G-SDI Dual/Quad Link
Complies with ST425-3 and ST425-5 standards. Allows for Square Division and Sample Interleave at 4K mode.
12G-SDI Single Link
Complies with ST2081-10 and ST2082-10 standards.
4K HDMI Signal Inputs
Compatible with HDMI 2.0 and HDMI 1.4 signals.
Auxiliary Functions
Provides auxiliary functions including:

  • Quad-view
  • False colour
  • Peaking
  • Check field
  • Image flip
  • Over-scan
  • Under-scan
  • Image freeze
  • Centre marker
  • Screen marker
  • Colour temperature

Comes With:

  • Lilliput 28″ 12G-SDI 4K IPS Monitor (V-Mount)
  • Folding Sunshade
  • Battery Plate Bracket
  • V-Mount Plate
  • Power Adapter
  • Fixing Belt
  • Tally Connector
  • Carry Case
  • Limited 1-Year Manufacturer Warranty
BRAND

Lilliput

Specification

Monitor Specification
Screen Size (diagonal)28"
Aspect Ratio16:9
Native Resolution3840 x 2160
Viewing Angle (degrees)178 / 178
Brightness Ratio (cd/m2)330
Contrast Ratio1000:1
BacklightLED
Video Inputs12G-SDI x 2 (backward compatible to 6G and 3G-SDI), 3G SDI x 2, HDMI x 4 (1 x HDMI 2.0 - 4K at 60Hz, 3 x HDMI 1.4 - 4K at 30Hz), DVI x 1, VGA x 1, Tally x 1
Video Outputs12G SDI x2, 3G-SDI x 2
Audio OutputsSpeaker x 2, 3.5mm Jack x 1
Input PowerDC12V - 24V (XLR)
Operating Temperature-20 degrees - 50 degrees

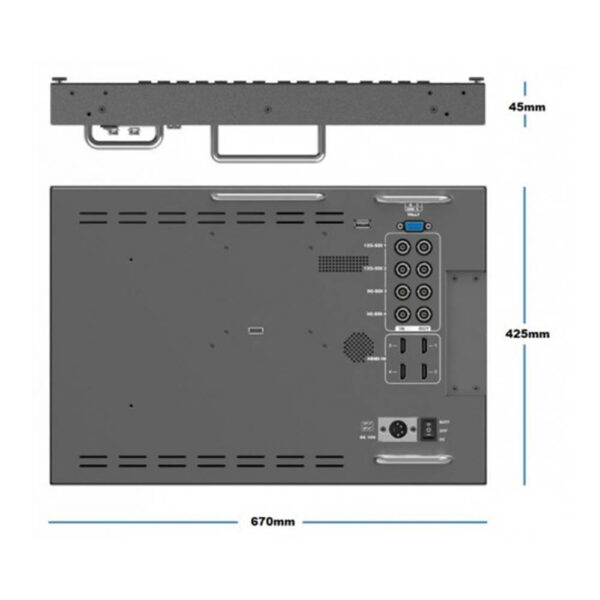

Dimensions
Height (mm)376.5 (417 in case)
Width (mm)579 (666 in case)
Depth (mm)45 (173 in case)
Weight (g)17kg with case (8.6kg without case)
