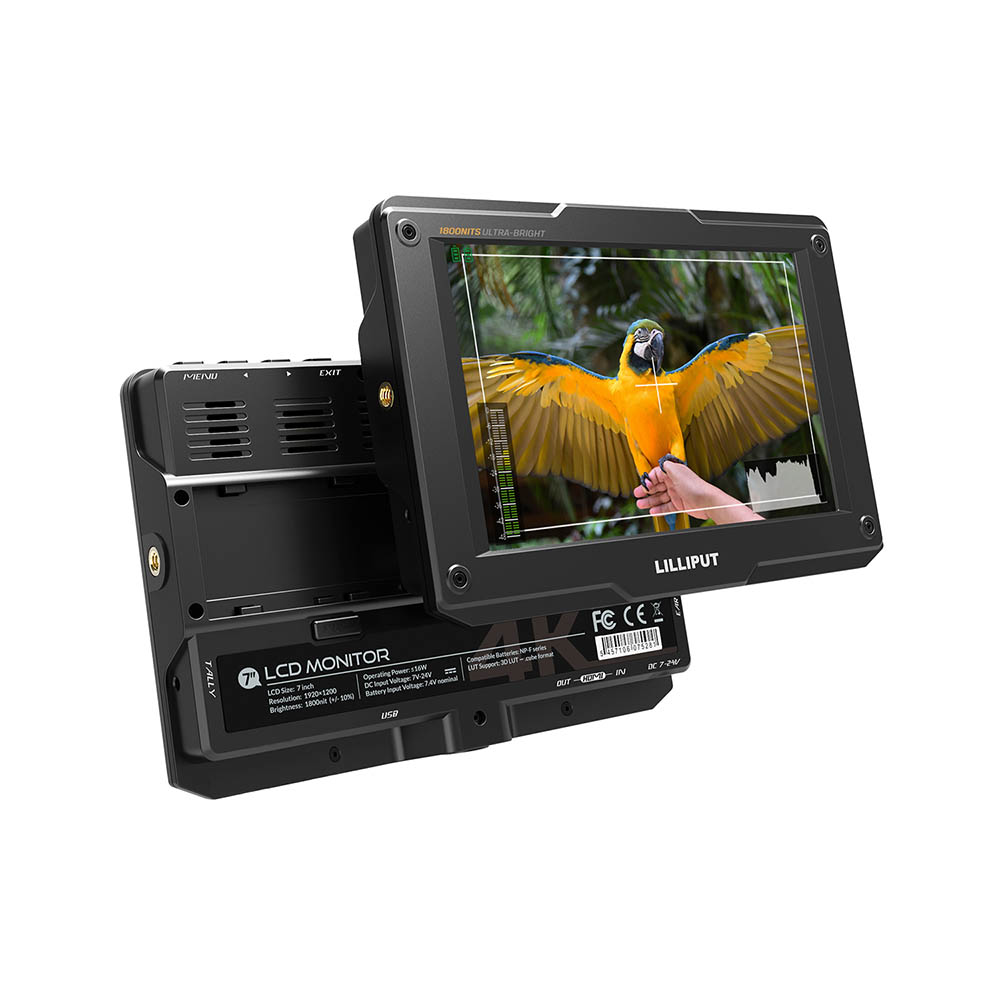

Lilliput H7S 7 Inch Camera Monitor

Lilliput H7S 7 Inch Camera Monitor

Lilliput H7S 7 Inch Camera Monitor (LILLIPUT-H7S) is designed specifically for use outdoors or in high brightness environments. Boasting 4K HDMI 1.4 input, 3G SDI and pass through options, and featuring an 1800 nit (cdm²) panel, the Lilliput H7S is designed for situations when a normal monitor screen just won’t cut it.

The 4K HDMI 1.4 compatible input supports up to 4096 x 2160p @ 24p and 3840 x 2160p, and can loop out through to another HDMi input monitor / device.

HDR: is a technology that improves the range of color and contrast in a digital image. When activated, the monitor will reproduce a much greater dynamic range of luminosity, allowing for lighter and darker details to be displayed more easily. The Lilliput H7S supports ST2084 – 300, ST2084 – 1000, ST2084 – 10000, and HLG (Hybrid Log Gamma)

3D-LUT: is a system for ensuring accurate colour representation across all connected devices in a work flow. The Lilliput H7S has 3D LUT capabilities, loaded into the device using a USB port on the lower edge of the monitor. The LUT specification is a 17 x 17 x 17 BGR .cube file.

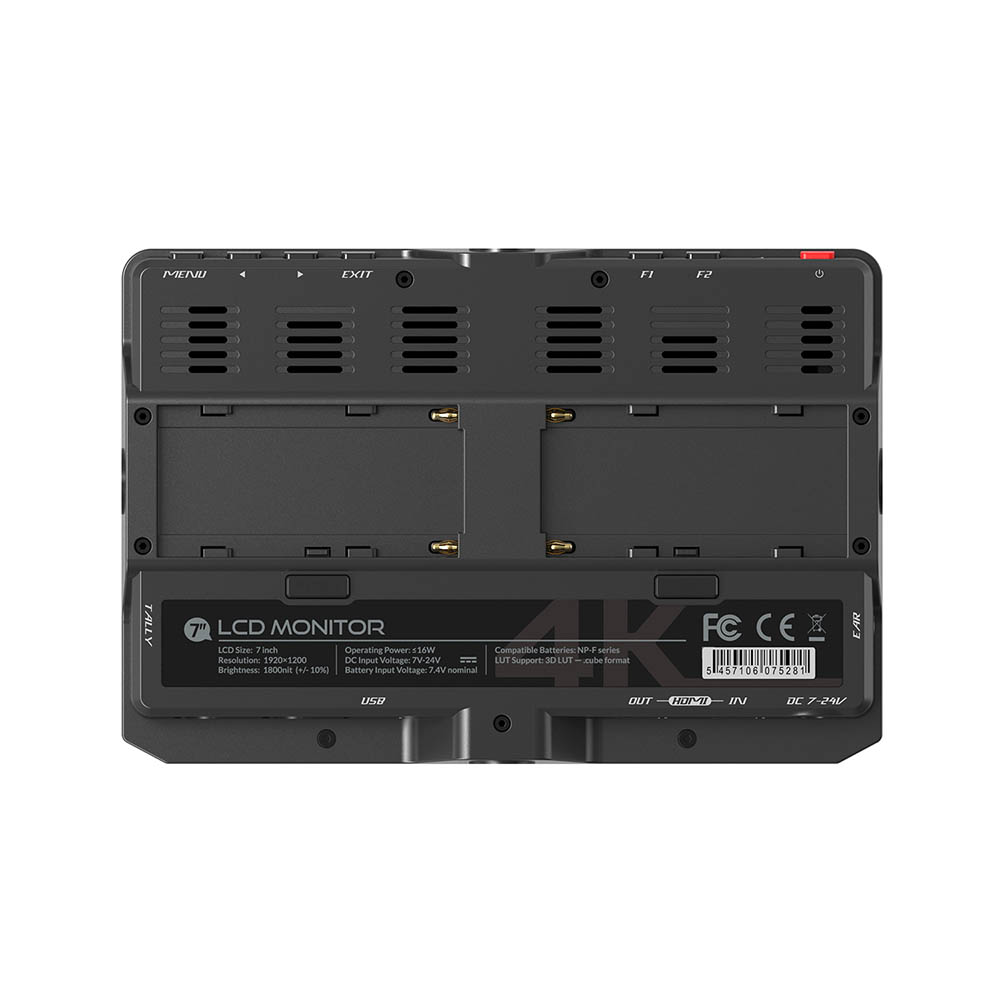

1800-nit ultra-bright: Ultra high brightness displays are power-hungry beasts, so the need for as much power to be available is paramount. The Lilliput H7S has the capability to use two SONY NP-F970 (or compatible) batteries to allow for the maximum operating time.

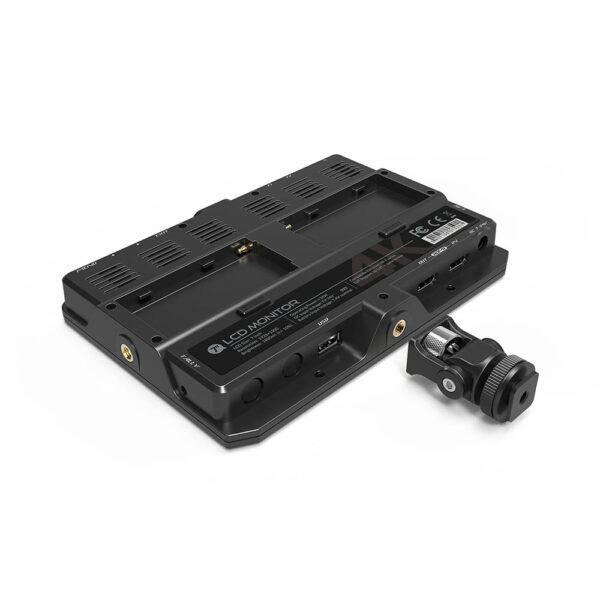

With 1/4″ BSW thread hole at the bottom of the device, the Lilliput H7S is capable of being mounted on any device that has a Hot Shoe mount attachment point. Included in the box is a mount which allows for 360° rotation on the horizontal axis and 180° tilt on the vertical axis.

Camera Auxiliary Functions: Provides plenty of auxiliary functions for taking photos, videos and making movies such as peaking, false colour and audio level meter.

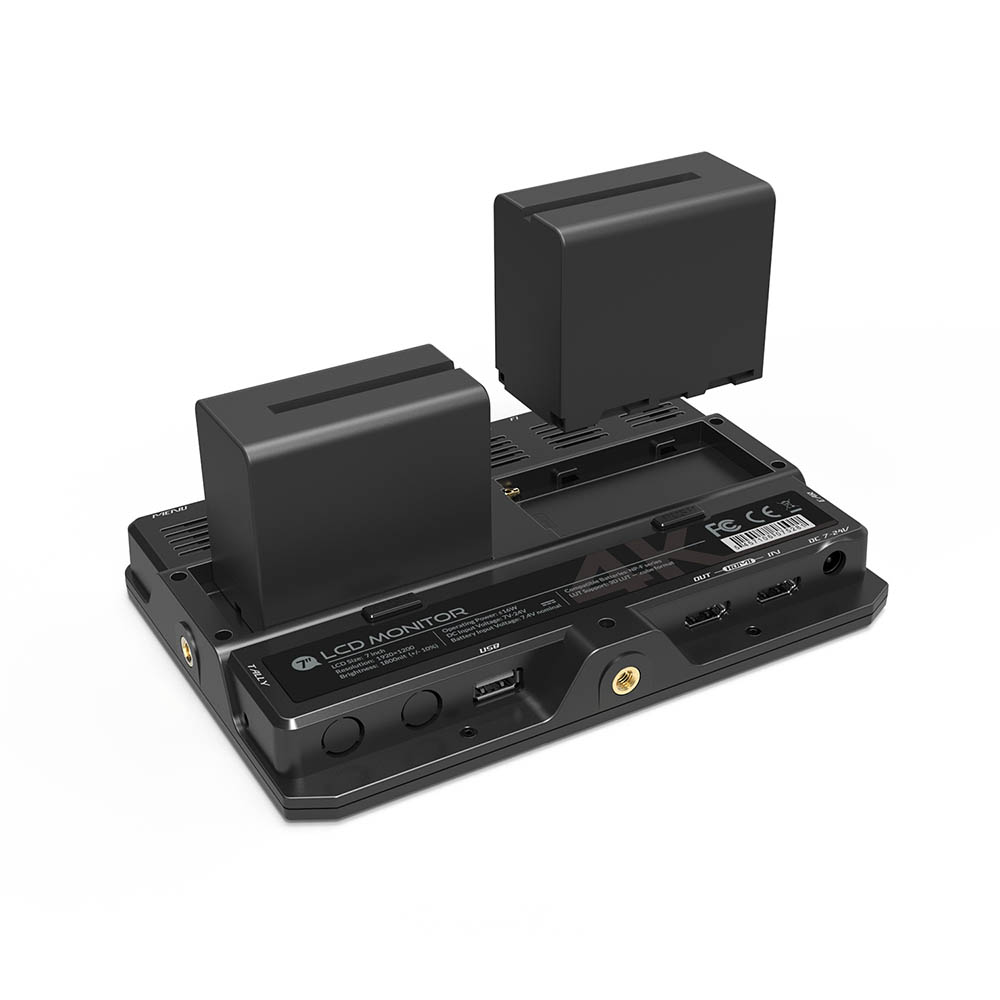

Alternate Batteries: the ultra brightness display must be accompanied by higher power consumption. And a single power source always brings annoyance of interrupted operation. Dual battery pale design let the creative time has the possibility of infinite extension.

Easy to use – user-definable buttons to customise auxiliary functions as shortcut, such as peaking, underscan and check field. Use direction keys to select and adjust the sharpness, saturation, tint and volume.

Features:

• 1920 x 1200 Native, 2840 x 2160 Maximum
• 1800 cd/m² Brightness, HDR Support
• 1200:1 Contrast Ratio, 16:10 Aspect
• HDMI/3G-SDI Inputs/Outputs, Tally Input
• Hot-Swap Dual L-Series Battery Plate
• HDR Support, Load 3D LUTs via USB
• 1 x Speaker, 1 x Headphone Jack
• 1/4″-20 Mounting Threads
• 180° Tilting Shoe Mount

Comes With:

• Lilliput H7S 7″ 4K HDMI/3G-SDI Ultra-Bright On-Camera Monitor
• Tilting Shoe Mount Adapter
• Tally Cable
• HDMI Type A to Type C Cable
• Power Adapter
