Lilliput PVM220S-H 21.5 Inch High Brightness Broadcast Monitor

Category: SKU: LILLIPUT-PVM220s-H

£471.20 £565.44 inc VAT

Order Now - Usually Delivered in 3-5 Working Days

Need advice before you buy?
Speak to one of our specialists about compatibility, accessories, stock availability or choosing the right setup.

Chat with us now

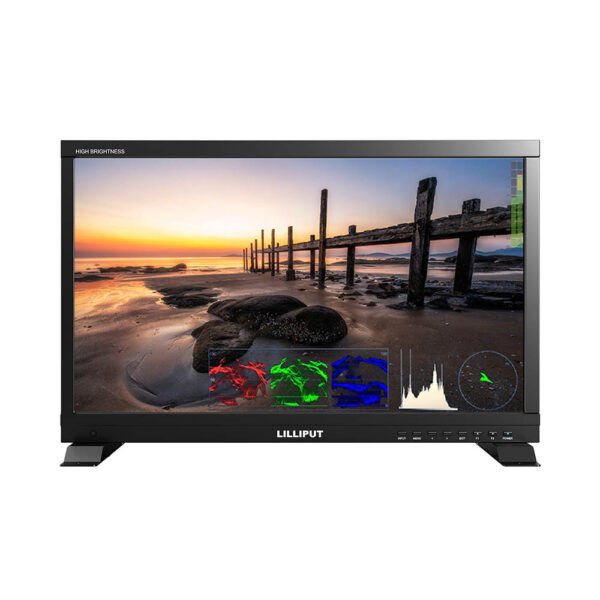

Lilliput PVM220S-H 21.5 Inch High Brightness Broadcast Monitor

Lilliput PVM220S-H 21.5 Inch High Brightness Broadcast Monitor (LILLIPUT-PVM220s-H) is a professional broadcast monitor tailored for photographers, videographers, and cinematographers. Boasting 1000 cd/m² brightness, 1000:1 contrast, and a 178^deg; viewing angle, it offers a range of input options, including 3G-SDI and HDMI 2.0, ensuring compatibility with various devices for broadcast-quality monitoring. This monitor is rich in advanced features like precise waveform and vector functions, 3D LUT and HDR support, and full screen waveform and vector scope functions, making it ideal for accurate colour grading and picture analysis. The PVM220S-H can be powered with the included 15 VDC, 4A power adapter, and it comes with an integrated V-mount battery plate.

Features:

  • Professional High-Brightness HD Monitor
  • 1000 cd/m² Brightness, 1000:1 Contrast
  • 3G-SDI & HDMI 2.0 Connectivity
  • 3D LUT & HDR Support
  • Full Screen Waveform & Vector scope

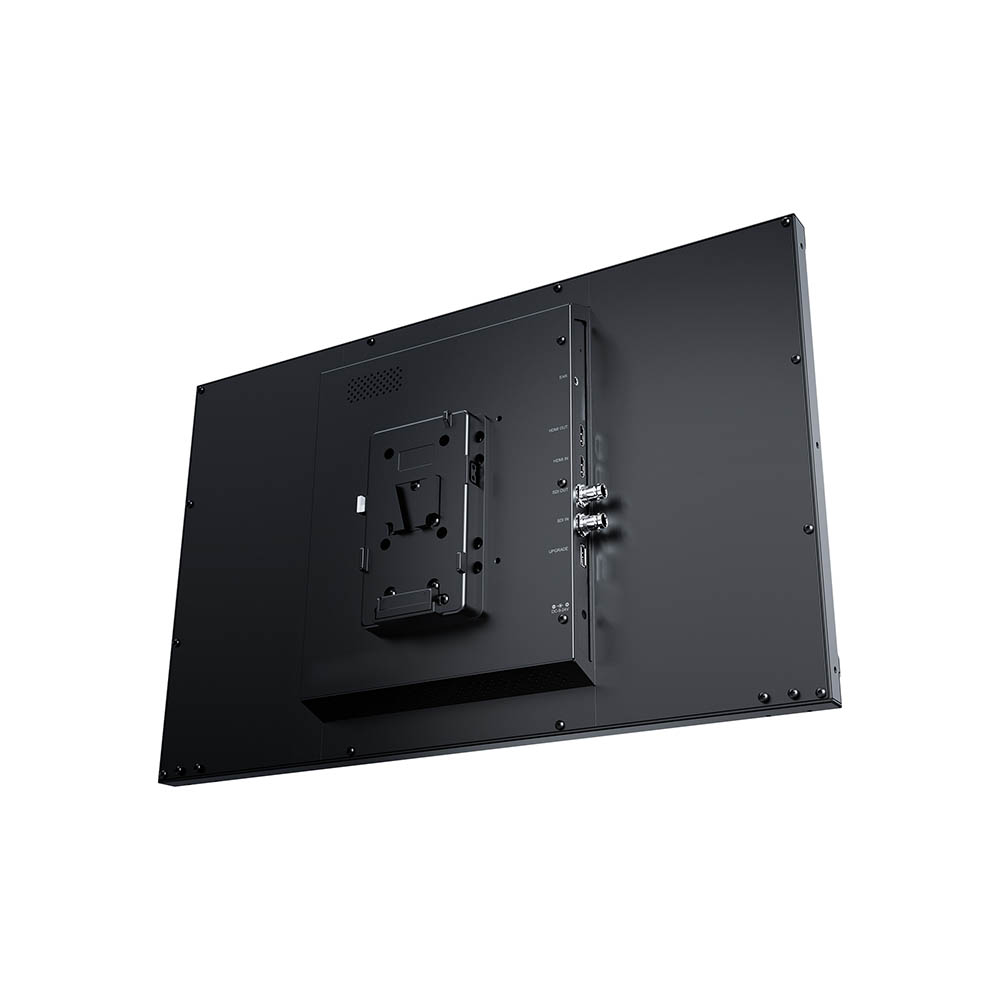

  • Integrated V-Mount Battery Plate
  • 178° Viewing Angle

Comes With:

  • Lilliput PVM220S-H 21.5 Inch High Brightness Broadcast Monitor
  • 15 VDC, 4A Power Adapter
  • 2 x Base Bracket
  • Limited 1-Year Manufacturer Warranty
BRAND

Lilliput

Specification

Display
Aspect Ratio16:9
Contrast Ratio1000:1
Look Up Table Support3D LUT (.cube format)
Resolution1920 x 1080
TechnologyCalibration to Rec.709 with optional calibration unit
Viewing Angle178°/178°(H/V)
HDRST2084 300/1000/10000/HLG
Screen Size21.5"
Supported Log FormatsSLog2 / SLog3 / CLog / NLog / ArriLog / JLog or User…
Supported Formats
HDMI Formats Supported2160p 24/25/30/50/60, 1080p 24/25/30/50/60, 1080i 50/60, 720p 50/60…
SDI Formats Supported1080p 24/25/30/50/60, 1080pSF 24/25/30, 1080i 50/60, 720p 50/60…
Monitor Specification
Video InputsSDI 1×3G, 1X HDMI 2.0
Video OutputsSDI 1×3G, 1X HDMI 2.0
Audio In / Out (48 kHz PCM Audio)
Built In Speakers1
Ear Jack1x 3.5mm
HDMI Audio Frequency8ch 24-bit
SDI Audio Frequency2ch 48kHz 24-bit
Size
Dimensions508mm × 321mm × 47mm
Weight4.7 kg
Power
Compatible BatteriesV-Lock or Anton Bauer Mount
Input VoltageDC 9-24V
Power Consumption≤53W (15V)
Environment
Operating Temperature0℃~50℃
Storage Temperature-20℃~60℃
