Lilliput Q18-8K 17.3 Inch Broadcast Studio Monitor

Brand: LILLIPUT Categories: , , SKU: LILLIPUT Q18-8K

£1,727.04 £1,439.20 Ex. VAT

Order Now - Usually Delivered In 3-5 Working Days

Description

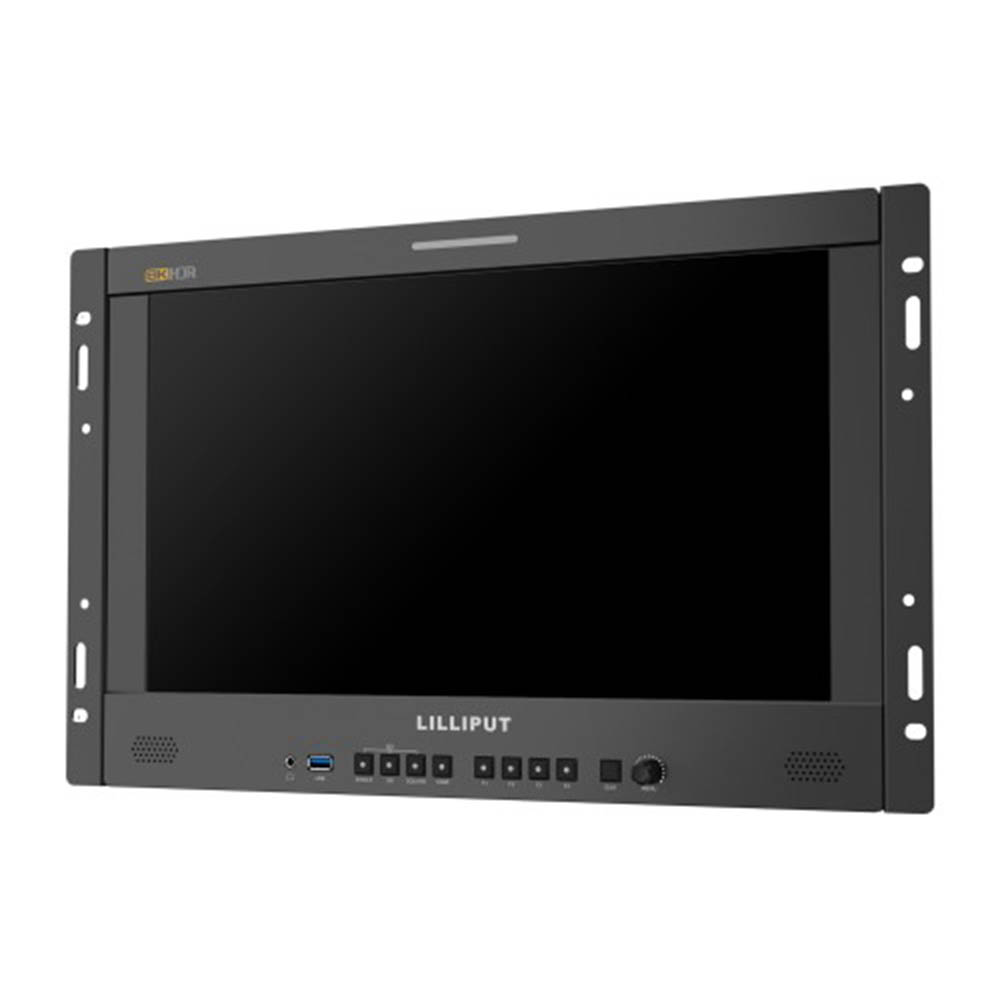

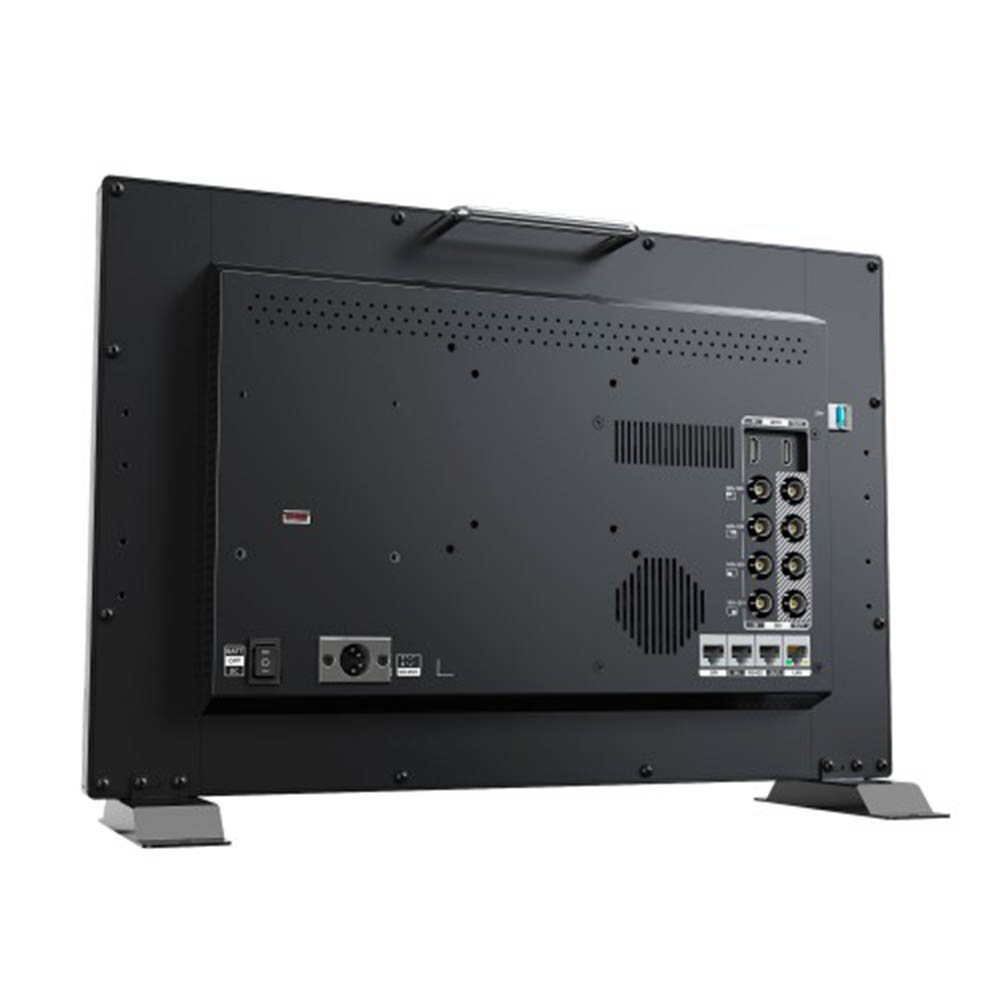

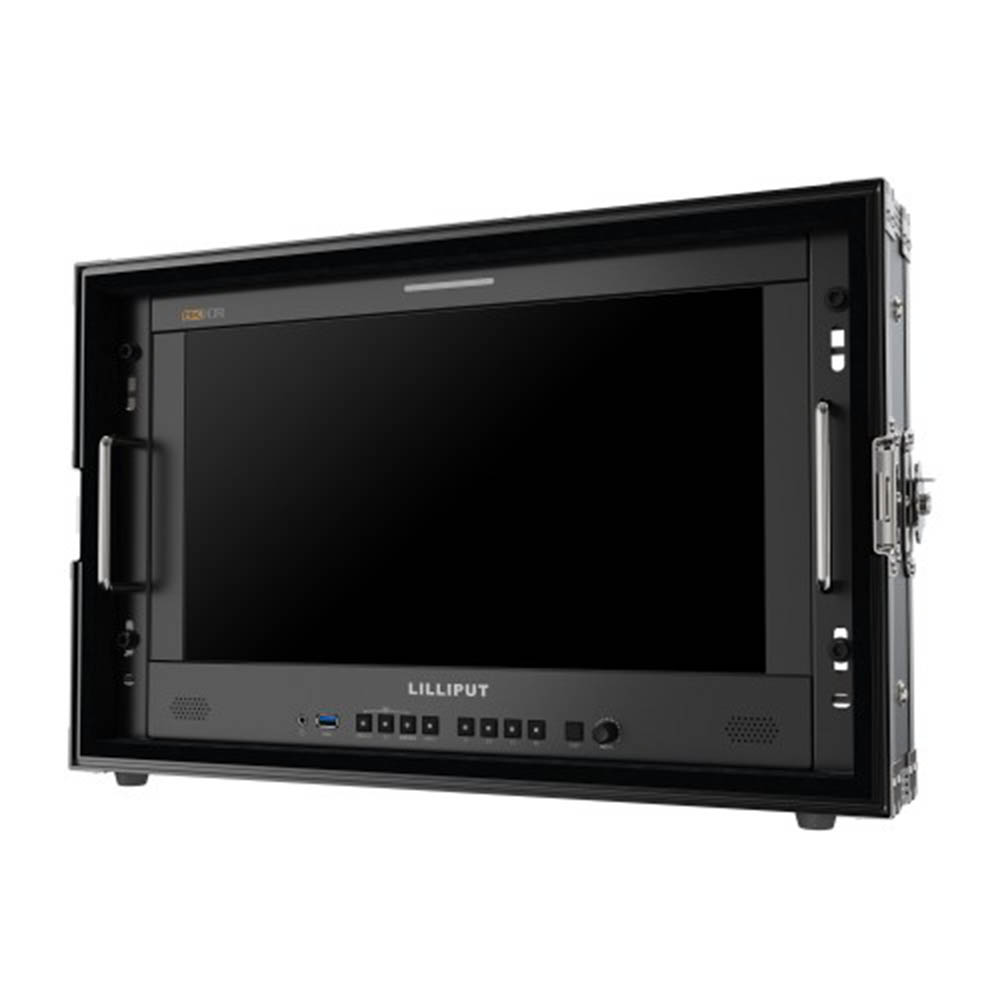

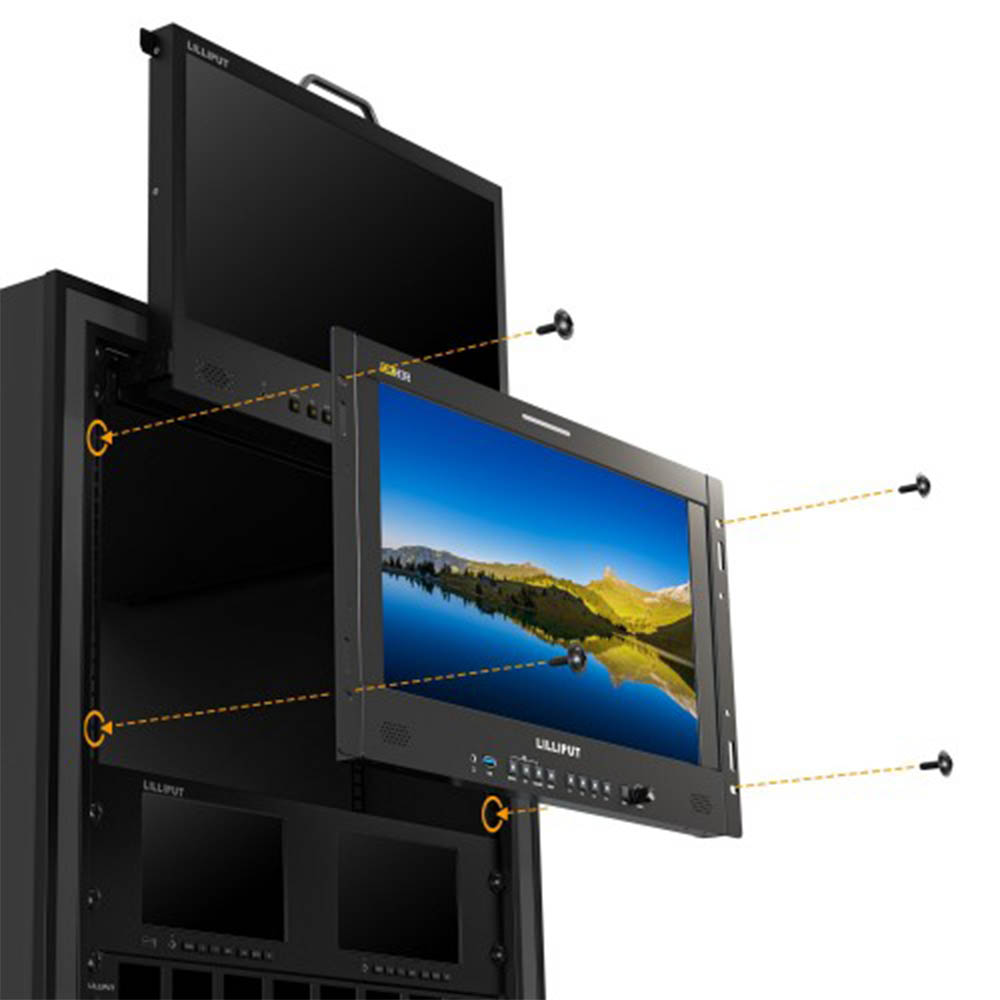

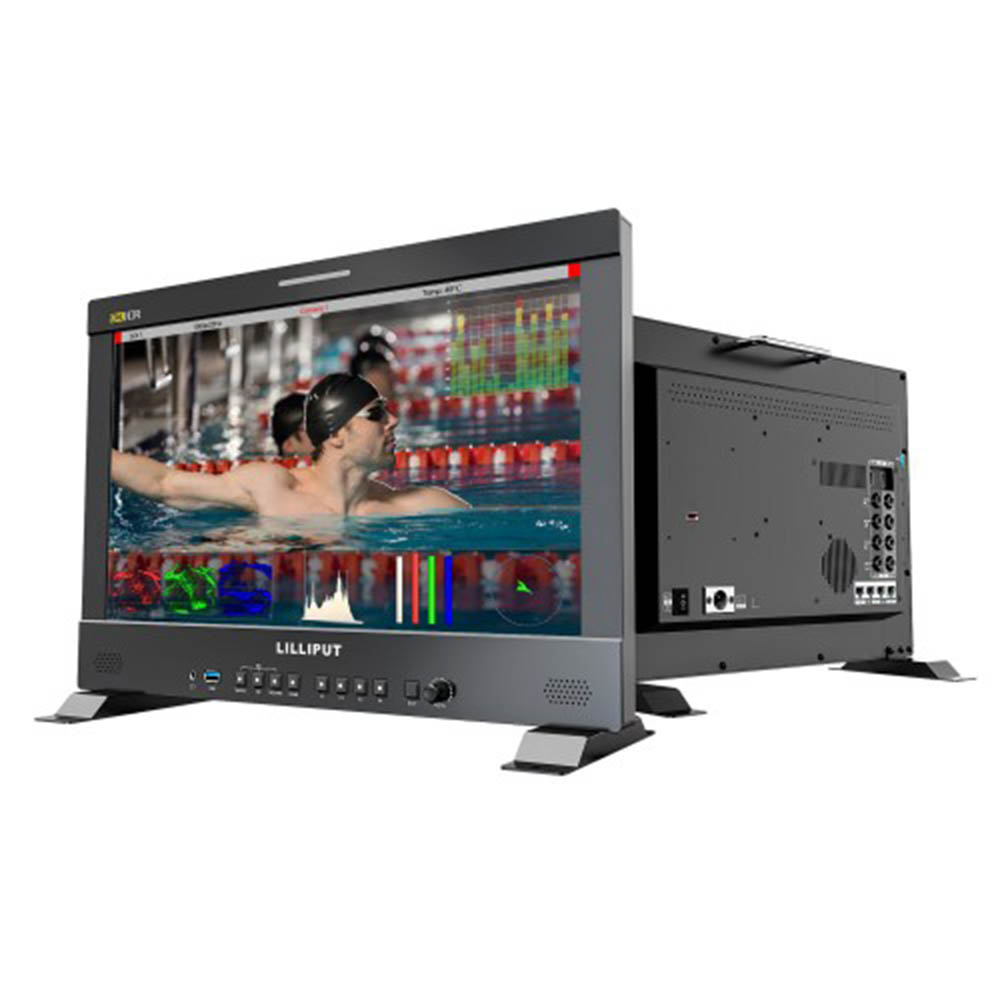

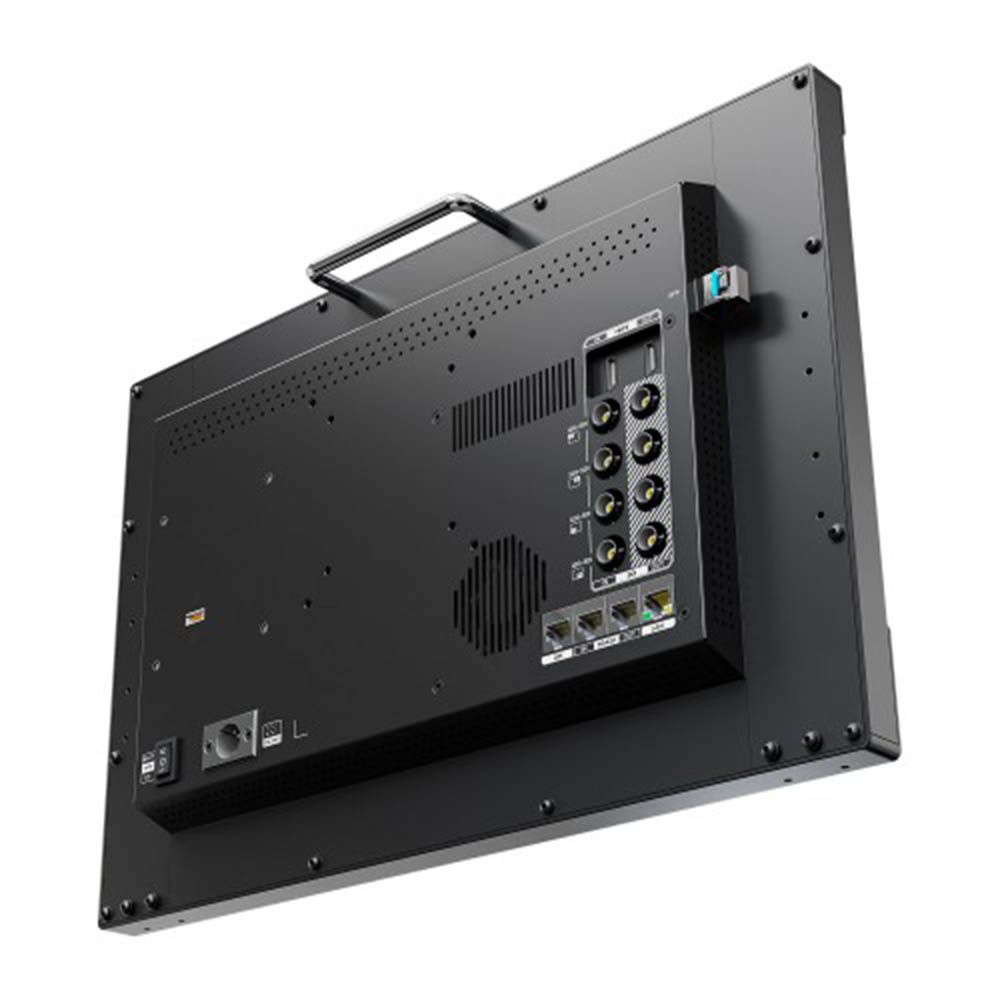

Lilliput Q18-8K 17.3 Inch Broadcast Studio Monitor

Lilliput Q18-8K 17.3 Inch Broadcast Studio Monitor (LILLIPUT Q18-8K) is a 17.3″ broadcast studio and field monitor with a Gold mount battery plate and a native resolution of 3840 x 2160. It can support up to UHD 8K60 and automatically scales all incoming video signals to properly display these on its UHD screen, which boasts a 1200:1 contrast ratio, a viewing angle of 170°, and 400 cd/m² brightness. The Q18-8K features an HDMI 2.0 input and HDMI 2.0 output, four 12G-SDI inputs and four 12G-SDI outputs, and an SFP+ input that can be used with an optional fibre module.

The monitor supports HDR colour spaces and the importing of custom 3D LUTs for quick access to a variety of colour reference options. A 12 VDC power supply is included for powering the monitor from an AC outlet when working within a studio environment, or you may also power the unit with a Gold mount battery using the included battery plate.

Features:

HDR and 3D LUTs
When HDR is activated, the display reproduces a greater dynamic range of luminosity, allowing for colours and lighter and darker details to be displayed more clearly. You can use pre-set Logs or load your own custom LUTs in .cube format via the front panel USB port.
Supported Log Formats
SLog2. SLog3, CLog, NLog, ARRILiog, JLog, and User.
Supported HDR
ST2084 300/1000/10000/HLG.
Audio
The monitor can display the Lissajous shape, most useful when used in audio post-production work for detecting phase variance.
Assignable Buttons
Using the four assignable buttons on the front panel, you can quickly turn any four essential monitoring tools on and off without venturing into the monitor’s menu system.
Remote Control
The monitor supports RS-422 via discrete in and out RJ45 connectors. This allows you to control the monitor from computer applications, as well as link multiple monitors together.
Calibration
The monitor supports colour calibration using an optional PRO/LTE version of Colour Space CMS to ensure your monitor is displaying your image accurately.
Fibre
An integrated slot accepts an optional SFP+ module, should you require an SFP+ fibre connection.
Monitoring Tools
  • Peaking
  • Check field
  • Image freeze
  • Pixel-to-pixel
  • False colour
  • Exposure
  • Histogram
  • Timecode
  • Screen markers
  • Colour space
  • HDR
  • Colour temperature adjustment

Comes With:

1x Lilliput Q18-8K 17.3 Inch Broadcast Studio Monitor

1x Gold Mount Battery Plate

1x Power Adapter

1x VESA Mount Plate

1xBase Bracket
