Lilliput RM-503S 5 Inch Rackmount Monitor

Categories: , SKU: LILLIPUT-RM-503S

£703.20 £843.84 inc VAT

Order Now - Usually Delivered In 3-5 Working Days

Need advice before you buy?
Speak to one of our specialists about compatibility, accessories, stock availability or choosing the right setup.

Chat with us now

Lilliput RM-503S 5 Inch Rackmount Monitor

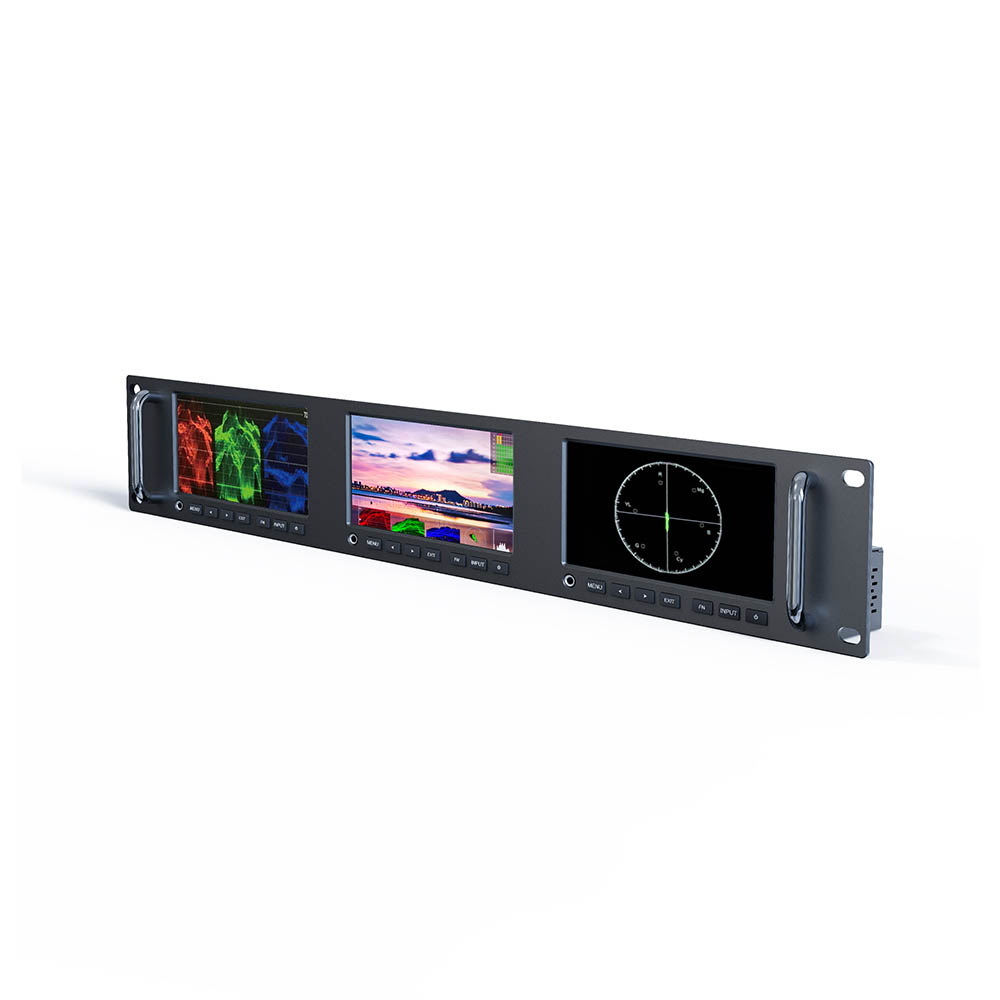

Lilliput RM-503S 5 Inch Rackmount Monitor (LILLIPUT-RM-503S) features three 5″ LED displays, each with a brightness of 450 cd/m² and Full HD 1920 x 1080 resolution. The 2 RU rack-mountable metal chassis has two built-in handles to facilitate mounting and dismounting from your video wall or mobile broadcast system. With integrated 3D LUT and HDR support, the RM-503S is tailor-made for broadcast, post-production, and livestreaming applications.

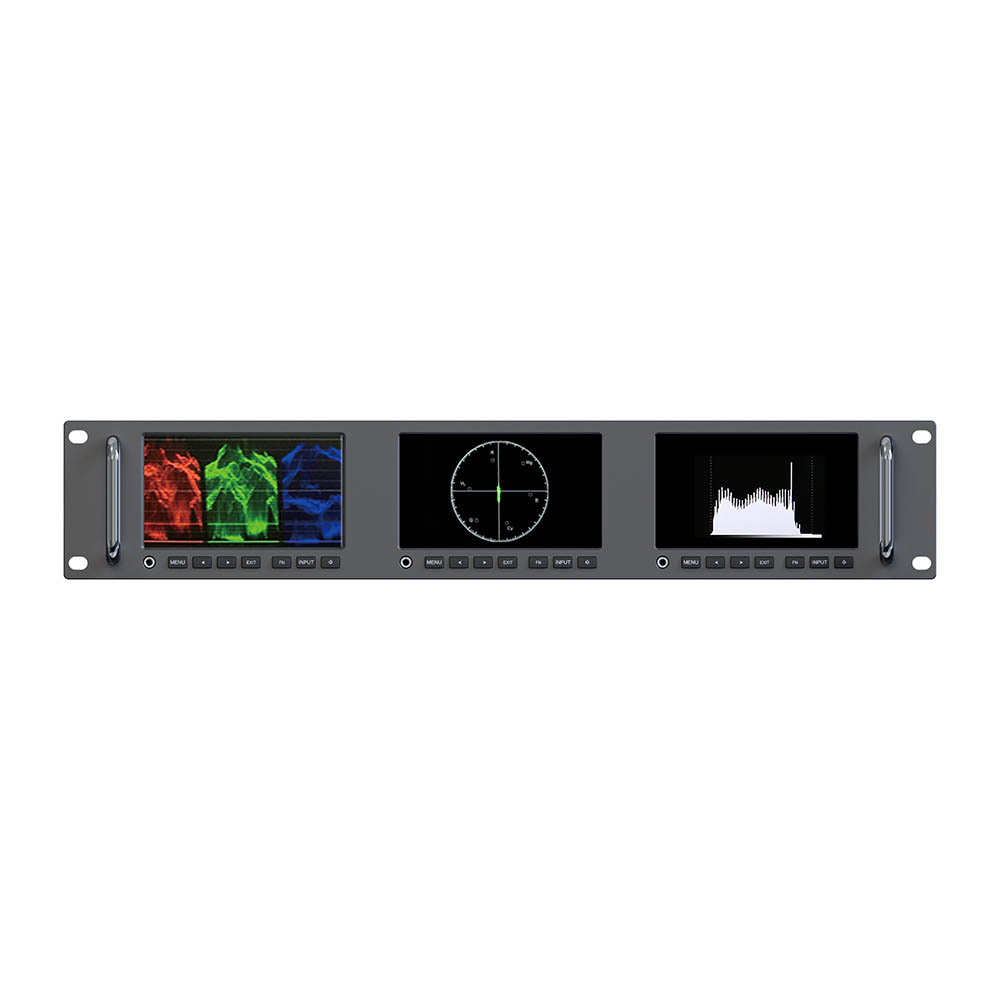

The unit may be operated remotely using LAN connectivity, giving you the flexibility to use any computer that supports the protocol. Waveform, vector scope, and histogram are all accessed in full screen, along with a wide variety of camera auxiliary functions such as false colour, peaking, and audio level meter.

Features:

  • Wide Colour Space, 98% DCI-P3 Screen: Native, Rec.709, and three user-defined options are available for colour space.
  • Colour Calibratable: Colour calibration supports the PRO/LTE version of Colour Space CMS by Light Illusion.
  • HDR: When HDR is activated, the displays reproduce a greater dynamic range of luminosity, giving clearer identification between lighter and darker details, thus enhancing overall picture quality.
  • USB Input for Importing 3D LUTs: Upload 3D LUTs via the rear-panel USB connector and recombine colour tone to quickly form different colour styles with 17 default logs and six user logs.
  • Easy Remote Control: Connect to a computer via LAN, adjust IP address details, and the link for remote operation is ready for action.

Comes With:

  • Lilliput RM-503S 5 Inch Rackmount Monitor
  • Power Adapter
  • Tally Connector
  • Limited 1-Year Manufacturer Warranty

Specification

Display
Aspect Ratio16:9
Brightness450 cdm²
Colour Space98% DCI-P3
Contrast Ratio1000:1
Display Screen3 x 5" LED Panels
Resolution1920 x 1080
Viewing Angle160° Horizontal / 160° Vertical
LUT Support3D-LUT Cube Support
Monitor Specification
Video Inputs3G-SDI x 3 // HDMI 2.0 (Supports up to 4K 60Hz) x3 // LAN x1
Video Outputs3G-SDI x 3 // HDMI 2.0 (Supports up to 4K 60Hz)
Formats
SDI Formats1080p 60/50/30/25/24, 1080pSF 30/25/24, 1080i 60/50, 720p 60/50
HDMI Formats2160p 60/50/30/25/24, 1080p 60/50/30/25/24, 1080i 60/50, 720p 60/50
Size
Dimensions480mm×116mm×88mm
Weight2.1KG
Power
Current2.5A(12V)
Voltage RangeDC 12-24V
Environment
Operating Temperature0℃~50℃
Storage Temperature-20℃~60℃
