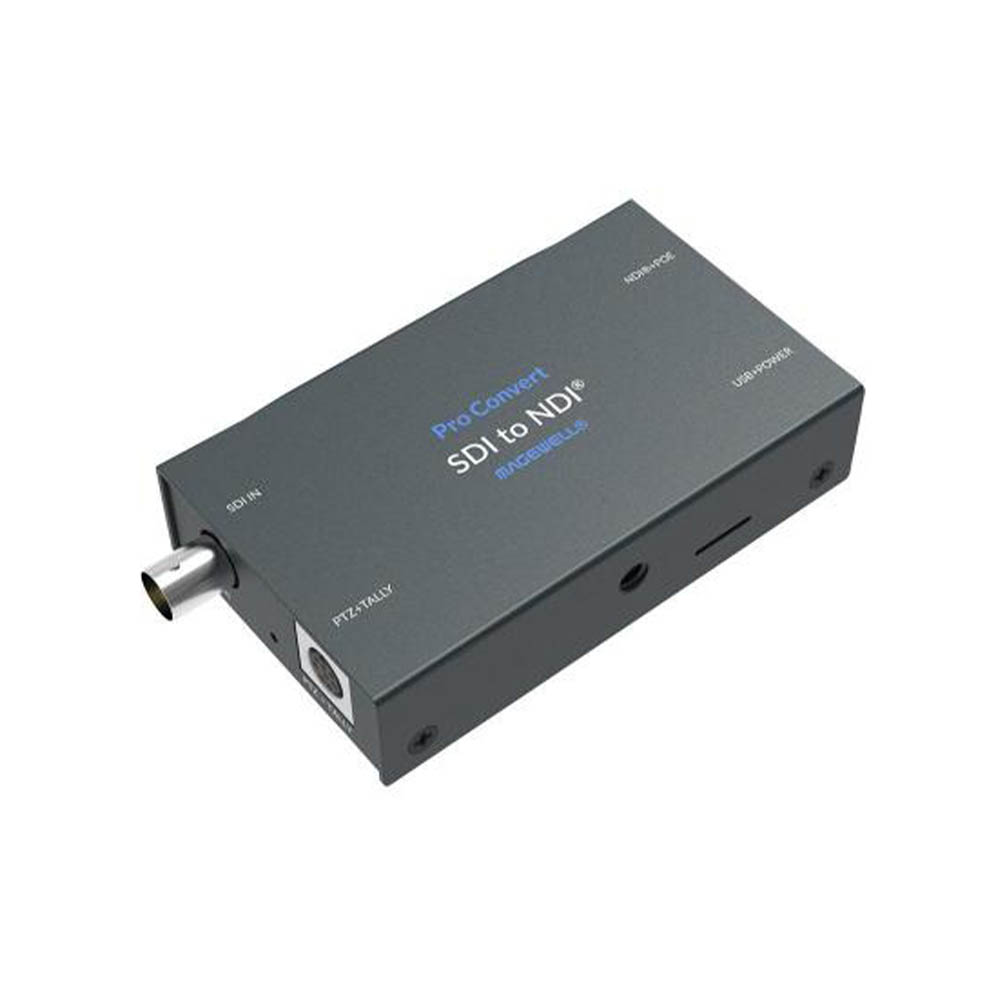

Magewell Pro Convert SDI TX
Only 1 left in stock
Magewell Pro Convert SDI TX (MAG-640600000) converts 3G-SDI video signals to Full NDI®, enabling seamless integration of existing SDI equipment into IP-based production workflows with support for resolutions up to 2048x1080p60, automatic format detection, and simple plug-and-play network configuration.
Pro Convert SDI TX
• Converts one-channel of 3G-SDI input signal into Full NDI®
• Supports up to 2048×1080 60fps input signals
• Connects existing source equipment into NDI-enabled, IP-based media networks
• Plug-and-play ease of use with automatic input format detection and DHCP network configuration
Input Features

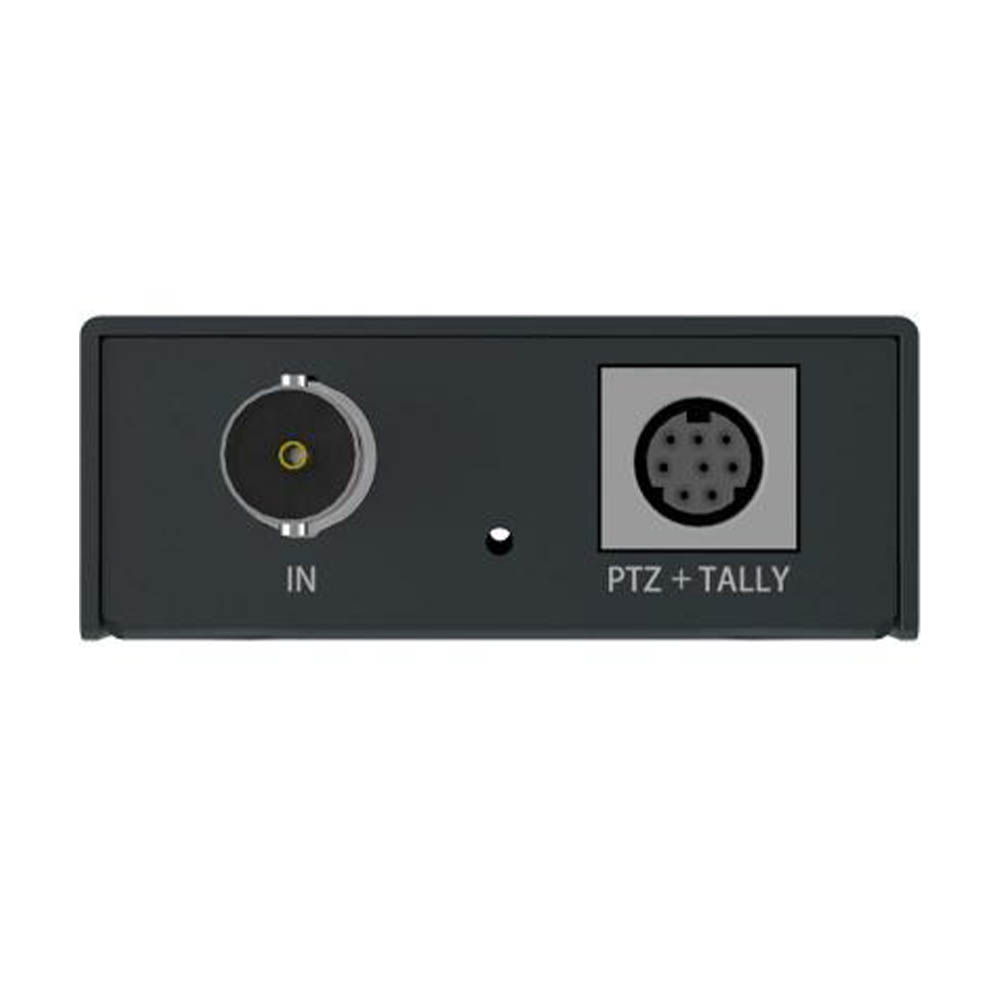

• 3G-SDI input
• Support for up to 2048×1080 60fps input
• Support for up to 16 (mono) audio channels
NDI® Format
• Support for up to 2048×1080 60fps 4:2:2 8-bit NDI encoding
• Send NDI streams across network segments
• Remotely control PTZ cameras via NDI
• Support for NDI 5.x
Features & Advantages
• Very low latency
• Advanced configuration and device status through intuitive Web GUI
• Tally lights and camera mounting for live production applications
• HTTP-based APIs for custom integration
• Provide Crestron Plugins
• Provide Q-SYS Control Plugins
Comes With
- 1x Power Adapter (US/EU/UK/AU/JP)
- 1x Power Adapter (KR)
- 1x USB Type A to Type B cable
- 1x Mini DIN8 to DIN8+DB9 cable
- 1x Tally Light
- 1x L bracket
Specification
| Configuration Management | Register with Control Hub |
| Remote control via WebUI and Control Hub | |
| Provide comprehensive information regarding the device and signals in real-time | |
| Allow to configure how an input is processed and encoded, including deinterlacing, up/down scaling, frame rate, aspect ratio, as well as the network | |
| connection | |
| Update firmware | |
| Support USB RNDIS/ECM | |
| Support IE/Edge/Firefox/Chrome/Safari/Opera web browsers | |
| Provide HTTP APIs | |
| On-board Control Buttons | 16 Position Rotary DIP Switch: set board-index from 0 to F |
| PTZ Control | Control PTZ cameras using protocols of VISCA, Visca UDP, Visca UDP2rs232, PELCO-P and PELCO-D via NDI |
| Mini-DIN–8 jack (shared with Tally light) | |

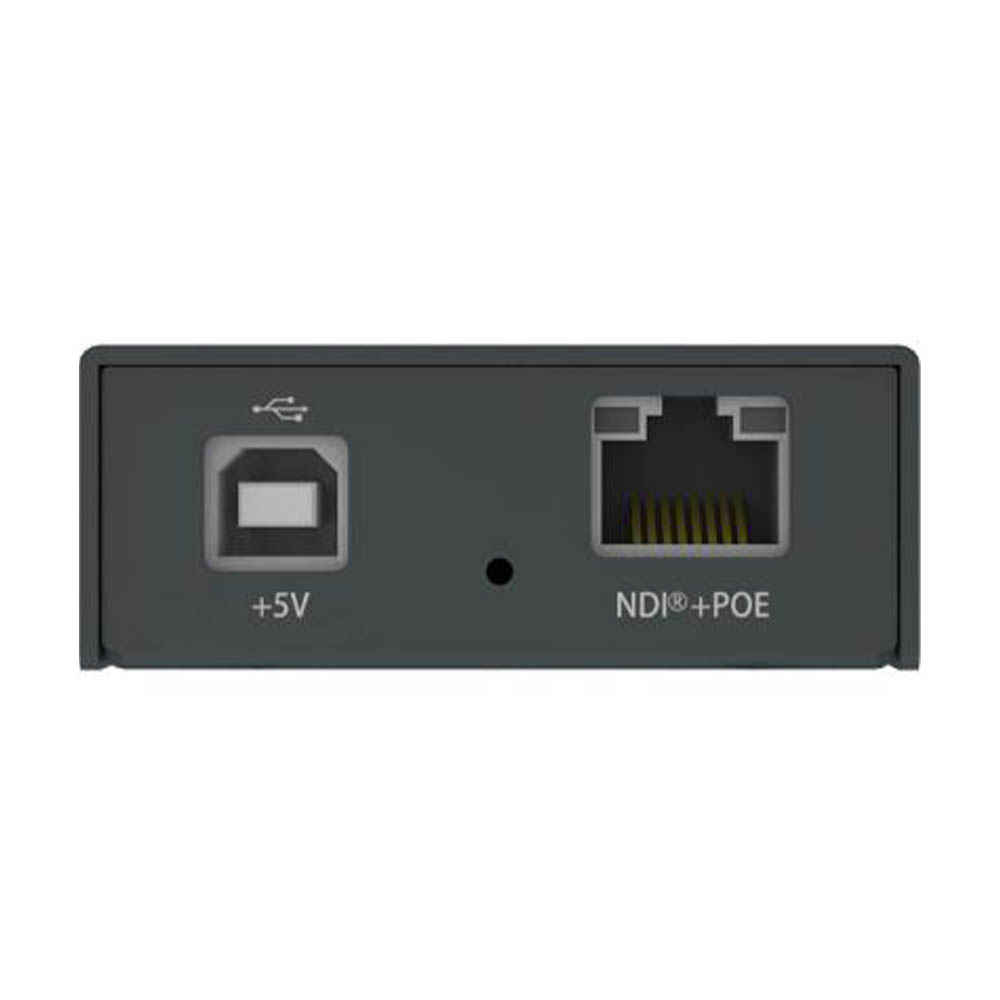

| Network Interfaces | 10/100/1000Mbps Ethernet |
| IEEE 802.3af PoE | |
| USB Interface | USB2.0 Type B |
| 5V/2.1A power supply | |
| USB RNDIS/ECM | |
| Supported Products | NDI Studio Monitor |
| OBS | |
| vMix | |
| Any other NDI-enabled product | |
| LED Indicators | Status LEDs indicate: |
| Power supply: on/off | |
| Input signal: locked/unlocked | |
| Form Factor | 100.9mm (L) x 60.2mm (W) x 23.3mm (H) |
| Accessories | USB 2.0 A to B cable |
| 5V/2.1A power adaptor | |
| Mini-DIN 8 breakout cable | |
| Tally light | |
| L-bracket | |
| Screw Mounting Hole | ¼–20 threaded hole |
| Power Consumption | 5V max current: ~1.5A |
| Max power consumption: ~7W | |
| Working Environment | Operating temperature: 0 to 40 deg C |
| Storage temperature: –20 to 70 deg C | |
| Relative humidity: 5% to 90% non-condensing | |
