Metabones Canon EF-BMPCC Micro4/3 T

Categories: , SKU: MB_SPEF-BMPCC-BT1

£613.02 £510.85 Ex. VAT

0 reviews

Order Now - Usually Delivered in 2-4 Weeks

Metabones Canon EF-BMPCC Micro4/3 T

Metabones Canon EF-BMPCC Micro4/3 T

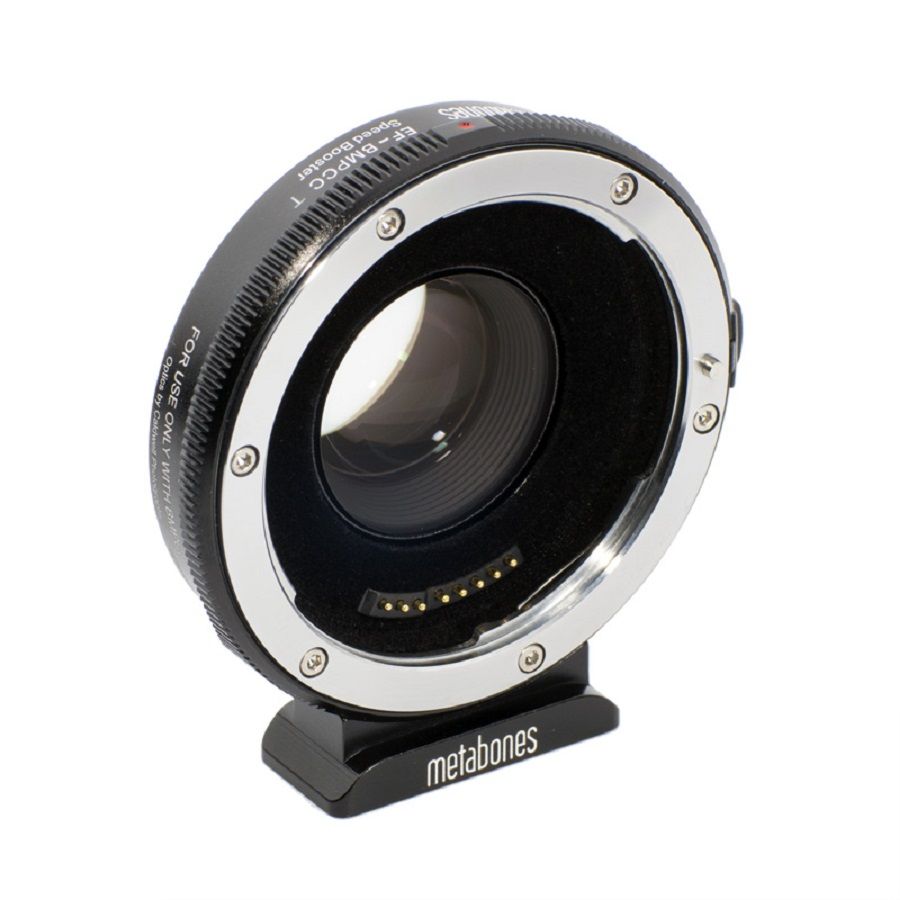

Metabones Canon EF to BMPCC T Speed Booster (Black Matt)

Key Features

  • Increase maximum aperture by 1 2/3stop. (with a maximum output aperture of f/0.74)
  • Increase MTF.
  • Makes lens 0.58x wider.
  • Optics with 6 elements in 4 groups, designed by Caldwell Photographic in the USA (patent pending).
  • Build-in electronics to control lens aperture.
  • The Lens aperture is set by the controls on the camera body.
  • Powered by camera body. no external power source required.
  • High-performance 32-bit processor and efficient switched-mode power supply.
  • The tripod foot is detachable and compatible with Arca Swiss, Markins and Photo Clam ball heads.
  • Flocking material coating inside the inner hole to reduce the internal reflection.

Optics designed by Caldwell Photographic in the USA.

Description

Canon EF to BMPCC T Speed BoosterTM  adapters designed exclusively for the Blackmagic Pocket Cinema Camera (BMPCC), Blackmagic Mirco Cinema Camera(BMMCC) and Blackmagic Micro Studio Camera 4K(BMMSC 4K). Note that this new 0.58x Speed Booster will only attach to BMPCC equipped with a Micro-4/3 mount. They cannot be attached to standard Micro 4/3 cameras (cannot be attached to GH5, GH4, GH3, GH2, GH1) and BMPCC 4K body.

The new 0.58x Speed Booster reduces the crop factor of the BMPCC from 3.02x to 1.75x and produces the largest aperture optics currently available, with a maximum output aperture of f/0.74.

Here are a few examples:

Master Lens with Speed Booster

0.58x

 35mm equivalent focal length

on BMPCC  *
Canon 85mm f/1.2 49.3mm f/0.74 148.9mm extremely fast tele
Sigma 18-35mm f/1.8 10.5-20.3mm f/1.0 30.7-61.3mm super fast and stunningly sharp zoom
Sigma 8-16mm f/4.5-5.6 4.6-9.3mm f/2.6-3.2 14-27.8mm super wide zoom
Sigma 30mm f/1.4 Art 19.3mm f/0.81 58.3mm super fast and sharp standard lens
Tokina 11-16mm f/2.8 6.4-9.3mm f/1.6 19.3-27.8mm very fast and sharp wide-angle zoom
*) Based on diagonal field of view

Table of compatibility and resulting crop factors with different SpeedBoosterTM:

Supported Not supported
EF lenses

BMPCC, BMMCC and BMMSC 4K

Image stabilization (IS) lenses

Autofocus (from firmware V2.1)

Electronic manual focusing (e.g. EF 85/1.2L II and discontinued EF 50/1.0L)

EXIF (focal length, aperture, zoom range)

Distance and zoom display on BMPCC camcorders (see note 1)

Contax N mount lenses modified to Canon EF by Conurus (see note 2)

Contax 645 NAM-1 adapter modified to Canon EF by Conurus (see note 2)

Sigma, Tamron and Tokina lenses in Canon EF mount (see note 2)

 EF-S lenses

GH5, GH5s, GH4, GH3, GH2, GH1

BMPCC 4K

Lens correction such as peripheral shading, CA and distortion

Focus confirmation “chip” (e.g. Dandelion)

M42 screw mount adapters (see note 5)

Stacking non-Metabones/non-Conurus mount adapters on top (see note 6 and list of lenses which require modification below.)

Lens: Tamron SP 17-50mm F/2.8 XR Di II VC

Note:

  1. Requires lenses supporting distance information.
  2. A third party zoom lens may need to be registered with the Speed Booster/Smart Adapter first in order to detect its maximum aperture.
  3. This Speed Booster is designed to cover a BMPCC image circle which is not big enough to cover a full-size 36mm x 24mm sensor.
  4. For use with fast lenses (faster than f/1.8), the pre-boost apertures will be displayed in the camera.Slow lenses will report boosted apertures to the camera body but fast lenses will report pre-boost apertures. We won’t show f/0.7 with a f/1.2 lens attached, but show f/1.2 instead.Example:a) EF 85/1.2L attached, camera display = f/1.2, physical aperture  (lens + Speed Booster combined) = f/0.74.
    b) Sigma 18-35/1.8 attached, camera display = f/1.0, physical aperture (lens + Speed Booster combined) = f/1.0.
  5. Some improperly-made M42 screw mount adapters may short the electronic contacts of the Speed Booster and cause damage to the Speed Booster and/or camera body.
  6. Many manual focus lenses (e.g. OM 28/2.8, OM 50/1.8, Leica R 15/3.5) have rear protrusions (spikes, levers, other appendages) which would damage the optics and/or housing of Speed BoosterTM They need to be modified before they can be safely used on Speed BoosterTM Check and make sure there are no rear protrusions from the adapter/lens combination before using on Speed Booster. Scratches and damages caused by rear protrusions on Speed BoosterTM are not covered by warranty.
  7. This Speed Booster is NOT fully compatible with GH5 or other MFT camera. This is used only with BMPCC, BMMCC and BMMSC4K. When Speed Booster® is used with other MFT camera, it may cause damage to the camera.

List of lenses (have been tested by metabones) with support on EF-BMPCC Speed Booster. (Lenses which have been tested with EF-E Speed Booster may refer to EF-E Speed Booster product page.)

Canon EF zooms

Canon 20-35mm3.5-4.5

Canon 28-80mm2.8-4L

Canon 70-200mm2.8L

Canon 24-70mm2.8_II

Canon 24-105mm4_L

Canon 70-200mm4_L

Canon 70-300mm4-5.6L

Canon 70-300mm4-5.6

Canon EF primes

Canon 50mm1.8

Canon 50mm1.4

Canon 85mm 1.2

Canon 100mm 2.8

Others

Sigma 18-200mm3.5-6.3

Zeiss 35mm2

List of manual focus lenses which REQUIRE MODIFICATION to be used on Speed Booster

Many manual focus lenses have rear protrusions (spikes, levers, other appendages) which would damage the optics and/or housing of Speed BoosterTM They need to be modified before they can be safely used on Speed BoosterTMCheck and make sure there are no rear protrusions from the adapter/lens combination before using on Speed Booster. Scratches and damages caused by rear protrusions or by poor quality adapters are not covered by warranty. The following is an incomplete list of lenses known to be incompatible.

Leica R

Super-Elmar-R 15mm

Elmarit R 28/2.8

Elmarit R 35/2.8

Summicron R 50/2

Nikon F

20/2.8 AI-S

Olympus OM

OM 18/3.5

OM 21/2

OM 21/3.5

OM 28/2.8

OM 50/1.8

Pentax K

Every Pentax K-mount lens has a protruding fin and an aperture lever. It does NOT fit.

Why Metabones®?

Since its inception, Metabones has been designing and manufacturing lens adapters recognized among professionals and enthusiasts as leaders in design and workmanship.

Contrary to the popular trend of other factories using an aluminum ring painted black on the camera-body-side, we instead take no short-cut but use precision-machined brass with chromium plating on both the camera-body and the lens sides of our adapters, in order to ensure smooth mounting, great appearance, and durability. The lens side of the adapter features a strong leaf-spring structure, strengthening the adapter-lens connection and ensuring tightness of the lens in order to reduce wear and prevent focus errors and optical alignment issues from appearing.

Metabones uses matte-black treatment to keep internal reflection to a minimum in order to maintain the maximum optical quality possible with the lens.

All Metabones Adapters follow this tradition of uncompromising precision, robust build quality and outstanding finish. Our new Smart AdapterTM series of products add industry-leading electronic interfacing technology from Canada, with true electronic control of the lens’ aperture directly from the camera body.

Features

  • Both camera-side and lens-side of the adapter are made of brass, precision-machined and plated with chromium.
  • Satin surface finish – just like your OEM lens and camera mounts.
  • Precise fit and solid connection – lens has no play, gap or wiggling when mounted on adapter and no adjustments are required to fit your lens.
  • Designed to reach infinity focus while maintaining the correct registration distance required to maintain optical quality of CRC lenses or lenses with floating elements.

Our Smart AdapterTM series adapters have the following additional features

  • True electronic integration of aperture diaphragm – let camera automatically choose aperture in P or S exposure modes, or dial in yourself on the camera body in A or M modes.
  • EXIF data such as lens identification, focal length and aperture.

For more Metabones products click here

For more Metabones information click here
