Sennheiser Evo Wireless G4 Plug-in Transmitter

Sennheiser Evo Wireless G4 Plug-in Transmitter

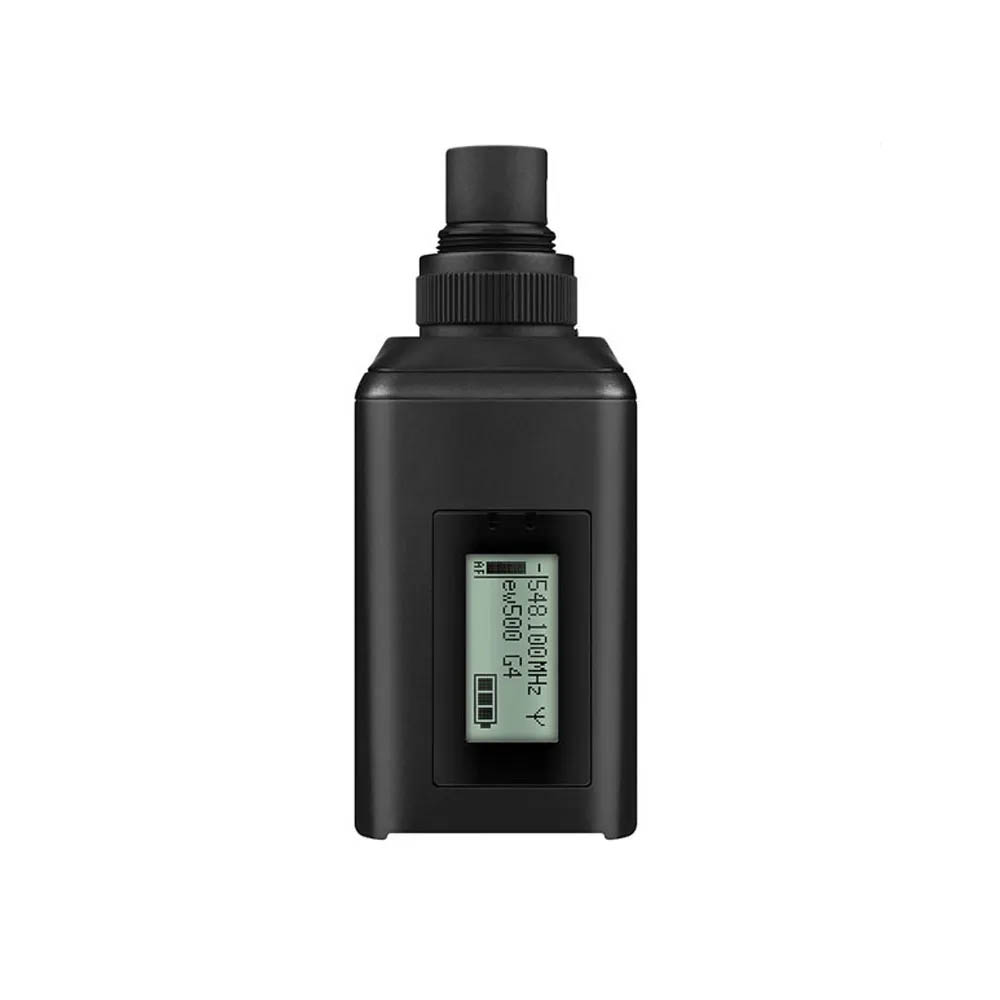

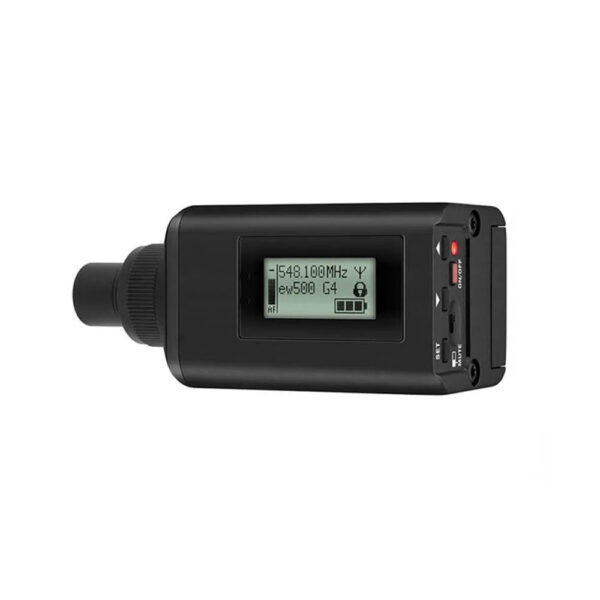

Sennheiser Evo Wireless G4 Plug-in Transmitter (509899) is the latest addition to their evolution series of wireless transmitters. It operates in the UHF frequency range and can be used with a companion receiver and dynamic or condenser handheld microphone (sold separately), as part of a wireless RF transmission system for live stage, theater, film, and presentation applications.

The plug-on transmitter features switchable 48V phantom power, up to 88MHz bandwith (72MHz on GBW model) 2000 frequencies that are tunable in 25 kHz steps, 20 fixed frequency banks, 32 compatible frequency presets, and 6 user banks with up to 32 user programmable frequencies. The transmitter’s menu-driven backlit display shows the current frequency, frequency bank and channel number, metering of AF level, lock status, transmission status, muting function, battery status, and more.

In addition, the plug-on transmitter incorporates a Sennheiser HDX compander system, a defeatable pilot tone squelch, and is equipped with a frequency range from 80 Hz to 18 kHz. Finally, power is supplied to the transmitter by the two included 1.5V AA sized batteries, or by one optional Sennheiser BA 2015 rechargeable accupack. A pouch with a belt clip is included.

Features

• Professional sound and durable construction
• Easy to use and fast setup time
• Flexible wireless synchronization between transmitter and receiver via infrared
• Up to 88MHz bandwidth (72 on GBW model), up to 32 channels
• Range: Up to 330′
• Increased RF output power (10/30/50 mW)
• Up to 8 hours of operation time

Comes With

• 1x SKP 500 G4 pro plug-on transmitter
• 2x AA batteries
• 1x POP 1 pouch with belt clip
• 1x Quick guide
• 1x Safety guide
• 1x Manufacturer declaration sheet
