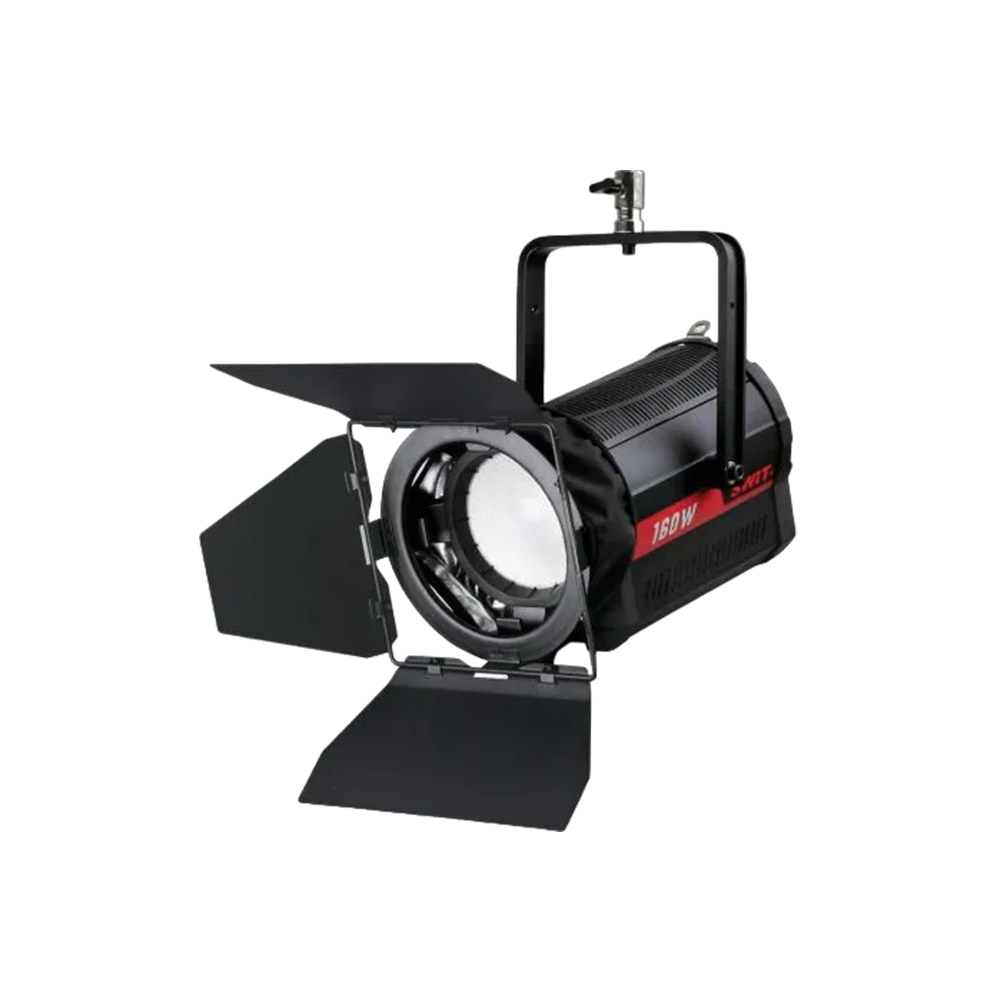

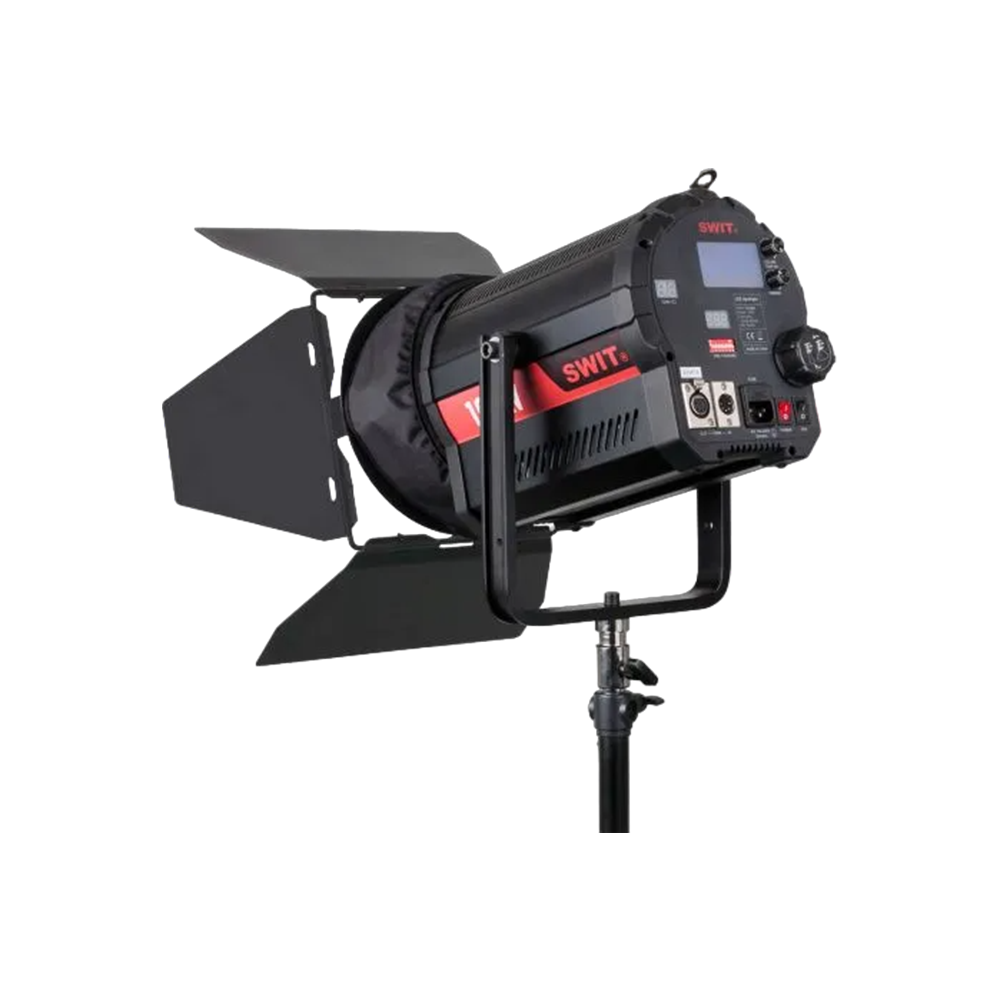

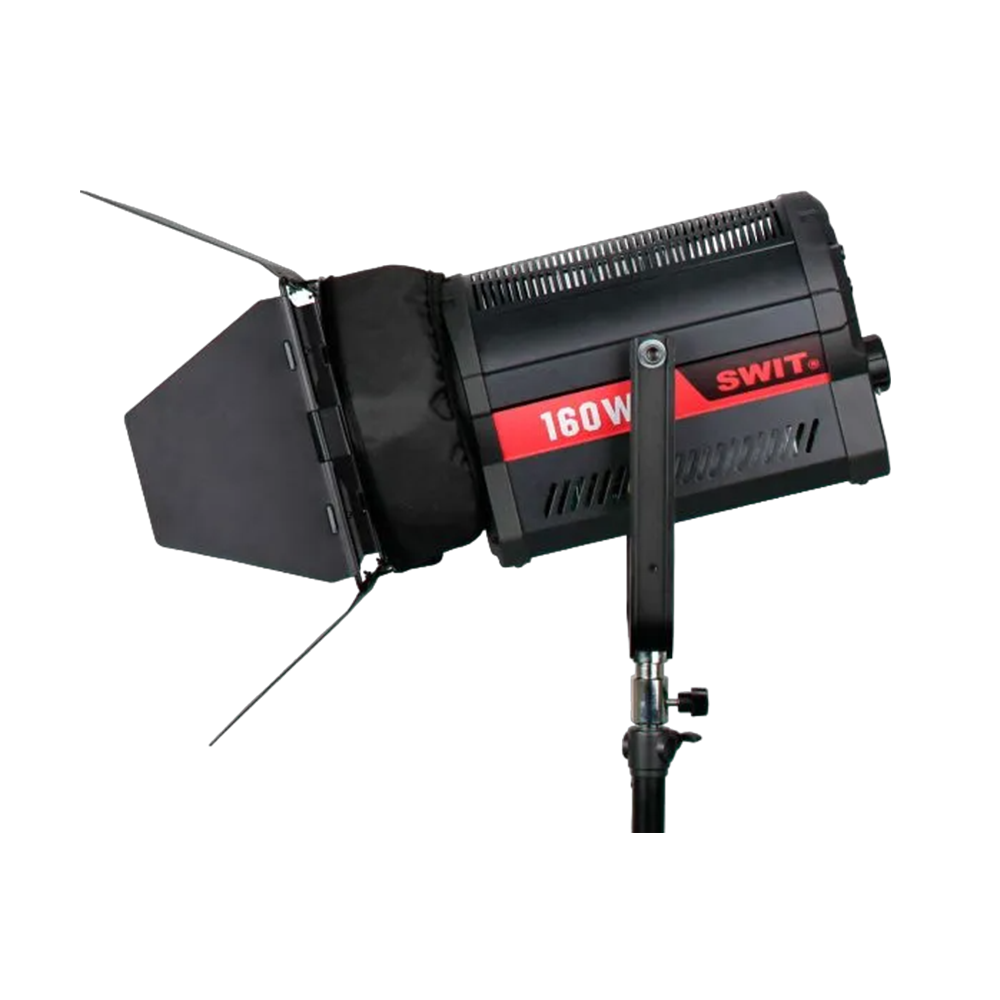

Swit S-2320 Bi-Colour Studio LED Spot Light

Swit S-2320 Bi-Colour Studio LED Spot Light (S-2320) is a studio LED spot light, with Chip-on-board LEDs of 50,000 hours lifetime, and generates 160W light output, which is an ideal light source for broadcast studio and field video productions.

Spot /Flood Adjust – 20° – 70° beam angle
S-2320 outputs 20° – 70° beam angle by adjusting position of the LED board, and 0-100% non-flickering dimmable. The following output illuminace at different distance is for reference:

Bi-colour temperature – 3000K-8000K continuously adjustable
The S-2320 LED board alternated with 3000K and 8000K LEDs, and the output colour temperature can be continuously adjustable between 3000K and 8000K.

High Colour Reveal Ability – CRI Ra≥95; TLCI≥95
The CRI (Colour Rendering Index) is a measure of the ability of a light source to reveal the colours of various objects faithfully in comparison with a natural light source. And TLCI (Television Lighting Consistency Index) is special for the colour reveal ability by camera sensor. Max value 100. The normal LED light has 80-85 CRI or TLCI, while S-2320 offers the super high CRI at 95 and TLCI at 95, and will not lost the object original colours.

DMX512 Control – Dimmer and Colour temperature
The S-2320 adopts standard 5-pin DMX in/out port, supports DMX512 protocol, and adjusts dimmer and color temperature by DMX controller.
The dimmer and colour temperature occupy 1 DMX address respectively. The DMX address is set by 10x binary DIP switchers and displayed by LED.

LCD screen display – Dimmer / colour temperature value

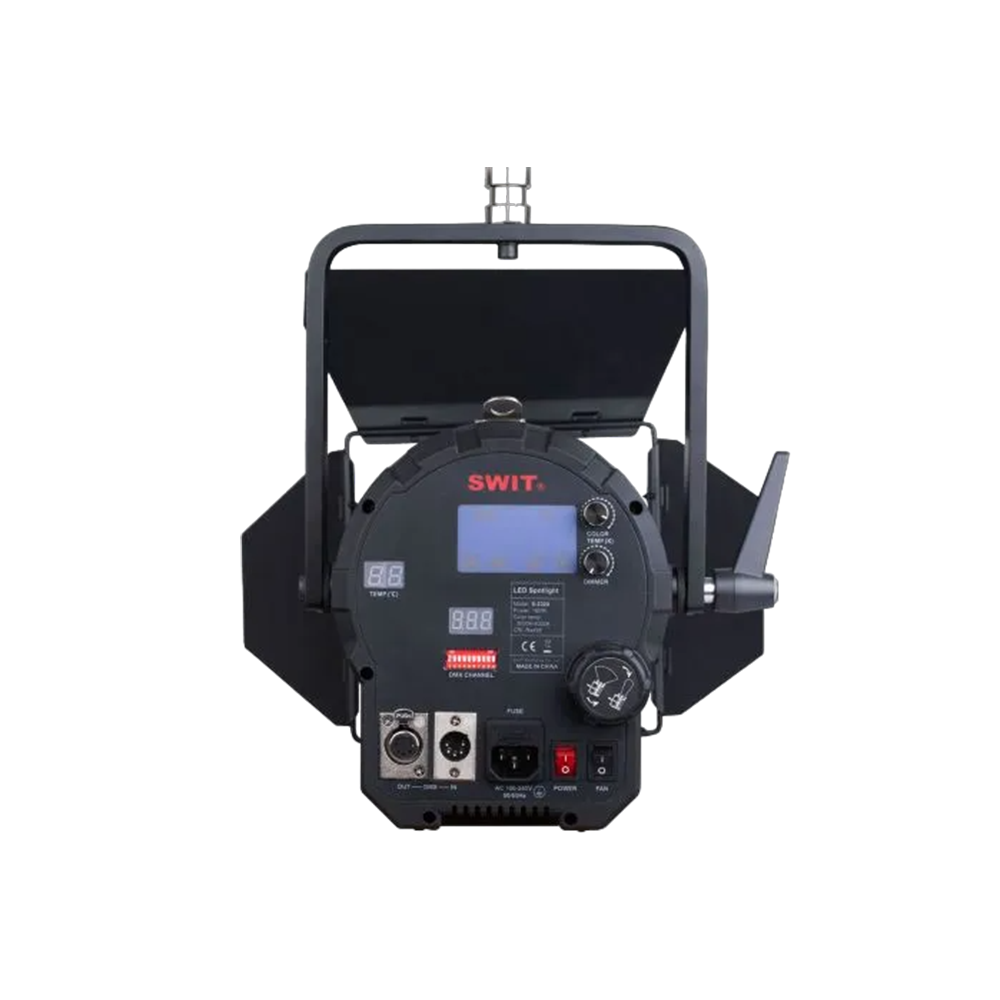

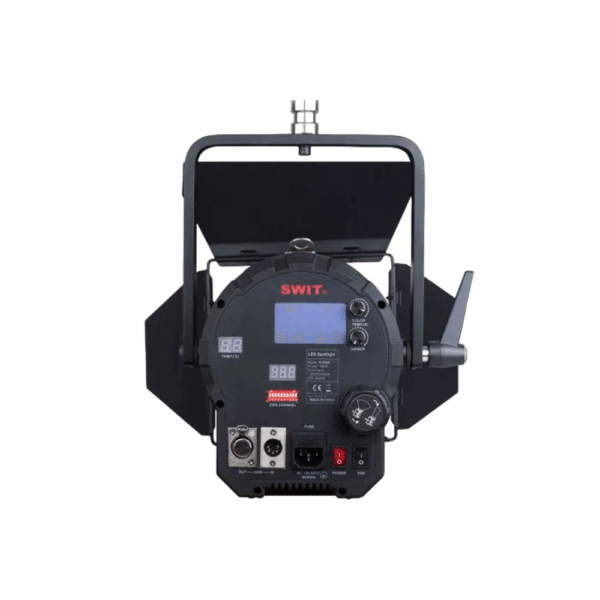

The rear LCD screen can display the current dimmer percentage, colour temperature value, and supports touch control to adjust.

Silent Mode – Switch off fans and Max brightness reduced to 50%
The S-2320 adopts silent fans to radiate heat, which will not affect normal shooting environment to record audio. While in strictly silent required broadcast environment, S-2320 can be switched to “Silent Mode” to turn off the fans. And meanwhile, the max brightness will be reduced to 50%.

Sleep Mode – Quick recover brightness
The S-2320 supports “Sleep Mode”: you can switch off the light by pressing the DIMMER knob, to enter Sleep Mode. And press the DIMMER knob again; the S-2320 can be quickly light up to the previous dimmer value.

4-leaf Metal Barn Door – With black-out cloth
The S-2320 is equipped with 4-leaf metal barn doors, dismountable and rotatable. Meanwhile, the light provides a special black-out cloth to prevent light leakage.
