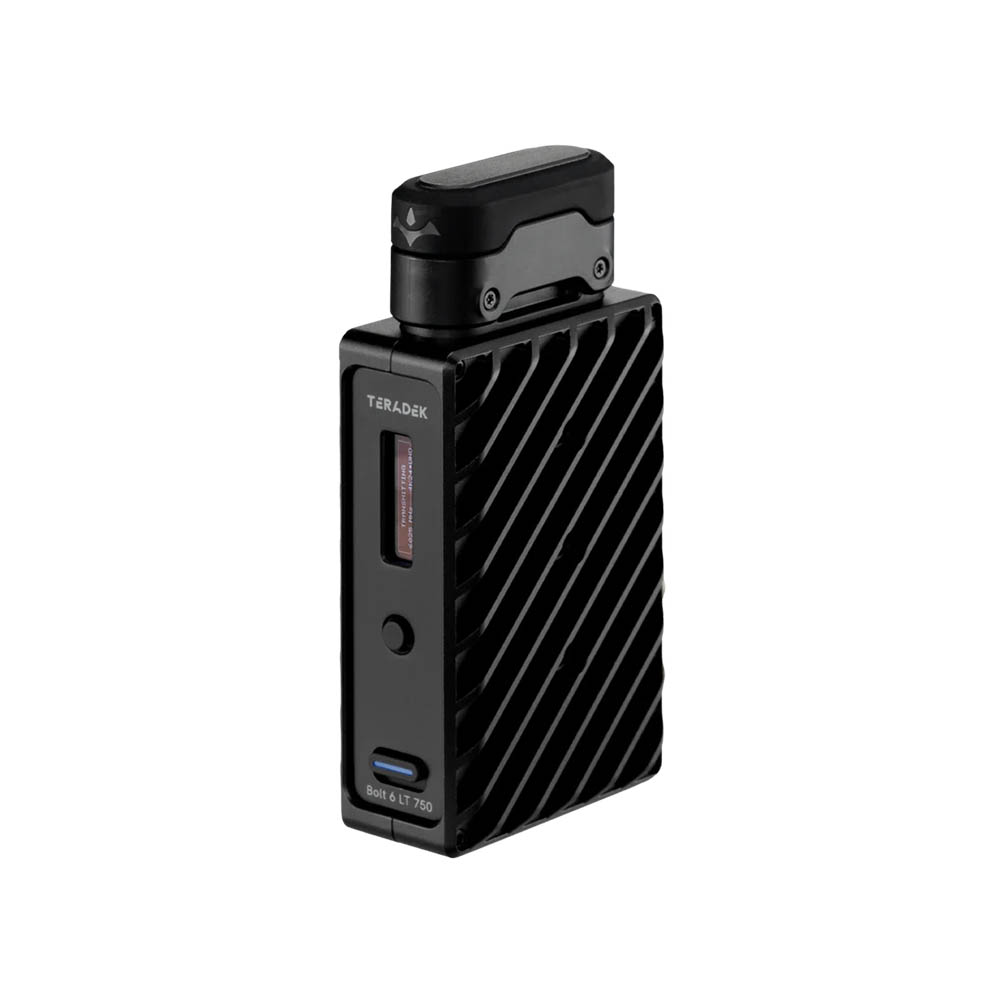

Teradek Bolt 6 LT 750 Int Ant TX

Teradek Bolt 6 LT 750 Int Ant TX (10-2263-I) is a wireless video transmitter that supports up to 1080p60 10-bit 422 HDR video over 3G-SDI, or 4K30 over HDMI. Bolt 6 uses Teradek’s patented Zero-Delay silicon chip to send wireless video over 5GHz and 6GHz radio frequencies.

Bolt 6 LT TX offers three line-of-sight options: 750 ft., 1500 ft., and the MAX model, which can be configured for up to 5,000 ft when using the optional Array Antenna and Broadcast Mode.

The Transmitter is cross-compatible with the entire Bolt 4K Series – including Bolt 4K, Bolt 4K LT, and the Bolt 4K Monitor Modules – giving you the option to expand your workflow requirements. Link up to 6 receivers to one transmitter, or unlimited receivers when used in Broadcast Mode (available on MAX models).

The 750 model includes V (vertical) Antennas. 1500 and MAX models include both V Antennas and H (horizontal) antennas. H Antennas are designed to maximize signal robustness in the most challenging RF environments.

Optionally, the 750 model of Bolt 6 LT TX can include permanent internal antennas to allow for reliable zero-delay transmission in a more compact and durable form factor.

Features

• Built-in antenna (cannot ever be removed or changed)
• Omnidirectional
• Most compact form factor
• Zero hassle, never need to replace broken antennas
• Uses smaller V antenna, therefore recommended to use with other V+V configurations
• Only works up to 750ft

Comes With

• 1 x Bolt 6 LT 750 TX Internal Antenna
• 1 x 2pin to P-Tap Cable, 18in
• 1 x 2pin to AC Adapter 18W, 6ft
• 1 x SDI Cable, 10in
• 1 x USB-C 2.0 Male to Male, 1m
