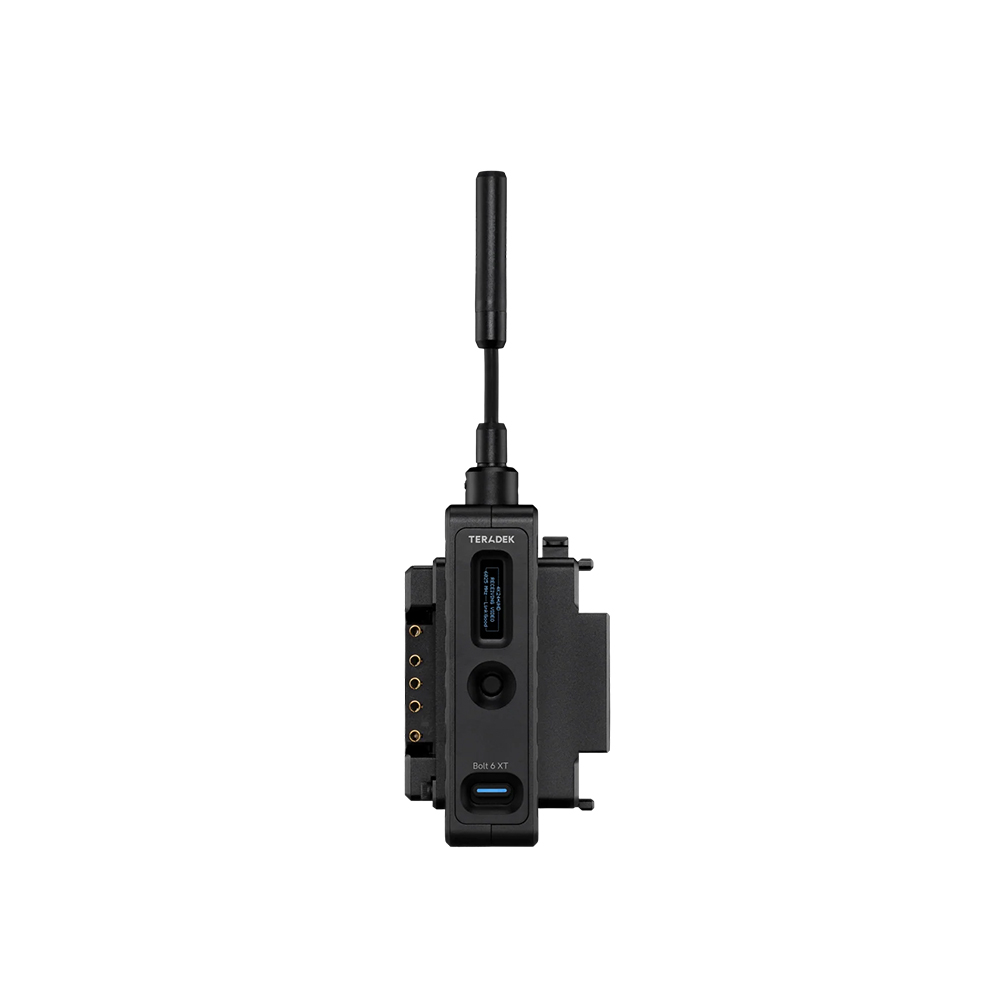

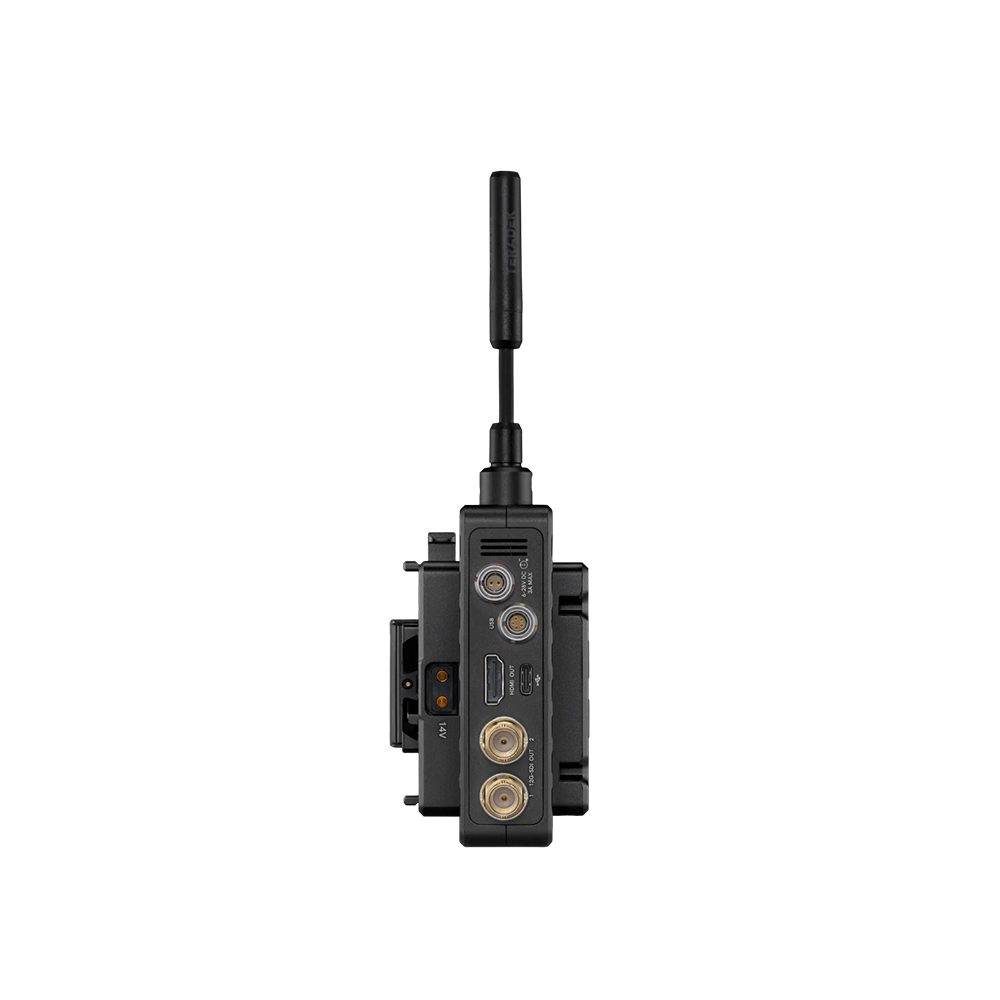

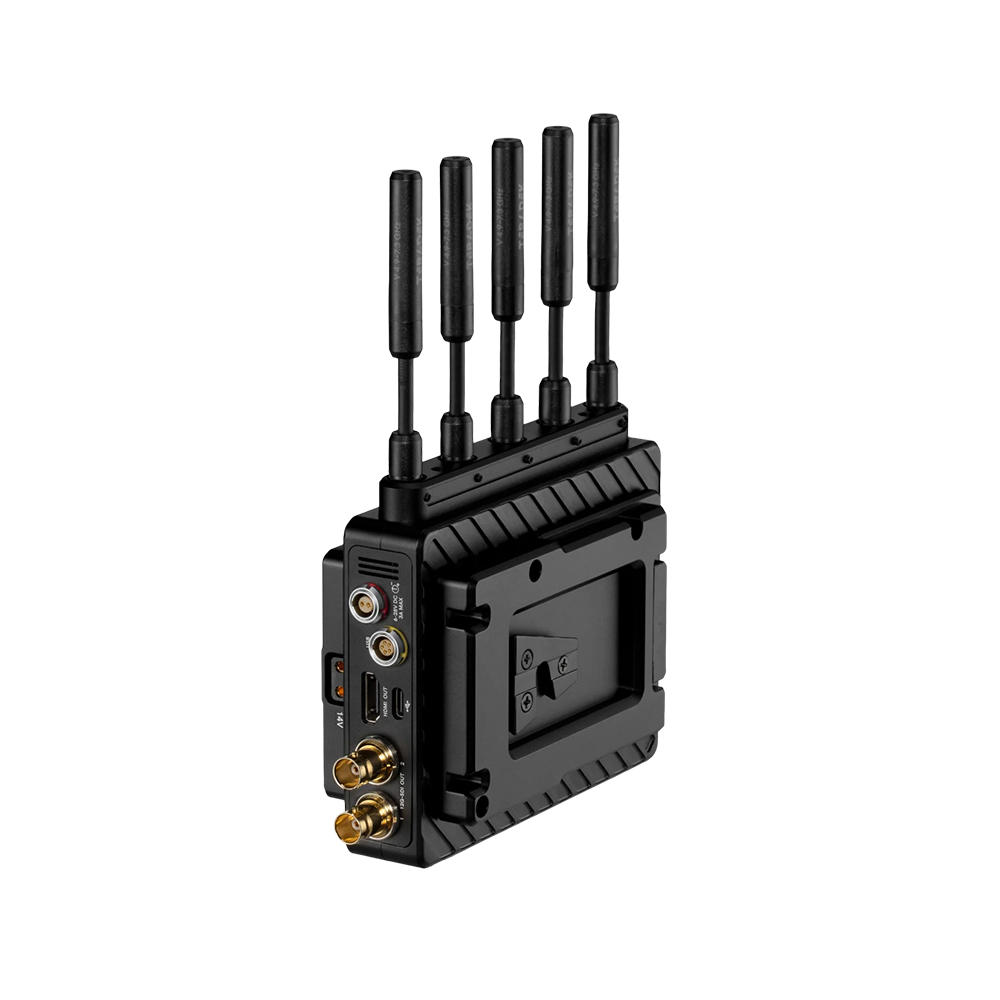

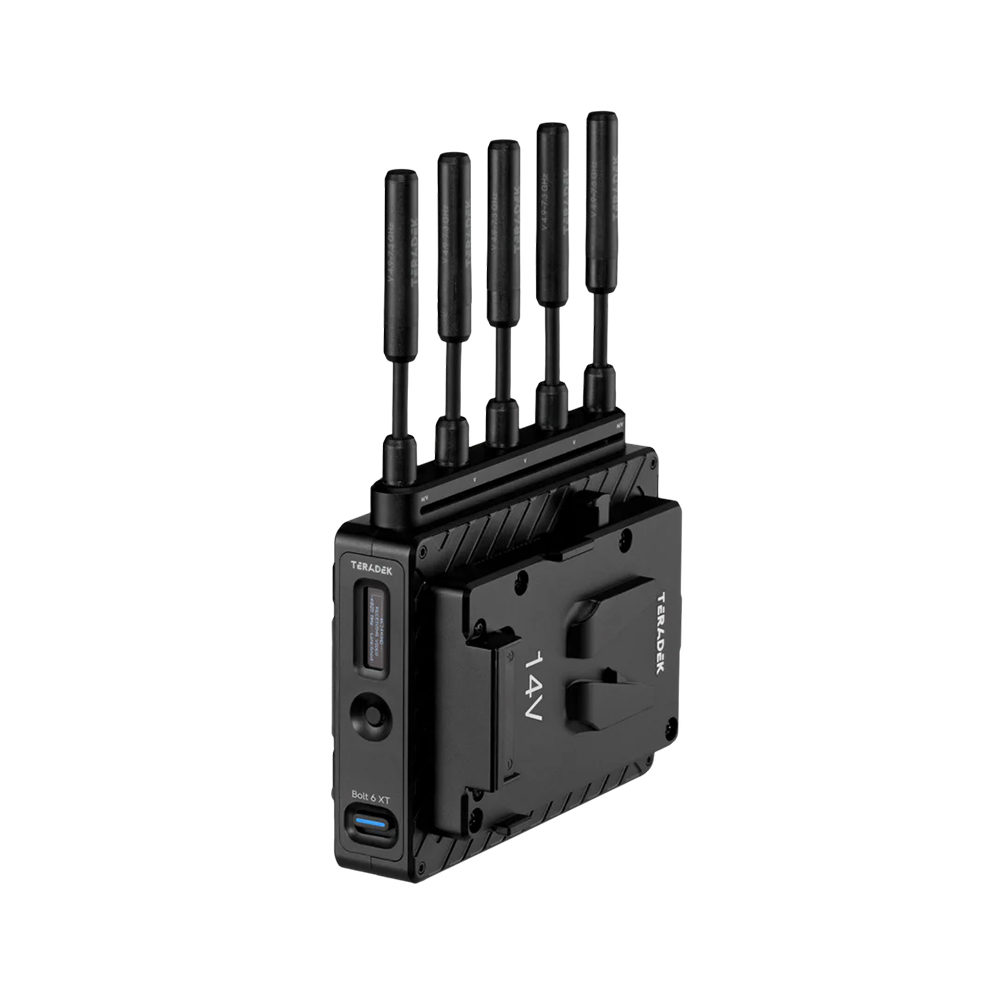

Teradek Bolt 6 XT 750 RX VM

Teradek Bolt 6 XT 750 RX VM (10-2302-V) is a wireless video receiver that supports up to 4K60 10-bit 422 HDR video over 12G-SDI. Bolt 6 uses Teradek’s patented Zero-Delay silicon chip to send wireless video over 5GHz and 6GHz radio frequencies.

Bolt 6 XT RX offer three line-of-sight options: 750 ft., 1500 ft., and the MAX model, which can be configured for up to 5,000 ft when using the optional Array Antenna and Broadcast Mode. In the MAX model, Broadcast Mode also allows users to increase the number of Receivers from 6 per Transmitter to unlimited per Transmitter. Additionally, you can upgrade your set to include Gold or V-Mount Battery plates.

The 750 model includes V (vertical) Antennas. 1500 and MAX models include both V Antennas and H (horizontal) antennas. H Antennas are designed to maximize signal robustness in the most challenging RF environments.

Looking for even more robust signal connection when in the most challenging RF environments? Try using RF-X Auto-Switcher, built specifically for Teradek Bolt RXs to secure the best possible signal every time.

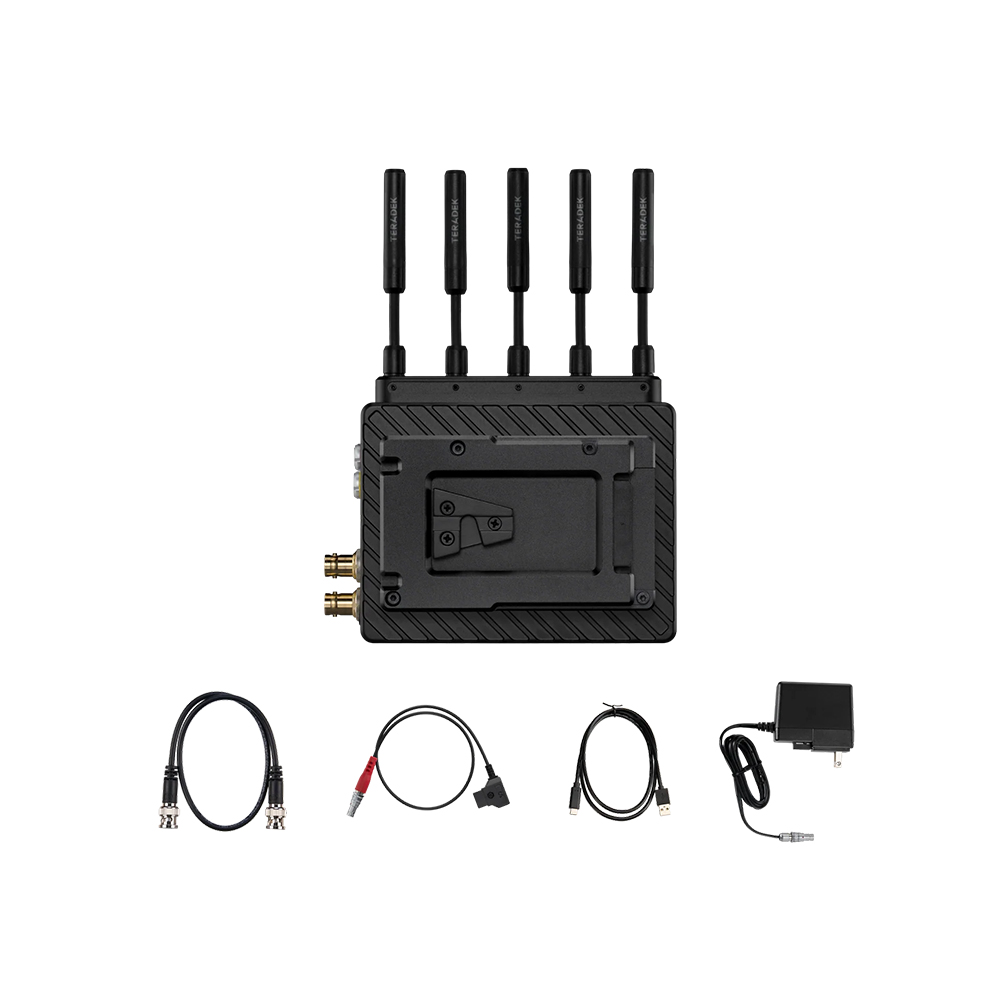

Comes With

• 1 x Bolt 6 XT 750 RX V-Mount
• 1 x Bolt 6 XT Battery Cover Plate Front
• 2 x Screw Flat Head Phillips
• 1 x (Bit 118) 2pin Conn. to PowerTap – 18in/46cm Cable
• 1 x SDI 12G BNC to BNC 18in/46cm Cable
• 1 x PSU 2pin Conn. to 30W AC Adapter (Int) – 6ft Cable
• 5 x Antenna 2dBi Rigid V 4.9-7.3Ghz RP-SMA
• 1 x USB 2.0 Type A Male to USB Type C Male – 1m Cable
• 1 x Bolt 6 XT Battery Cover Plate Rear “
