Teradek Bolt 6 XT 750 TX/RX Deluxe VM

Category: SKU: TK-TER-10-2300-V

£4,800.00 £6,030.00 £4,000.00 Ex. VAT

Order Now - Usually delivered in 1

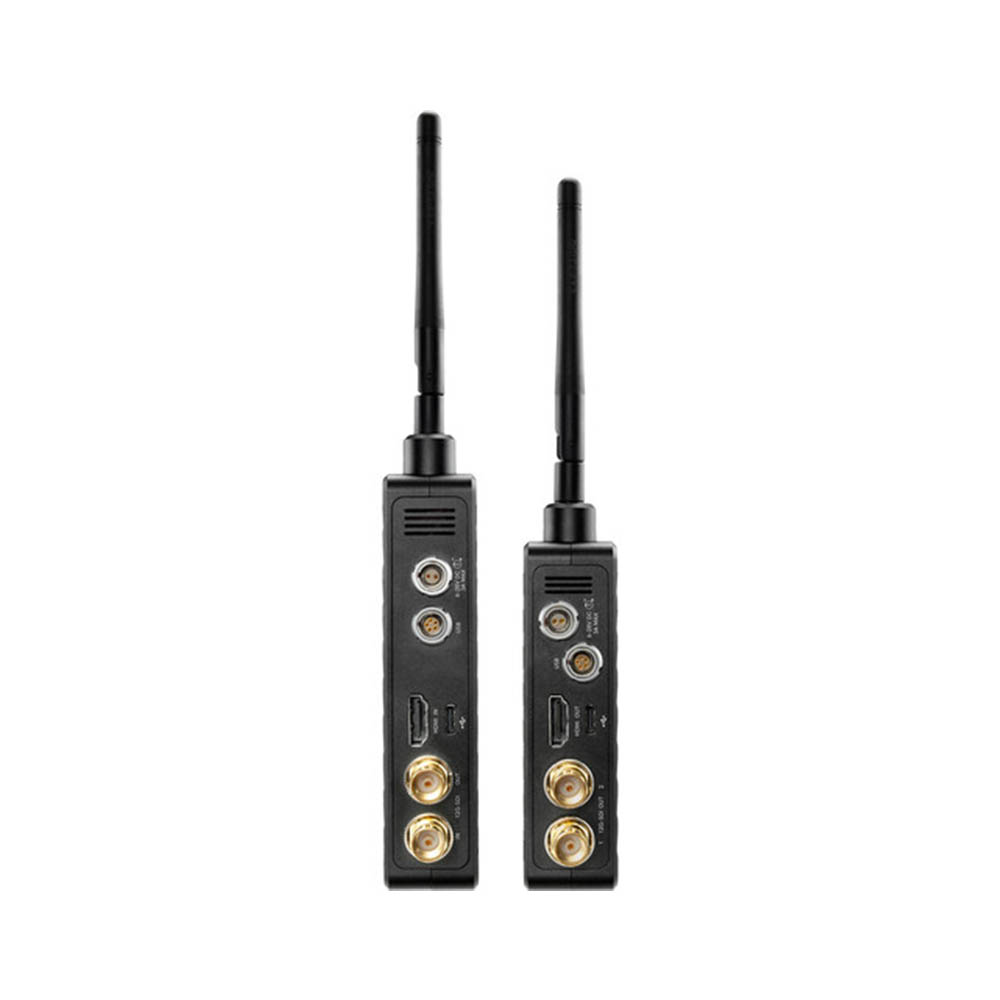

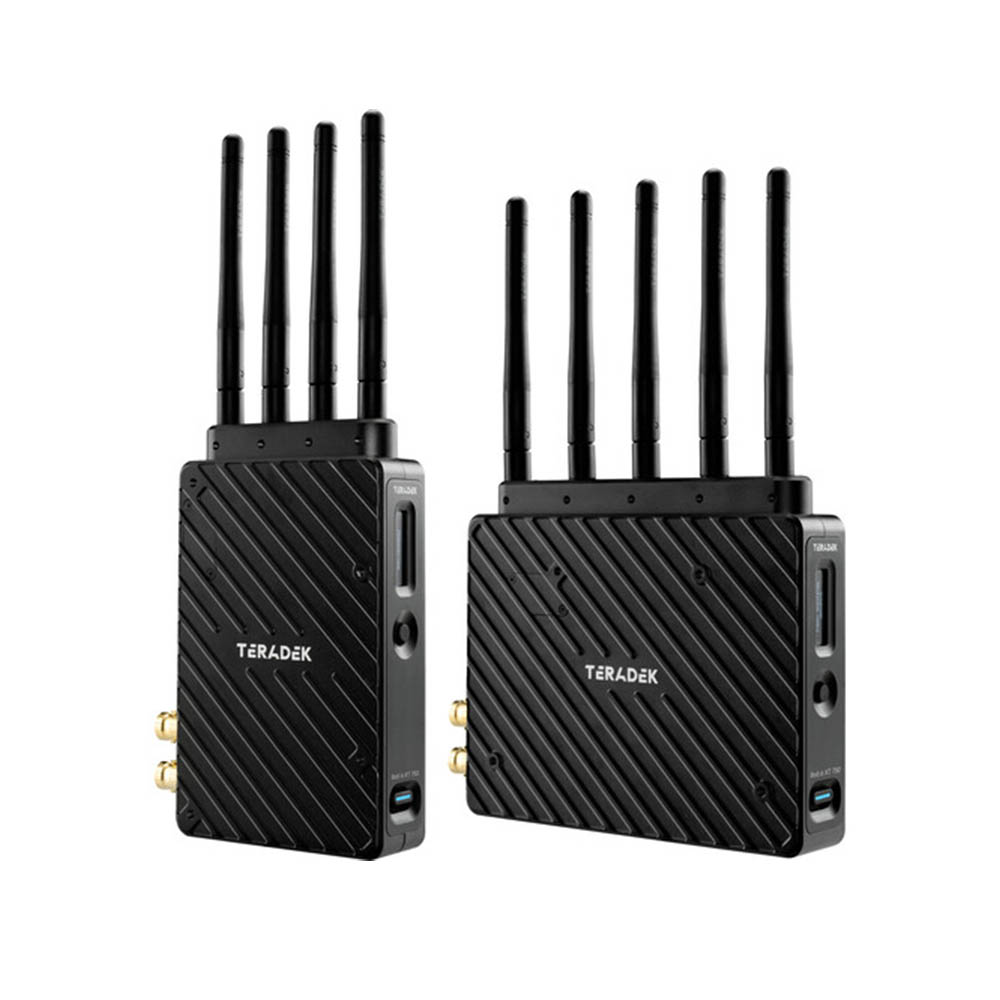

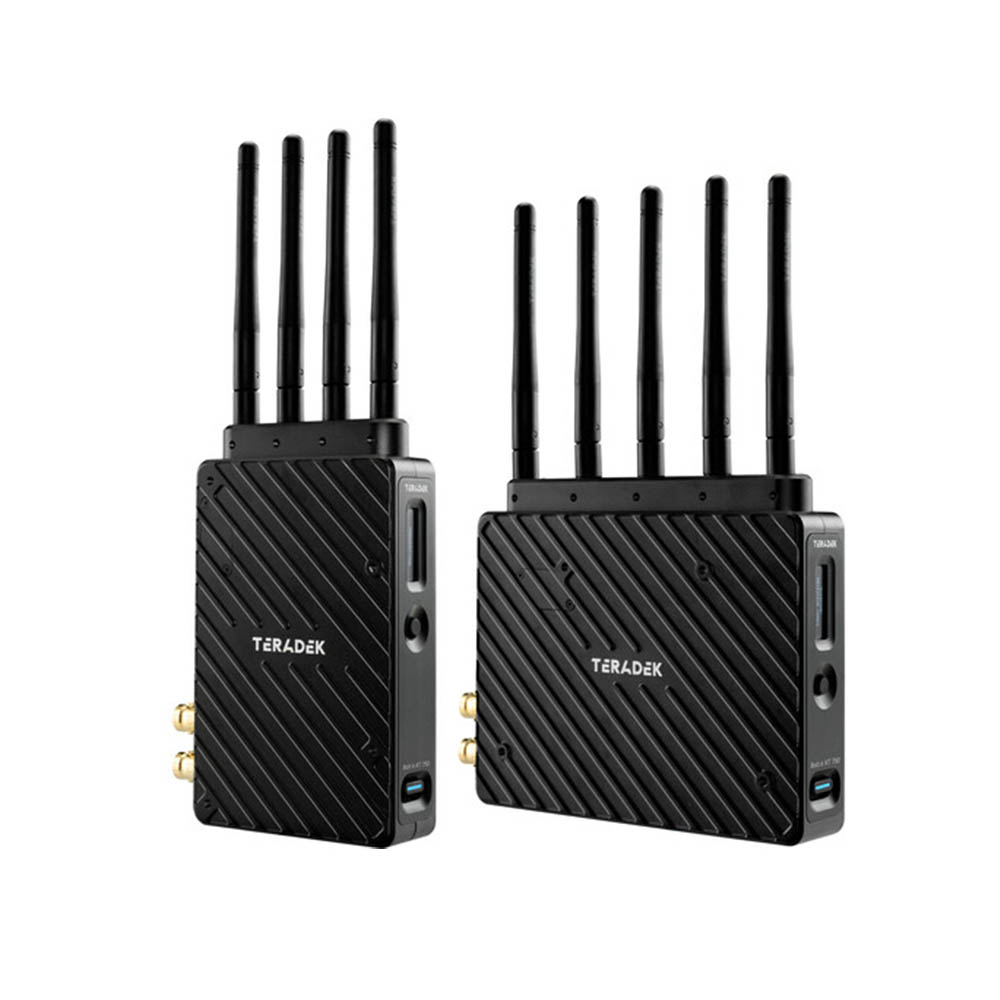

Teradek Bolt 6 XT 750 TX/RX Deluxe VM (10-2300-V) allows you to transmit and receive lossless HD video from up to 750′ line of sight. The kit includes a wireless transmitter and receiver that can wirelessly receive up to 4K60 video with 10-bit 4:2:2 HDR support. The transmitter inputs up to 4K video over HDMI or 12G-SDI, and the receiver outputs video via HDMI and 12G-SDI. A V-mount battery plate is included to power the receiver with a professional V-mount battery. Though it can transmit visually lossless video to any Bolt 4K series receiver with zero delay using the 5 GHz band, it requires a Bolt 6 device to transmit over the 6 GHz band.

The transmitter sends up to 4K60 video to any Bolt 6 or 4K series receiver, and it can also simultaneously transmit to up to six receivers. The system features improved metadata, range, and compatibility over its predecessors. The built-in AES-256 encryption with RSA 1024 key pairing protects your video from prying eyes, while noise rejection keeps your video clean no matter how many devices are using the wireless spectrum. The Bolt 6 LT units are all cross-compatible, so you can transmit to different Bolt 6 or 4K series receiver models. The Bolt XT system also supports the transmission of timecode and start/stop triggers from the camera.

The transmitter module also supports a desktop Bolt Manager software application or the Bolt app for iOS or Android that easily connects via Bluetooth, which both provide a spectrum analyzer, channel selection tools, and remote configuration. There are 1/4″-20, 3/8″-16, and M3 mounting threads to mount your transmitter on a variety of cameras, cages, or rigs. The Deluxe Kit features a carry case for the entire system, as well as additional cables and mounting options.

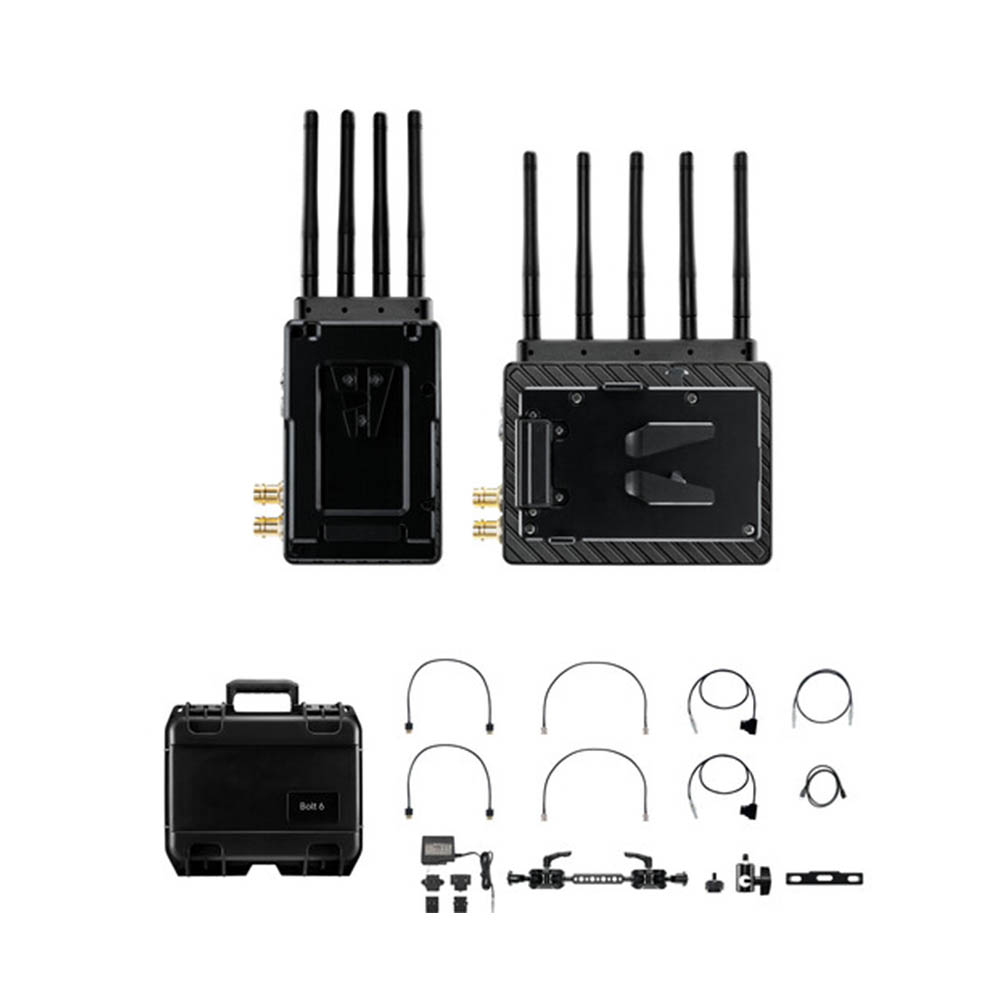

Comes With

  • 1x Bolt 6 XT 750 TX V-Mount
  • 1x Bolt 6 XT 750 RX V-Mount
  • 1x Lightstand Adapter 1/4-20in
  • 1x Hot Shoe Adaptor
  • 1x Hex L key 2.5mm size 3-5/8″ length
  • 2x 2pin Conn. to PowerTap – 18in/46cm Cable
  • 1x 2pin Conn. to 2pin Conn. (Alexa) 18in/46cm Cable
  • 2x SDI 12G BNC to BNC 18in/46cm Cable
  • 1x Teradek Case Large – Bolt XT TX/2RX
  • 1x PSU 2pin Conn. to 30W AC Adapter (Int) – 6ft Cable
  • 9x Antenna 2dBi Rigid V 4.9-7.3Ghz RP-SMA
  • 1x Wooden Camera – Universal Ultra Arm Monitor Mount (Combo 1/4-20 & 3/8-16, 5″)
  • 1x USB 2.0 Type A Male to USB Type C Male – 1m Cable
  • 1x Bolt 6 XT TX Color Band (Red Rubber)
  • 1x Bolt 6 XT TX Color Band (Yellow Rubber)
  • 1x Bolt 6 XT TX Color Band (Green Rubber)
  • 1x Bolt 6 XT TX Color Band (Blue Rubber)
  • 1x Bolt 6 XT RX Color Band (Red Rubber)
  • 1x Bolt 6 XT RX Color Band (Yellow Rubber)
  • 1x Bolt 6 XT RX Color Band (Green Rubber)
  • 1x Bolt 6 XT RX Color Band (Blue Rubber)

Delivery

Please note, for next-day shipping options the product must show in stock in the product status and be before the cut-off period. If the product does not show in stock most items will give an approximate lead time.

Collection
 Free Collection is available at our showroom in Hampton, please select this option at the payment stage at the checkout. Please allow one hour to pick and prepare your order for you so it is ready for you when you arrive. Collections must be made at our office during the hours of 9 am to 5:30 pm (Mon to Thurs) and 9 am to 5 pm (Friday).

Standard Delivery
Standard delivery costs £5.99 including VAT and will be sent out by Royal Mail, DPD or APC, this service can take 3-5 working days.

FREE UK Delivery On Orders Over £300 Ex. VAT
We offer FREE standard delivery on all orders over £300 Ex VAT to the UK mainland. Mon-Fri working days only. Saturday deliveries are not guaranteed.

Next Working Day Delivery
UK mainland orders placed before 2 pm will be dispatched the same day for next-day delivery. To qualify for next-day delivery orders must be placed before 2 pm Mon – Thur. Orders placed after 2 pm Thursday will be dispatched Friday for Monday delivery, excluding Bank Holidays. The charge for this service is £12.00 plus VAT. This service is only available for products that are in stock.

Saturday Delivery
Order before 2pm on Friday for Saturday deliveries. Saturday delivery cost £27.50 including VAT – this is only for the UK mainland.

*Excluding all Battery Generators*

Worldwide Shipping

At BPS we can arrange shipping worldwide on most of our products. Please contact sales@bps-tv.co.uk and provide details of the products you are interested in, billing and delivery address, and any company information. Our sales team will then arrange for a full quotation to be provided.

Specification

Video
Video Inputs12G-SDI SMPTE 2082-1 standard / 75 Ω (BNC x 1)
1 x HDMI 2.0 Type-A receptacle
Video Outputs12G-SDI SMPTE 2082-1 standard / 75 Ω (BNC x 1)
SDI Ancillary Data SupportSupports transmitting metadata, timecode, and start/stop flags from most camera manufacturers.
Colour SamplingSDI: YCbCr 4:2:2, 10-bit/ HDMI: RGB 4:4:4, 8-bit
Delay Tx To Rx<0.001sec
Input Cross ConversionYes, HDMI to SDI
Supported Resolutions
Supported Resolutions4Kp23.98/24/25/29.97/30/50/59.94/60
1080p23.98/24/25/29.97/30/50/59.94/60
1080psf23.98/24/25/29.97/30
1080i50/59.94/60
720p50/59.94/60
480p50 576p59.94/60
480i(NTSC)/576i(PAL)
Video Processing
Video CompressionVisually Lossless
Colour CorrectionNone
Audio Processing
Audio Compression48kHz 24-bit PCM
Input
Audio InputEmbedded SDI/HDMI Audio Output (2 Channel)
Physical
Dimensions132 x 91 x 27 mm
Weight344g (12.1 Oz)
ConstructionMilled Aluminium(Chassis) and regulation-compliant PCB
MountabilityMultiple mounting options with 1/4"x20 and M3 holes
Interfaces
Configuration InterfacesOSD with Menu, Joystick Navigation
SwitchesOn/Off Switch
USB Interface FunctionalityUpgrade via USB-C
5pin Locking Connector CCU
Bluetooth2.4 GHz
Network

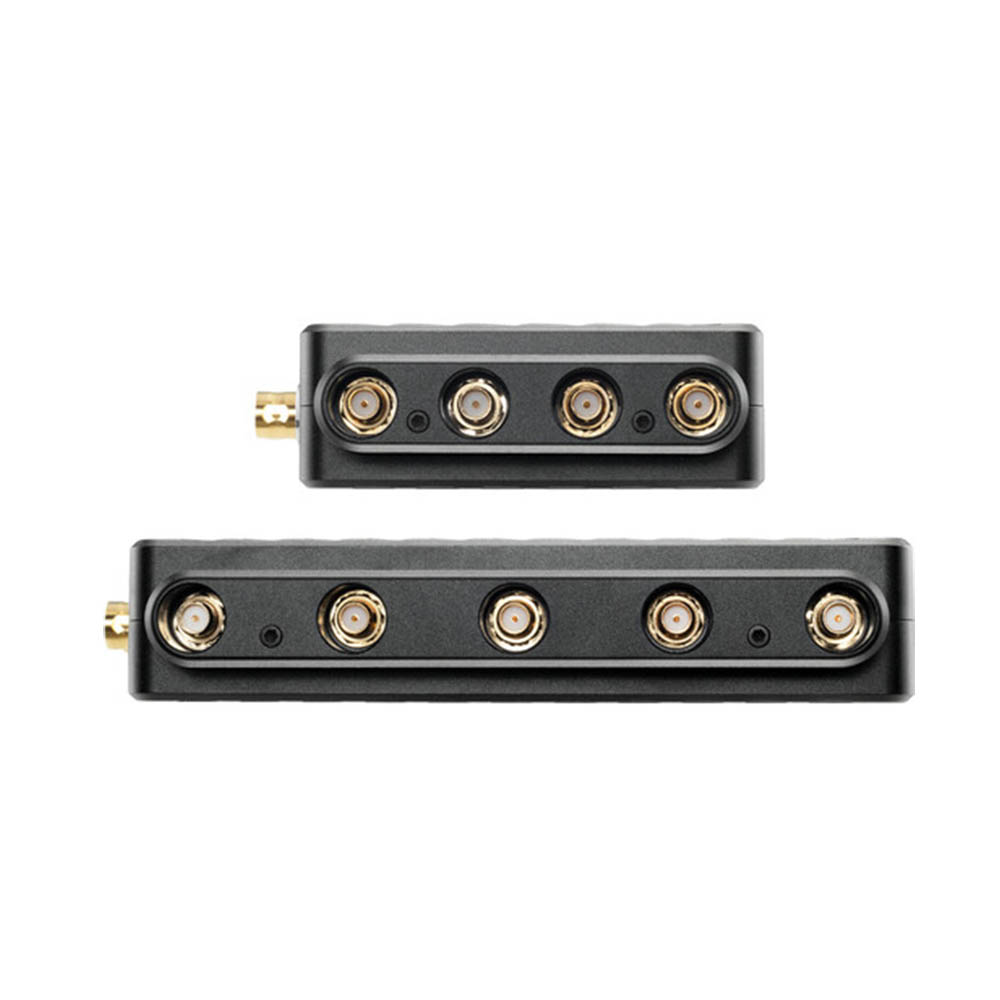

Antennas4 External 2 dBi antennas (included)
WirelessNon-DFS Frequencies:
5.190 ~ 5.230 GHz, 5.755 ~ 5.795 GHz, 5.945 ~ 6.425GHz
DFS Frequencies:
5.270 ~ 5.670 GHz
Rf Channel SelectionAuto, Manual
EncryptionAES-256, RSA-1024 key exchange
Rf Power23 dbm EIRP
RangeUp to 750 ft, line of sight
Unicast MulticastCan connect one Transmitter to up to 6 Receivers
Noise RejectionCan coexist with WiFi and 5GHz cordless phones
Can operate up to 6 sets in same location
Power
Power Input2-Pin Circular locking Connector 6-28 VDC
BatteryNone, optional Gold or V mount battery plate
Battery Runtime20 Watts
Environmental
Operating Temperature0-40℃
Bolt 6 RX
Video
Video Outputs12G-SDI SMPTE 2082-1 standard / 75 Ω (BNC x 1)
1 x HDMI 2.0 Type-A receptacle
SDI Ancillary Data SupportSupports transmitting metadata, timecode, and start/stop flags from most camera manufacturers.
Colour SamplingSDI: YCbCr 4:2:2, 10-bit/ HDMI: RGB 4:4:4, 8-bit
Delay Tx To Rx<0.001sec
Output Video ScalingYes, Framerate and Resolution Scaling
Supported Resolutions
Supported Resolutions4Kp23.98/24/25/29.97/30/50/59.94/60
1080p23.98/24/25/29.97/30/50/59.94/60
1080psf23.98/24/25/29.97/30
1080i50/59.94/60
720p50/59.94/60
480p50 576p59.94/60
480i(NTSC)/576i(PAL)
Video Processing
Video CompressionVisually Lossless
Colour Correction17x17x17 3D LUT (supports 10-bit colour)
Audio Processing
Audio Compression48kHz 24-bit PCM
Outputs
Audio OutputEmbedded SDI/HDMI Audio Output (2 Channel)
Physical
Dimensions112 x 139 x 27 mm
Weight430g (15.2 Oz)
ConstructionMilled Aluminium(Chassis) and regulation-compliant PCB
MountabilityMultiple mounting options with 1/4"x20 and 3/8"x16 holes
Interfaces
Configuration InterfacesOSD with Menu, Joystick Navigation
SwitchesOn/Off Switch
USB Interface FunctionalityUpgrade via USB-C
5pin Locking Connector CCU
Bluetooth2.4 GHz
Network
Antennas5 External 2 dBi antennas (included)
WirelessNon-DFS Frequencies:
5.190 ~ 5.230 GHz, 5.755 ~ 5.795 GHz, 5.945 ~ 6.425GHz
DFS Frequencies:
5.270 ~ 5.670 GHz
Rf Channel SelectionAuto, Manual
EncryptionAES-256, RSA-1024 key exchange
Rf Power21 dbm EIRP
RangeUp to 750 ft, line of sight
Unicast MulticastCan connect one Transmitter to up to 6 Receivers
Noise RejectionCan coexist with WiFi and 5GHz cordless phones
Can operate up to 6 sets in same location
Power
Power Input2-Pin Circular locking Connector 6-28 VDC
BatteryNone, optional Gold or V mount battery plate
Battery Runtime18 Watts
Environmental
Operating Temperature0-40℃
