TVLogic F-7HS : 7’’ Full HD Field Monitor

Description

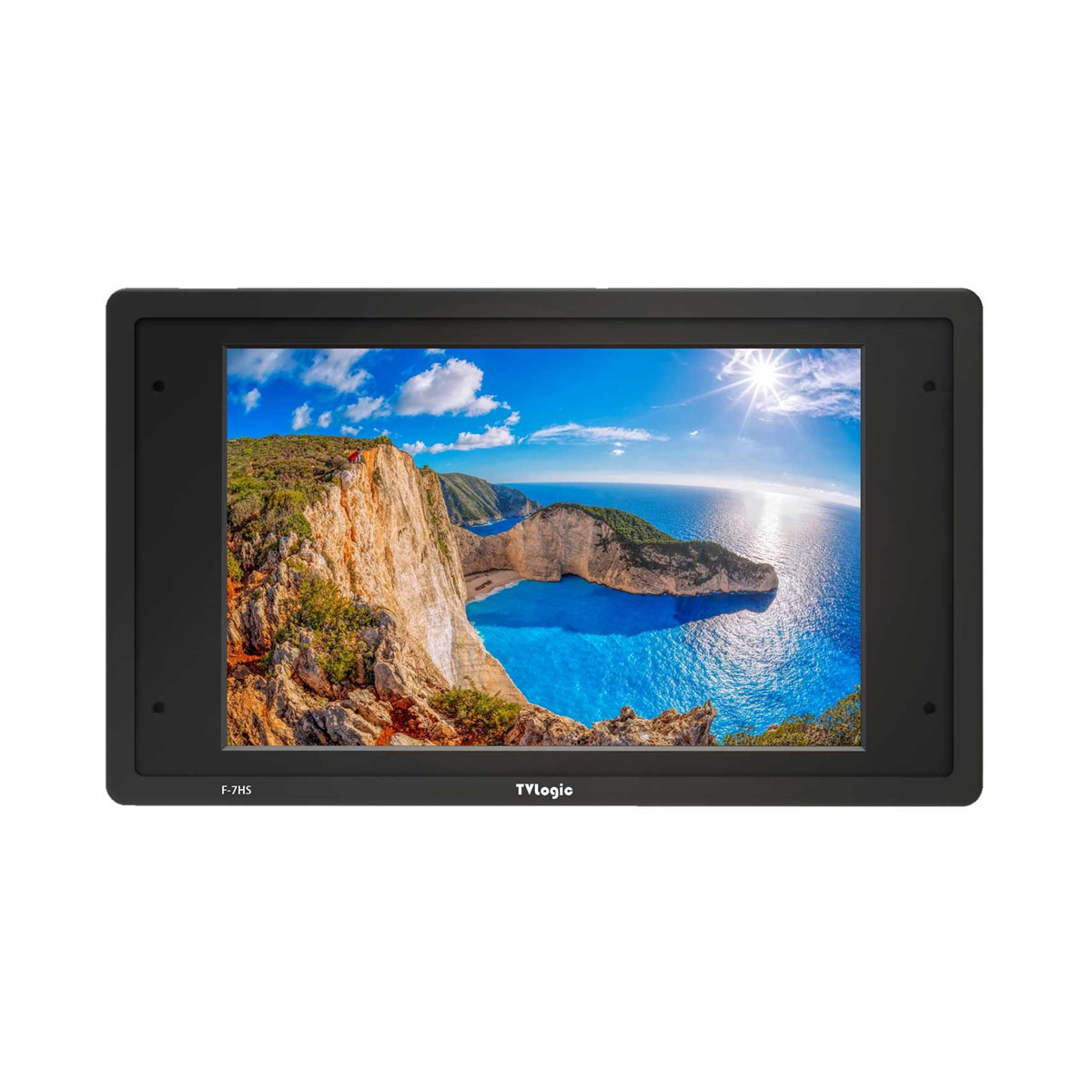

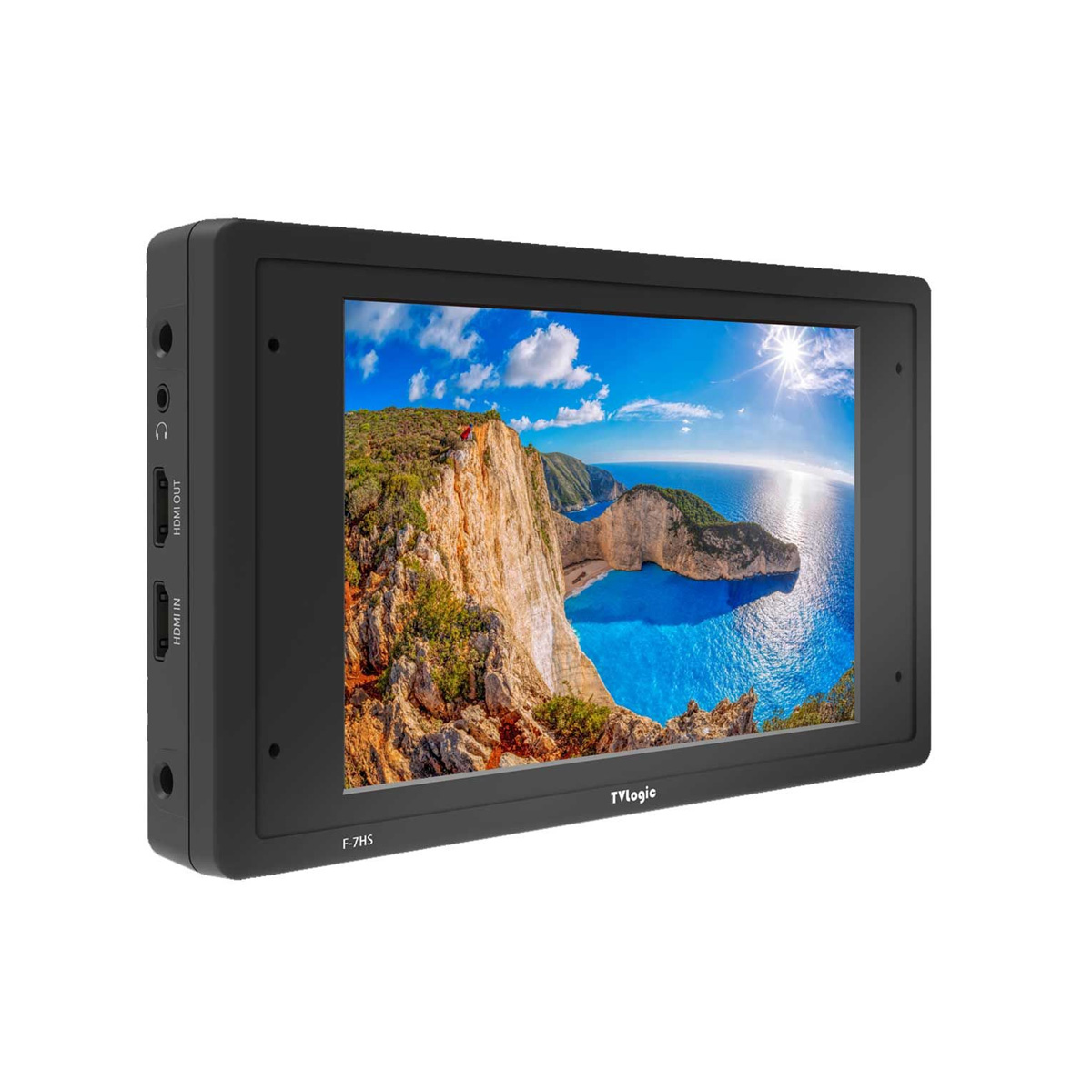

TVLogic F-7HS : 7’’ Full HD Field Monitor (TVL-F-7HS) 7″ Full HD High Brightness Field Monitor with Enhanced Sharpness.

The F-7HS is a 7″ 1920 x 1080 resolution field monitor that offers Max Brightness of 1800nits with enhanced sharpness and peaking boost function via the refined image processing engine. With the high-quality picture and professional features, F-7HS shows the best performance anywhere.

Advanced Color Adjustment OSD

The F-7HS provides various color adjustment menus which enable the user to monitor the video signal in the optimal settings.

ARRI Camera Status

This function takes the metadata from the ARRI ALEXA camera and displays the camera status information and the lens data system information on the OSD. Lens Data System information like lens name, focal length, iris, etc. and index latter such as project FPS, exposure time, white balance, etc. are displayed on the screen.

Custom 3D LUT Import

The F-7HS allows users to load their own created 3D LUT files generated by the color grading tools and apply them to the monitor. This function enables users to monitor the customised looks and easily compare the different on-set grading images.

Camera LUT

LUTs for every major camera manufacturer are integrated to the F-7HS, and they can be applied to the live input video.

H/V Flip

You can have the screen flipped horizontally or vertically manually. And, thanks to the built-in gyroscope sensor, if you turn the monitor upside down, the screen is flipped automatically.

Waveform

The F-7HS supports the various modes of Waveform such as Waveform Wide, Waveform Full, Waveform YCbCr.

Luma(Y’) Zone Check

Analyses the Luma(Y’) level of the input image and displays the selected zone on the screen. After each pixel’s Y’ level is analysed, it is displayed as a certain color or zebra pattern according to the index on the right side of the screen.

VectorScope

This function displays the color components ‘B-Y’ and ‘R-Y’ of the input signals onto X-Y axis.  Two different types of VectorScopes are displayed according to SD or HD input signals. 100% and 75% scales are indicated on the VectorScope.

Focus Assist

Focus Assist function assigns a color to the pixels in the shape or boundary area of the image to inform the user to make the best focus. With this function, the user can easily differentiate the focused area from out-focused area especially shooting with shallow depth of field.

Range Error

Analyses the input signal’s Luma(Y’) and chroma information (C’) and if the input signal exceeds the designated minimum value and maximum value, the pixel shall blink. This function is to help the user to easily find out any unwanted level of signals and for better exposure setting.

User Aspect

This function allows the user to adjust the Width and Height of the input image and then display it at the customised aspect ratio.

Marker

The F-7HS has the various marker modes which allow the user to adjust Marker type, Center Market, Safety Area, Fit Marker, Marker Mat, Marker Color, Marker Thickness, etc.

Zoom

This function magnifies the input signal from 0% to 90%.

Audio Level Meter

Displays the level of the embedded audio signal together with the video signal input through SDI and HDMI. Up to 16 channels are supported for SDI and 2 channels for HDMI. Various modes of Level Meter helps the user with the convenient audio monitoring.

• Level Meter channel number (16ch, 8ch, 4ch) and direction (horizontal, vertical) adjustable
• Level Meter grouping available
• Audio channel pair or group selectable
• Level Meter size (Small, Large) changeable

TimeCode Display

Displays the timecode information on the screen. Supporting mode is [VITC] and [LTC].

Freeze

This function allows for the instant stop of the video and the monitoring of the frozen image.

Blue Only / Mono

Red and Green channels are not used and only blue or monochrome channel is used to display the screen. This function is used to adjust the color tones (tones and saturdation) of the screen using the SMPTE Color Bar. For example, after displaying the blue channel, adjust the color (or Saturation) and Tint (or Hue) so that the original Magenta and Cyan are of the same brightness, and the original gray and blue are of the same brightness.

H/V Delay

This function allows the user to check the blanking area and synchronise signals by displaying the horizontal and vertical intervals in the center of the screen.

Comes With

• 1x Monitor
• 1x D-Tap Cable
• 1x Camera Mount
