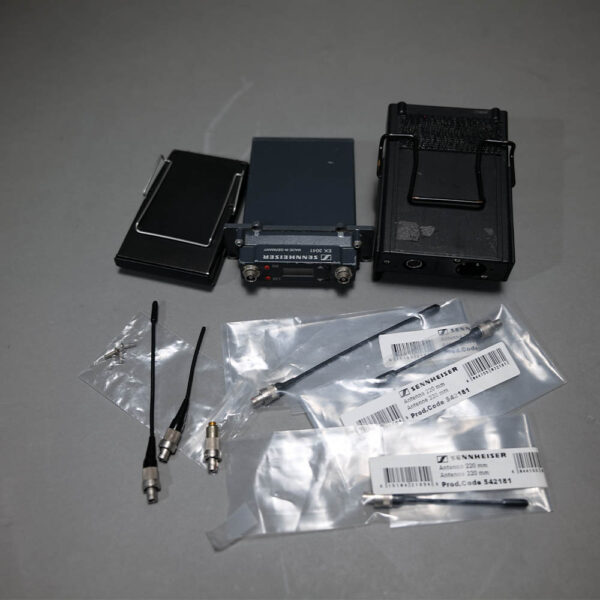

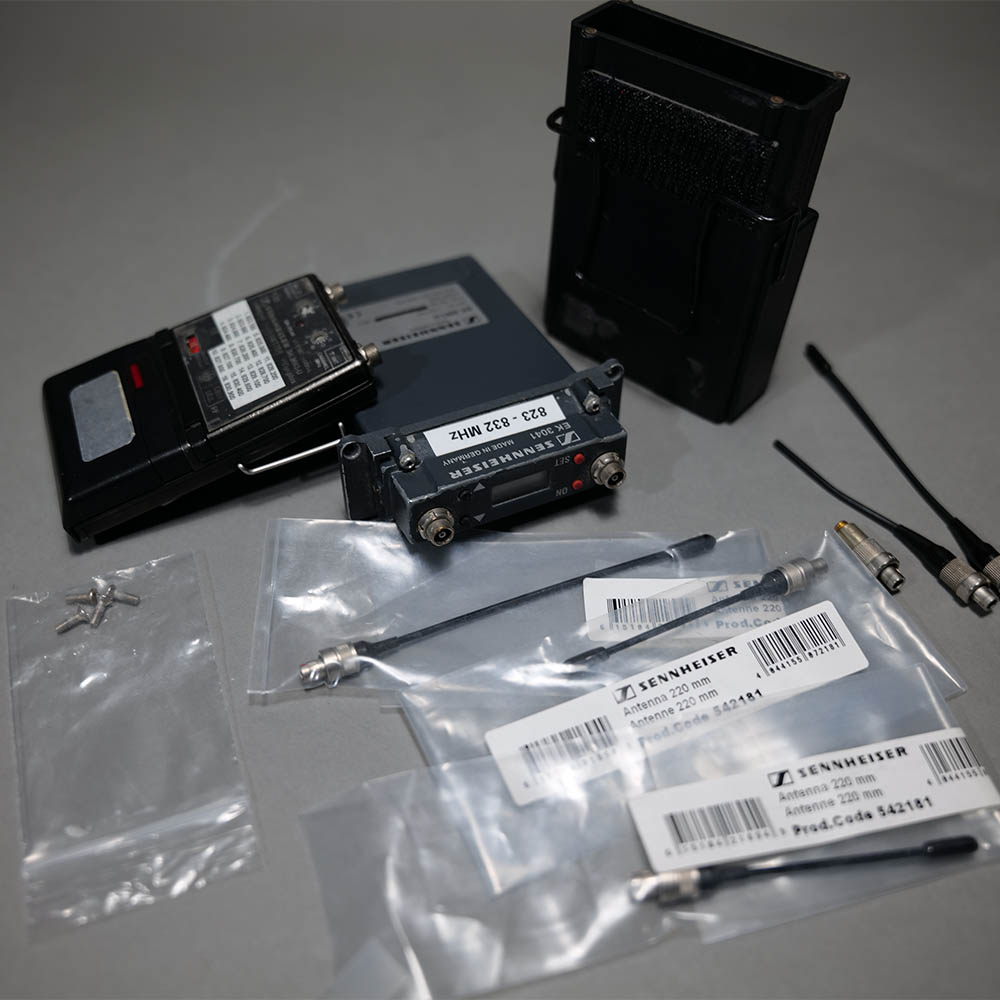

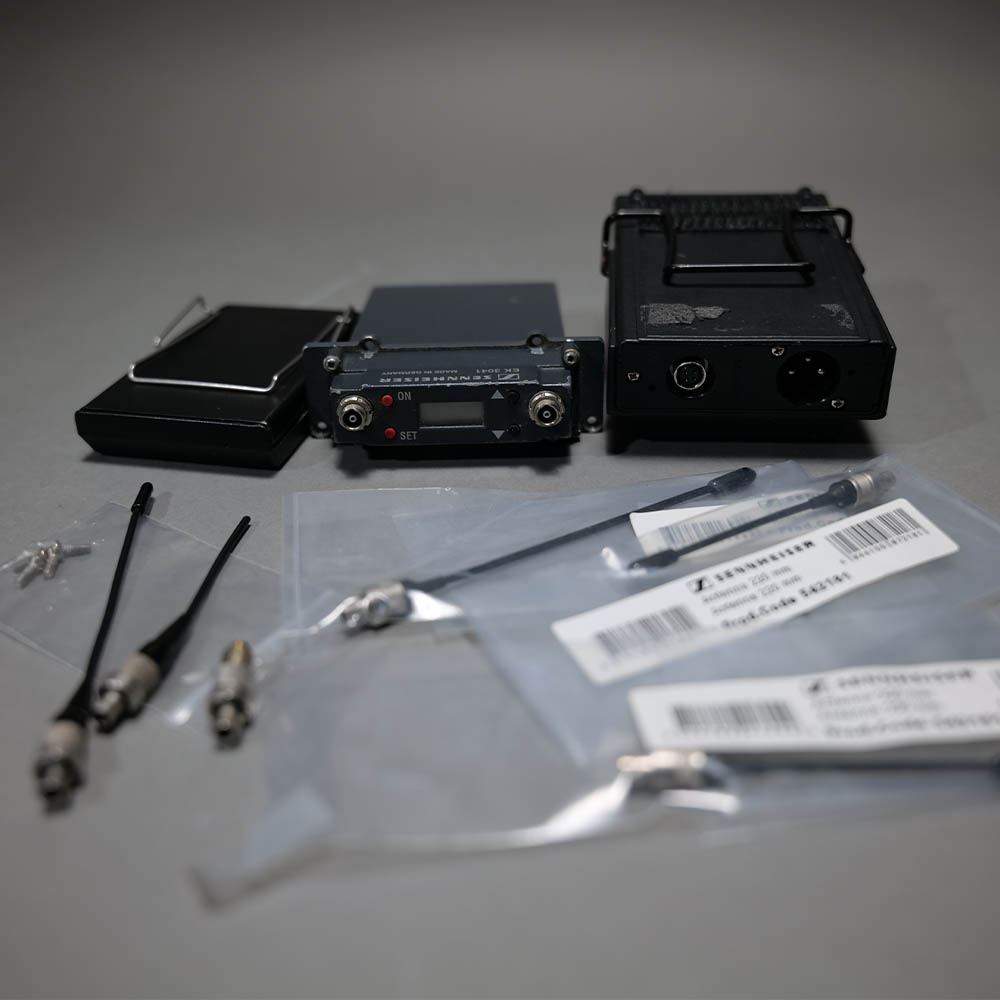

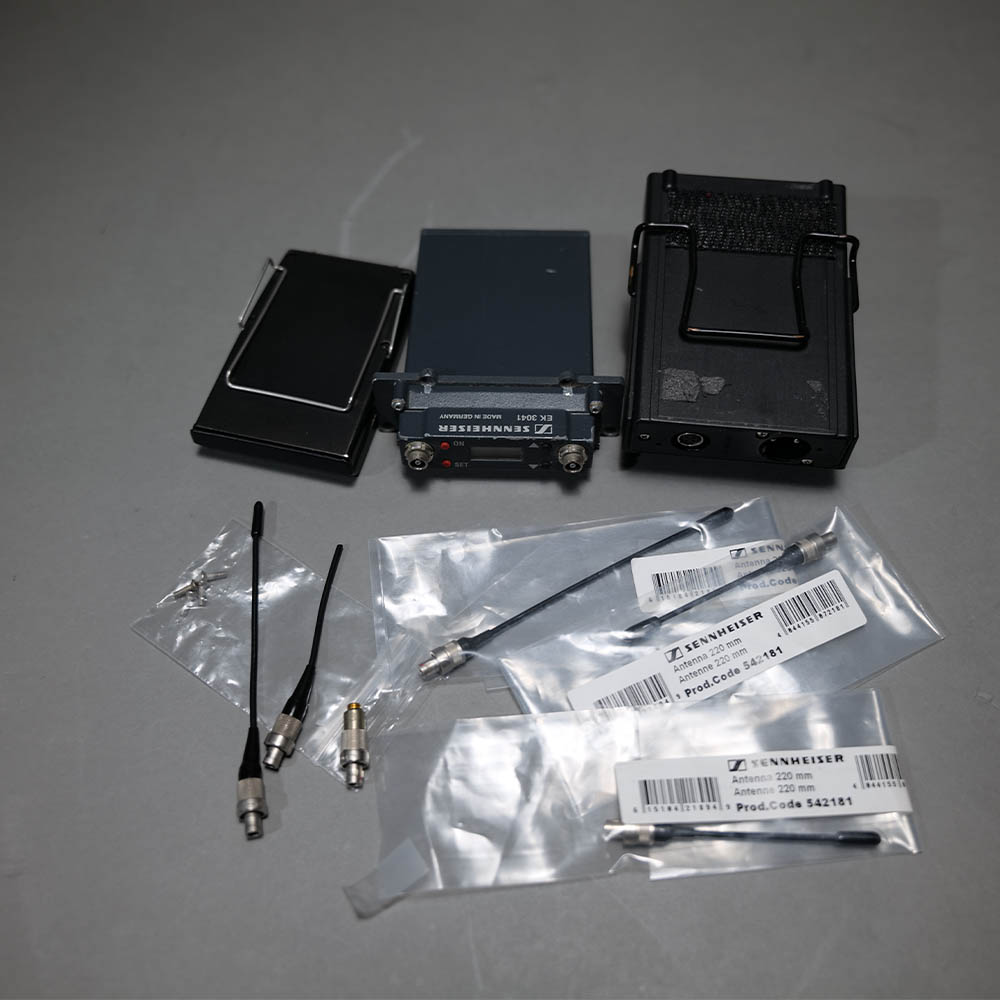

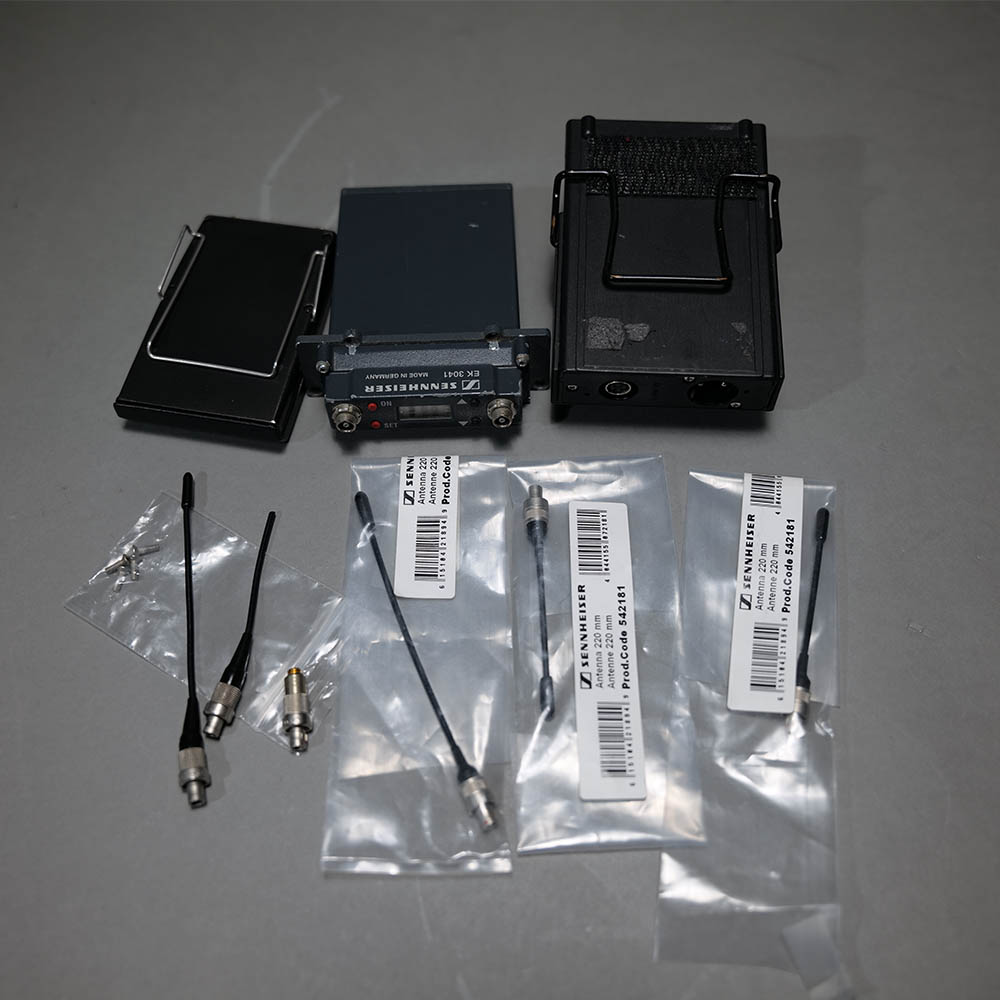

Used Sennheiser SK3063-U Transmitters + EK3041

Condition note: Used Kit, Good condition. May have a few minor scratches or scuffs

Used Sennheiser SK3063-U Transmitters + EK3041 is a miniature true diversity radio microphone receiver designed for use with digital ENG camcorders. It can be inserted into the slot-in facility of the Philips LDK 120, Ikegami, Panasonic or Sony SX camcorders without any additional connecting cables being required. 32 switchable UHF receiving frequencies ensure flexible operation.

The EK 3041-U is a miniature true diversity “slot-in” receiver designed for broadcasting applications, especially for use with digital ENG camcorders. Up to 32 switchable receiving frequencies within a switching bandwidth of max. 24 MHz ensure highest flexibility. The frequency window can be chosen freely within the UHF range (450 to 950 MHz), so that the EK 3041-U can be used legally worldwide. It is suitable for multi-channel applications and fully compatible with any UHF transmitter from the 3000 or 5000 series.

To enable the EK 3041-U to be used with a wide variety of cameras, Sennheiser offers various adaptor and powering accessories. They include receiver adaptors for direct insertion into the camcorder’s slot-in facility, a special housing for external attachment to the camera and a battery adaptor for stand-alone operation: If the EK 3041-U is to be used with the Sony, Ikegami, Panasonic or Philips camcorders, simply provide the receiver with a GA 3041-15, GA 3041-25 or GA 3041-44 adaptor, respectively, then insert it into the camera’s integrated receiver slot.

No additional audio or power cables are required. The receiver is powered by the rechargeable battery of the camcorder. The GA 3041-C housing is used for externally attaching the EK 3041-U to cameras without a slot-in facility. The slot-in housing is fixed to the camcorder by means of self-adhesive Velcro tape. The housing bottom is provided with an XLR-3 audio line output and a 4-pole Hirose socket for external DC power supply. If it is not possible to power the receiver by the camera battery, the GA 3041-B battery adaptor can be used. Simply slide it over the GA 3041-C housing, connect it and insert a B 50-1 / B 250-1 battery box or a BA 50-1 / BA 250-1 accupack.

Features

•  True diversity “slot-in” receiver in a miniature format
• Suitable for a wide variety of applications
• Weather-proof and rugged all-metal housing
• 32 switchable UHF receiving frequencies, PLL-controlled
• Power supply via camcorder or battery adaptor
• Indication of transmitter battery status
