12G-SDI Bidirectional Fibre Transceiver (Singlemode, LC connector, 10km)

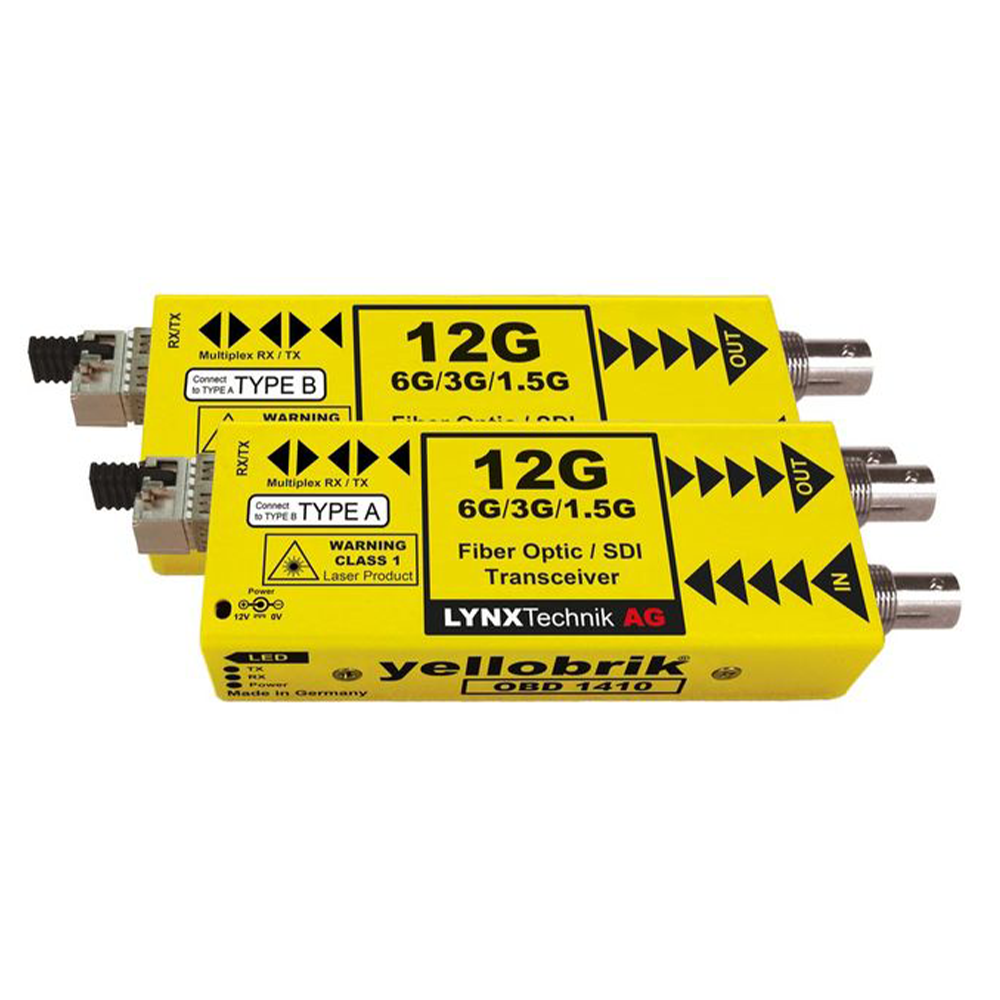

The OBD 1410 is a bidirectional Fiber Optic to SDI transmitter and receiver which uses a single fiber link supplied in a compact self contained package. It is a convenient and cost-effective solution to combat the restrictions involved with the distribution of uncompressed broadcast quality video signals over long distances.The OBD 1410 modules are supplied in pairs, one Type A and one Type B which work together in a WDM closed loop application. Each module has an electrical SDI in and SDI out connection and uses a single fiber link between the two. Each channel is fully independent and can have different standards and formats of SDI video. The modules auto-detect and re-clock any 1.5Gbit, 3Gbit, 6Gbit or 12Gbit SDI source prior to conversion. The modules are fully compatible with 3Gbit Level A and Level B formats
