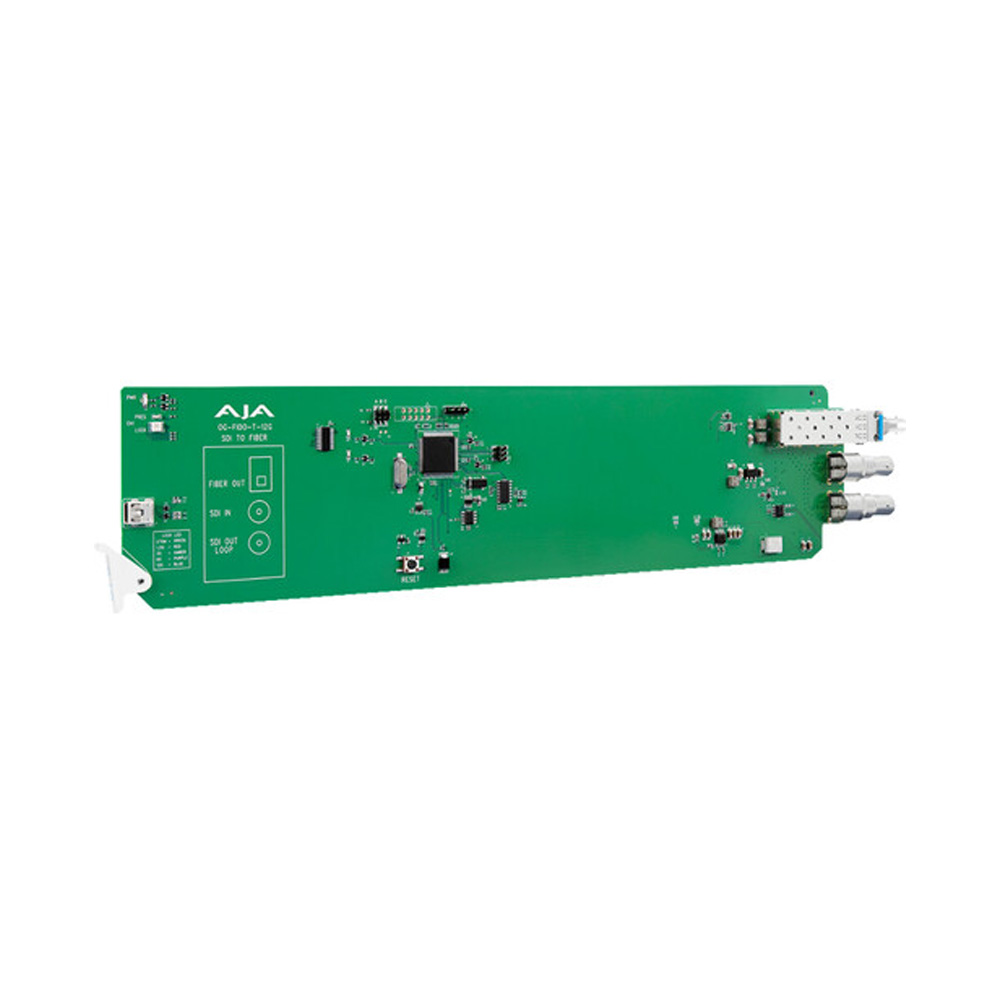

AJA OG-FiDO-T-12G-ST openGear 1-Channel 12G-SDI to Single Mode ST Fiber Transmitter
Order Now - Usually delivered in 2-4 weeks
Overview
The OG-FiDO-T-12G-ST is a state of the art, openGear compatible 12G-SDI to Fiber converter, enabling 12G-SDI signals to be extended up to 10 km (32,808 ft) over standard single mode fiber optic cable. The 12G-SDI input is reclocked with best in class input jitter tolerance. A reclocked looping 12G-SDI output is also provided. The OG-FiDO-T-12G-ST offers a locking ST barrel connector for secure connectivity, advantageous in many live event, production, and mobile environments.
AJA openGear OG-FiDO products are designed for use in high density openGear 2RU frames, including AJA’s OG-X-FR frame, with industry standard DashBoard software support on Windows®, macOS®, and Linux®, offering remote control and monitoring over a PC or local network.
Features
- Video Formats: 270 Mbps – 12 Gbps, format agnostic
- Inputs: 1x 12G-SDI BNC with SDI Loop out
- Outputs: 1x 12G-SDI BNC; 1x Single Mode ST Connector
- Monitor via openGear DashBoard software
- Support for HDR – High Dynamic Range video
- Input Present and Input SMPTE Lock LEDs
- Automatic detection and reclocking
- 270 Mbps, 1.483 Gbps, 1.485 Gbps, 2.967 Gbps, 2.970 Gbps, 5.934 Gbps, 5.940 Gbps, 11.868 Gbps, 11.880 Gbps – Auto Select
- Nominal Wavelength; Tx: 1310 nm (typ)
- Power: 3 watts Max
- Hot-swappable
- Appropriate Fiber SFP included
- Rear I/O card included
- Compatible with OG-X-FR, OG-3-FR, and DFR-8321 openGear frames
- Five year warranty
Connectivity
The 12G-SDI input is reclocked with best in class input jitter tolerance. All 12G-SDI input and output support, which includes 6G/3G/HD/SD-SDI. Supports single mode fiber cable.
openGear Compatibility
The openGear standard ensures that AJA cards will be compatible with other openGear products from certified openGear partners. With a growing list of products, openGear is the future of rackframe products.
Flexible I/O
The modular rear panel allows custom I/O connections per card (included with individual cards).
Failsafe
The optional redundant power supply provides a secondary power source in the event of a primary power failure.
Ethernet Access
A standard Ethernet connection allows the frame to be accessed via the Dashboard application for overall frame communication. Optional per-card Ethernet access can be installed in the frame for advanced communication with compatible openGear cards.
DashBoard Software
DashBoard software offers quick and convenient configuration and control of openGear cards on macOS, Windows, and Linux.
| BRAND | AJA |
|---|---|
| MPN | AJA-OG-FiDO-T-12G-ST |
