Aputure INFINIMAT 1×2 Kit – UK

Categories: , SKU: AP10039AR1 Tag:

£1,300.00 £1,560.00 inc VAT

0 reviews

Pre-Order Now

Need advice before you buy?
Speak to one of our specialists about compatibility, accessories, stock availability or choosing the right setup.

Chat with us now

Aputure INFINIMAT 1×2 Kit – UK (AP10039AR1) is a family of full-color RGBWW pixelated LED light mats with inflatable softboxes. With multiple mat size options, head-to-toe IP65 weather resistance, and the ability to power and control multiple light mats using a single control box, the INFINIMAT family is an adaptable system of lights that are easily deployable in challenging filming environments where fixture weight and set-up speed are of the utmost importance.

Each INFINIMAT is designed to seamlessly secure to an inflatable softbox of a corresponding size using a hook-and-loop system around the border of the mats. The inflated softbox provides the structural support needed to hold the mat, lighting control grid, and skirt together when the entire unit is rigged overhead or on stands.

Features

  • Modular Full-Color RGBWW LED Mats with Inflatable Softboxes
  • 1×2, 1×4, 2×4, 4×4, 8×8, and 20×20 (ft) Options Available
  • 400W and 1600W Power Supplies Available (depending on size of INFINIMAT)
  • Multiple Mounting/Rigging Methods (Carbon Fiber Bracket with K-Mount
  • Ball Head for 1×2, 1×4, 2×4, & 4×4; Butterfly Frame for 4×4 & 8×8; Truss and Speed-Rail Frame for 8×8 & 20×20)
  • Lamp Heads Designed With 1×2 or 2×2 Modules to Allow for Easy Module Replacements
  • Power and Control Multiple INFINIMATS Using a Single Control Box (400W and 1600W Control Boxes Available)

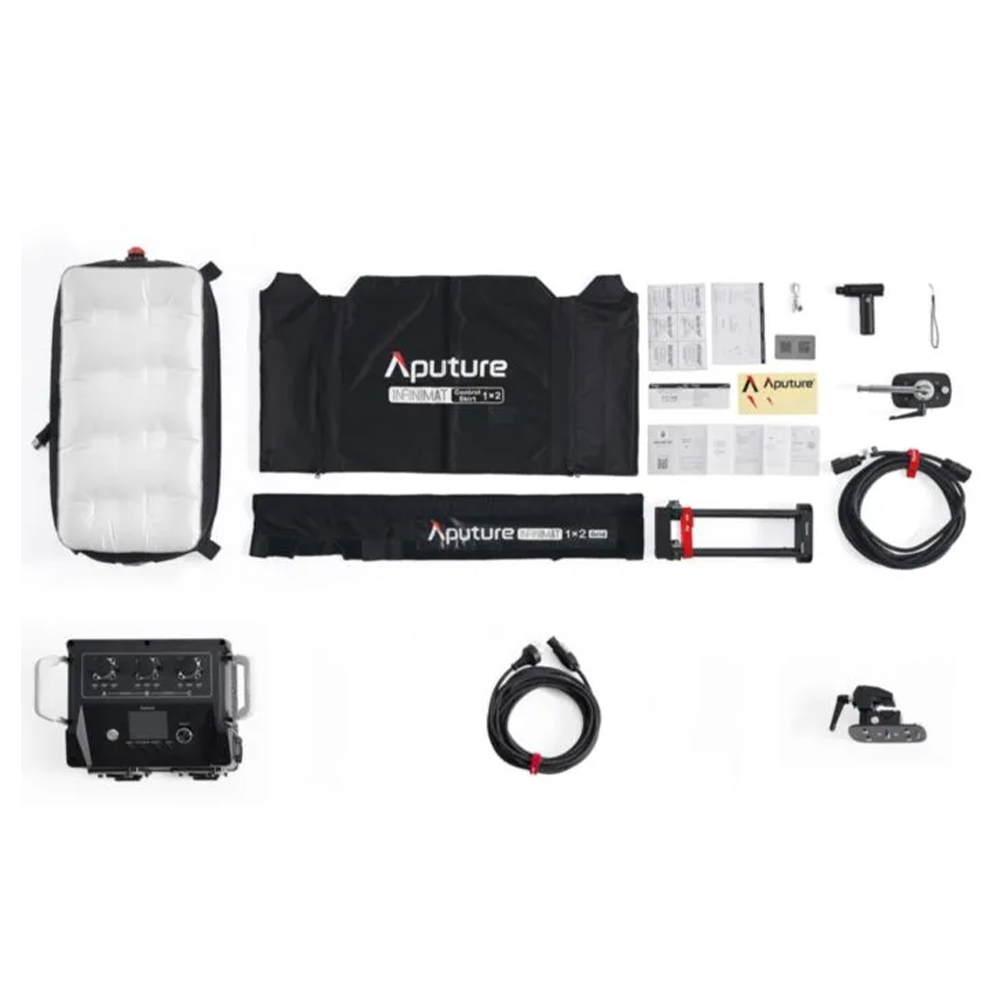

Comes With

  • 1x Rolling Soft Case
  • 1x Aputure INFINIMAT 1×2
  • 1x Aputure INFINIMAT 7.5m Head Cable (400W)
  • 1x Aputure INFINIMAT Mounting Bracket 1×2
  • 1x Aputure K-Mount Arm w/ Straight 5/8” Pin
  • 1x Aputure INFINIMAT Inflatable Softbox 1×2
  • 1x Aputure INFINIMAT Light Control Skirt 1×2
  • 1x Aputure INFINIMAT Light Control Grid 1×2
  • 1x Aputure INFINIMAT Patch Kit
  • 1x Aputure INFINIMAT Air Pump Mini
  • 1x Aputure INFINIMAT Inflatable Tube 1×2
  • 1x Aputure INFINIMAT Control Box 400W (V-Mount)
  • 1x Aputure True1 AC Power Cable – 6m
  • 1x Soft Carrying Case
  • 1x Aputure K-Mount Style Mounting Clamp
BRAND

APUTURE

Specification

CCT2,000K – 10,000K
CRI≥96
TLCI≥97
CQS≥95
SSI (Tungsten)TBD
SSI (D56)73
TM-30 RF (Average)92
TM-30 RG (Average)100
Max Power Consumption111W
Max Power Output81W
Weather Resistance RatingIP65
Pixel Count1 pixels
Pixel Module1x2
Softbox Inflation Time (Air Pump Mini)18 sec
Full-Inflation Duration7 days
Operating VoltageDC1&DC2 - 12V-16.8V 22V-33.6V
AC - 100V ~ 264V
Operating Temperature-20ºC ~ 50ºC
Storage Temperature-20ºC ~ 85ºC
Control MethodsOn-board, Sidus Link App, DMX/RDM, CRMX, etherCON
Firmware UpgradeableSidus Link, USB Drive
Wireless Range (Bluetooth & CRMX)≤100m / ≤328.1ft
Control Box TypeINFINIMAT Control Box 400W
Control Box Fan Noise LevelsHigh Speed Mode - 29.3 dBA
Default Mode - TBD
Silent Mode - 22.3 dBA (ambient noise)
WeightINFINIMAT - 1x2 1.00kg / 2.2lbs
INFINIMAT Air Pump Mini - 240g / 0.53lbs
Control Box 400W -7.2kg / 15.87lbs
Inflatable Softbox - 1x2 540g / 1.19lbs
Light Control Skirt 1x2 - 485g / 1.07lbs
Rolling Soft Case - TBD
DimensionsINFINIMAT 1x2 - 66.00 x 34.00cm / 2.17 x 1.12ft
INFINIMAT Air Pump Mini - 3.60 x 11.40 x 12.60cm / 1.42 x 4.49 x 4.96in
Control Box 400W - 33.50 x 22.00 x 24.00cm / 13.19 x 8.66 x 9.45in
Inflatable Softbox 1x2 - 66.00 x 34.00 x 17.00cm / 2.17 x 1.12 x 0.56ft
Light Control Skirt 1x2 - 190.00 x 49.00cm / 74.80 x 19.29in
Light Control Grid 1x2 - 60.00 x 38.00cm / 23.62 x 14.96in
Rolling Soft Case - 43.50 x 39.50 x 31.40cm / 17.13 x 15.55 x 12.36in
