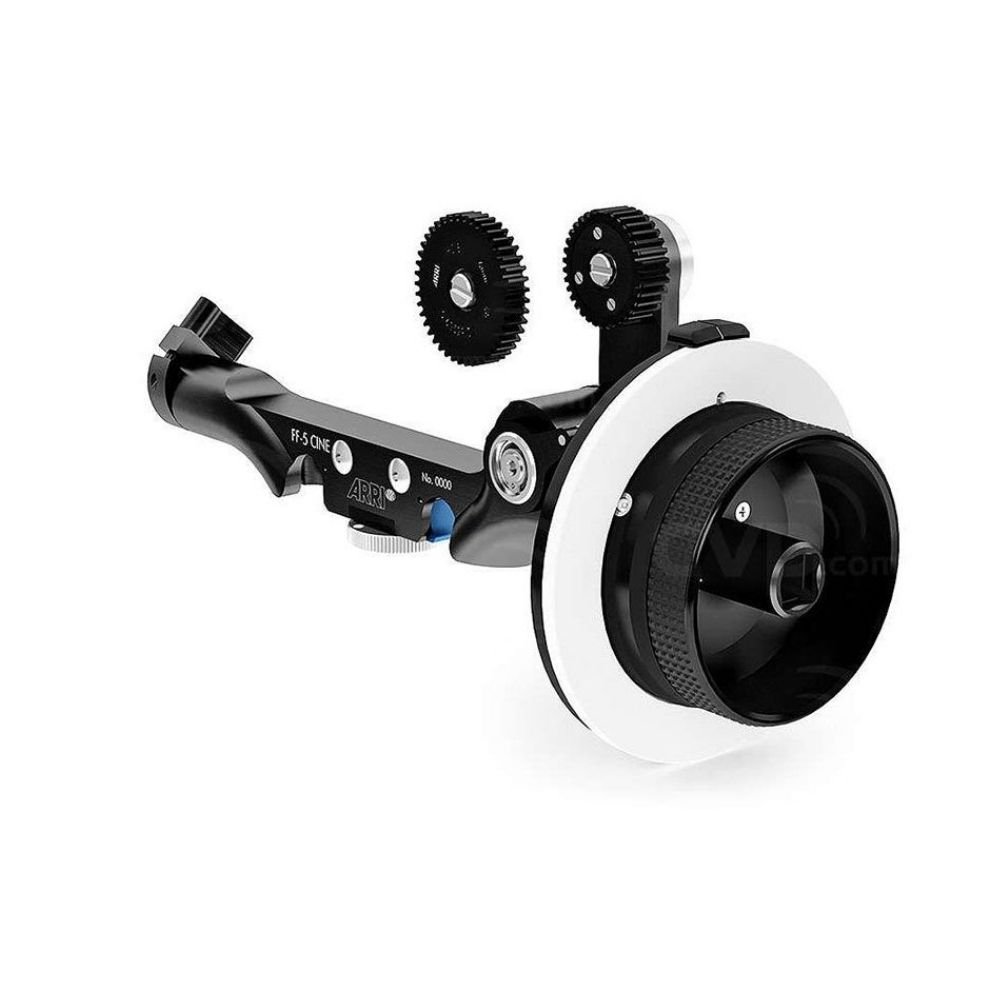

ARRI Follow Focus FF-5 Cine Set Pro

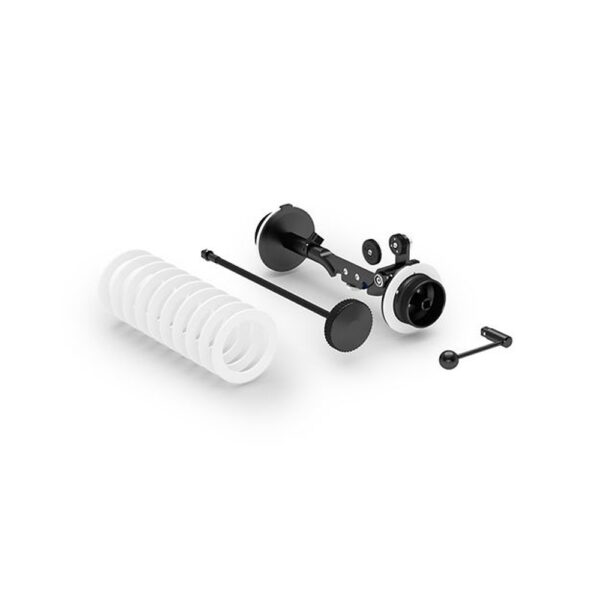

ARRI FF-5 Cine Kit Pro includes FF-5 Cine Base, Focus Knob Std Left, Module Gears, Focus Knob Std Right, Focus Lever, Flexible Shaft & Marking Disks (KK.0005758). With the ARRI Follow Focus FF5-CINE, a completely modular, film style follow focus is now available for digital productions. Designed specifically for cine-style lenses , the FF-5 CINE swing arm ensures proper gear position on the focus ring and a lower gear ratio for a more exacting focus pull on smaller diameter lenses or those with compressed focus scales.The FF5-CINE integral snap-on mechanism locks to 15mm lightweight support rods and can be adapted to work with ARRI standard 15mm or 19mm bridgeplate support rods. ARRI Follow Focus drive gears can be attached to either side of the swing arm, allowing greater mounting flexibility.
ARRI gears are made from low friction Delrin for optimal drive smoothness and use precise self-centering stainless steel couplings to eliminate runout and wear.
For more options, the FF-5CINE is compatible with all ARRI FF-4 Follow Focus accessories.

Right and left focus knobs and the FF-5s longer body allow operation from either camera side with ENG lenses.

In addition, an extension is available to clear the largest matteboxes. Short and long focus whips allow the assistant to stand farther away from the camera and a focus crank makes fast snap zooms smooth and accurate.

Parts of the set

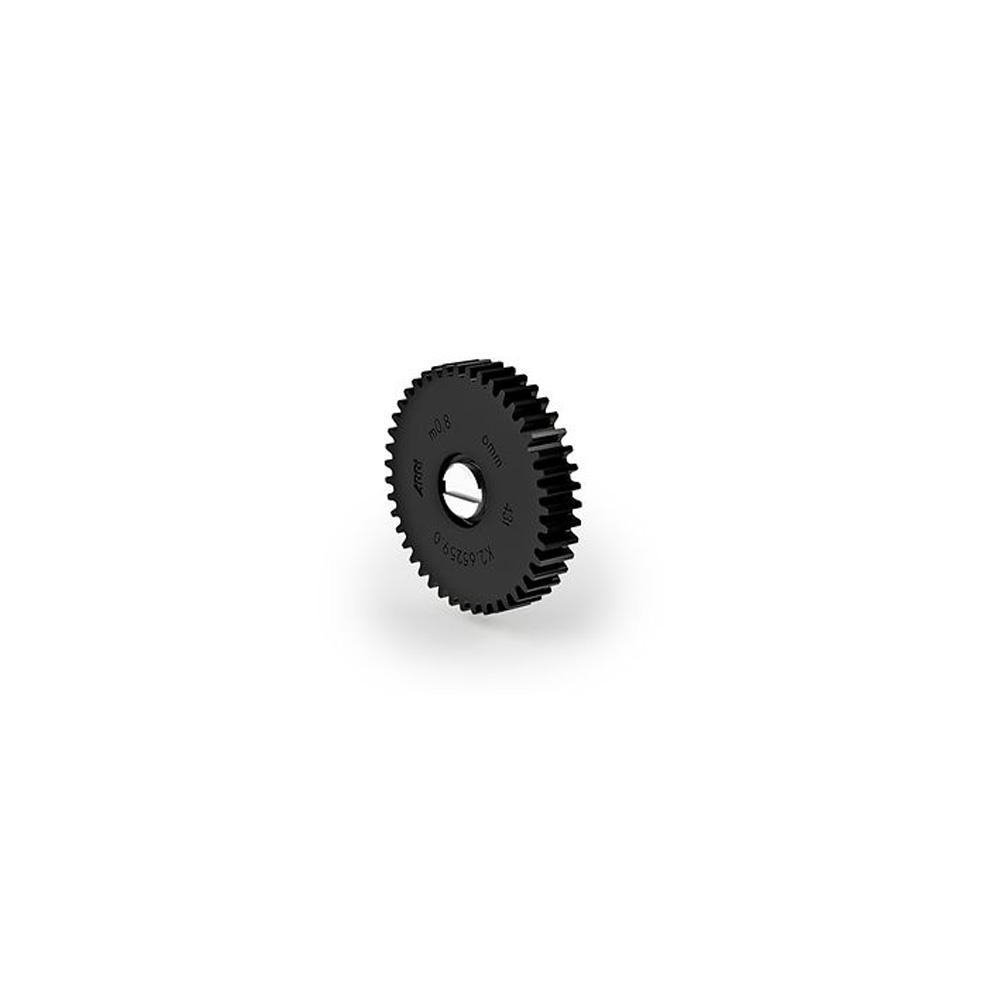

• K2.65259.0, FF Gear 0.8 Mod, 43 Tooth, 6mm

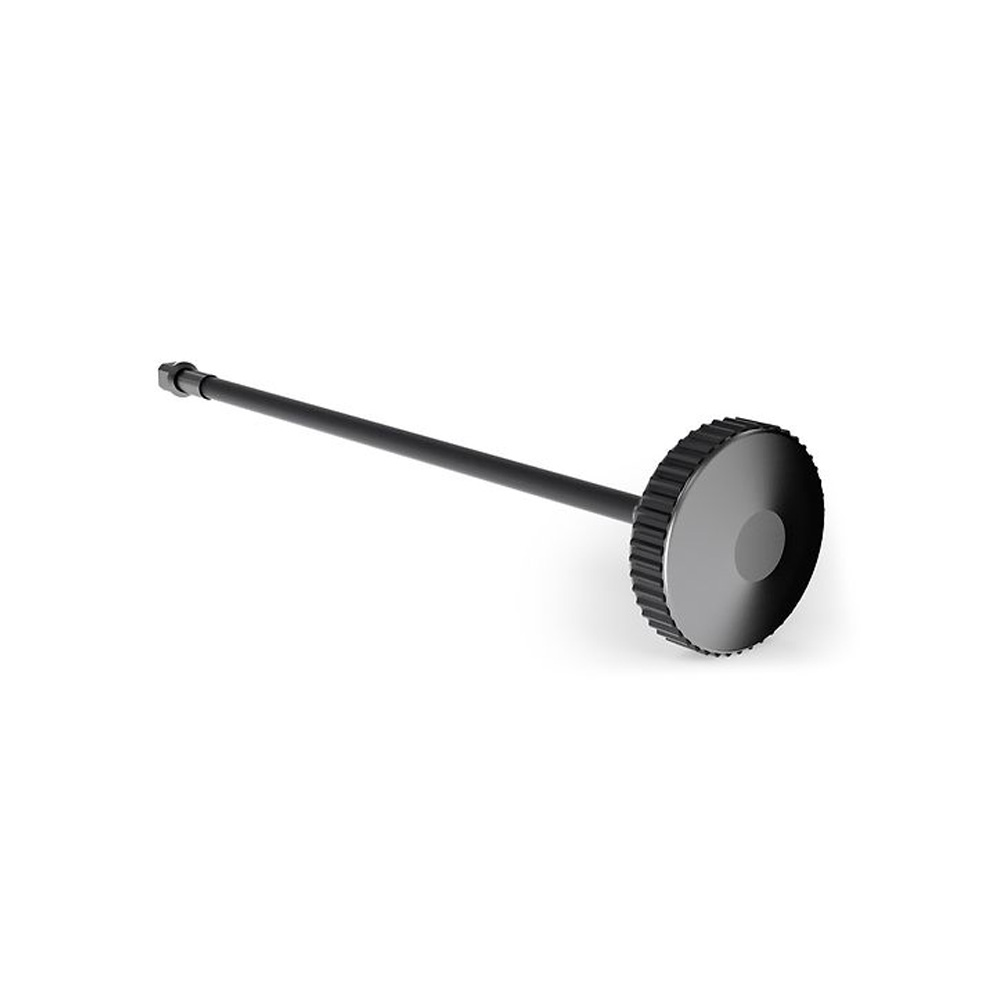

• K2.34100.0, Flexible Shaft, 300mm

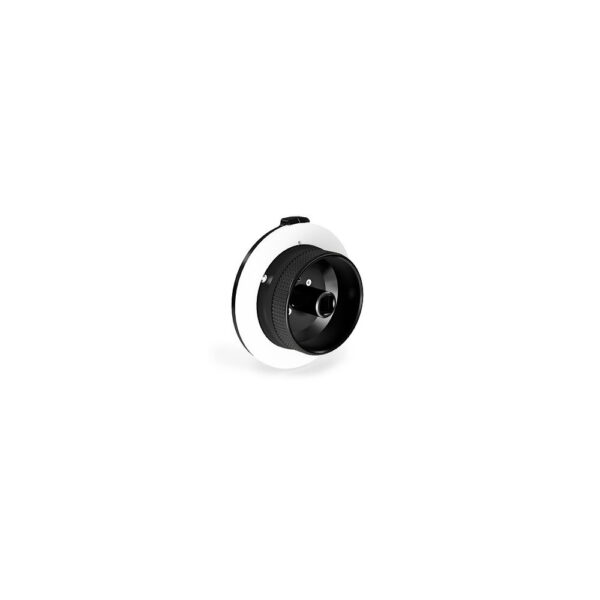

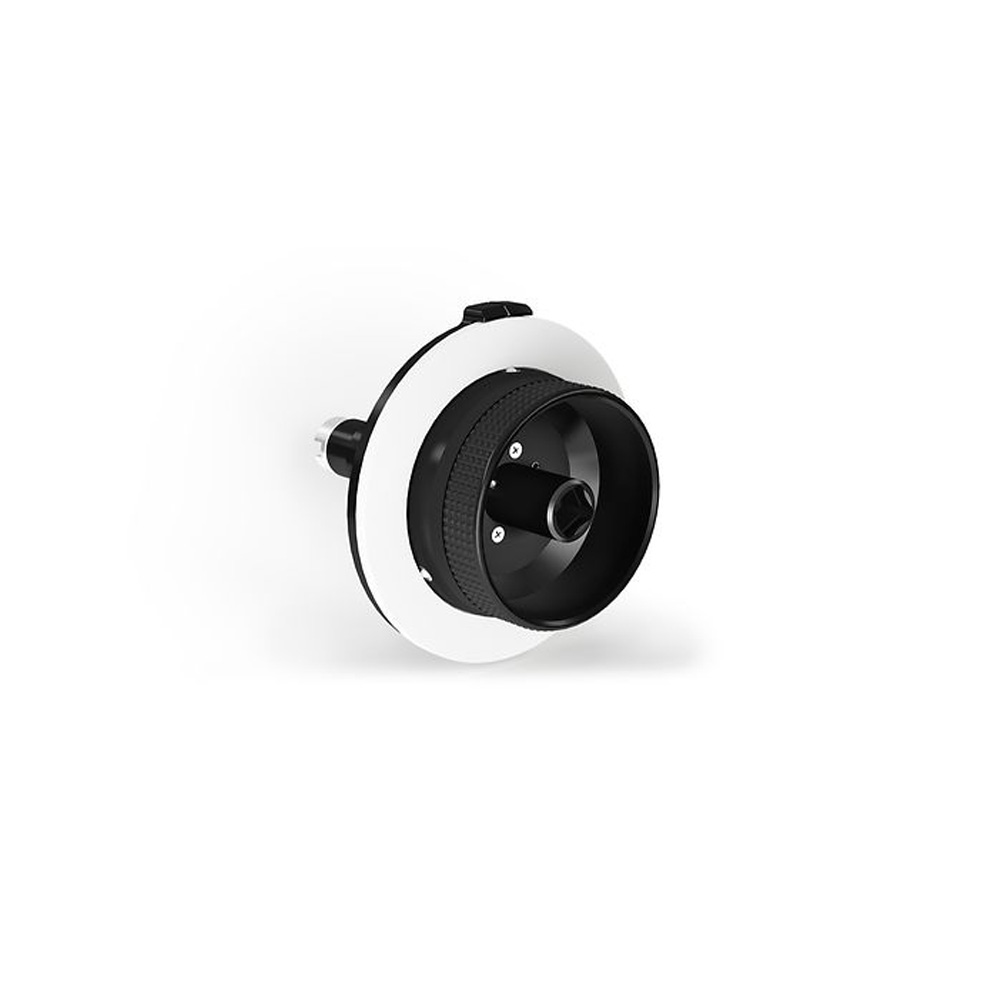

• K2.65253.0, Standard Focus Knob, left

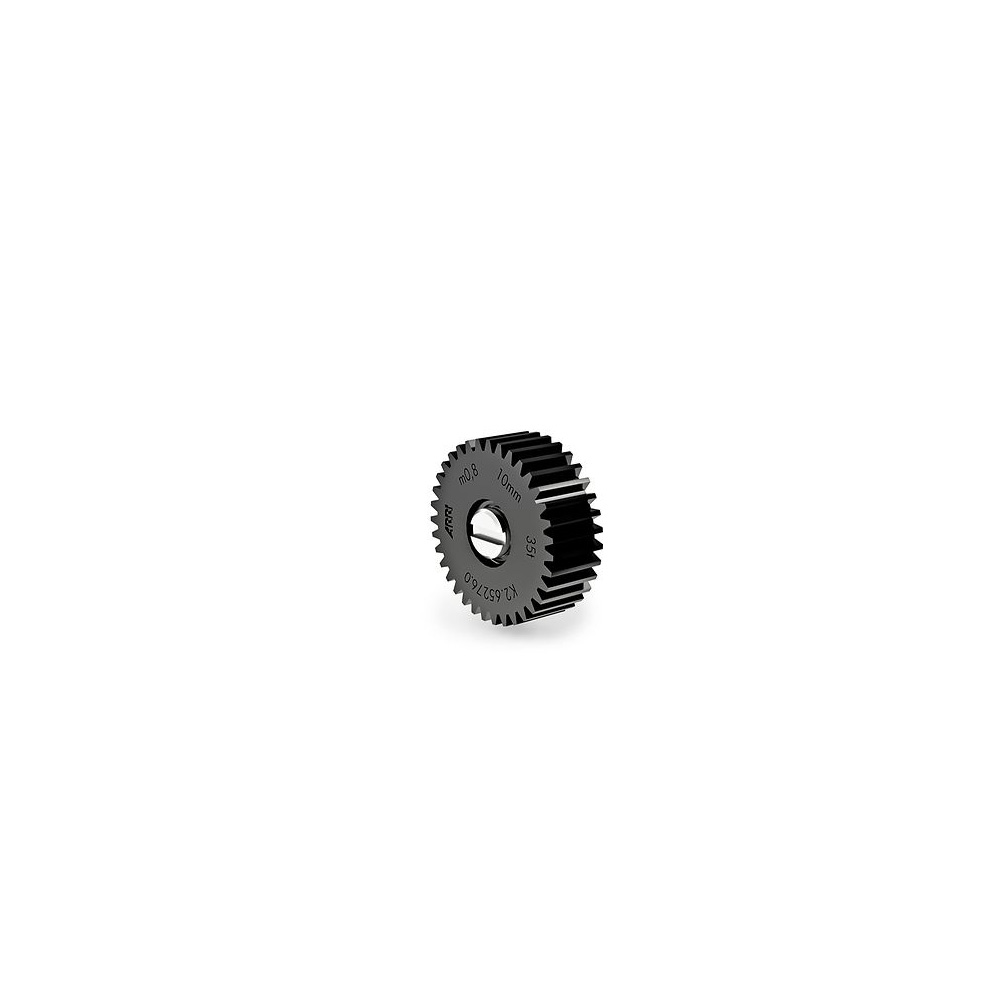

• K2.65276.0, FF Gear 0.8 Mod, 35 Tooth, 10mm

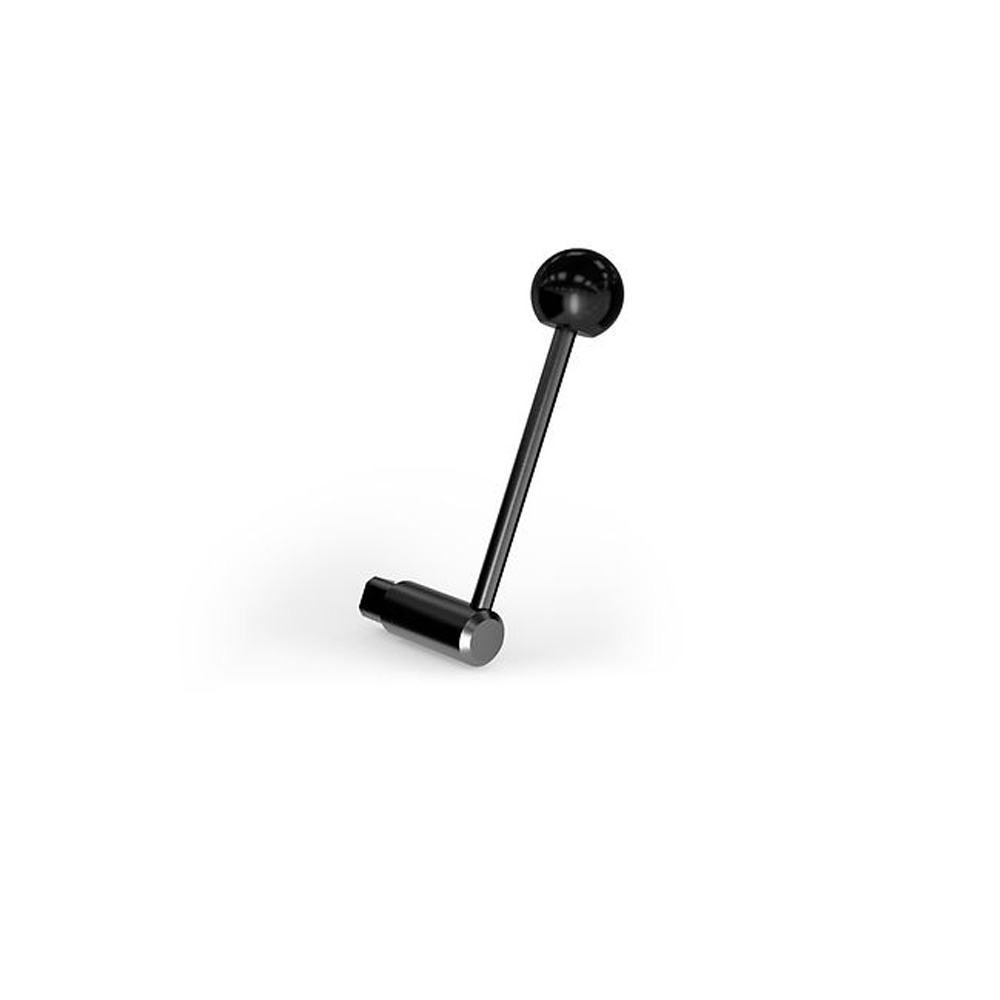

• K2.32730.0, Focus Lever Speed Handle/Focus Crank

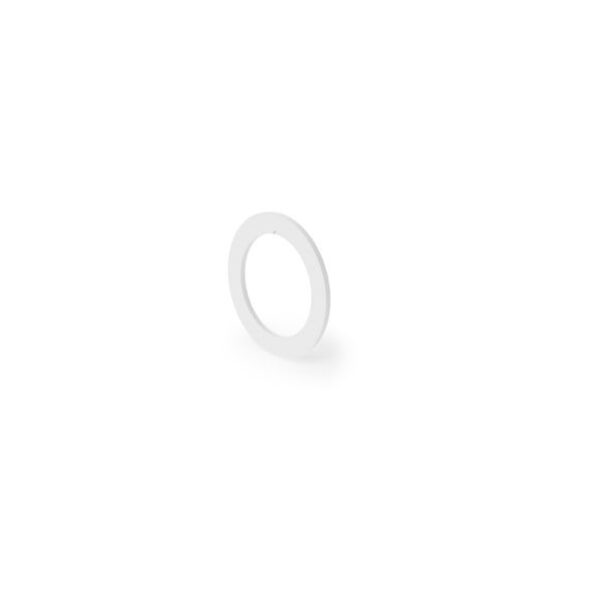

• K2.32701.0, Marking Disk, Flat
• K2.47215.0, Standard Focus Knob, Right

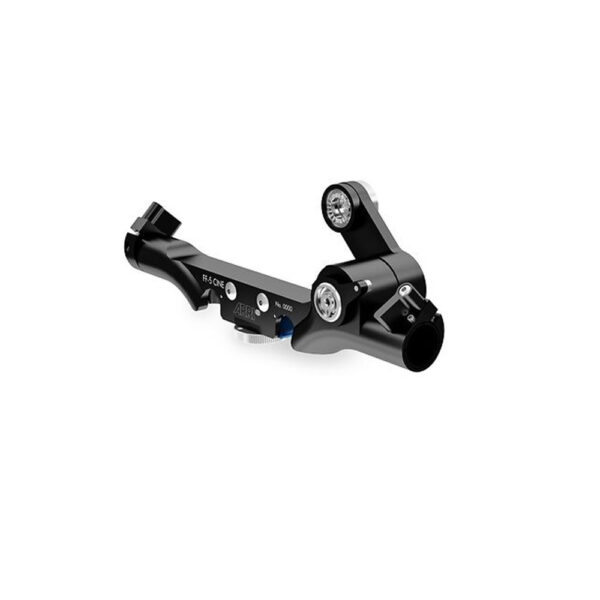

• K2.65246.0, Follow Focus FF-5 Cine, base
