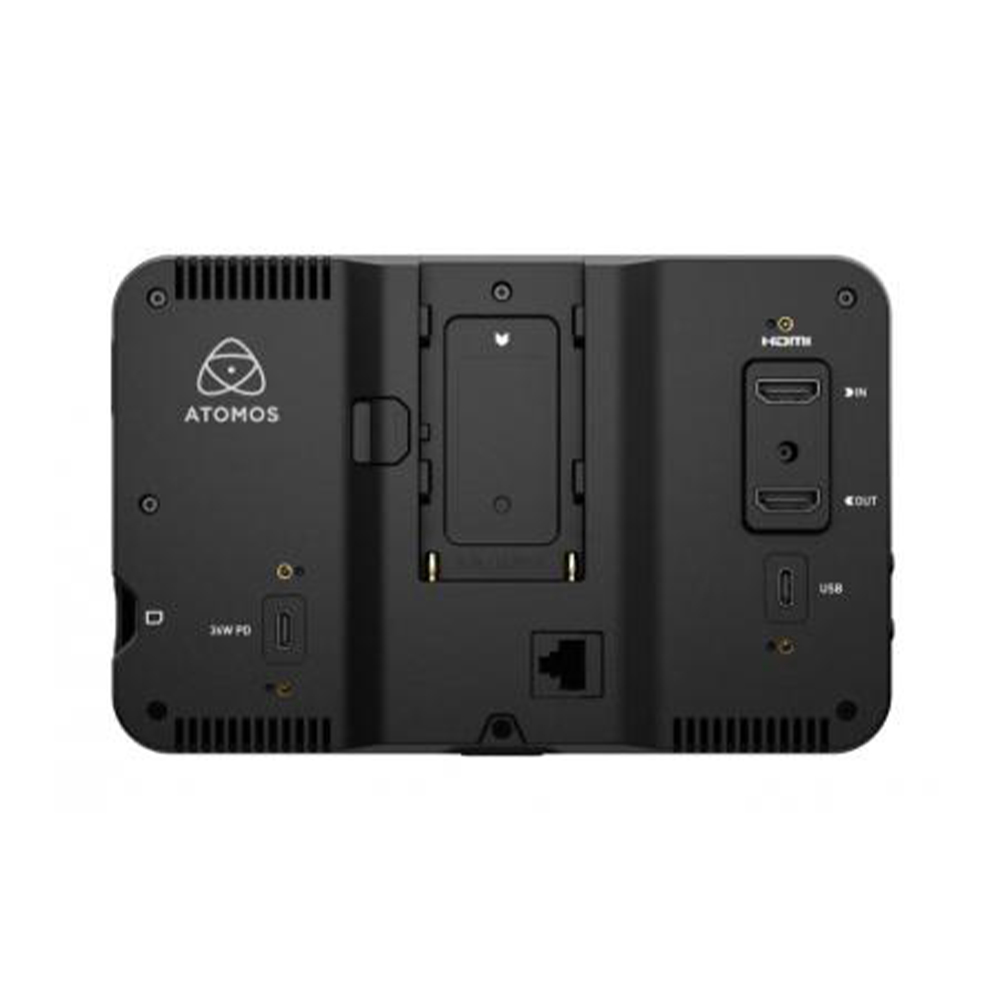

Atomos Shinobi 7 II Monitor
Atomos Shinobi 7II Monitor

Atomos Shinobi 7II Monitor

Categories: , SKU: ATOMSHB005

£425.00 £510.00 inc VAT

Pre-Order Now

Need advice before you buy?
Speak to one of our specialists about compatibility, accessories, stock availability or choosing the right setup.

Chat with us now

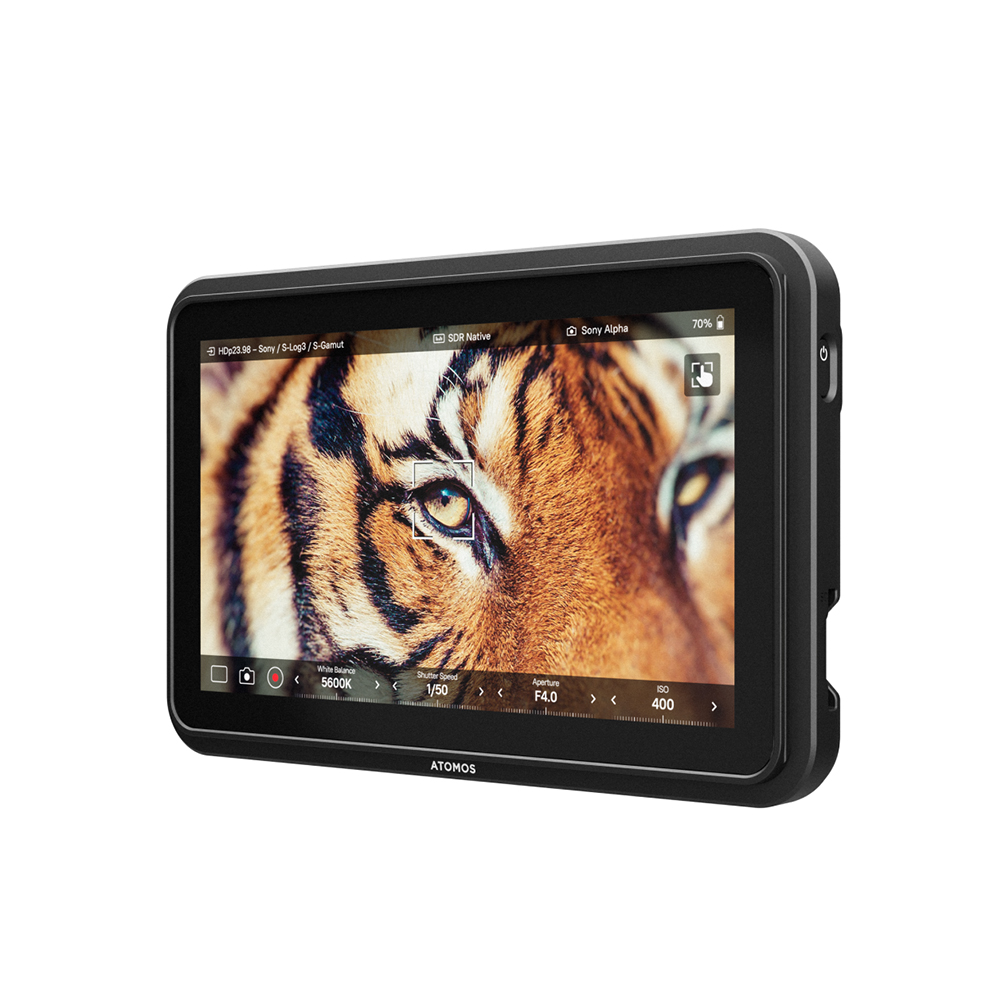

Atomos Shinobi 7II Monitor (ATOMSHB005) combines a larger 7-inch HDR screen, with a calibrated peak brightness of 2800nits, and the lightweight monitor-only functions of Shinobi. Can be used in the brightest of environments to monitor signals up to 4Kp30 via HDMI.

Take control of Canon, Fujifilm, Nikon, Panasonic, and Sony cameras via USB-C, plus Z CAM cameras via optional USB-C to serial cable. It’s an ideal director’s monitor, focus puller’s monitor, program or preview display for video switchers.

Features

  • 7-inch HDR screen with a calibrated peak brightness of 2800nits
  • HDMI input and output
  • Camera control over USB-C (see website for supported models)
  • Touch to focus (see website for supported models)
  • Suite of professional monitoring tools, including waveform, histogram, focus peaking, EL Zone™, and more
  • Unique, multi-scope display enables several monitoring tools to be viewed simultaneously
  • Stunning 10+ stops of dynamic range in real-time from Log/PQ/HLG signals
  • 3D LUT support
  • Integrated Ethernet connector
  • Lightweight, but rugged design

Comes With

  • 1x Shinobi 7 II monitor
  • 1x USB-C cable (1m)
  • 1x Quick Start Guide

Specification

PHYSICAL
Dimensions (W x H x D mm)188 mm x 120 mm x 23 mm
Weight401 g (excluding battery)
Mount points1 x anti-rotation 1/4-inch / 3/8-inch top and bottom
ENVIRONMENTAL
Ambient operating temperatureUp to 40 degrees Celsius
CONSTRUCTION
BodyABS polycarbonate
CoolingPassive heat sink
POWER
Input voltage6.2V - 16.8V
Operating power5.8V - 7.2V
Multi-function buttonPower / lock screen
Continuous powerVia NP-F battery or USB-C PD Power
DC in connectorVia Battery Eliminator (optional)
DTAPUp to 13W
USB PD IN45W capable, power supply required
USB PD OUTUp to 13W
DISPLAY
Size7-inch HDR screen with a calibrated peak brightness of 2800nits
Resolution1920 x 1080
Backlight TypeEdge-lit
Brightness (cdm2 / Nits)2800, calibrated peak brightness
Aspect ratio16:9
Colour gamutRec.709
Calibration supportSimple on-device calibration (connect third-party Calibrite probe directly to Shinobi II via USB-C) or use Atomos Calibrator on PC/Mac with Calibrite ColourChecker Display Pro & ColourChecker Display Plus.
COLOUR PIPELINE
GammaSony SLog / SLog2 / SLog3 / HLG, Canon C-Log / C-Log2 / C-Log3, ARRI Log CEI160 / LogCEI200 / LogCEI250 / LogCEI320, / LogCEI400 / LogCEI500 / LogCEI640 / LogCEI800 / LogCEI1000 / LogCEI1280 / LogCEI1600, Panasonic V-Log / HLG, JVC J-Log, Red RedLogFilm / Log3G10 / Log3G12, FujiFilm F-Log, PQ (HDR10), HLG, Nikon N-Log
GamutBT.2020, DCI P3, DCI-P3 D65, Rec709. Sony: S-Gamut / S-Gamut3 / S-Gamut3.cine / BT.2020 / Rec.709. Canon Cinema: DCI P3 / DCI P3plus / Rec.709. Panasonic: V Gamut. ARRI: Alexa Wide Gamut. JVC: LS300. RED: DragonColor / DragonColor2 / RedColor2 / RedColor3 / RedColor4 / RedWideGamut
3D LUT display.Cube format (17 & 33 points supported)
3D LUT downstreamLoop out
3D LUT 50/50Yes
Monitoring modesSDR Native / HDR HLG / HDR PQ / 709 LUT / User LUT
HDR output conversionNo
VIDEO INPUT
HDMI1 x HDMI (2.0)
Locking portYes
USB1 x USB-C 2.0/3.0
Bit depth8/10-bit video
Video chroma subsampling4:2:2
VIDEO OUTPUT
HDMI1 x HDMI (2.0)
Locking portYes
USB2 x USB-C 2.0/3.0
Bit depth8/10-bit video
Video chroma subsampling4:2:2
NETWORK
Ethernet10GbE over RJ45
USB1 x USB-C 3.0
CONNECTIVITY
LANCYes
AUDIO IN/OUT
HDMI8-channel, 24-bit
Analogue audio line in3.5mm headphone jack, 2-channel input
Headphone out3.5mm headphone jack, 2-channel
TIMECODE
EmbeddedHDMI (display only)
Time of dayYes
Reference / Genlock inputNo
LTCNo
RESOLUTION & FRAMERATE
4K UHD23.98/24/25/29.9/30
2K DCI 2048 x 1080Yes
1080p23.98/24/25/29.9/30/50/59.94/60
1080 PsFConverted to P and looped out PsF
1080i50/59.94/60i
720p50/59.94/60p
SUPPORTED MEDIA
SDTo update firmware and upload LUTs
File SystemFAT32, NTFS
ON-SCREEN MONITORING
MultiScope analysis viewImage, WFM, vector, histogram
Waveform3 sizes – adjustable opacity & brightness
Histogram3 sizes – adjustable opacity & brightness
RGB parade3 sizes – adjustable opacity & brightness
Vectorscope1 size – adjustable opacity & brightness
1 x ZoomYes. 1:1 pixel mapping for 4K
2 x ZoomYes
4 x ZoomYes
Focus peaking4 modes (colour, black & white, outline, edge sharpening) with adjustable outline colour & peaking intensity
Atomos false colourYes
ARRI false colourYes
EL Zone™ false colourYes
ZebraAdjustable threshold (50% to 105%)
Isolate colour channelBlue Only
Cine frame guidesPresets for 2.41, 2.35, 1.91, 1.9, 1.85, 16:9
Social frame guidesPresets for 9:16, 4:5, 2:3, 1:1, 5:4, 4:3, 3:2
Safe areasSMPTE safe title area – 93% & 90%
Grid markers9 grid
Anamorphic desqueeze2x, 1.8x, 1.79x, 1.65x, 1.6x, 1.5x, 1.33x, 1.25x
Display FlipHorizontal & vertical
EXTERNAL DEVICE CONTROL
USB-CCamera control for supported cameras via USB-C. Controllable functions: White Balance, Shutter Speed, Shutter Angle (if supported by camera), Aperture, ISO, Camera Overlays, Record Indicator, Touch to Focus - see Atomos website for camera model compatibility. USB-C port can also be used with external calibrators (no PC required).
Serial 2.5mm jackCalibration via optional USB to serial cable
IN THE BOX
Accessories includedShinobi 7 II monitor, USB-C cable (1m), Quick Start Guide.
Box dimensions (W x H x D mm)234 mm x 171 mm x 60 mm
Box weight750 g
MANUFACTURER WARRANTY
Standard1 year. Extended to 2 years on product registration.
