Atomos Shogun AV-19M Production Monitor

Atomos Shogun AV-19M Production Monitor (ATOMSHB005) is a 19-inch, rackmount 4K HDR monitor combining NDI® HX3, 12G-SDI and HDMI connectivity. View one source full-screen or up to four NDI feeds in quad-view, while onscreen professional tools including EL Zone™ false color, focus peaking and waveform monitoring help production teams assess every image with confidence.

Reliable 4K confidence monitoring

The bright, 19-inch 4K HDR DCI-P3 touchscreen provides a detailed view for evaluating every shot. Its rugged construction and rack-ready design make Shogun AV-19 monitors ideal for control rooms, OB vehicles, video villages and on-location production. It can also serve as a large-format viewing station for directors, clients and other members of the production team.

Professional monitoring tools

Assess exposure, focus, color and composition with a comprehensive suite of monitoring tools, including EL Zone™ false color, focus peaking, waveform, vectorscope, zebras, frame guides and more.

SDI, HDMI and IP connectivity

Shogun AV-19 monitors can be integrated into conventional or IP-based production environments. Professional SDI and HDMI connectivity supports established video workflows, while support for NDI® HX3 over Ethernet enables flexible monitoring across compatible IP networks.

User-definable function buttons

Get instant access to up to six frequently-used features – for example monitoring tools, playback modes, LUTs, anamorphic desqueeze – at the touch of a button. Turns the Shogun AV-19 into a professional control surface, optimized for speed, reliability, and personalized workflows in real production conditions.

Calibration you can trust

Both models support professional calibration using compatible Calibrite Display Pro HL and Display Plus HL probes, the Atomos Calibrator app and the Atomos calibration cable (ATOMCAB018, sold separately). This helps maintain consistent, dependable HDR and Rec.709 monitoring across production environments.

Built for racks, flypacks and location production

The rugged chassis and standard 19-inch 7RU form factor integrate easily into production racks, control rooms and OB vehicles. For portable operation, the optional custom flypack provides a protected, production-ready solution that can move quickly between studios, venues and locations.

Dedicated production monitoring

Shogun AV-19M concentrates the core monitoring capabilities of the Shogun AV-19 series into a dedicated monitor. It is an ideal choice for productions that already have established recording and switching systems but need accurate, large‑format monitoring for NDI, SDI or HDMI sources.

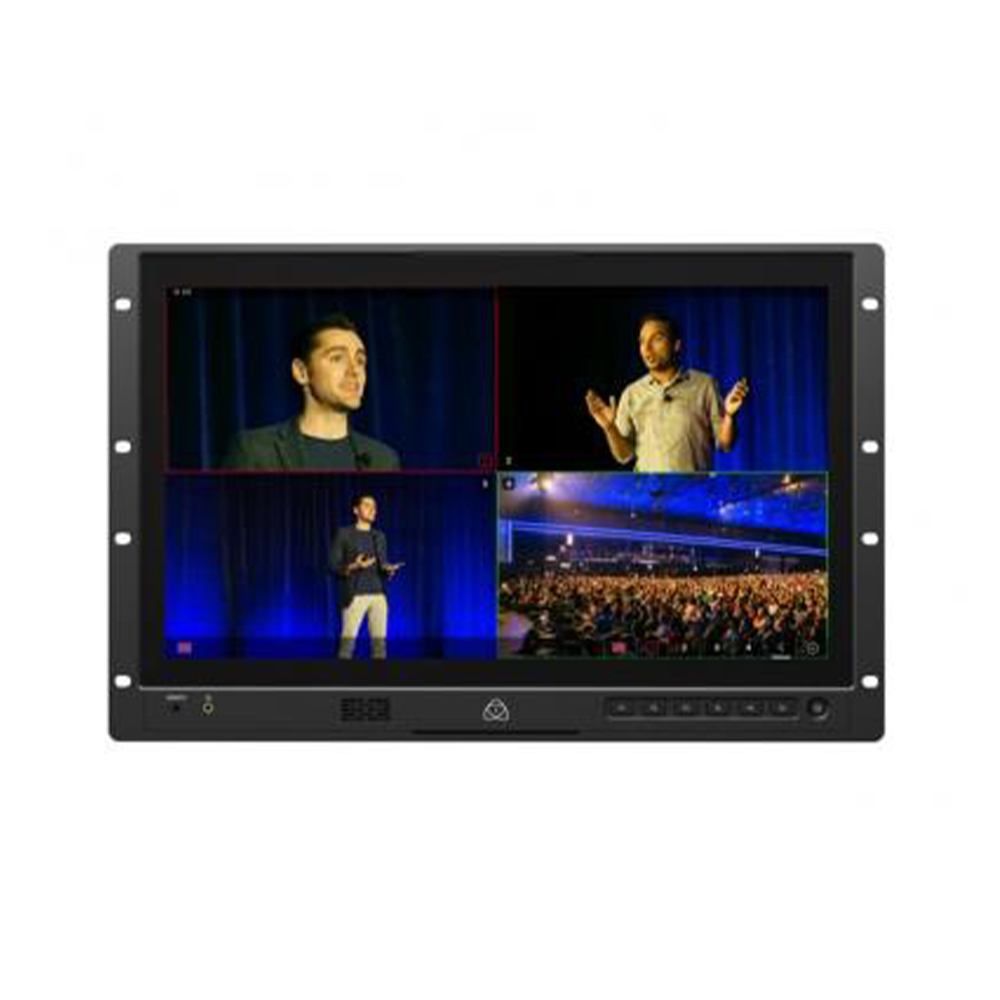

Monitor one NDI source or view four

Receive NDI® HX3 video over Ethernet and view a single source full-screen or bring up to four NDI sources together in a quad-view layout. This gives production teams a clear overview of multiple networked feeds without requiring a separate multiview system.

A focused monitoring solution for permanent or portable installations

With no integrated recording or live switching, Shogun AV-19M provides a streamlined solution for production galleries, control rooms, OB vehicles and video villages. Its rack-ready construction also makes it well suited to portable flypacks for live events and location production.

Professional audio monitoring

Monitor audio embedded within SDI, HDMI or NDI video, with on-screen meters, built-in speakers and headphone monitoring. Professional XLR connectivity supports integration with established production audio workflows.

Live switching and routing

Monitor, record and switch up to four SDI camera feeds via touchscreen or assignable function buttons. For IP-based workflows, Shogun AV-19 can receive and transmit NDI® HX3 video over Ethernet, allowing it to monitor a single NDI source or display up to four NDI sources in a quad-view layout. NDI sources cannot be combined with SDI or HDMI feeds within the same quad view.

Program and ISO recording

Record up to four individual SDI camera feeds and a fifth program output simultaneously, simplifying both live production and post-production. Each isolated source is preserved for post-production while the switched program recording provides an immediately available version of the live production.

Professional production codecs

Record production-ready Apple ProRes, ProRes RAW, Avid DNx or H.265 files directly from compatible SDI and HDMI sources. The range of codecs gives productions the flexibility to prioritize image quality, editing performance, recording duration or file size. Codec availability, resolution and frame rate depend on the source, recording mode and media performance.

CFexpress and USB-C recording

Record to internal CFexpress Type B media or compatible external USB-C storage. Flexible media options make it easy to adapt Shogun AV-19 to studio, live-event and on-location workflows while enabling a fast handover to post‑production*.

Playback and camera control

Review recorded material directly without transferring files to another device. For compatible cameras, intuitive on-screen controls provide access to settings including white balance, aperture, shutter speed or angle, ISO, and touch-to-focus on supported cameras.

Professional audio

Capture 24-bit/48kHz PCM audio using two balanced XLR inputs with 48V phantom power for compatible microphones or line-level sources. Gain controls, meters and per-channel delay adjustment help maintain accurate synchronization and recording levels. Balanced XLR outputs, embedded HDMI and SDI audio, built-in speakers and a headphone connection provide comprehensive audio routing and monitoring.

Events

Shogun AV-19 monitors provide bright, dependable monitoring for live productions where clear images and rapid decisions are essential. Shogun AV-19M serves as a dedicated NDI, SDI or HDMI production display, while Shogun AV-19 adds integrated SDI switching, ISO recording and program capture.

On set

Both models provide a large-format viewing station for directors, DITs, camera crews and clients. Their professional monitoring tools make it easier to assess exposure, focus, color and framing, while Shogun AV-19 adds immediate playback of recorded takes.

Video villages

The bright 19-inch touchscreen gives key members of the production team a clear, shared view of the image. SDI, HDMI and NDI connectivity provide the flexibility to work with conventional camera feeds or networked sources, depending on the production environment.

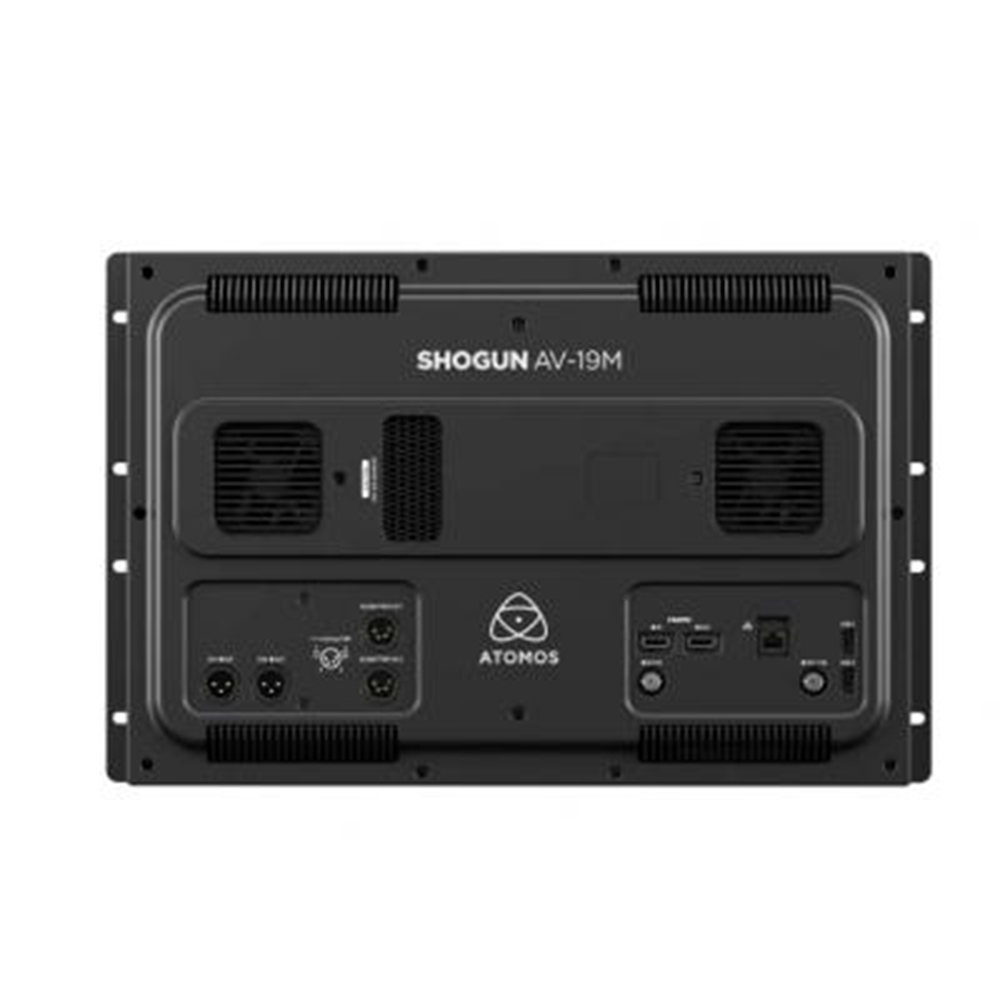

Comprehensive production connectivity

Shogun AV-19 monitors combine professional SDI and HDMI video connectivity with NDI® HX3 over Ethernet. Audio monitoring, XLR connectivity, flexible power options and a rack-ready design help both models integrate into professional studio, broadcast and location workflows.

Features

• 19-inch, 4K HDR DCI-P3 rackmount touchscreen display
• Hybrid NDI®, SDI and HDMI video monitoring
• View one NDI® HX3 source full-screen or up to four NDI sources in quad-view
• Receive high-quality, low-latency NDI HX3 video over Ethernet
• Monitor a single SDI or HDMI video source full-screen
• Comprehensive technical monitoring tools including EL Zone™ false color, focus peaking, waveform & more
• 1 x 12G-SDI in/out, 1 x HDMI in/out, XLR audio out
• User-definable function buttons
• Log to LUT viewing, supporting 3D & .cube
• Optional custom flypack, available separately

Comes With

• 1x Shogun AV-19M monitor
• 1x 4-pin XLR power supply
• 5 x international IEC power cables
• 10x Rack Nuts and Bolts
• 1x Screen Cloth
• 1x Quick Start Guide
