Blackmagic ATEM 2 M/E Constellation 4K
£3,229.05
£3,874.86 inc VAT
Order Now - Usually delivered in 2-3 days
Blackmagic ATEM 2 M/E Constellation 4K (SWATEMSCN2/2ME2/4K) is advanced 2 M/E live production switcher that includes 20 standards converted 12G-SDI inputs, 12 x 12G-SDI aux outputs, 2 DVEs, 8 ATEM Advanced Keyers, 2 multiviews and a SuperSource for a total of 6 DVEs.
Comes With
- 1x Blackmagic ATEM 2 M/E Constellation 4K
| BRAND | BLACKMAGIC |
|---|
Specification

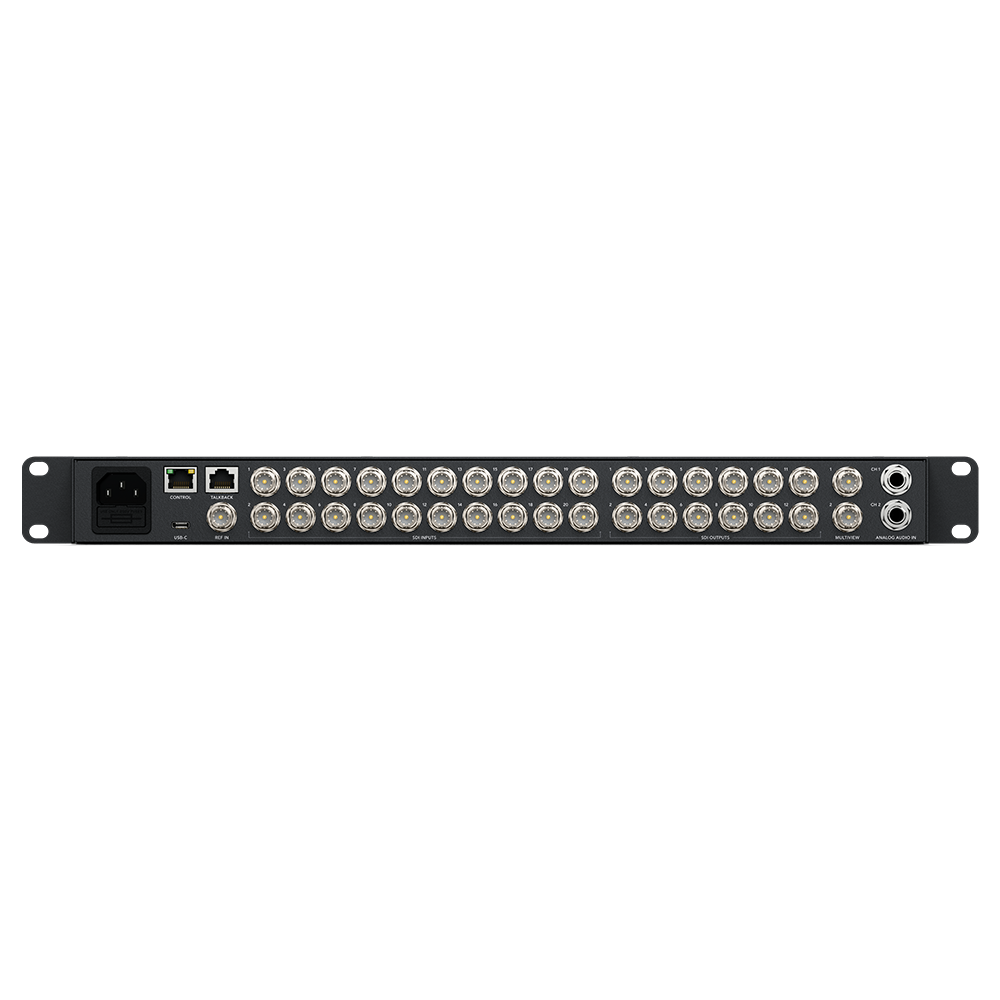

| CONNECTIONS | |
| Total video inputs | 20 |
| Total video outputs | 12 |
| SDI rates | 1.5G |
| 3G | |
| 6G | |
| 12G | |
| Total audio inputs | 2 × balanced 1/4 inch jack |
| 1 × 5 pin XLR talkback | |
| Total audio outputs | 1 × 5 pin XLR talkback |
| SDI audio inputs | 8 Ch embedded audio on all SDI inputs |
| SDI audio outputs | 16 Ch embedded audio on all SDI outputs |
| Timecode connections | None |
| Reference input | Tri-Sync or Black Burst |
| Video input re-sync | On all 20 inputs |
| Frame rate and format converters | On all 20 inputs |
| SDI aux outputs | Any of the 12 SDI outputs |
| SDI preview outputs | Any of the 12 SDI outputs |
| Any of the 12 SDI outputs | |
| Down converted SDI program output | 1 |
| Webcam output | 1 × USB-C supporting 720p or 1080p at PGM frame rate |
| Total multi views | 2 × 12G-SDI |
| Control panel connection | Ethernet |
| Direct connection between panel and chassis, or via network | |
| Internal timecode generator | Yes |
| Talkback | RJ45 for 3rd party talkback systems |
| Tally output | Added via ethernet connection to Blackmagic Design GPI and Tally Interface product (not included) |
| Ethernet | Supports 10/100/1000 BASE-T |
| Computer interface | 1 × USB-C supports USB 2.0 |
| STANDARDS | |
| SD video standards | None |
| HD video standards | 720p50 |
| 720p59.94 | |
| 720p60 | |
| 1080i50 | |
| 1080i59.94 | |
| 1080i60 | |
| 1080p23.98 | |
| 1080p24 | |
| 1080p25 | |
| 1080p29.97 | |
| 1080p30 | |
| 1080p50 | |
| 1080p59.94 | |
| 1080p60 | |
| Ultra HD video standards | 2160p23.98 |
| 2160p24 | |
| 2160p25 | |
| 2160p29.97 | |
| 2160p30 | |
| 2160p50 | |
| 2160p59.94 | |
| 2160p60 | |
| SDI compliance | SMPTE 292M |
| SMPTE 296M | |
| SMPTE 424M | |
| SMPTE 425M level A and B | |
| SMPTE 2081-1 | |
| SMPTE 2081-10 | |
| SMPTE 2082-1 | |
| SMPTE 2082-10 | |
| Video sampling | 4:2:2 |
| Colour precision | 10-bit |
| Colour space | Rec. 709 |
| Rec. 2020 | |
| SDI auto switching | Automatically detects between 1.5G-SDI |
| Level A or level B 3G-SDI | |
| 6G-SDI | |
| 12G-SDI | |
| PRODUCT SPECIFICS | |
| Upstream keyers | 8 |
| Downstream keyers | 2 |
| Advanced chroma keyers | 8 |
| SuperSource | 1 |
| DVEs | 2 |
| Linear/luma keyers | 11 |
| Transition keyer (Stinger/DVE) | 2 Stinger |
| 2 DVE | |
| Total number of layers | 15 |
| Pattern generators | 11 |
| Colour generators | 2 |
| Control panel | Front fascia emergency switching |
| Software | |
| Optional hardware panel | |
| Routable windows | 32 |
| Windows source labels | Yes |
| Tally | Red for program and green for preview indication |
| Talkback support | Yes |
| Mix minus support | Yes |
| MULTI VIEW MONITORING | |
| Multi view monitoring | 2 × multi view configurable to 16 |
| 13 | |
| 10 | |
| 7 | |
| 4 up views | |
| Includes monitoring of Program | |
| Preview | |
| Inputs | |
| Media Players | |
| Key Masks | |
| Clean Feed with optional labels and audio meters | |
| Multi view video standard | HD or Ultra HD |
| MEDIA PLAYER | |
| Media players | 2 |
| Channels | Fill and key for each media player |
| Media pool still image capacity | 40 |
| Media pool clip capacity | 2 × up to 2160p60 |
| Media player clip length in 720 HD | 3200 frames |
| Media player clip length in 1080 HD | 1600 frames |
| Media player clip length in 2160 UHD | 400 frames |
| Media pool still image format | PNG |
| TGA | |
| BMP | |
| GIF | |
| JPEG | |
| TIFF | |
| Media pool video file format | TGA sequence |
| Media pool audio file format | WAV |
| MP3 | |
| AIFF | |
| DISPLAY | |

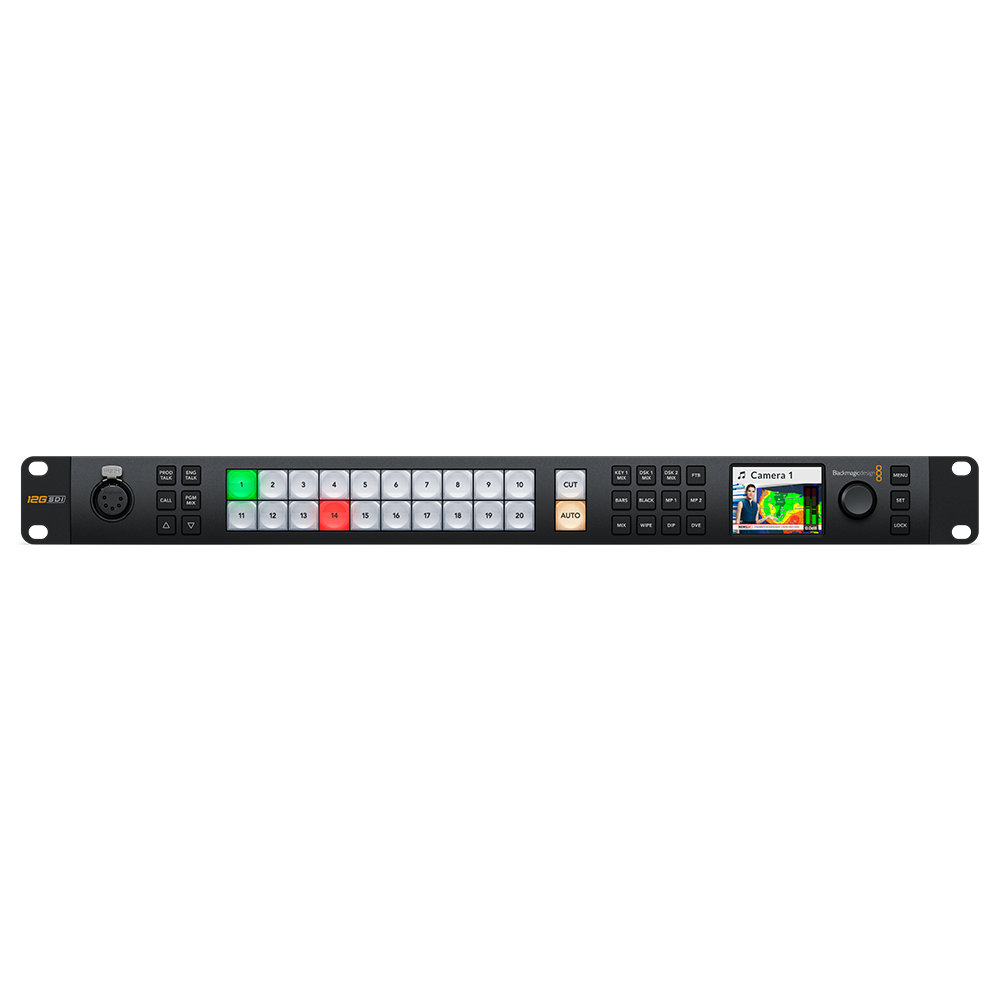

| Front panel | Built in 2.2 inch LCD monitor for video |
| 22 LED buttons for setup and emergency switching | |
| 8 source buttons | |
| 4 transition buttons | |
| 6 talkback selection and mix buttons | |
| Menu control knob and set button | |
| Front panel lock button | |
| PROCESSING | |
| Processing delay | < 10 lines |
| AUDIO MIXER | |
| Audio mixer | 48 channel mixer |
| Selectable | On |
| Off | |
| Audio-follow-video | |
| Metering | Level and peak metering |
| Master gain control | Yes |
| EQ and dynamics | 6 band parametric EQ |
| Expander | |
| Gate | |
| Compressor | |
| Limiter | |
| DOWN CONVERSION | |
| Down conversion | 1 × selectable HD down converted output |
| SOFTWARE | |
| Control panel included | ATEM Software Control included free for Mac 13.0 Ventura |
| Mac 14.0 Sonoma or later | |
| Windows 10 or 11 | |
| Software updates | Using USB or Ethernet connection directly connected to Mac or Windows computers |
| Includes ATEM Setup Utility | |
| Configuration | Set via ATEM Software Control Panel |
| Excluding ATEM chassis IP address which is set via the ATEM Setup Utility connected via USB to chassis | |
| OPERATING SYSTEMS | |
| Mac | Mac 14.0 Sonoma |
| Mac 15.0 Sequoia or later | |
| Windows | Windows 10 |
| Windows 11 | |
| POWER REQUIREMENTS | |
| Power supply | 1 × internal 100 – 240 AC |
| Power usage | 140 W |
| PHYSICAL INSTALLATION | |
| Rack size | 1 rack unit size |
| ENVIRONMENTAL SPECIFICATIONS | |
| Operating temperature | 0° to 40° C (32° to 104° F) |
| Storage temperature | -20° to 60° C (-4° to 140° F) |
| Relative humidity | 0% to 90% non-condensing |
| WHAT'S INCLUDED | |
| Included items | ATEM 2 M/E Constellation 4K |
| Welcome wallet with QR code for software download | |
| WARRANTY | |
| Warranty | 1 year limited manufacturer’s warranty |
