Blackmagic Design 2110 IP UpDownCross 12G
Brand: BLACKMAGIC DESIGN£582.00 £485.00 Ex. VAT
Pre-Order - Estimated Delivery Late June 2025
Description

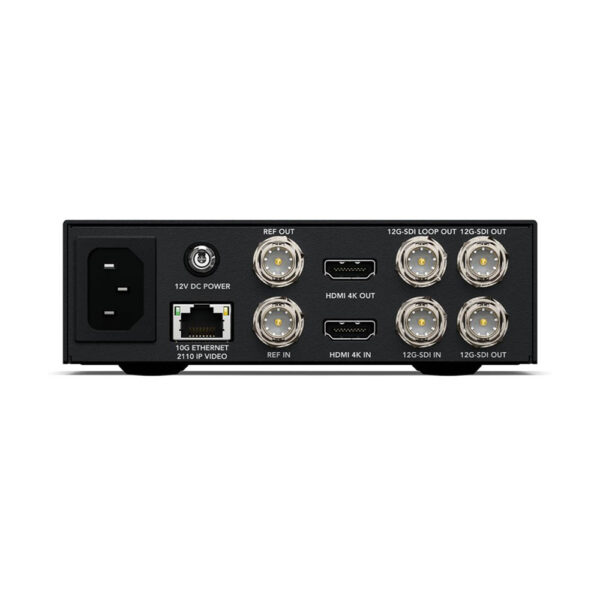

Blackmagic Design 2110 IP UpDownCross 12G (CONVNVIPJ/STD/12G) is a premium standards converter for live production and broadcast. It allows you to convert between any equipment with 2110 IP video, 12G-SDI, and HDMI video connections!
You get the highest quality video conversion between all SD, HD, and Ultra HD video standards. It has an elegant design with an LCD display, speaker, and headphone jack. The LCD also has menus for setting the video standard. The USB port on the front panel even works as an HD webcam!
Comes With
- 1x Blackmagic 2110 IP UpDownCross 12G
- 1x Welcome wallet with QR code for software download
Delivery
Please note, for next-day shipping options the product must show in stock in the product status and be before the cut-off period. If the product does not show in stock most items will give an approximate lead time.
Collection
Free Collection is available at our showroom in Hampton, please select this option at the payment stage at the checkout. Please allow one hour to pick and prepare your order for you so it is ready for you when you arrive. Collections must be made at our office during the hours of 9 am to 5:30 pm (Mon to Thurs) and 9 am to 5 pm (Friday).
Standard Delivery
Standard delivery costs £5.99 including VAT and will be sent out by Royal Mail or APC, this service can take 3-5 working days.
FREE UK Delivery On Orders Over £250
We offer FREE standard delivery on all orders over £250 Ex VAT to the UK mainland. Mon-Fri working days only. Saturday deliveries are not guaranteed.
Next Working Day Delivery
UK mainland orders placed before 2 pm will be dispatched the same day for next-day delivery. To qualify for next-day delivery orders must be placed before 2 pm Mon – Thur. Orders placed after 2 pm Thursday will be dispatched Friday for Monday delivery, excluding Bank Holidays. The charge for this service is £12.00 plus VAT. This service is only available for products that are in stock.
Saturday Delivery
Order before 2pm on Friday for Saturday deliveries. Saturday delivery cost £27.50 including VAT – this is only for the UK mainland.
*Excluding all Battery Generators*
Worldwide Shipping
At BPS we can arrange shipping worldwide on most of our products. Please contact sales@bps-tv.co.uk and provide details of the products you are interested in, billing and delivery address, and any company information. Our sales team will then arrange for a full quotation to be provided.
Specification
| SDI Inputs | 1 |
| SDI Loop Outputs | 1 |
| SDI Outputs | 2 |
| SDI Rates | SD, 1.5G, 3G, 6G and 12G |
| HDMI 2.0 Video Outputs | 1 |
| SMPTE 2110 Input / Output | 1 x 10G Ethernet |
| SMPTE ST 2110 IP Audio Inputs / Outputs | 16 channels embedded input and output audio on ST‑2110 IP video via 10G Ethernet. |
| SDI Audio Inputs | 16 channels embedded audio. |
| SDI Audio Outputs | 16 channels embedded audio. |
| HDMI Audio Inputs | 8 channels embedded audio. |
| HDMI Audio Outputs | 8 channels embedded audio. |
| Analog Audio Outputs | 1 x 6.35 mm headphone jack. |
| Webcam Outputs | 1 x USB-C up to 1080p60 |
| Reference In | 1 |
| Reference Output | 1 |
| Ethernet | Ethernet supports 10/100/1000/10G BASE-T for SMPTE 2110 IP video in and out, configuration and software updates. |
| Computer Interface | USB-C for webcam out, updates and configuration |
| Video Standards | |
| SD Video Standards | 525i59.94 NTSC, 625i50 PAL |
| 2K Video Standards | 720p50, 720p59.94, 720p601080i50, 1080i59.94, 1080i60 1080p23.98, 1080p24, 1080p25, 1080p29.97, 1080p30, 1080p47.95, 1080p48, 1080p50, 1080p59.94, 1080p60, 1080PsF23.98, 1080PsF24, 1080PsF25, 1080PsF29.97, 1080PsF30 |
| Ultra HD Video Standards | 2160p23.98, 2160p24, 2160p25, 2160p29.97, 2160p30, 2160p47.95, 2160p48, 2160p50, 2160p59.94, 2160p60 |
| 1080PsF23.98, 1080PsF24, 1080PsF25, 1080PsF29.97, 1080PsF30 | |
| 4K Video Standards | 4Kp23.98 DCI, 4Kp24 DCI, 4Kp25 DCI, 4Kp29.97 DCI, 4Kp30 DCI, 4Kp47.95 DCI, 4Kp48 DCI, 4Kp50 DCI, 4Kp59.94 DCI, 4Kp60 DCI |
| SMPTE Compliance | SMPTE 259M, SMPTE 274M, SMPTE 292M, SMPTE 296M SMPTE 372M, SMPTE 424M, SMPTE 425M level A and B, SMPTE 2036‑1, SMPTE 2048‑1, SMPTE 2081‑10, SMPTE 2081‑11, SMPTE 2081‑12, SMPTE 2082‑10, SMPTE 2082‑11, SMPTE 2082‑12 and SMPTE ST2108‑1 |
| SDI Metadata Support | RP 188/SMPTE 12M-2 and closed captioning. |
| Audio Sampling | Television standard sample rate of 48 kHz and 24 bit. |
| Color Precision | 8, 10 RGB 4:4:4 in all modes up to 1080p30 and 8, 10-bit YUV 4:2:2 in all modes. |
| Color Space | Rec. 601, Rec. 709, Rec. 2020 |
| HDMI HD Video Standards | 720p50, 720p59.94, 720p60 1080i50, 1080i59.94, 1080i60 1080p23.98, 1080p24, 1080p25, 1080p29.97, 1080p30, 1080p47.95, 1080p48, 1080p50, 1080p59.94, 1080p60 |
| HDMI Ultra HD Video Standards | 2160p23.98, 2160p24, 2160p25, 2160p29.97, 2160p30, 2160p47.95, 2160p48, 2160p50, 2160p59.94, 2160p62 |
| HDMI 4K Video Standards | 4Kp23.98 DCI, 4Kp24 DCI, 4Kp25 DCI, 4Kp29.97 DCI, 4Kp30 DCI, 4Kp47.95 DCI, 4Kp48 DCI, 4Kp50 DCI, 4Kp59.94 DCI and 4Kp60 DCI. |
| HDMI Color Precision | 4:2:2 |
| HDMI Color Space | YUV |
