Canon CN7x11 KAS T/P1 CINE-SERVO Lens – PL
Description
Canon CN7x11 KAS T/P1 CINE-SERVO Lens – PL

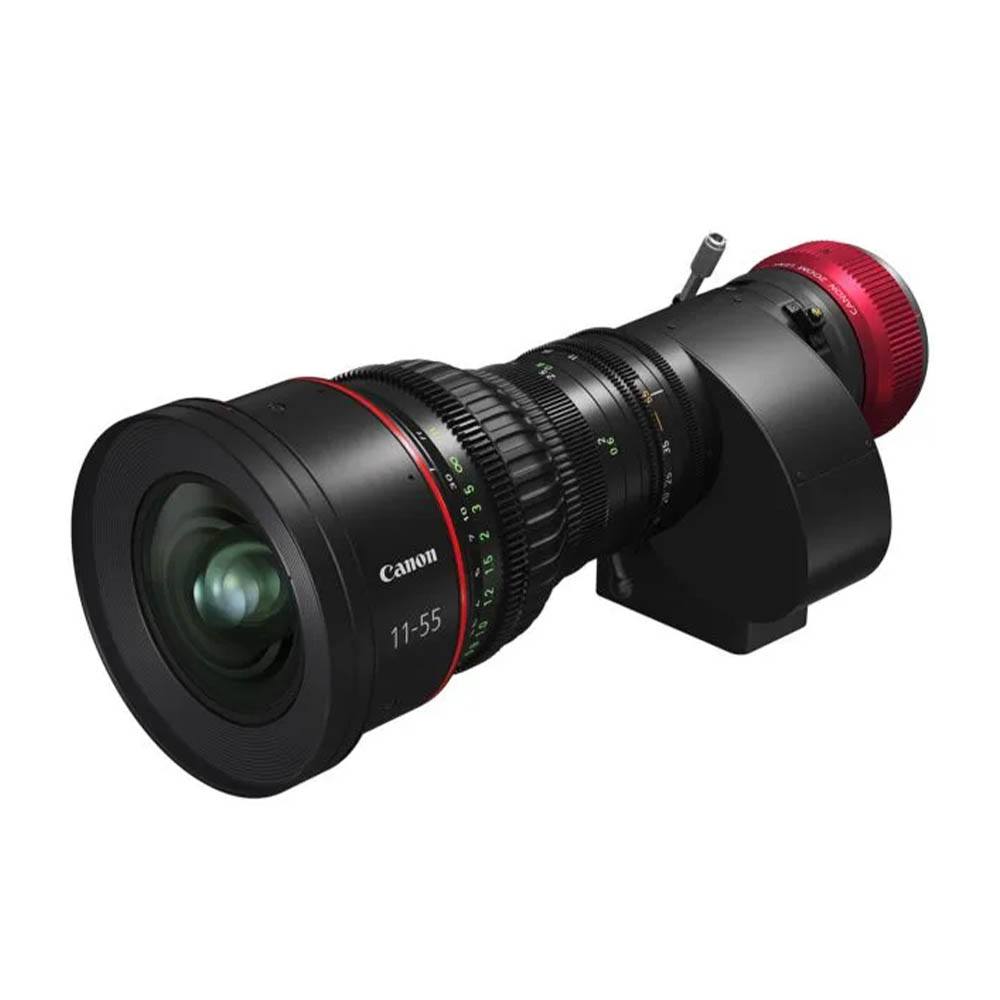

Canon CN7x11 KAS T/P1 CINE-SERVO Lens – PL (7428C002)is a compact Cine Servo lens with an expansive wide-angle zoom range, appealing to live action, news, compact studios, to documentary, drama, and virtual productions. Experience unparalleled 8K quality with the CN5x11 IAS T R1/P1 lens, featuring a 11-55mm focal range for ultra-wide shooting, ideal for smaller sets to expansive scenes. Available in either RF or PL mount, plus 1.5x extender supporting both Super35mm and full frame. Attach the eXs-V digital drive unit for responsive and accurate control, remote control, USB-C connectivity, and optical focus breathing correction plus metadata output for virtual productions.
Precise optical performance
Supports resolutions up to 8K HDR from the centre to the periphery with organic colour reproduction. With 11 iris blades, the CN5x11 IAS T R1/P1 produces softly diffused highlights and silky out of focus backgrounds. An expansive 5x optical zoom with 11-55mm focal length delivers a versatile shooting experience.
RF or PL mount communication
Thanks to the RF mount, the CN5x11 IAS T R1/P1 offers lens distortion correction and real time metadata capture. While PL mount users benefit from Cooke /i TechnologyTM and ZEISS eXtended DataTM. Both mounts provide compatibility with virtual production and VFX workflows.
Ergonomic digital drive unit
Shoot with precision thanks to fast servo control with optical focus breathing correction for more intuitive performance. Multiple interfaces including three 20-pin connectors and USB-C allow for remote control and optimised user settings, while a 16-bit encoder ensures precise lens data output for virtual productions.
Exceptional Image quality
Large diameter aspherical elements and anomalous dispersion glass deliver 8K edge to edge performance. Canon’s consistent colour balance and beautiful reproduction of skin tones reduce post-production adjustments.
Versatile mounting and configuration
PL or RF mount: the RF mount version supports Canon’s superb Dual Pixel CMOS AF system for unparalleled focus tracking whilst the Dual Pixel Focus Guide offers useful manual focus indicators. Full frame and Super35mm cameras are supported thanks to the built-in 1.5x extender.
Responsive and ergonomic
The latest eXs-V digital drive unit, with accurate and responsive 16-bit absolute value encoder, offers quick startup with no initialisation, and smooth power zoom operation. Optional zoom and focus demands deliver a broadcast studio configuration.
Delivery
Please note, for next-day shipping options the product must show in stock in the product status and be before the cut-off period. If the product does not show in stock most items will give an approximate lead time.
Collection
Free Collection is available at our showroom in Hampton, please select this option at the payment stage at the checkout. Please allow one hour to pick and prepare your order for you so it is ready for you when you arrive. Collections must be made at our office during the hours of 9 am to 5:30 pm (Mon to Thurs) and 9 am to 5 pm (Friday).
Standard Delivery
Standard delivery costs £5.99 including VAT and will be sent out by Royal Mail or APC, this service can take 3-5 working days.
FREE UK Delivery On Orders Over £250
We offer FREE standard delivery on all orders over £250 Ex VAT to the UK mainland. Mon-Fri working days only. Saturday deliveries are not guaranteed.
Next Working Day Delivery
UK mainland orders placed before 2 pm will be dispatched the same day for next-day delivery. To qualify for next-day delivery orders must be placed before 2 pm Mon – Thur. Orders placed after 2 pm Thursday will be dispatched Friday for Monday delivery, excluding Bank Holidays. The charge for this service is £12.00 plus VAT. This service is only available for products that are in stock.
Saturday Delivery
Order before 2pm on Friday for Saturday deliveries. Saturday delivery cost £27.50 including VAT – this is only for the UK mainland.
*Excluding all Battery Generators*
Worldwide Shipping
At BPS we can arrange shipping worldwide on most of our products. Please contact sales@bps-tv.co.uk and provide details of the products you are interested in, billing and delivery address, and any company information. Our sales team will then arrange for a full quotation to be provided.
Specification
| Mount | PL mount |
| Zoom ratio | 5x |
| Focal length | 11 – 55 mm or 16.5 - 82.5 mm* |
| Maximum diameter ratio (T-number) | T2.95 at 11 – 41 mm / T3.95 at 55 mm or T4.4 at 16.5 - 61.5 mm / T5.9 at 82.5 mm* |
| Number of iris blades | 11 blades |
| Angle of view | |
| Aspect ratio 1.78:1 Dimensions 24.6 x 13.8 mm | 96.4°x 64.2°at 11 mm / 25.2°x 14.3°at 55 mm or 73.4°x 45.4°at 16.5 mm / 17.0°x 9.6°at 82.5 mm* |
| Aspect ratio 1.9:1 Dimensions 26.2 x 13.8 mm | 100.0°x 64.2°at 11 mm / 26.8°x 14.3°at 55 mm or 76.9°x 45.4°at 16.5 mm / 18.0°x 9.6°at 82.5 mm* |
| Aspect ratio 1.9:1 Dimensions 38.1 x 20.1 mm | 98.2°x 62.7°at 16.5 mm / 26.0°x 13.9°at 82.5 mm* |
| Aspect ratio 1.5:1 Dimensions 36 x 24 mm | 95.0°x 72.1°at 16.5 mm / 24.6°x 16.6°at 82.5 mm* |
| Minimum shooting distance | 0.6 m / 2.0’ |
| Shooting range at closest approach | |
| Aspect ratio 1.78:1 Dimensions 24.6 x 13.8 mm | 69.7 x 39.1 cm at 11 mm / 13.3 x 7.5 cm at 55 mm or 46.5 x 26.1 cm at 16.5 mm / 8.9 x 5.0 cm at 82.5 mm* |
| Aspect ratio 1.9:1 Dimensions 26.2 x 13.8 mm | 74.2 x 39.1cm at 11mm / 14.2 x 7.5cm at 55mm or 49.5 x 26.1 cm at 16.5 mm / 9.5 x 5.0 cm at 82.5 mm* |
| Aspect ratio 1.9:1 Dimensions 38.1 x 20.1 mm | 72.0 x 38.0 cm at 16.5 mm / 13.8 x 7.3 cm at 82.5 mm* |
| Aspect ratio 1.5:1 Dimensions 36 x 24 mm | 68.0 x 45.3 cm at 16.5 mm / 13.1 x 8.7 cm at 82.5 mm* |
| Front diameter | Φ114mm |
| Image circle | Φ29.6mm or Φ 43.3mm |
| Outer dimensions (w x h x d) | Appx. 186.6 x 129.9 x 269.0mm |
| Weight | Appx. 2.92 kg |
