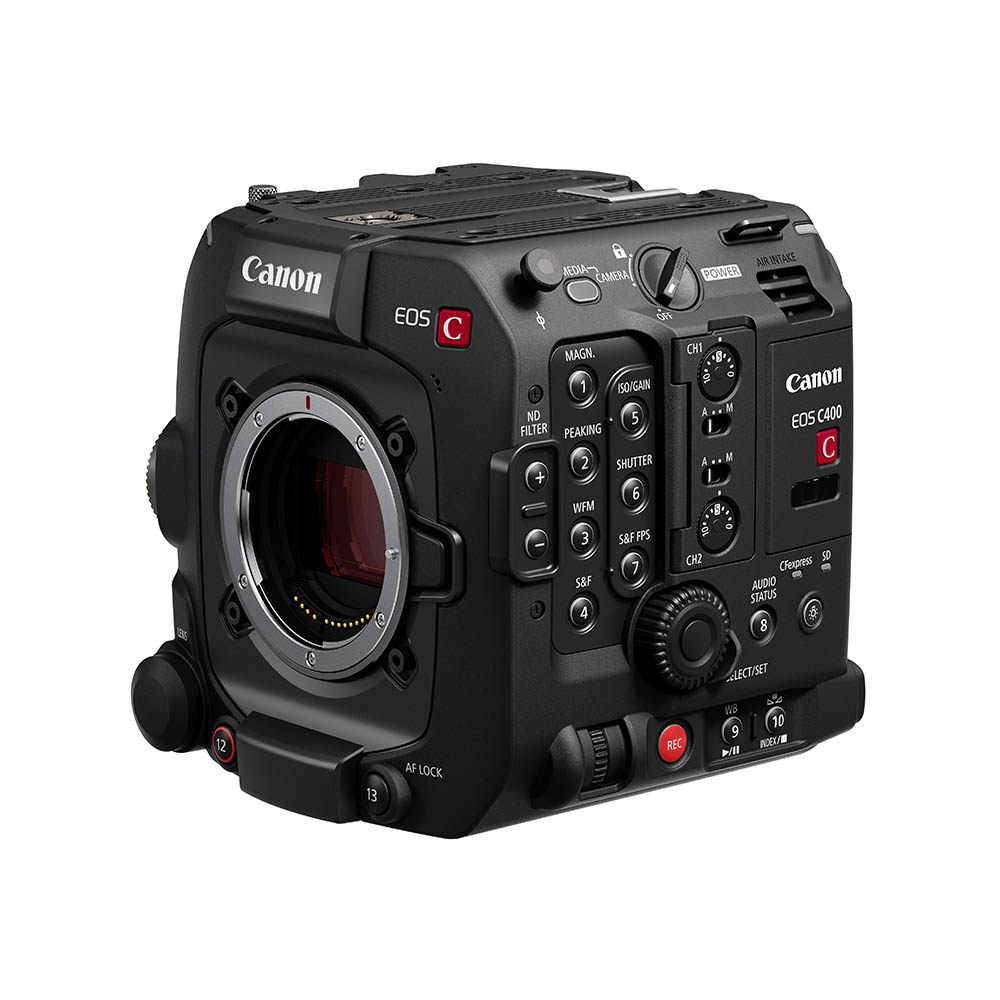

Canon EOS C400 6K Full Frame Cinema Camera

Categories: , SKU: 6388C008
Brand:

£7,798.80 £6,499.00 Ex. VAT

0 reviews

Only 1 left in stock

Description

Canon EOS C400 6K Full Frame Cinema Camera (6388C008) packs a cutting-edge 6K Full Frame BSI sensor with 16 stops of dynamic range, triple base ISO, and 18 customisable buttons into a compact, robust body. Building on Canon’s colour science to deliver warm skin tones and a naturally pleasing image. With professional connectivity, the CINEMA EOS C400 is your ally in cinema, live broadcast, and virtual production.

Setting a new standard, the camera introduces the Canon triple base ISO technology, crafted for optimal performance in low light environments and delivering the cleanest optical
results.

The EOS C400 features Dual Pixel CMOS AF II, the first for cinema EOS system, providing filmmakers with improved autofocus features. With comprehensive 100% coverage across
the sensor plane, the Dual Pixel CMOS AF II delivers swift and precise performance, upgrading filmmaking clarity and reliability whilst providing piece-of-mind that you are nailing the shot every time.

Features

  • Full frame 6K BSI sensor: Next-generation backside illuminated design maximises light sensitivity with 16 stops of dynamic range.
  • Triple base ISO: For optimal signal-to-noise ratio at 800 / 3200 / 12800 ISO
  • RF mount system: Enhanced imaging system platform also adaptable to PL and EF mounts
  • Dual Pixel CMOS AF II: Including EOS iTR AF X for tack-sharp auto-focus across the full sensor
  • Cinema RAW Light: Record 12-bit internally at LT, ST, and HQ for flexibility in postproduction
  • XF-HEVC S, XF-AVC S, and XF-AVC: Oversampled 4K 4:2:2 10-bit MP4 / MXF formats with detailed metadata
  • HDR: Produce high dynamic range content with Canon Log 2/3, PQ, and HLG
  • 5-axis Image Stabilisation: Combine Electronic IS with lens Optical IS for the most stable cinematic footage
  • Two card slots: Record to CFexpress Type B or SD UHS-II
  • Professional I/O: Extensive professional connectivity built-in
  • Active cooling: Quiet, efficient cooling for long recording times
  • Robust and compact: Versatile design adaptable to your shooting style

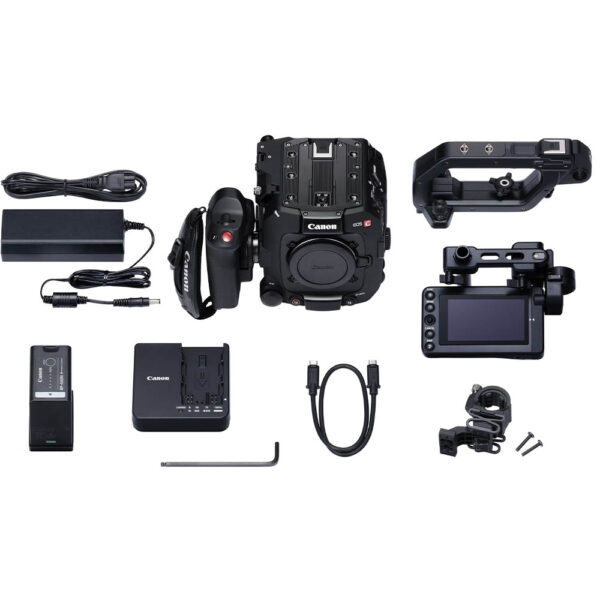

Comes With

  • 1x EOS C400 Body
  • 1x Handle Unit
  • 1x Camera Grip (incl. grip attachment ring)
  • 1x LCD Monitor & Attachment Unit
  • 1x MC-5U Monitor Cable
  • 1x Microphone Holder & Screws
  • 1x Body Cap
  • 1x Tape Measure Hook
  • 1x Hex Wrench
  • 1x BP-A60N Battery
  • 1x CG-A10 Battery Charger
  • 1x CA-CP300B Power Adapter
  • 1x User Manual

Additional information

BRAND

CANON

0.0 Average Rating Rated (0 Reviews)

Rated
0%
Rated
0%
Rated
0%
Rated
0%
Rated
0%

Be the first to review “Canon EOS C400 6K Full Frame Cinema Camera”

Your email address will not be published. Required fields are marked *


Delivery

Please note, for next-day shipping options the product must show in stock in the product status and be before the cut-off period. If the product does not show in stock most items will give an approximate lead time.

Collection
 Free Collection is available at our showroom in Hampton, please select this option at the payment stage at the checkout. Please allow one hour to pick and prepare your order for you so it is ready for you when you arrive. Collections must be made at our office during the hours of 9 am to 5:30 pm (Mon to Thurs) and 9 am to 5 pm (Friday).

Standard Delivery
Standard delivery costs £5.99 including VAT and will be sent out by Royal Mail or APC, this service can take 3-5 working days.

FREE UK Delivery On Orders Over £250
We offer FREE standard delivery on all orders over £250 Ex VAT to the UK mainland. Mon-Fri working days only. Saturday deliveries are not guaranteed.

Next Working Day Delivery
UK mainland orders placed before 2 pm will be dispatched the same day for next-day delivery. To qualify for next-day delivery orders must be placed before 2 pm Mon – Thur. Orders placed after 2 pm Thursday will be dispatched Friday for Monday delivery, excluding Bank Holidays. The charge for this service is £12.00 plus VAT. This service is only available for products that are in stock.

Saturday Delivery
Order before 2pm on Friday for Saturday deliveries. Saturday delivery cost £27.50 including VAT – this is only for the UK mainland.

*Excluding all Battery Generators*

Worldwide Shipping

At BPS we can arrange shipping worldwide on most of our products. Please contact sales@bps-tv.co.uk and provide details of the products you are interested in, billing and delivery address, and any company information. Our sales team will then arrange for a full quotation to be provided.

Specification

IMAGE SENSOR
SensorFull Frame Back Side Illuminated
(BSI) CMOS sensor
SystemRGB primary color filter (Bayer array)
Sensor ModesFull Frame / Super 35mm (Crop) /
Super 16mm (Crop)
Total PixelsApprox. 26.67 megapixels (6202 x 4300)
Effective PixelsApprox. 19.05 megapixels (6008 x 3170): When
6000 x 3164 / 4096 x 2160 / 2048 x 1080 is selected as the resolution
Approx. 17.86 megapixels (5633 x 3170):When
3840 x 2160 / 1920 x 1080 is selected as the resolution
Effective Sensor Screen SizeFull Frame: 38.4 x 20.2 mm (40.7 mm on the diagonal):
When 6000 x 3164 / 4096 x 2160 / 2048 x 1080 is selected as the resolution
36.0 x 20.2 mm (38.7 mm on the diagonal):When
3840 x 2160 / 1920 x 1080 is selected as the resolution
Dynamic RangeCanon Log 2: 1600% / 16 stops (at ISO 800)
Canon Log 3:1600% / 14 stops (at ISO 800)
Base ISO : 800 / 3200 / 12800
IMAGE PROCESSOR
TypeDIGIC DV7
LENS
Lens MountCanon RF mount
PL mount support via PL - RF Mount Adapter
EF mount support via EF - EOS R Mount Adapters
Lens Magnification FactorFull Frame;
4096 x 2160 or 2048 x 1080 : Actual focal length x Approx. 1.06
3840 x 2160 or 1920 x 1080 : Actual focal length x Approx. 1.12
Super 35mm (Crop); 4096 x 2160 or 2048 x 1080 : Actual focal length x Approx. 1.46
3840 x 2160 or 1920 x 1080 : Actual focal length x Approx. 1.54
Super 16mm (Crop); 2048 x 1080 : Actual focal length x Approx. 2.92 1920 x 1080 :
Actual focal length x Approx. 3.07
Digital Lens CorrectionPeripheral Illumination Correction
Chromatic Aberration Correction
Diffraction Correction
Distortion Correction (RF lenses only)
ND Filter2, 4 or 6 Stops. Up to 10 stops via built in ND filter system (in extended mode)
Iris Control (EF Mount Lenses)1/2 - stop, 1/3 - stop or
FINE control
Auto Iris
Cooke / i Technology SupportOnly when equipped with Mount Adapter PL-RF
Anamorphic Lens Supportx2.0 / x1.8 / x1.3
Image Stabilization System5-Axis Combination IS (Optical and Digital) with supported lenses
Digital 5-Axis IS for non IS lenses.
RECORDING
Internal Recording Media 11x CFexpress 2.0 (Type-B)
1x SD Card (SD / SDHC / SDXC)
Recording Time 2Cinema RAW Light LT : 6000 x 3164 576 Mbps : approx. 118 Mins
Cinema RAW Light ST : 6000 x 3164 886 Mbps : approx. 77 Mins
Cinema RAW Light HQ : 6000 x 3164 1800 Mbps : approx. 37 Mins
XF-AVC : 4096 x 2160 500 Mbps : approx. 136 Mins
XF-AVC S : 4096 x 2160 500 Mbps :approx. 136 Mins
XF-HEVC S : 4096 x 2160 135 Mbps :approx. 505 Mins
Recording FormatsCinema RAW Light (CRM), XF-AVC (MXF),XF-AVC S (MP4), XF-HEVC S (MP4)
Relay Recording 3Yes
Double Slot (Simultaneous) RecordingYes
Simultaneous Recording in Multiple FormatsYes
System Frequency / Frame Rates59.94 Hz mode (59.94P / 59.94i / 29.97P / 23.98P)
50.00 Hz mode (50.00P / 50.00i / 25.00P)
24.00 Hz mode (24.00P)
Cinema RAW Light Bit Rate / Bit Depth (PAL)12-bit Cinema RAW Light LT
FF / 6000 x 3164 / 50P [1160 Mbps]
FF / 6000 x 3164 / 25P [576 Mbps]
S35 / 4368 x 2304 / 50P [611 Mbps]
S35 / 4368 x 2304 / 25P [306 Mbps]
S16 / 2184 x 1152 / 50P [154 Mbps]
S16 / 2184 x 1152 / 25P [77 Mbps]
12-bit Cinema RAW Light ST
FF / 6000 x 3164 / 50P [1780 Mbps]
FF / 6000 x 3164 / 25P [886 Mbps]
S35 / 4368 x 2304 / 50P [939 Mbps]
S35 / 4368 x 2304 / 25P [470 Mbps]
S16 / 2184 x 1152 / 50P [236 Mbps]
S16 / 2184 x 1152 / 25P [118 Mbps]
12-bit Cinema RAW Light HQ :
FF / 6000 x 3164 / 25P [1800 Mbps]
S35 / 4368 x 2304 / 50P [1910 Mbps]
S35 / 4368 x 2304 / 25P [954 Mbps]
S16 / 2184 x 1152 / 50P [479 Mbps]
S16 / 2184 x 1152 / 25P [240 Mbps]
XF-AVC Recording Bit Rate / Sampling (PAL / MXF)4:2:2 10-bit (Intra-frame)
4096 x 2160 or 3840 x 2160 / 50P
[1000 / 750 / 500 Mbps]
4096 x 2160 or 3840 x 2160 / 25P
[500 / 375 / 250 Mbps]
2048 x 1080 or 1920 x 1080 / 50P [250 Mbps]
2048 x 1080 or 1920 x 1080 / 50i [125 Mbps]
2048 x 1080 or 1920 x 1080 / 25P [125 Mbps]
4:2:2 10-bit (Long GOP)
4096 x 2160 or 3840 x 2160 / 50P [250 Mbps]
4096 x 2160 or 3840 x 2160 / 25P [150 Mbps]
2048 x 1080 or 1920 x 1080 / 50P [50 Mbps]
2048 x 1080 or 1920 x 1080 / 50i [50 / 25 Mbps]
2048 x 1080 or 1920 x 1080 / 25P [50 Mbps]
XF-AVC S Recording Bit Rate / Sampling (PAL / MP4)4:2:2 10-bit (Intra-frame)
4096 x 2160 or 3840 x 2160 / 50P
[1000 / 750 / 500 Mbps]
4096 x 2160 or 3840 x 2160 / 25P
[500 / 375 / 250 Mbps]
2048 x 1080 or 1920 x 1080 / 50P [250 Mbps]
2048 x 1080 or 1920 x 1080 / 25P [125 Mbps]
4:2:2 10-bit (Long GOP)
4096 x 2160 or 3840 x 2160 / 50P [250 Mbps]
4096 x 2160 or 3840 x 2160 / 25P [150 Mbps]
2048 x 1080 or 1920 x 1080 / 50P [50 Mbps]
2048 x 1080 or 1920 x 1080 / 25P [50 Mbps]
4:2:0 8-bit (Long GOP)
4096 x 2160 or 3840 x 2160 / 50P [150 Mbps]
4096 x 2160 or 3840 x 2160 / 25P [100 Mbps]
2048 x 1080 or 1920 x 1080 / 50P [35 Mbps]
2048 x 1080 or 1920 x 1080 / 25P [35 Mbps]
XF-HEVC S Recording Bit Rate / Sampling (PAL / MP4)4:2:2 10-bit (Long GOP)
4096 x 2160 or 3840 x 2160 / 50P [225 Mbps]
4096 x 2160 or 3840 x 2160 / 25P [135 Mbps]
2048 x 1080 or 1920 x 1080 / 50P [50 Mbps]
2048 x 1080 or 1920 x 1080 / 25P [50 Mbps]
4:2:0 10-bit (Long GOP)
4096 x 2160 or 3840 x 2160 / 50P [150 Mbps]
4096 x 2160 or 3840 x 2160 / 25P [100 Mbps]
2048 x 1080 or 1920 x 1080 / 50P [35 Mbps]
2048 x 1080 or 1920 x 1080 / 25P [35 Mbps]
Proxy Recording Bit Rate / Sampling (PAL) 44:2:0 8-bit (Long GOP) :
2048 x 1080 or 1920 x 1080 35 / 16 / 9 Mbps]
1280 x 720 [6 Mbps]
4:2:0 10-bit (Long GOP) :
2048 x 1080 or 1920 x 1080 [16 / 9 Mbps]
Slow / Fast Motion 56K RAW : up to 60FPS
4K : up to 120FPS
4.3K RAW (S35 Crop) : up to 100FPS
2K (S16 Crop) : up to 180 FPS
Interval RecordYes
Frame RecordYes
Pre Record (Cache Record) 63 Seconds
Digital Tele-converter1.5x, 2x, 2.5x, 3x, Off
Photo Storage MediaSD Card
Photo Recording Size 74096 x 2160 / 3840 x 2160 / 2048 x 1080 / 1920 x 1080
SYSTEM
Display Type3.5 inch LCD Touch Panel
Display Resolutionapprox. 2.76 million dots (1280 x RGB x 720)
Display Touch Screen FunctionsFocus Point Selection
Touch Screen UI for Shooting Settings
OSD for Vertical ShootingYes
Wave Form MonitorYes (Line / Line + Spot / RGB Parade / YPrPb Parade)
False Colour Display (Exposure Indication)Yes (6 Colour Index)
Colour BarsSMPTE / EBU / ARIB
PeakingPeaking 1, Peaking 2 (Colour, Gain, Frequency customisable)
ZebraLevel 1; Level 2; Both
MarkersOn / Off selectable: centre, horizontal / vertical, grid,aspect,
safe area and user marker. Colour selectable
EVF
Built-In EVFNo

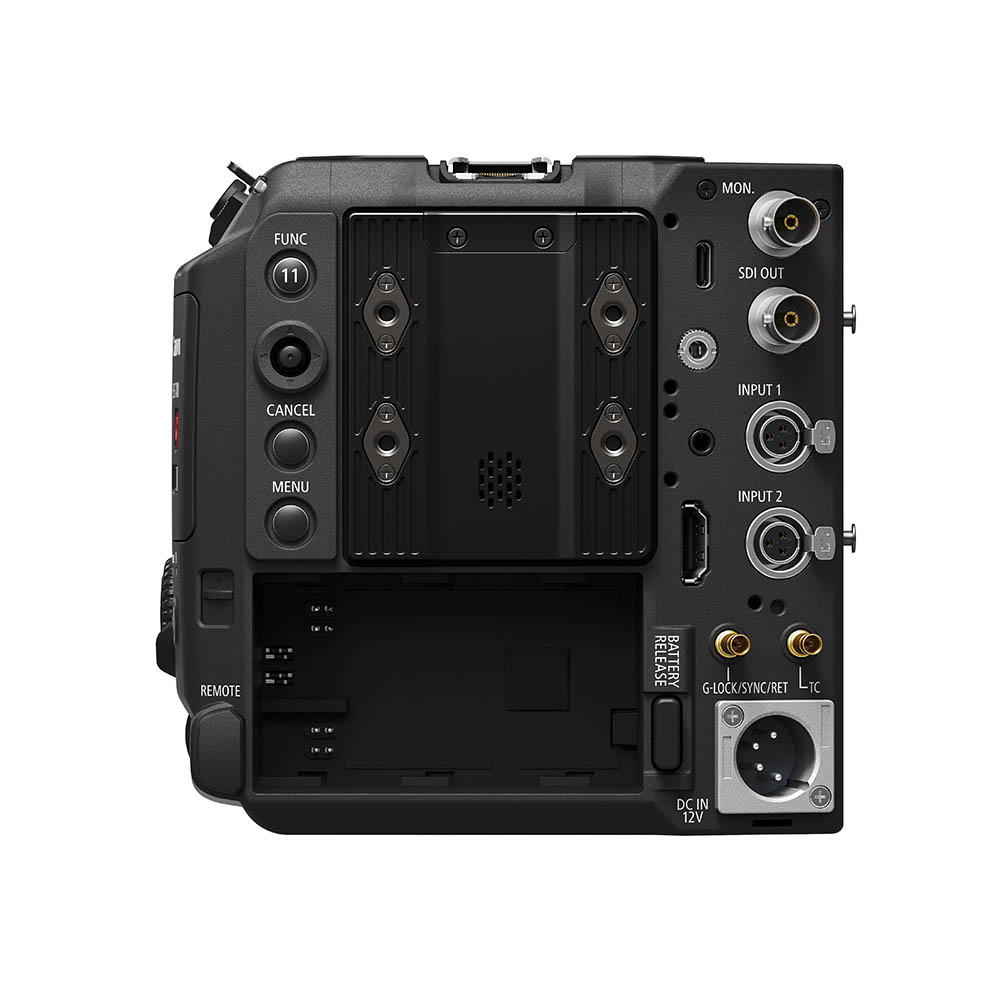

INPUTS / OUTPUTS
Audio In2x Mini XLR 3-pin connector
1x 3.5 mm stereo mini jack
Built in Stereo microphones on camera body
Headphone Output1x 3.5mm stereo mini jack
Video Monitor Output1x 3G-SDI Output (BNC)
HDMI1x HDMI (Type-A)
USB1x USB-C Data Terminal (USB 3.2 Gen1)
SDI Output1x 12G-SDI Output (BNC)
Time Code1x DIN1.0 / 2.3 (Input / Output)
Genlock1x DIN1.0 / 2.3 (shared with Sync & Return)
Sync1x DIN1.0 / 2.3 (shared with Genlock & Return)
DC Input12V (4-pin XLR / 11.5-20V)
Multi-Accessory ShoeYes (via camera body or top handle)
Remote Control Terminal1x 2.5 mm stereo mini jack
Lens Terminal1x 12-pin jack
Ethernet Terminal1x RJ45Connector (1000BASE-T compatible)
Grip1x USB-C Terminal (for supplied Hand Grip only)
IP Streaming / FTPIP Streaming via Ethernet / Wi-Fi connection
9 Mbps / 4 Mbps: 1920 x 1080
(59.94p / 59.94i / 50.00p / 50.00i)
UDP / RTP / SRT / RTP+FEC / RTSP+RTP
User LUT InputYes, in-built LUTs available for monitoring.
Custom LUTs can be applied directly to internal recordings via Look File function
(compatible with 17 or 33 grid .cube files)
Video Connector1x USB-C Terminal (for supplied LCD Monitor only)
Tally SignalYes, via Wi-Fi or Ethernet using XC Protocol
Return Signal Input1x DIN1.0/2.3 (shared with Genlock & Sync)
Default Function Button Settings1. MAGN.
2. PEAKING
3. WFM
4. S&F
5. ISO / GAIN
6. SHUTTER
7. S&F FPS
8. AUDIO STATUS
9. WB
10. SET WB
11. FUNC
12. (unassigned)
13. AF LOCK
User Assignable Buttons13x (Body) / 3x (Hand Grip) / 2x (LCD Monitor)
MISCELLANEOUS
Tally LampYes, 2x
Custom DialYes, 3x
Software Application SupportCinema RAW Development
XF Utility
EOS VR Utility
Remote Camera Control Application
RAW Plugin for Avid Media Access
RAW Plugin for Final Cut Pro
XF Plugin for Avid Media Access
EOS VR Plugin for Adobe Premiere Pro
CV Metadata Plugin for Adobe After Effects
Live Link Plugin for Unreal Engine
CV Metadata Extraction Tool
MP4 Join Tool
HEVC Activator
Smartphone Application SupportCanon Multi-Camera Control
Content Transfer Professional
Browser Remote Control
EXPOSURE
Exposure MeteringStandard / Spotlight / Backlight
Exposure CompensationAE shift function available. Target value (±8 steps from center)
Auto Exposure ModeAuto Iris / Auto ISO
Push Auto IrisYes
Exposure LockNo
Auto Gain Control SettingYes
ISO Sensitivity 81-Stop Display :
100* / 160** / 200 / 400 / 800 / 1600 / 3200 / 6400 /
12800 / 25600 / 51200 / 102400*
1/3-Stop Display :
100* / 125* / 160 / 200 / 250 / 320 / 400 / 500 / 640 /
800 / 1000 / 1250 / 1600 / 2000 / 2500 / 3200 / 4000 /
5000 / 6400 / 8000 / 10000 / 12800 / 16000 / 20000 /
25600 / 32000 / 40000 / 51200 / 64000* / 80000* /
102400*
*when ISO Extended Range is set to ON
**when ISO Extended Range is set to OFF
Auto Focus SystemDual Pixel CMOS AF II + EOS iTR AF X
AF Frame SizesFull: approx. 100% (Vertical) x approx. 100% (Horizontal)
Large Zone (Vertical) : Video display range approx. 97% (Vertical) x 25% (Horizontal)
Large Zone (Horizontal) : Video display range approx. 43% (Vertical) x 76% (Horizontal)
Zone: Video display range approx. 43% (Vertical) x 25% (Horizontal)
Small Zone : Video display range approx. 15.9% (Vertical) x 11.8% (Horizontal)
Auto Focus ModesContinuous AF / One-Shot AF
Face Detection AFYes (Eye / Face / Head / Body)
Animal Detection AFYes (Dogs / Cats)
Focus GuideYes, with compatible Canon lenses
Gain Setting 9-6dB*,-3dB*,-2dB**~48dB, 51dB*, 54dB*
*when ISO Extended Range is set to ON
**when ISO Extended Range is set to OFF
SHUTTER
Control ModesSpeed / Angle / Clear Scan / Slow Shutter
Shutter Speed1/1~1/2000 (total of 45 settings)
Shutter Angle11.25º to 360º depending on frame rate
Slow Shutter (SLS)1/3, 1/4, 1/6, 1/8, 1/12, 1/15, 1/25, 1/30 depending on frame rate
Clear Scan23.97 Hz~2000 Hz depending on sensor mode / frame rate
CUSTOM PICTURE
Stored ConfigurationsC1 : Canon 709
C2 - Canon Log 2
C3 - Canon Log 3
C4 - BT.709 Wide DR
C5 - BT.709 Standard
C6 - PQ
C7 - HLG
C8 - EOS Standard
C9 - EOS Neutral
C10 - User10~User20
HDR-HLG ProfileBT.2100 : Corresponds to ITU-R BT.2100
Vivid : Corresponds to Traditional Colour in ITU-R BT.2390
Colour MatrixNeutral Accurate colour reproduction
Production Camera Colour reproduction for use in movie production
Video Colour reproduction with contrast for TV broadcasts.
Image Adjustment ParametersMaster Pedestal
Master Black
Black Gamma
Low Key Saturation
Knee
Sharpness
Noise Reduction
Skin Detail
Colour
Matrix Tuning
White Balance
Colour
Correction
WI-FI & GPS SPECIFICATIONS
Wi-Fi (Optional Third Party Accessory)In-built (2.4 / 5GHz bands)
Supporting 802.11a/b/g/n/ac
GPS Information (Optional Accessory)Only when equipped with GP-E2 GPS Receiver)
WHITE BALANCE
AutoYes
PresetDaylight (5600K), Tungsten (3200K), Kelvin (2000K-15000K, 100K intervals), Set A, Set B
White Balance Shift-5 CC- +5 CC (Daylight / Tungsten) -20 CC- +20 CC (Kelvin)
TIME CODE
Count Up SystemRegen / RecRun / Free Run / External / Frame Count
AUDIO
Recording FormatRAW / XF-AVC : Linear PCM (24-bit / 48 kHz, 4channels)
XF-AVC S / XF-HEVC S : Linear PCM (24-bit / 48 kHz,4 channels)
or MPEG2-AAC LC (16-bit 48kHz) 2 channels
ACCESSORIES
SuppliedLCD Monitor
LCD Attachment Unit
MC-5U Monitor Cable
Handle Unit
Camera Grip
BP-A60N Battery Pack
CA-CP300 B Compact Power Adapter
CG-A20 Battery Charger
Microphone Holder
OptionalBP-A60N / BP-A30N Battery Pack
BP-A30 / BP-A60 Battery Pack
CG-A20 / CG-A10 Battery Charger
CA-CP300 B Compact Power Adapter
MC-5U Monitor Cable
PL-RF Mount Adapter
EF-EOS R Mount Adapter
EF-EOS R Control Ring Mount Adapter
EF-EOS R Drop-In Filter Mount Adapter
EF-EOS R 0.71x Mount Adapter
Remote Camera Controller RC-V100
Remote Camera Controller RC-IP100
Remote Camera Controller RC-IP1000
DM-E1D Multi-Function Shoe Directional Stereo
Microphone OC-E4A Off-Camera Shoe Cord
IFC-100U / IFC-400U Interface Cable
Third Party AccessoriesTascam CA-XLR2d XLR Microphone Adapter
POWER SOURCE
Power Supply (Battery) 10BP-A60N (Supplied)
BP-A30N / BP-A30* / BP-A60* (Optional)
Power supply (Mains)DC IN 12V terminal : DC 11.5V-20V (4-pin XLR)
Power ConsumptionCinema RAW Light: FF / 6K / 59.94P-32.5W
Cinema RAW Light: S35 / 4.3K / 59.94P-30.4W
XF-AVC: FF / 4K / 59.94P-31.6W
XF-AVC: FF / 2K / 59.94P-29.7W
Recording TimeWith supplied BP-A60N battery pack
Approx. 155-170mins (depending on recording mode)
PHYSICAL SPECIFICATIONS
Dimensions (Main Body Only)Approx. 142 x 135 x 135 mm
Weight (Body Only)Approx. 1540 g
Weight (Accessories)LCD Monitor: Approx. 155g
LCD Attachment Unit: 260g
MC-5U Monitor Cable: Approx. 25g
Handle Unit: Approx. 300g
Camera Grip: Approx. 270 g
BP-A60N Battery Pack: Approx. 465g
CA-CP300 B Compact Power Adapter: Approx. 219g
Battery Charger CG-A20: Approx. 145g
Microphone Holder + 2 screws: Approx. 60g
Operating Temperature RangeApprox. 0 to 40°C, (85% relative humidity)
Approx.-5 to 45°C, (60% relative humidity)
Footnotes
1RAW Recording only available via CFexpress
2Based on 25P recording on a 512GB card at maximum bitrate
3Relay Recording not available during RAW or S&F Recording
4Proxy recording available in XF-AVC, XF-AVC S and XF-HEVC S
(depending on the mainformat selected). Not available in S&F mode above 60FPS
5Dual Pixel CMOS AF unavailable when recording above 60FPS
6Pre Record not available during RAW Recording
7Depending on Sensor Mode and Format selected
8Available when Base ISO is set to Automatic
9Available when Base ISO is set to Automatic
10Multi-Accessory Shoe power supply and communication via
LENS terminal are unavailablewhen using original BP-A30 / BP-A60 batteries
